INSTALLATION & OPERATING INSTRUCTIONS
Solar Portable Bluetooth speaker + light

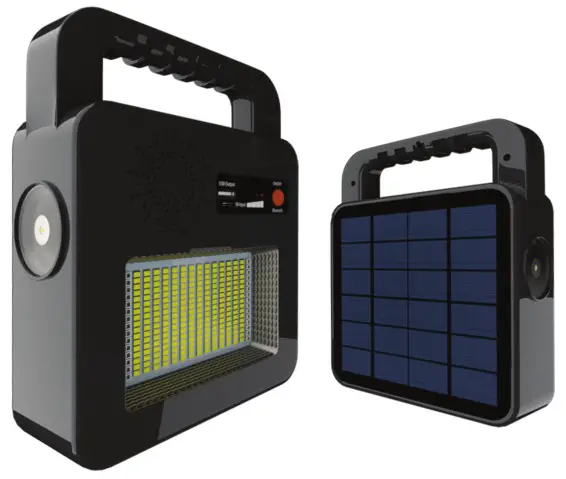

Flashlight And Flood Light FunctionsOPTONICA 233 Solar Portable Bluetooth Speaker and Light - Cover

233 Solar Portable Bluetooth Speaker and Light

ITEM NO.SOLAR
PANEL
BATLUMENCCTFUNCTIONIP COLOR
2283.5W Poly6000mAHFlood: 380lm
Flash: 130lm
6000KDIM + SOS+
BT+ Charging
IP44Black
2243.5W Poly6000mAHFlood: 380lm
Flash: 130lm
6000KDIM + SOS+
BT+ Charging
IP44Green Camouflage
2233.5W Poly6000mAHFlood: 380lm
Flash: 130lm
6000KDIM + SOS+
BT+ Charging
IP44Yellow

Solar Portable Bluetooth speaker + lamp

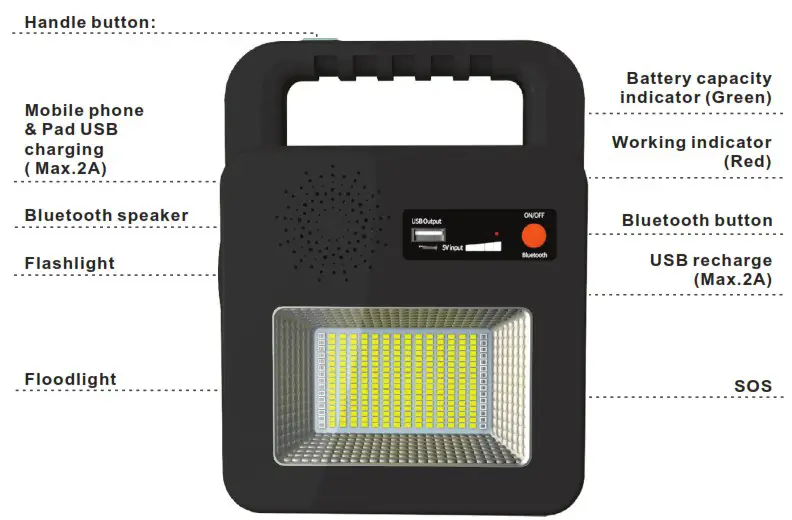

OPTONICA 233 Solar Portable Bluetooth Speaker and Light - Product Overview

  • Handle button:
    1st press: Flashlight mode on 100% brightness level;
    2nd press: Flashlight brightness down to 50% level;
    3rd press: Change to floodlight mode on 100% brightness level;
    4th press: Floodlight brightness down to 50% level;
    5th press: Change to SOS, red and blue light flicking;
    6th press: Turn off
  • Bluetooth button:
    Press it, you would hear “Ding-dong” and the orange button flicking.
    Connect the bluetooth as a speaker. Press it again, turn off the Bluetooth mode.

Safety Instructions

  • Pls make the lamp full charge before using.
  • Ensure that the lamp mounting location is free from occlusion and can be fully exposed to sunlight.
  • The lighting effect is different depending on different seasons, times and mounting location.
  • Do not expose the lamp to fire or intense heat.
  • Do not immerse the lamp into water.
  • There’s some difference in lithium battery capacity during summer and winter.
  • Under optically control, the lamp will automatically recharge by solar panel during daylight and turn on automatically at night.

IMPORTER: Prima Group 2004 LTD, Bulgaria, 1784 Sofia, Mladost 1, bl. 144, Ground Floor; Phone: +359 2 988 45 72;
