MMC500C Mega Mouth High Speed Juicer
User Manual

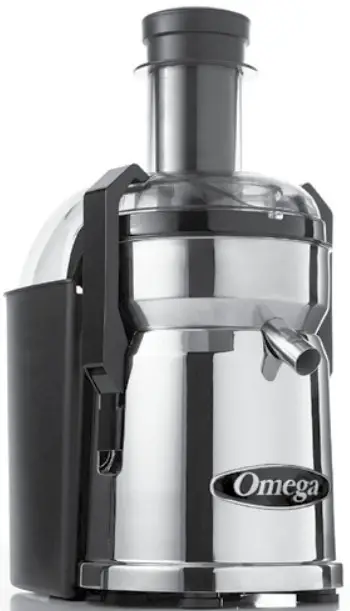

Mega Mouth High Speed Juicer
PULP EJECTOR JUICER

Congratulations!

CONGRATULATIONS on the purchase of your new Omega product.
At Omega, we strive to develop technologically advanced machines that help deliver nutrition and flavor of the highest kind and closest to nature’s purest form. We are driven by you, our brand supporters. Your enthusiasm helps us continue to reinvent and renew our line of juicers, high speed blenders and beverage equipment. Our team at Omega thanks you for supporting us for over 50 years!
Join us on Twitter @OmegaAppliances &/or on Facebook @OmegaJuicers
PRODUCT REGISTRATION, VISIT: www.omegajuicers.com/omega-warranty-registration
RECIPES, VISIT: www.omegajuicers.com/recipes
CUSTOMER SERVICE: Call 1-800-633-3401 or visit: www.omegajuicers.com/contact-omega-juicers
After using your Omega, we kindly ask you to rate the machine on
www.OmegaJuicers.com

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should always be followed including the following.

1. Read all instructions.
2. To protect against risk of electrical shock, do not immerse cord, plugs or the appliance in water or other liquid.
3. Close supervision is necessary when any appliance is used by or near children.
4. Unplug your juicer from the outlet when not in use, before putting on or taking off parts, and before cleaning.
5. Avoid contacting moving parts.
6. DO NOT operate this or any appliance with a damaged cord or plug, or after the appliance malfunctions or is dropped or damaged in any manner. Return appliance to the nearest authorized service facility for examination, repair or electrical or mechanical adjustment.
7. The use of attachments not recommended or sold by the manufacturer may cause fire, electrical shock or injury.
8. DO NOT use outdoors.
9. DO NOT let cord hang over edge of table or counter, or touch hot surfaces.
10. DO NOT place near a hot gas or electric burner or in a heated oven.
11. DO NOT use appliance for other than intended use.
12. Always make sure juicer cover is clamped securely in place before motor is turned on.
13. DO NOT unfasten latch arms while juicer is in operation.
14. Be sure to turn the switch to the off position after each use. Make sure the motor stops completely before disassembling.
15. DO NOT put your fingers or other objects into the feed chute while the juicer is in operation. If food becomes lodged in the feed chute, use pusher or another piece of fruit or vegetable to push it down. When this method is not possible, turn the motor off and disassemble the juicer to remove the remaining food.
16. DO NOT use the appliance if the rotating sieve is damaged.
17. Do not operate without the pulp container in place.
18. Turn the Juicer OFF. Blade must STOP before switching power ON again. The motor may not restart if the juicing screen is still spinning.

Avoid machine damage. Do not switch the juicer ON/OFF repeatedly.
WARNING When using [ON] or [OFF] button, make sure that the motor stops completely.
SAVE THESE INSTRUCTIONS

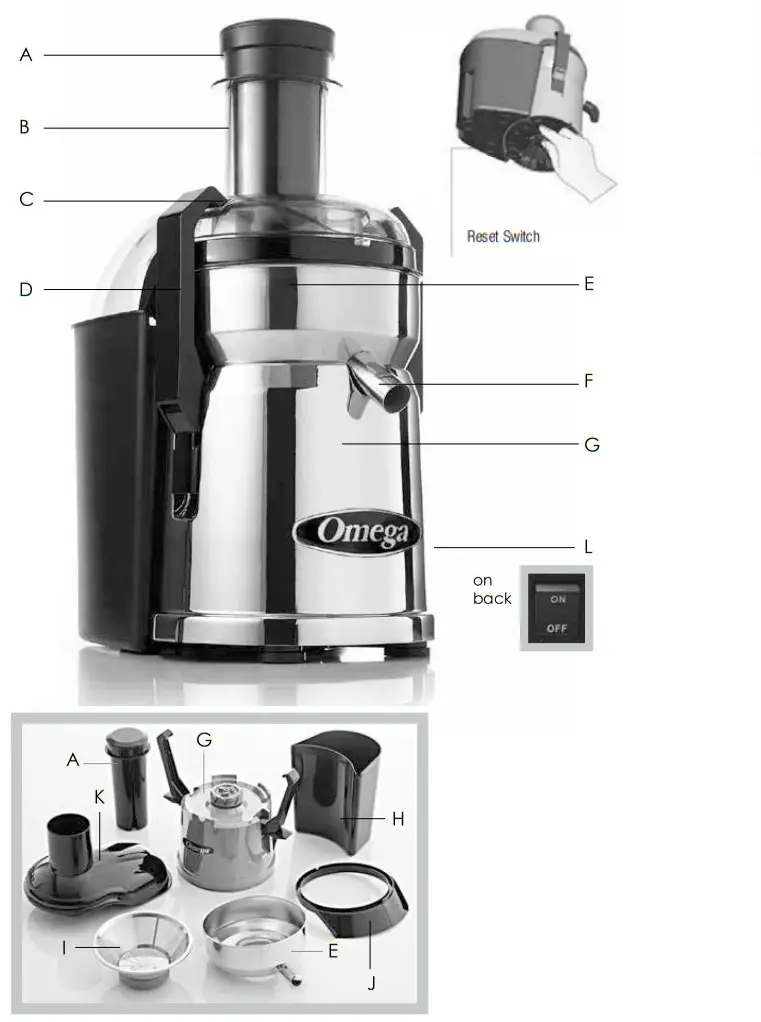

KNOW YOUR OMEGA

This product uses a reset switch and thermal cutoff to protect the motor.
If the unit stops running during operation, press the reset switch on the bottom of the unit.
If the unit will still not operate, unplug, wait for 30 minutes, and try again.

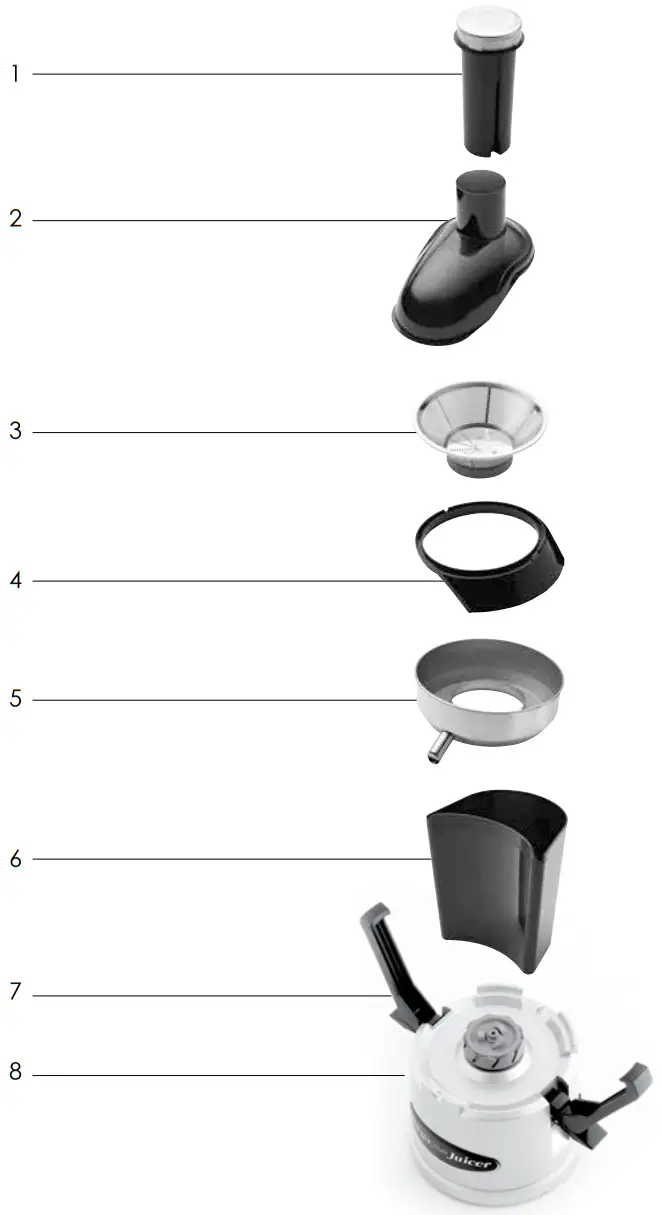

QUICK START ASSEMBLY

1. Pusher
2. Cover
3. Juicing Screen Blade Assembly
4. Bowl Ring
5. Bowl
6. Pulp Receptacle Bin
7. Latch Arm
8. Base Housing

INSTRUCTIONS:

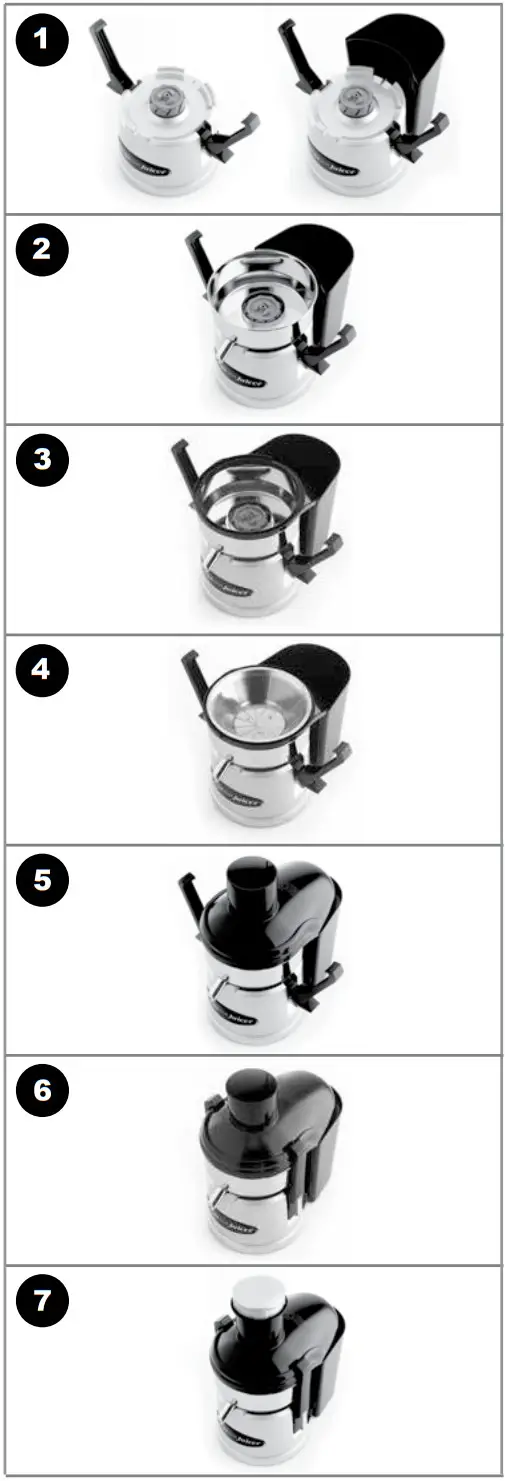

How to Assemble

	Place the pulp receptacle bin behind the motor base housing.
	Place the bowl on the base housing with the spout facing the front of the unit.
	Place bowl ring on top of the bowl with the groove facing upwards. Align the chute over the pulp receptacle bin.
	Place the juicing screen/blade assembly inside the bowl, making certain it rests flat.
	Place cover on bowl with ejection chute opening to the rear. The tab on the front of the cover should rest in the groove on the pulp chute. The pulp chute shouldrest inside of the pulp receptacle bin.
	Place tabs of latch arms over cover and secure by pressing down on the bottom of each latch arm.
	Insert pusher into the feed chute, with the arrow facing backwards.

INSTRUCTIONS:

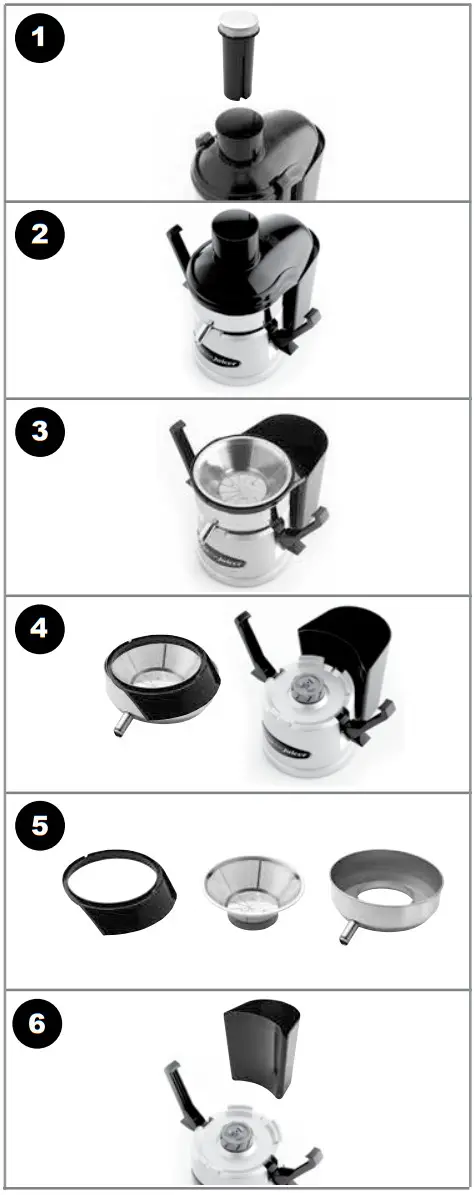

How to Disassemble

	Remove pusher from feed chute.
	Release both side latch arms by inserting fingers into the two side openings at the bottom of the motor base housing and by pulling outward.
	Remove cover.
	Lifting from the bowl. Simultaneously lift out bowl, coupling, and strainerbasket/blade assembly. Do not attempt to remove the strainer basket/blade assembly by itself.
	Separate the pulp chute, strainer basket/blade assembly and coupling from bowl.
	Remove the Pulp Reception Bin.

SPECIAL NOTE: The stainless steel basket is a precision-engineered item that should be handled carefully. This will help the juicer run efficiently and smoothly while increasing its operating life.

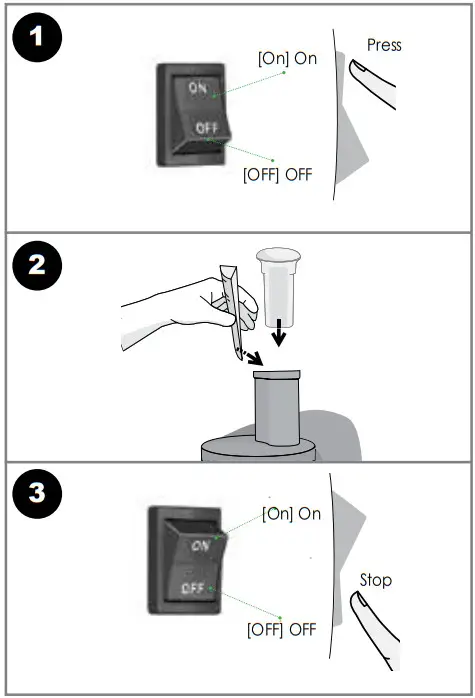

OPERATING INSTRUCTIONS

ON/OFF BUTTON

	Press [ON] button to start.
	Gradually put the ingredients into the chute and press down with the pusher.
	After the extraction is complete, place the switch in [OFF] position to stop. WARNING When using [ON] or [OFF] button, make sure that the motor stops completely.

STERILIZATION & EASY CLEANING

STEP 1 Follow the disassembling instructions as explained previously in this manual.
STEP 2 Thoroughly wash parts in hot water. No detergent is required, but a mild detergent may be used if desired. Pulp chute, plunger, and cover require only light rinsing.
STEP 3 Wash strainer basket/blade assembly and bowl under running water. A stiff brush may be used to loosen any food residue.
STEP 4 If desired, removable parts may be cleaned in the dishwasher on the top rack. Do not attempt to clean motor base housing in the dishwasher.
STEP 5 To remove pulp debris from the strainer basket/blade assembly, scrape out using a non-abrasive brush. Place the strainer basket/blade assembly under running water to aid in the cleaning process.
STEP 6 Towel dry all parts before reassembling.
STEP 7 After repeated use, mineral stains may begin to appear on parts that come in contact with juice. Immerse all removable parts and completely submerge in water overnight with a solution of eight tablespoons of dishwasher detergent pergallon of water. (Do Not immerse the motor base housing).
STEP 8 If juicing daily, it is recommended to soak parts overnight as mentioned above on a weekly basis. If this precaution is not taken the openings in the mesh screen of the basket will start to fill in, making the juicer less efficient.
STEP 9 Your Omega Juicer never needs lubrication of any kind.
DISHWASHER USE: The stainless steel parts of the Mega Mouth Juicer can be placed in the dishwasher. The plastic parts may be placed in the dishwasher on the top rack only if the water is not extremely hot. If the water is too hot, the items should be hand washed. Plastic parts that become warped due to high heat will not be covered under the warranty.

PRECAUTIONS FOR SAFE USE

All users of this appliance must read and understand these safety precautions before operating.
SIGN SAMPLES

	This sign indicates contents that may cause risk of a fire or an electrical shock. Specific warning is written in the sign.
	This sign indicates prohibited acts. Specific prohibitions are written around or in the sign.
	This sign indicates contents of regulating or directing actions. Specific prohibitions are written around or in the sign.

PRECAUTIONS

	CAUTION Hazards or unsafe practices which could result in minor personal injury or appliance damage.
	DO NOT PLUG IN OR UNPLUG WITH WET HANDS. It may cause an electric shock or an injury.
	DO NOT USE WITH OTHER THAN RATED VOLTAGE. It may cause an electric shock, a fire or abnormal performance. If the voltage is different, it may shorten the life of the motor or cause a failure.
	PLUG THE POWER CORD CORRECTLY AND PUSH IT TIGHT IN A WALL SOCKET. It may cause electric shock or a fire.
	IF THE SUPPLY CORD IS DAMAGED, IT MUST BE REPLACED BY THE MANUFACTURER, ITS SERVICE OR SIMILARLY QUALIFIED PERSONS IN ORDER TO AVOID A HAZARD. If the power cord is damaged, it may cause electric shock or a fire.
	NEVER ALTER THE APPLIANCE. ALSO, DO NOT DISASSEMBLE OR REPAIR BY YOURSELF. DO NOT INSERT FINGERS, FOREIGN SUBSTANCES OR OBJECTS SUCH AS PINS INTO GAPS OR HOLES IN THE BASE. It may cause a fire, an electric shock or a failure. For any technical support, contact the authorized local Customer Care Center.
	DO NOT MOISTEN THE BASE OR SPLASH WATER ON THE BASE. Be careful not to let any liquids or other substances get into the switch on the appliance. DO NOT OPERATE THE SWITCH WITH WET HANDS. It may cause electric shock or a fire.
	WHEN THE POWER CORD, WIRE IS BROKEN OR DAMAGED OR THE PLUG-IN PART BECOMES LOOSE, DO NOT OPERATE IT. It may cause an electric shock, a fire or an injury.
	NEVER DISASSEMBLE BOWL SET DURING OPERATION OR INSERT FINGERS, FOREIGN OBJECTS SUCH AS FORKS, SPOONS ETC. INTO FEEDING CHUTE OR JUICE SPOUT. It may cause an injury, an accident or a failure.
	THIS APPLIANCE IS NOT INTENDED FOR USE BY PERSONS (INCLUDING CHILDREN) WITH REDUCED PHYSICAL, SENSORY OR MENTAL CAPABILITIES, OR LACK OF EXPERIENCE AND KNOWLEDGE, UNLESS THEY HAVE BEEN GIVEN SUPERVISION OR INSTRUCTION CONCERNING USE OF THE APPLIANCE BY A PERSON RESPONSIBLE FOR THEIR SAFETY. Children should be supervised to ensure that they do not play with the appliance.
	DO NOT OPERATE WITHOUT LOCKING THE LATCH ARMS PROPERLY. It may cause an injury or a failure.
	WHEN DETECTING A GAS LEAK, DO NOT INSERT THE POWER CORD INTO ITS SLOT. OPEN THE WINDOW TO VENTILATE FULLY AND IMMEDIATELY. It may cause an injury or a failure.
	IF SCREW ROTATION IS STOPPED IN NORMAL OPERATION, PRESS [REVERSE/REV] BUTTON AND HOLD FOR 2~3 SECONDS AND THEN AFTER REVERSE OPERATION ISCOMPLETELY STOPPED, PRESS [ON] BUTTON AGAIN. If such a stop event continues during the operation, the parts may be damaged and performance may be deteriorated due to overheating in a motor. When the problem continues, immediately stop the appliance and contact the local Customer Care Center.
	NEVER PUT A FINGER, A FORK OR A SPOON ETC. INTO JUICE SPOUT. It may cause an injury or a failure.
	DURING THE OPERATION, DO NOT ATTEMPT TO MOVE THE BASE, DISASSEMBLE THE BOWL SET OR PARTS AND TRY TO UNLOCK THEM. It may cause an injury or a failure. Switch off first and unplug the power cord prior to taking appliance apart.
	WHEN USING THE APPLIANCE, BE CAREFUL FOR A NECKTIE, LONG NECKLACE, SCARF ETC. BECOMING ENTANGLED INTO FEEDING CHUTE. It may cause an injury, a failure or a breakage.
	PLACE THE APPLIANCE ON A FLAT AND STABLE SURFACE. It may cause an injury or a failure.
	DO NOT OPERATE THE APPLIANCE FOR MORE THAN 30 MINUTES AT A TIME. It may cause a motor failure due to overheating. Cool it down sufficiently for 5 minutes and operate it again.
	WHEN PLACING INGREDIENTS INTO THE FEEDING CHUTE, ONLY USE THE PUSHER PROVIDED. It may cause an injury or a failure.
	DO NOT ALLOW A SEVERE SHOCK TO THE APPLIANCE OR DROP IT. It may cause an electric shock, a fire or damage
	IF THE APPLIANCE GIVES OFF AN UNPLEASANT SMELL, EXCESSIVE HEATING, OR SMOKE, STOP USING IMMEDIATELY AND CONTACT THE LOCAL CUSTOMER CARE CENTER. When using a new appliance, it will give off a smell and the smell disappears naturally over time.
	ALWAYS UNPLUG THE APPLIANCE AFTER USE. WHEN UNPLUGGING THE POWER CORD, MAKE SURE TO HOLD THE POWER CORD. If holding the wire to unplug, it may cause an electric shock or a fire.
	THE APPLIANCE WEIGHS ABOUT 161 LB (7.2 KG). WHEN MOVING THE APPLIANCE, ENSURE TO MOVE IT HOLDING GRIPS TIGHTLY AT THE BASE BOTTOM WITH BOTH HANDS. If attempting to hold bowl or the edge of the base, the base may fall causing an injury or a failure.

IF YOUR JUICER ISN’T WORKING

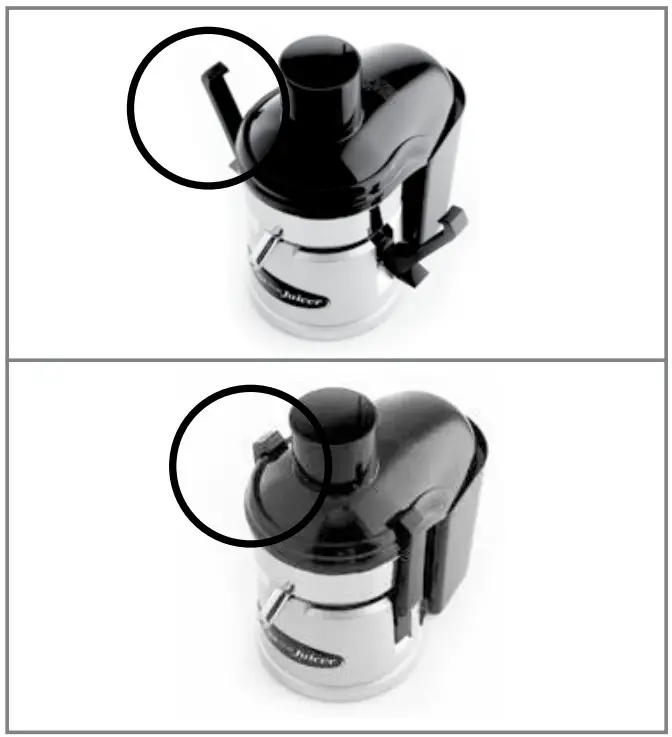

If the latch arm on the left side is not secure and properly in place the juicer’s safety switch will not engage. Therefore, the juicer will not work. Assemble the juicer properly.

If the juicer still is not working, please contact
Omega Customer Service 1-800-633-3401
Online www.omegajuicers.com/contact-omega-juicers.

HINTS & TIPS

• Make sure the machine is running at full speed before beginning to juice.
• Do not force food in to the juicer. For most fruits and vegetables, a slow, steady push down the chute will provide optimal juicing.
• The Mega Mouth Juicer is capable of juicing many types of large fruits and vegetables without the need for cutting. If a fruit or vegetable must be cut, cut only into large pieces that easily fit down the feed chute.
• When preparing a drink that uses a combination of more than one fruit or vegetable, we suggest alternating the various fruits or vegetables when placing them in the machine. For example: Carrot Apple Juice – place one or two pieces of carrot into the feed chute, then a piece or two of apple. Continue alternating this manner.
• When juicing leafy greens we suggest that you twist and roll the greens into a ball roughly the size of a golf ball. Always place the greens into the juicer first, followed by crisper vegetables such as carrots, celery, etc.
• When juicing very soft fruits and vegetables, such as tomatoes, grapes and peaches, we suggest that you alternate with firmer fruits and vegetables.
• Cleaning the Fruits and Vegetables: Before you begin juicing, thoroughly wash all fruits and vegetables. A vegetable brush may be used to clean carrots, cucumbers, celery, etc. Cut away any decaying, diseased, or spoiled portions of all fruits and vegetables.
• Preparing the Fruits and Vegetables: It is not necessary to peel your fruits and vegetables. Many of the nutrients are contained under the surface near the skin. Some exceptions that should be peeled include cucumbers, pineapples, oranges, grapefruit. These should always be peeled.
• USES OF PULP: With the Omega Mega Mouth Juicer, nothing is wasted. The pulp has a variety of uses, including flavoring in soups, cakes and salads, as compost in gardens and plants, feed for small pets, and even baby food (after mixing the remaining pulp with juice/water to dilute).

SPECIAL NOTE: Bananas can not be juiced, only pulverized, therefore it is not recommended to try to juice bananas with a Mega Mouth Juicer.

TROUBLESHOOTING

Please troubleshoot using the details below before contacting Omega Customer Service for repair or service. When contacting Omega for after-sales service, please have the manufacturer’s serial number or bar code available.
The Appliance Does Not Work

• Make sure the power cord is plugged in correctly.
• Make sure the juicer is assembled correctly. If the right latch arm is not locked into place, the appliance will not operate.
• Make sure the appliance is assembled according to the instructions in this manual.

Refer to the instructions.

• If the appliance still does not work, please contact Omega Customer Service for additional support.

The Appliance Stops During Normal Operation

• Check for large pieces of food stuck in the appliance.
• If the appliance still does not work, please contact Omega Customer Service for additional support.

Fine Lines or Scratch Marks

• This is normal. Do not be concerned. These are molding marks resulting from the normal manufacturing process.

Juice Leaks Over the Base

• Check to make sure a cup is properly located under the juice spout.
• Do not force too much food into the juicer. Push food gradually for extraction.
• Check to make sure the pulp receptacle bin is properly placed behind the motor case housing.

Juicer Shakes when In-Use

• This is normal as the strainer basket rotates. It is not a malfunction. Hard ingredients such as carrots, potatoes, radishes, beets, etc. may cause shaking more so than soft ingredients.
• Depending on the firmness of the ingredient, there may be a more pronounced shaking of the motor.
• Slight shaking may be caused by the motor.

CONTACT US:
Customer Service: 1-800-633-3401
Online: www.OmegaJuicers.com/contact-omega-juicers

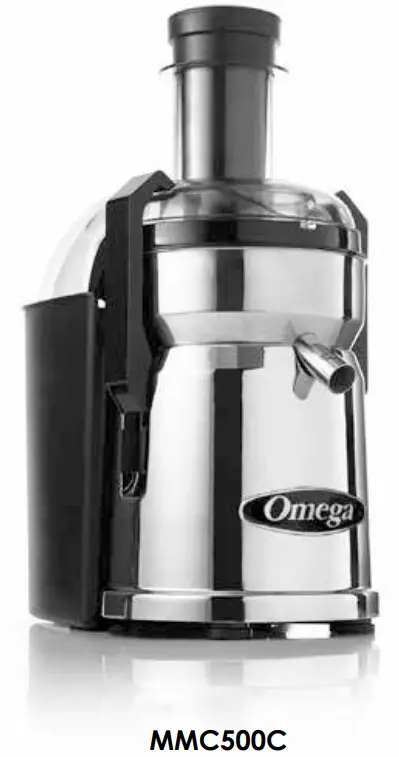

PRODUCT SPECIFICATIONS

NOTES: —————

Nourish Your Body
Enrich Your Soul
Discover the complete line of Omega brand professional products at
www.OmegaJuicers.com
6291 Lyters Lane
Harrisburg, PA 17111, USA
T: 1.800.633.3401
F: 717.561.1298
060118
