momentum BICYCLE Pakaway Folding Bike Owner’s Manual

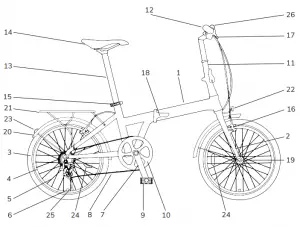

WHAT IT’S CALLED
1 FRAME | 14 Saddle |
2 Fork | 15 Seat Post quick release |
3 Tire | 16 Brake arm |
| 4 Rim | 17 Brake lever |
5 Spoke | 8 Frame Folding quick release |
6 Valve | 19 Hub |
7 Crank | 20 Mudguard |
| 8 Chain | 21 Rack |
9 Pedal | 22 Front reflector |
| 10 Chain ring | 23 Rear reflector |
11 Foldable stem | 24 Wheel reflector |
12 Handlebar | 25 Kickstand |
| 13 Seat Post | 26 Bell |
Folding Procedure

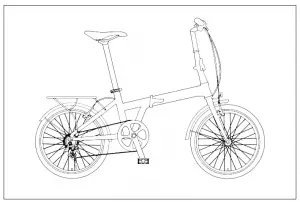

- Complete bike in unfolded condition.

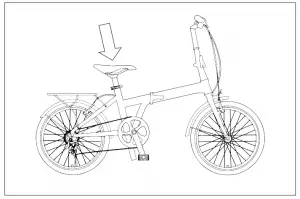

- Open the seat post clamp and lower the seatpost to its lowest possible position.

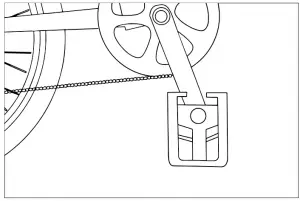

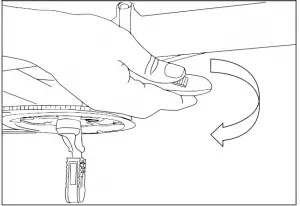

- Push the pedal inward to release and fold it as shown.
- Push the safety clip and open the quick release of the foldable stem.

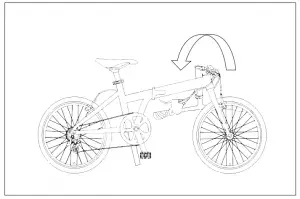

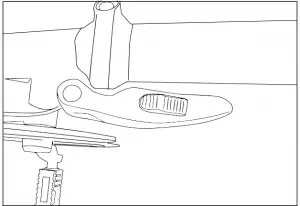

Fold the handlebar in downward direction. - Disengage the safety clip and open the frame folding quick release.

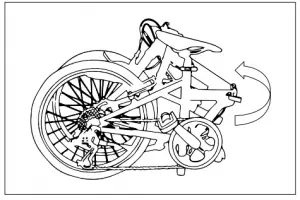

“Please do not adjust the screw in the folding quick release. This is intended for proper adjustment of the folding quick release, wrong adjustment can compromise proper functionality of the quick release mechanism” - Fold the front part of frame backwards towards the rear side.
The folding procedure is complete.
IMPORTANT:
If you encounter difficulties, or are uncertain about anything identified in this Owner’s manual, please contact your local authorized Momentum retailer.
www.momentum-biking.com
2021 Giant Manufacture Co.. Ltd.
MOMENTUM and its symbol are trademarks of Giant Manufacturing Co., Ltd.
ALL right reserved. printed in Taiwan.
this Manual ISO Standards 8098 and 4210-2
