HAYWARD ProSeries Above Ground High Rate Sand Filters

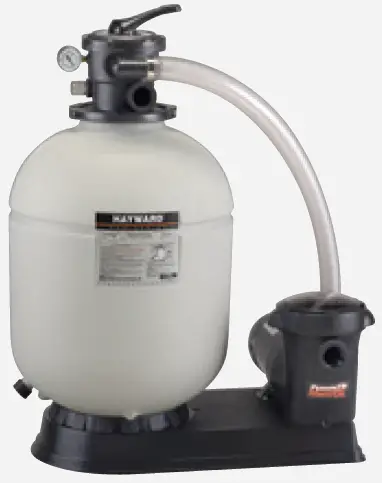

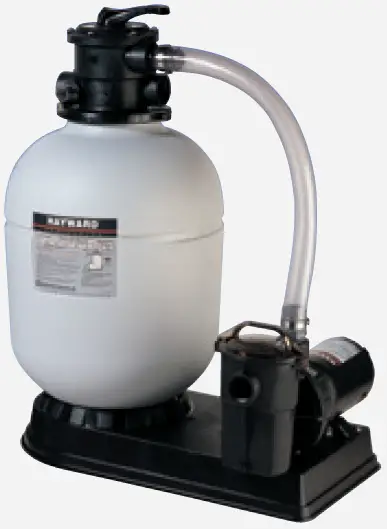

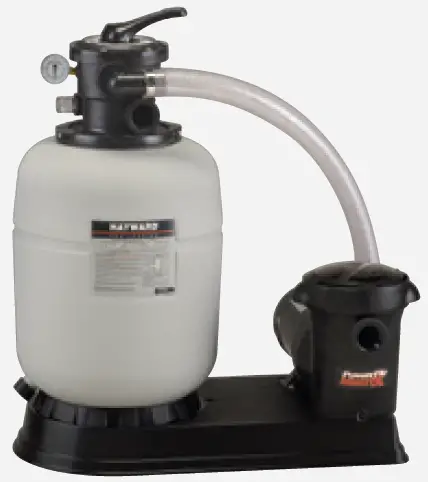

S144T 14″ PROSERIES™ FILTER/SYSTEM
Economical solution for smaller above-ground pools.
- Seven-position multiport control valve
- Filtration system includes PowerFlo LX™ Series high-performance pump and one-piece base
- Available as a system or a filter only

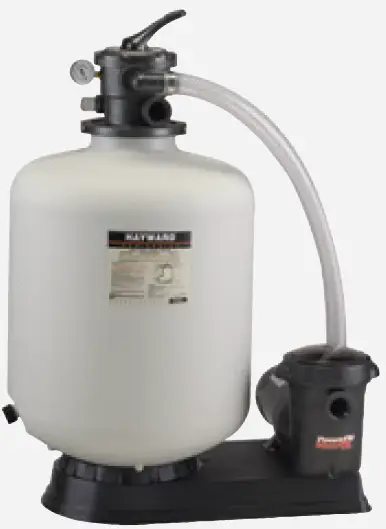

S166T 16″ PROSERIES FILTER/SYSTEM
Larger unit designed to fit most above-ground pools.
- Seven-position multiport control valve
- Filtration system includes PowerFlo Matrix® or LX Series high-performance pump and one-piece base
- Available as a system or a filter only
S180T 18″ PROSERIES FILTER/SYSTEM
High-powered, high-capacity filtration for larger above-ground pools.
- Seven-position multiport control valve
- Filtration system includes PowerFlo Matrix or LX Series high-performance pump and one-piece, deluxe base
- Available as a system or a filter only
S210T 21″ PROSERIES FILTER/SYSTEM
Bigger solution for greater filtration in above-ground pools and small in-ground pools.
- Seven-position multiport control valve
- Filtration system includes PowerFlo Matrix or LX Series high-performance pump and one-piece, deluxe base
- Available as a system or a filter only
S230T 23″ PROSERIES SYSTEM
Ultimate system for large above-ground pools and small in-ground pools.
- Seven-position multiport control valve
- Filtration system includes PowerFlo Matrix or LX Series high-performance pump and one-piece, deluxe base
- Available as a system only
WHY YOU SHOULD GO WITH THE PRO
For a sparkling clear pool, ProSeries sand filters are better by design. Available in five different sizes, ProSeries filters are suitable for a variety of pools, and with corrosion-proof construction, they’ll keep your water beautiful, season after season.
- SEVEN-POSITION VALVE PUTS YOU IN CONTROL.
The ProSeries filter’s patented multiport control valve—developed by Hayward®—is designed with seven different positions. An easy-to-use lever-action handle lets you quickly dial any function. - SUPERIOR FILTRATION FROM THE INSIDE OUT.
The self-cleaning underdrain assembly with 360° slotted laterals provides a fast, balanced flow of clear water back to the pool while allowing for more thorough backwashing. - LONG-LASTING CONVENIENCE.
You can easily access the ProSeries filter assembly for simple servicing via the unique folding ball joint in the laterals. A corrosion-proof housing protects the filter from severe weather, ensuring reliable operation for years to come.
PROSERIES SPECIFICATIONS
| FILTER TYPE: | High-rate sand: No. 20 silica sand (.45 mm – .55 mm) |
| FILTER TANK: | Molded polymeric |
| UNDERDRAIN: | 360° self-cleaning slotted laterals, precision installed in ball-joint assembly |
| CONTROL VALVE: | Seven-position, top-mount VariFlo® valve with lever-action handle |
| VALVE FASTENING: | Flange clamp design |
| PUMP AND MOTOR*: | PowerFlo LX or PowerFlo Matrix Series Pump – 115 volts |
| MOUNTING BASE: | Injection-molded thermoplastic |
*Applies to systems only

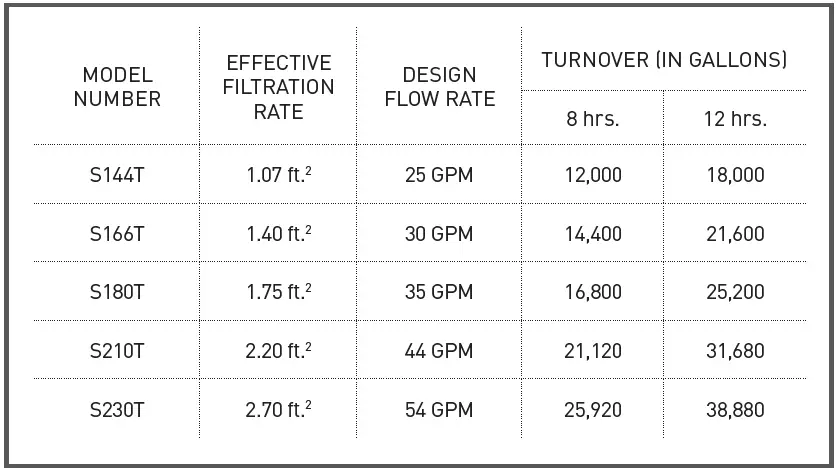

FILTER PERFORMANCE DATA
Hayward, Hayward & Design, the H logo, PowerFlo Matrix and VariFlo are registered trademarks and PowerFlo LX and ProSeries are trademarks of Hayward Industries, Inc. © 2018 Hayward Industries, Inc.
