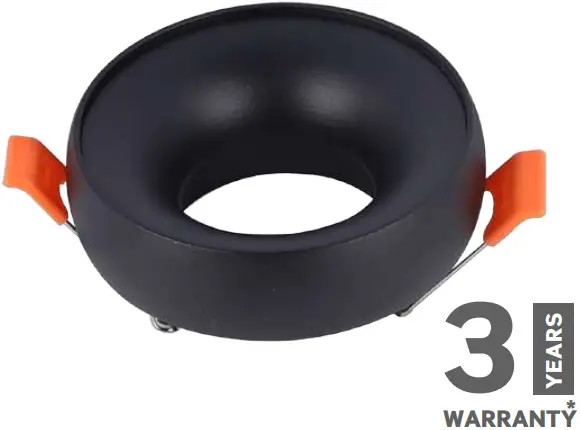

V-tac Vt-980 Spotlight Fitting Instruction Manual (+ PDF)

Thank you for selecting and buying V-TAC product. V-TAC will serve you the best. Please read these instructions carefully before starting the installation and keep this manual handy for future reference. If you have any another query, please contact our dealer or local vendor from whom you have purchased the product. They are trained and ready to serve you at the best. The warranty is valid for 3 years from the date of purchase. The warranty does not apply to damage caused by incorrect installation or abnormal wear and tear. The company gives no warranty against damage to any surface due to incorrect removal and installation of the product. This product is warranted for manufacturing defects only.

WARNING!

Please make sure to turn off the power before starting the installation.
Installation should only be done by a certified electrician.
For indoor use only.

IN CASE OF ANY QUERY/ISSUE WITH THE PRODUCT, PLEASE REACH OUT TO US AT: [email protected] FOR MORE PRODUCTS RANGE, INQUIRY PLEASE CONTACT OUR DISTRIBUTOR OR NEAREST DEALERS. V-TAC EUROPE LTD. BULGARIA, PLOVDIV 4000, BUL.L.KARAVELOW 9B

This marking indicates that this product should not be disposed of with other household wastes.

INSTALLATION DIAGRAM:

INSTALLATION INSTRUCTION:

Switch off the power before starting the installation

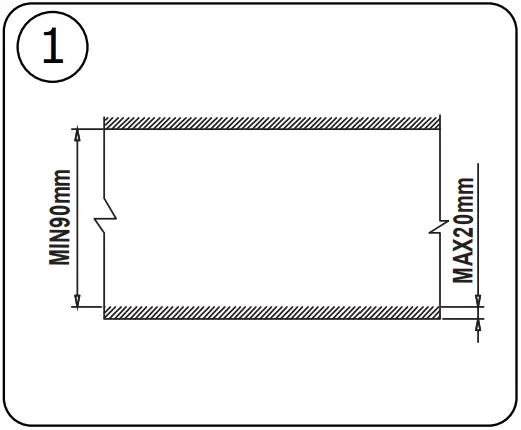

Ensure that the void depth is minimum 90mm and the thickness of the ceiling is maximum 20mm. (Pic 1)

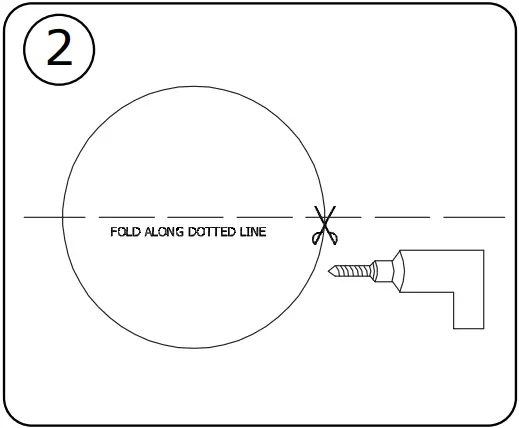

Cut a hole using an appropriate tool according to the cut-out size. (Pic 2)

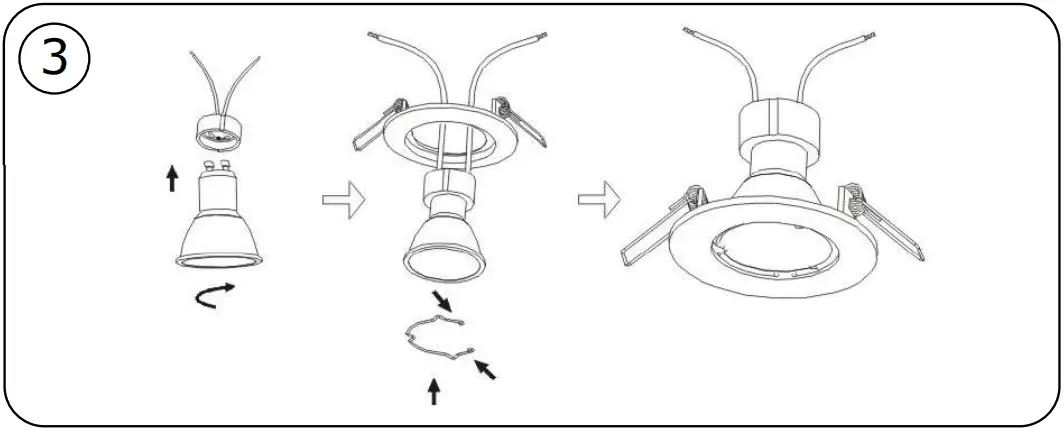

Install the GU10 lamp into the fixture. Fix the GU10 lamp into the lamp holder. Connect the lamp holder to the AC wires (Pic 3)

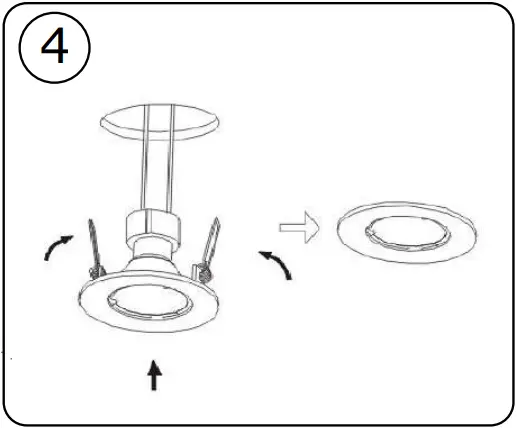

Holding the spring clip upwards and with the fixture hanging down through the middle, offer the fitting into the hole and allow springs to pull the fitting up to the ceiling. Then adjust the suitable angle. (Pic 4)
Switch on the power and test if the light is working properly.
