INOR 70ADA00051 Adapter mA

GENERAL INORMATION

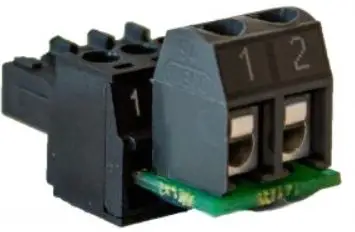

Adapter mA part no. 70ADA00051 is an adapter to convert mA signals to mV signals (shunt resistor), intended to be mounted on the input side of transmitter IPAQ R330.
With the adapter mounted, it gives the possibility to connect mA input signals to the transmitter IPAQ R330. The transmitter will then work as an active isolation transmitter for mA input signals with a 4-20 mA output in a 2 wire connection. It is suitable for direct connection to the input modules of a control system. Thanks to the programmable input range and the low input impedance, it meets almost any need for current signal isolation and load amplification.

Specifications for IPAQ R330 with adapter mA

ADAPTER CONNECTION

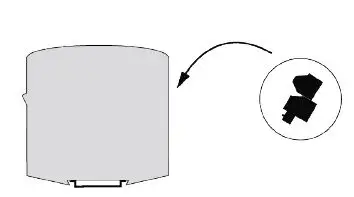

1. Remove input terminal marked 1 to 4.
2. Connect 70ADA00051 instead.

CONFIGURATION calculation How to set up the transmitter

Step 1

Calculation of transmitter Measuring Range to configure

• Use the calculation formula to calculate your measuring range for the transmitter in mV.
• IStart = Start value of input current range in mA
• IEnd = End value of input current range in mA
• LRV = Lower range value to set in mV
• URV = Upper range value to set in mV

Calculation formula

• LRV = IStart x 1
• URV = IEnd x 10

Example 1

• Input: 4…20 mA
• LRV = 4 x10 = 40
• URV = 20 x 10 = 200

Example 2

• Input: 0…55 mA
• LRV = 0 x10 = 0
• URV = 55 x 10 = 550

Step 2
Configure the transmitter via a configuration tool, PC Software Con Soft or Smart phone App INOR Connect.

CONFIGURATION via PC

Configuration via PC Software ConSoft example 4…20 mA

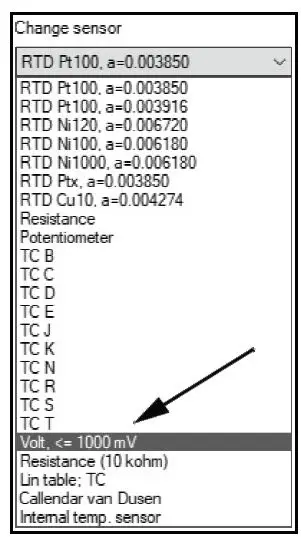

1. Change sensor to Volt.
2. Enter LRV and URV for measuring range
3. Write to transmitter.

CONFIGURATION via App

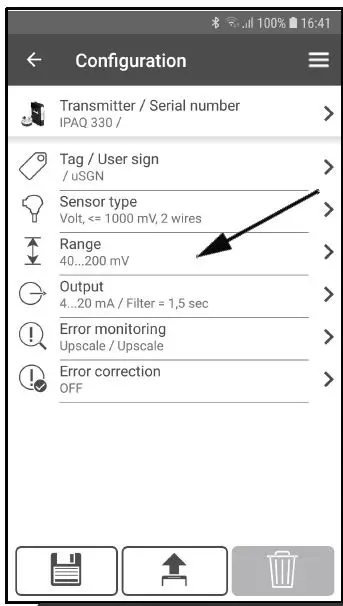

Configuration via Smart phone App INOR Connect (example 4…20 mA)

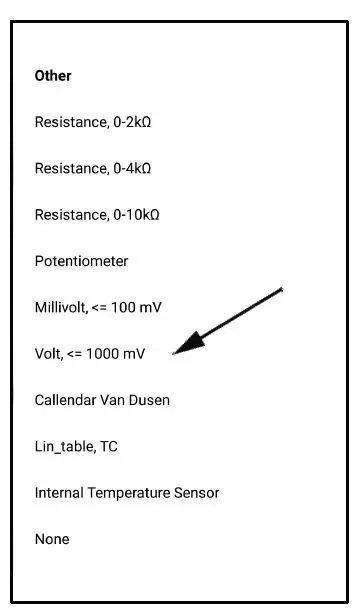

1. Change Sensor type to Volt (Pic 2)
2. Enter LRV and URV for range
3. Write to transmitter.

CONNECTIONS

Input

Output

ORDERING INFORMATION
