Lincat P6b2 Panther Hot Cupboards Instruction Manual

Lincat P6B2 Panther Hot Cupboards

IMPORTANT INFORMATION

• Read these instructions carefully before using this product, paying particular attention to all sections that carry warning symbols, caution symbols and notices. Ensure that these are understood at all times.
• WARNING! This symbol is used whenever there is a risk of personal injury.
• CAUTION! This symbol is used whenever there is a risk of damaging your Lincat product.
• NOTE: This symbol is used to provide additional information, hints and tips.

WARNINGS AND PRECAUTIONS

This appliance must be installed, commissioned and serviced by a qualified person in accordance with national and local regulations in force in the country of installation.
If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified person. Ensure that the plug/socket is accessible at all times.
Strip plastic coating and clean the appliance before use.During operation parts may become hot – avoid accidental contact. Disconnect this appliance before servicing, maintenance or cleaning.

TECHNICAL DATA

Codes Explained

INSTALLATION AND COMMISSIONING

This appliance must be earthed.
An equipotential bonding terminal is provided to allow cross bonding with other equipment.
If replacing the plug connect the terminals as follows:

• Green and Yellow wire: Earth E
• Blue wire: Neutral N
• Brown wire: Live L

Means of isolation with at least 3mm contact separation in all poles must be incorporated into the fixed wiring of this appliance.
The fixed wiring insulation must be protected by insulated sleeving having a temperature rating of 60 Deg C.
Supply cords shall be oil resistant, sheathed flexible cable not lighter than ordinary polychloroprene or equivalent elastomer sheathed cord (code 60245 IEC 57)
Install this appliance on a level surface ensuring all vents are unobstructed.

Power Ratings

Connecting to supply
P6 models may be connected to the electrical supply by means of the fitted plug and lead. For P8 models, connect as below, referring to Fig 1.

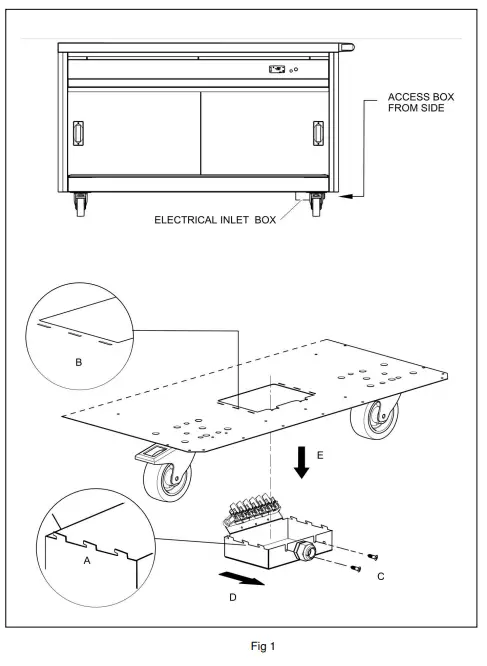

The electrical inlet box is fitted to the base using a hook (A) and slot (B) method. Access the box from the side and remove 2 screws (C). Pull the box towards you (D), disengaging the hooks. Lower the box (E) to access the terminal block. Disconnect and discard the attached test cables and connect the unit to a suitable supply cable. Refit the box, ensuring no wires are trapped.

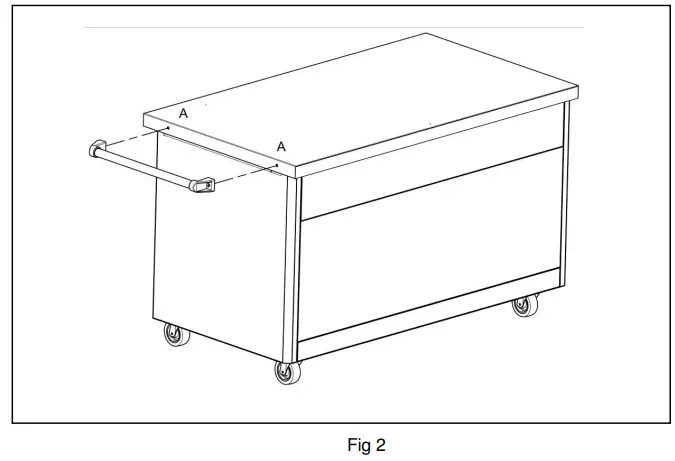

To fit push bar handle, using allen keys provided remove bolts ‘A’ and discard. Fit handle using bolts provided in handle kit.

OPERATING INSTRUCTIONS

Only qualified or trained personnel should use this appliance. Ensuring doors are closed, switch on the power at the mains supply. The green neon illuminates to indicate power to the appliance.

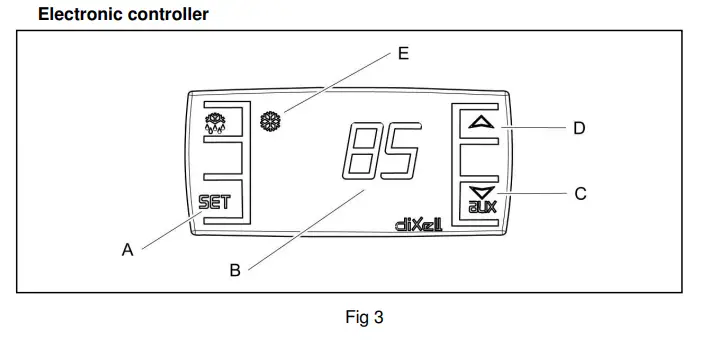

Electronic controller

• A: ‘Set’ button
• B: Digital readout Adjust ‘-‘
• C: Adjust ‘+’
• D: Element ‘On’ symbol

The electronic controller for the cupboard has a range of 20 Deg C to 99 Deg C, and is factory set at 85 Deg C. On switching the unit on, the digital readout (B) displays the current temperature within the cupboard. Pressing the ‘Set’ button (A) once displays the temperature the cupboard is currently set to reach. To adjust this temperature, hold down the ‘Set’ button for 3 seconds and then set the required temperature by using the adjust buttons (C and D) on the controller. The digital readout then returns to show the current temperature.
Pre-heat the cupboard – the element symbol (E) is extinguished when the required temperature is reached.
Load the cupboard with heated food as required. The desired heat settings will be found with practice, and will depend on the amount and temperature of the food in the unit and the frequency of opening of the doors. Check food temperature regularly.

Do not disconnect the cupboard from the supply until it is ready to be moved to the distribution point. Re-connect as soon as the distribution point is reached.
Operation of gantries (selected models) is via the switch on the control panel (PG6 units) or the gantry overshelf (PS8 units).
To turn the unit off, switch off at the mains socket and ensure the green light has gone out. A small bowl of water placed on the bottom shelf once the appliance is stationary will help prevent food drying out.

Additional instructions for Models with Bains Marie tops.

Bains Marie may be used either dry or wet – best results are obtained when used wet. Temperature is controlled via 1-6 settings on the control knob.
For dry heat, ensure gastronorm dishes are in place then allow unit to heat up for 20 minutes on full before filling with hot food.
To use wet, fill the tank up to the high level mark with hot water (40 Deg C). With gastronorm dishes in place, allow a further 60 minutes on full for the water to reach optimum heat before filling with hot food. Maintain the water level above the minimum mark. With the appliance turned off after use, allow the water to cool and using the drain tube provided, regularly empty the water well via the valve inside the cupboard. Clean out the tank and refill with fresh water.

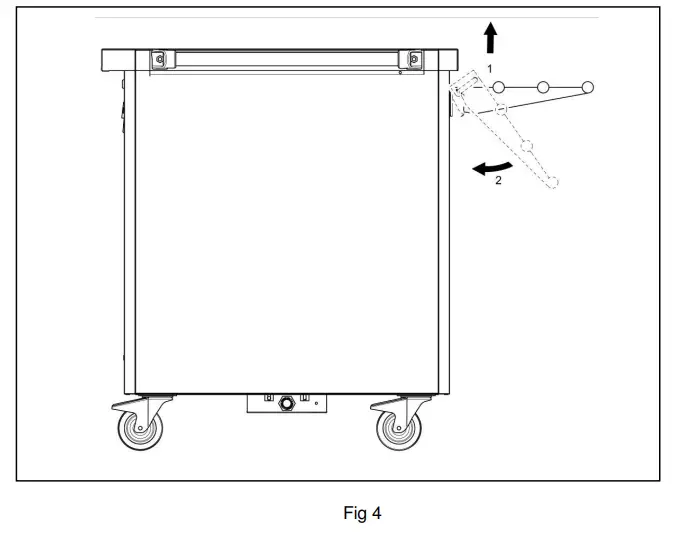

Operation of tray slide (Selected models only).

1. Lift up.
2. Rotate down.

CLEANING

Do not use a water jet or steam cleaner, and do not immerse this appliance.
Clean all panels with warm water and mild detergent, do not use abrasive materials. Dry with a soft cloth.

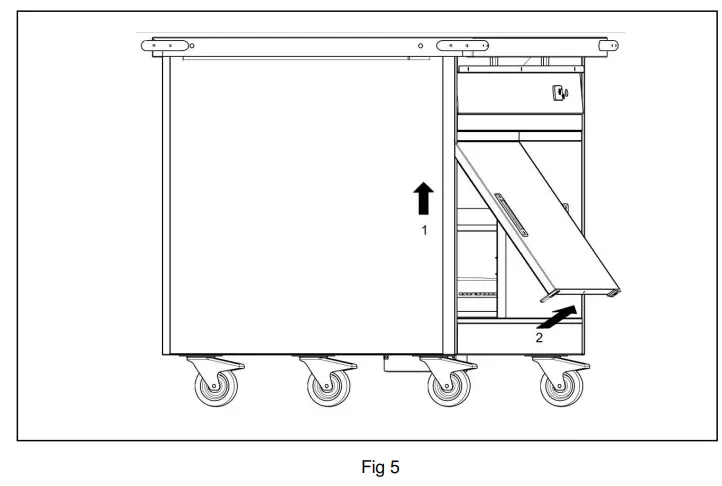

To access the inside of the cupboard for cleaning, remove the doors as shown below.

1. Lift door up in to top guide.
2. Rotate door bottom to lift clear of bottom guide.

Reverse procedure to refit. Clean the door sliders to ensure smooth operation of the doors.

SERVICING, MAINTENANCE AND COMPONENT REPLACEMENT

All servicing, maintenance and component replacement on these appliances should be carried out by one of our recommended service engineers.

FAULT FINDING

Please refer to the Service Helpdesk number on the final page of this manual.

SPARE PARTS LIST

Spare Parts for cupboards

Spare Parts for gantries

Spare parts for Accessories

ACCESSORIES

SERVICE INFORMATION

AUTHORISED SERVICE AGENTS
Catering equipment should be routinely serviced to ensure a long, trouble-free life. We recommend that this appliance is serviced every 6 months by a competent engineer. All service work, other than routine cleaning, should be carried out by one of our authorized service agents. We cannot accept responsibility for work carried out by other persons.
For help regarding the installation, maintenance and use of your Lincat equipment, please call:-

LINCAT SERVICE HELP DESK: +44 (0) 1522 875520

Please quote both the model and serial numbers from the data plate attached to the unit. Give brief details of the service requirement, and if possible the product codes of any spare parts you require.
Work carried out under warranty will normally be undertaken during normal working hours, i.e. Monday to Friday, 8.30 a.m. – 5.00 p.m.

CONDITIONS OF GUARANTEE
The guarantee does not cover:-

1. Accidental breakage or damage
2. Operational misuse, wear and tear from normal usage, incorrect adjustment, or neglect.
3. Incorrect installation, maintenance, modification or unauthorized service work.
