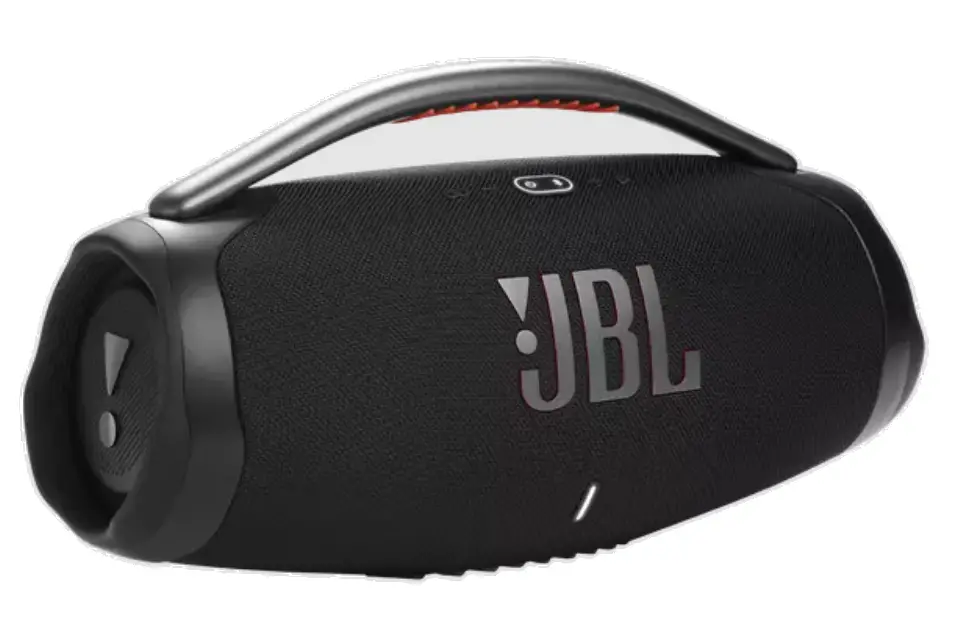

JBL BOOMBOX 3 WiFi Portable Speaker

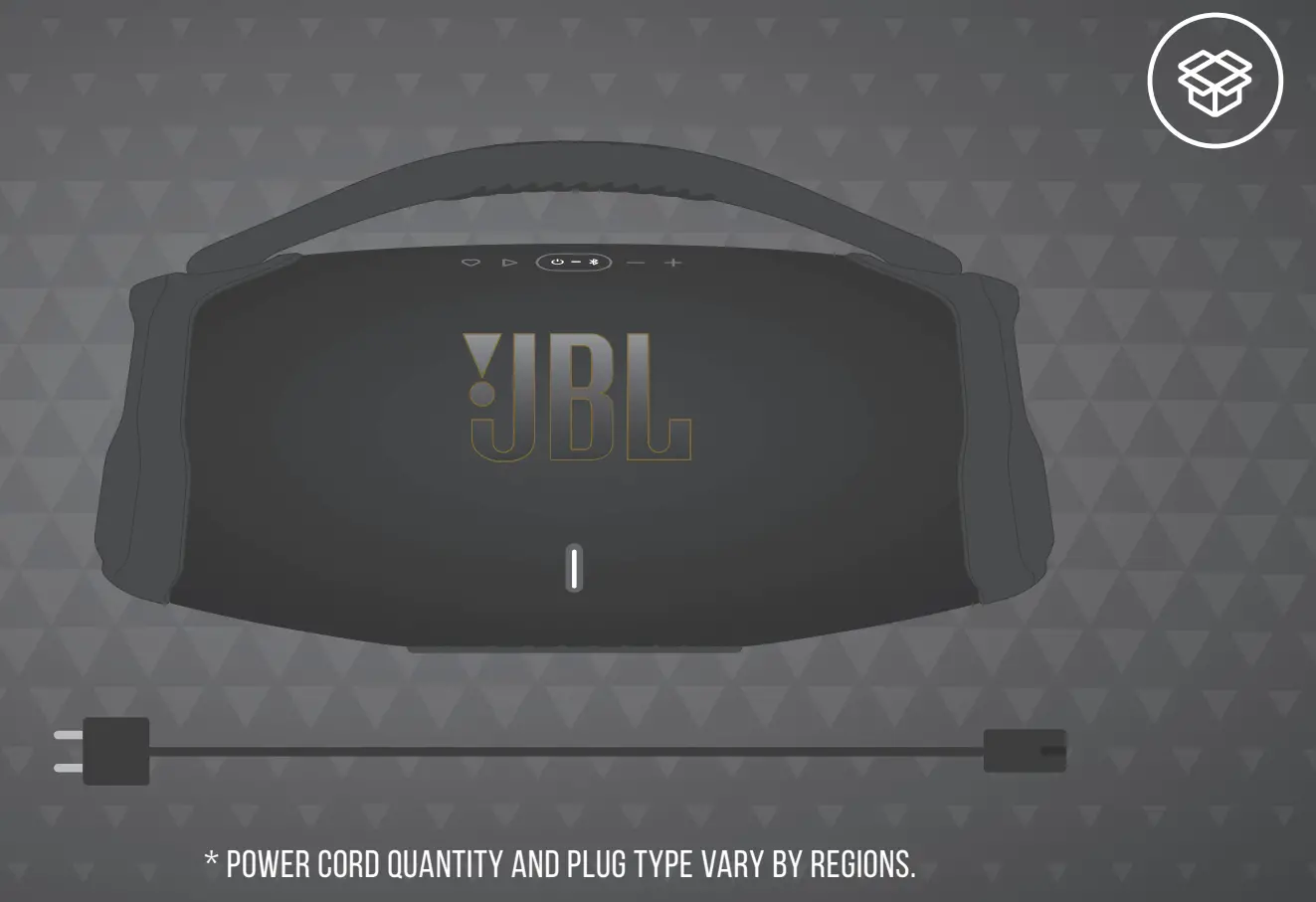

WHAT’S IN THE BOX

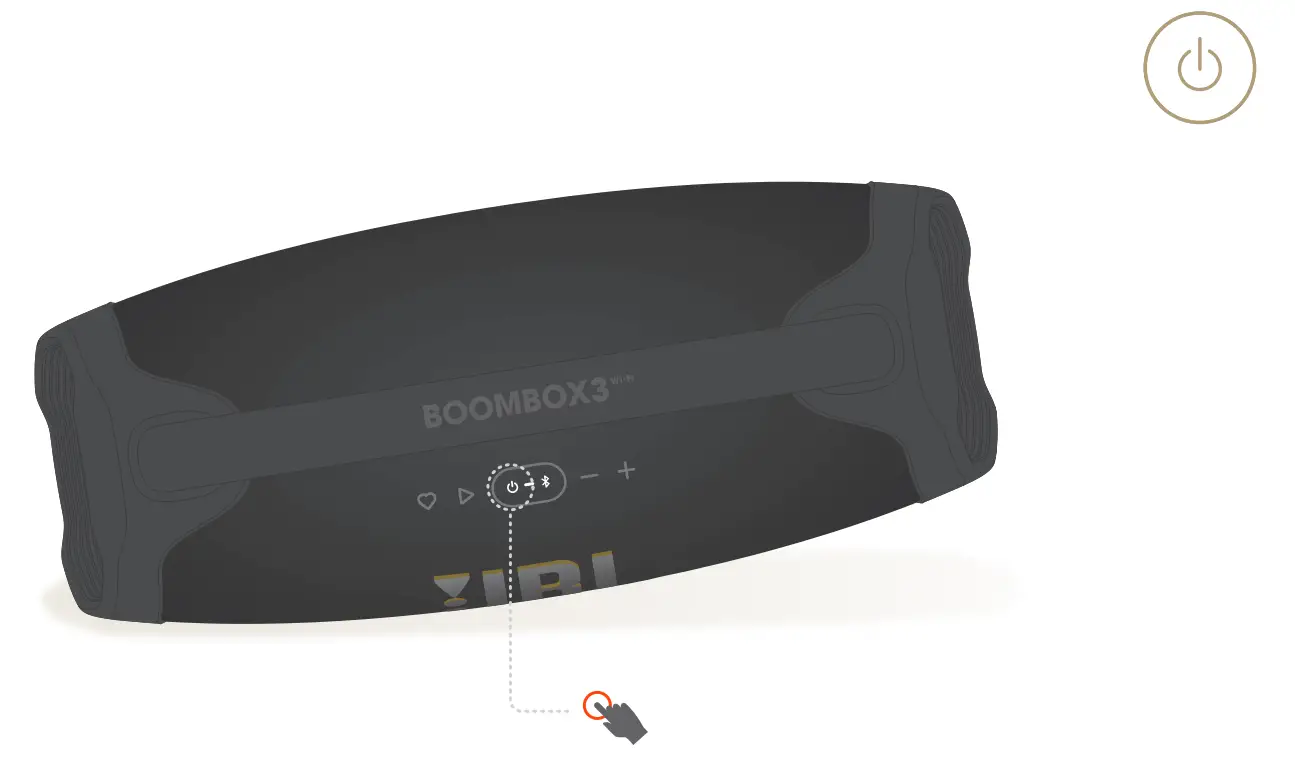

Power on

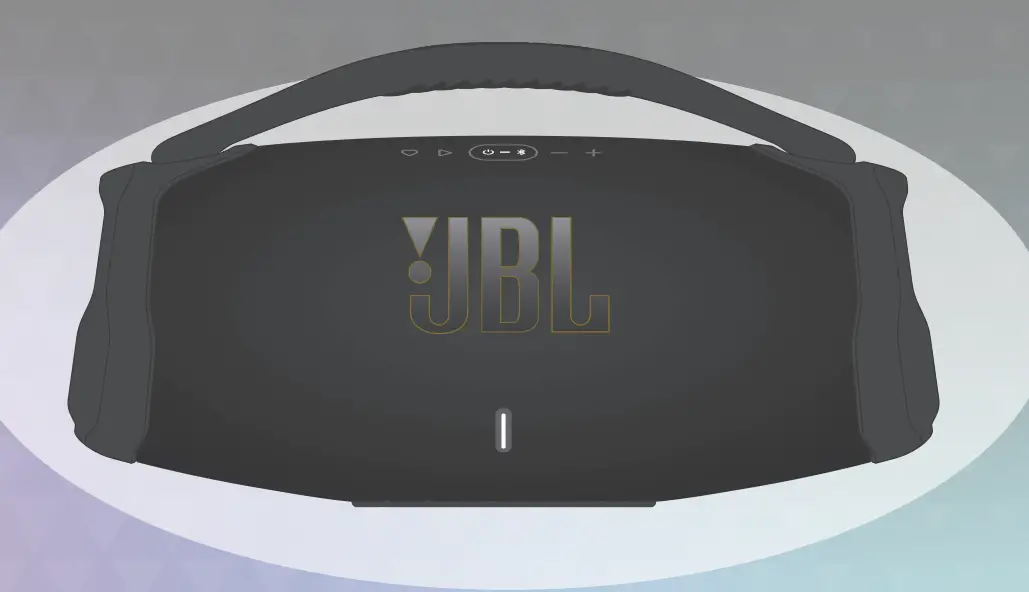

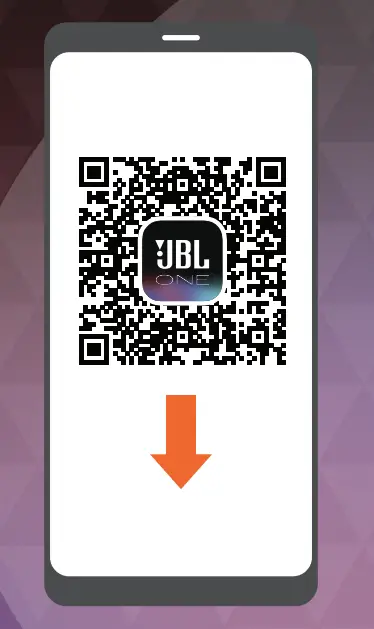

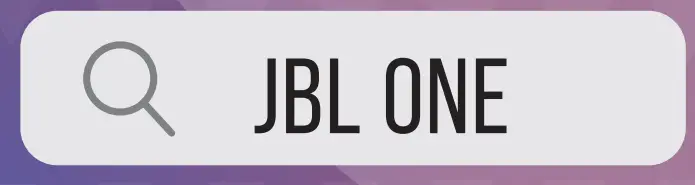

APP
| Connect your Android™ or iOS device to the Wi-Fi network through the JBL One app and follow app instructions to complete speaker setup*. *The availability of features will vary between countries and not all fea tures may be available in your country. |

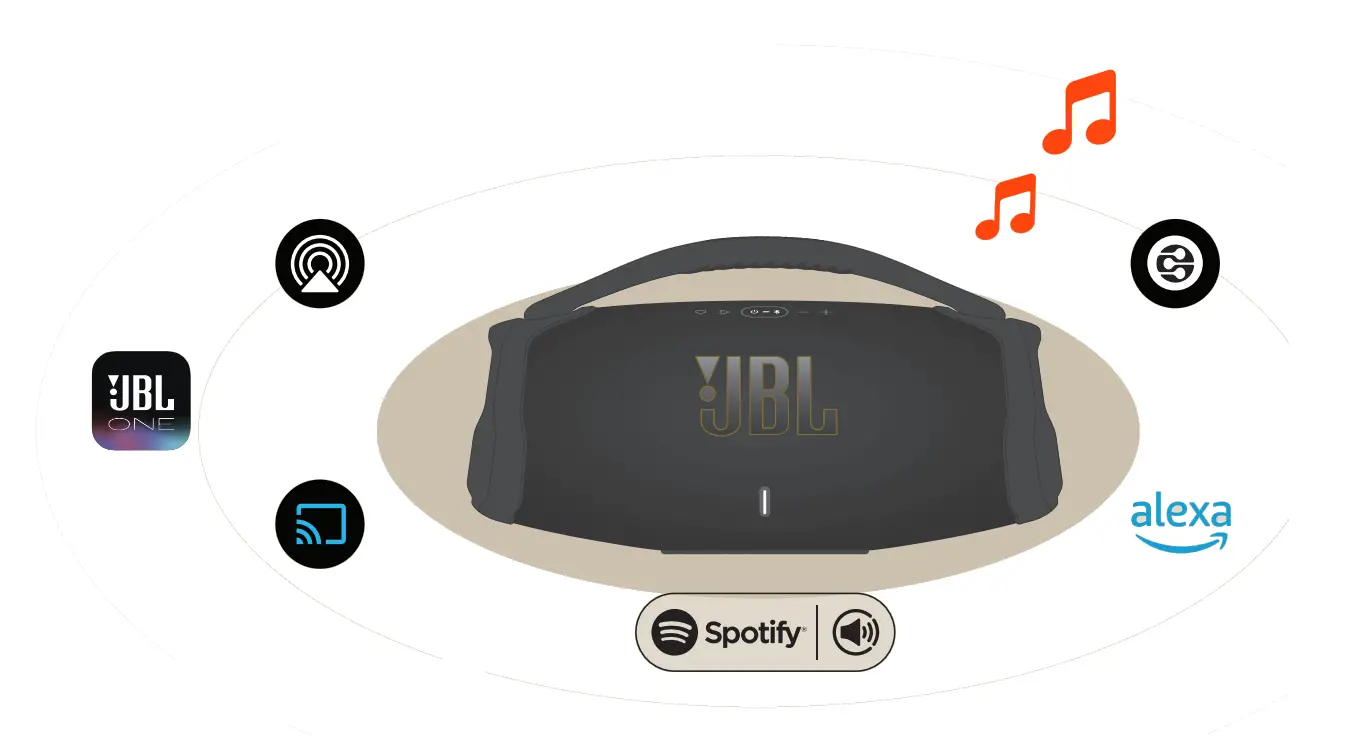

MUSIC STREAMING
Stream music through JBL One App or supported music services.

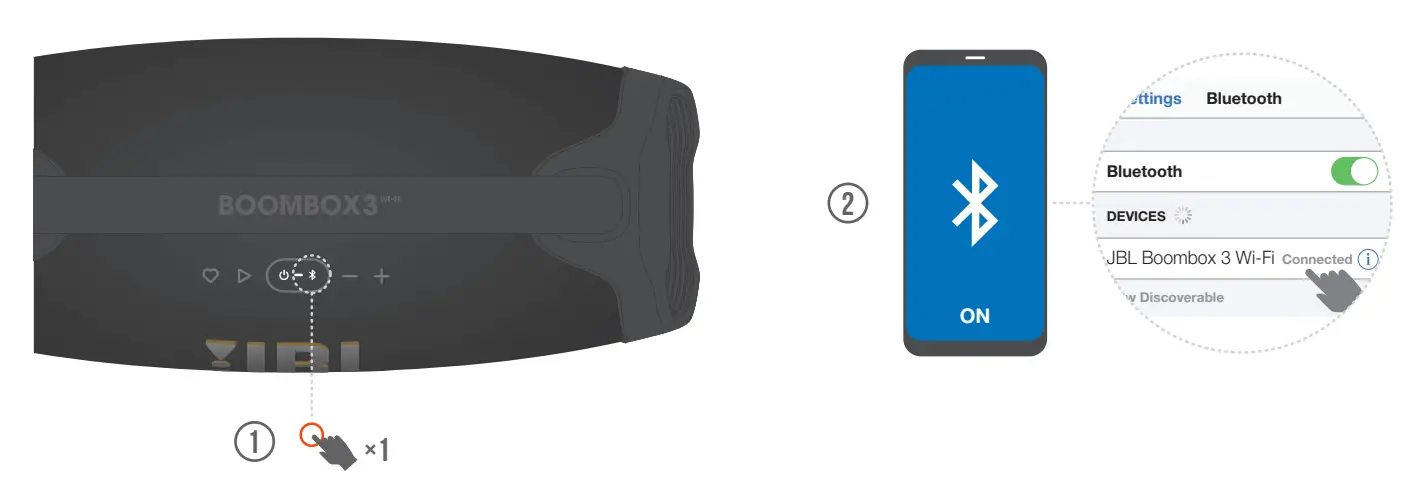

Bluetooth pairing

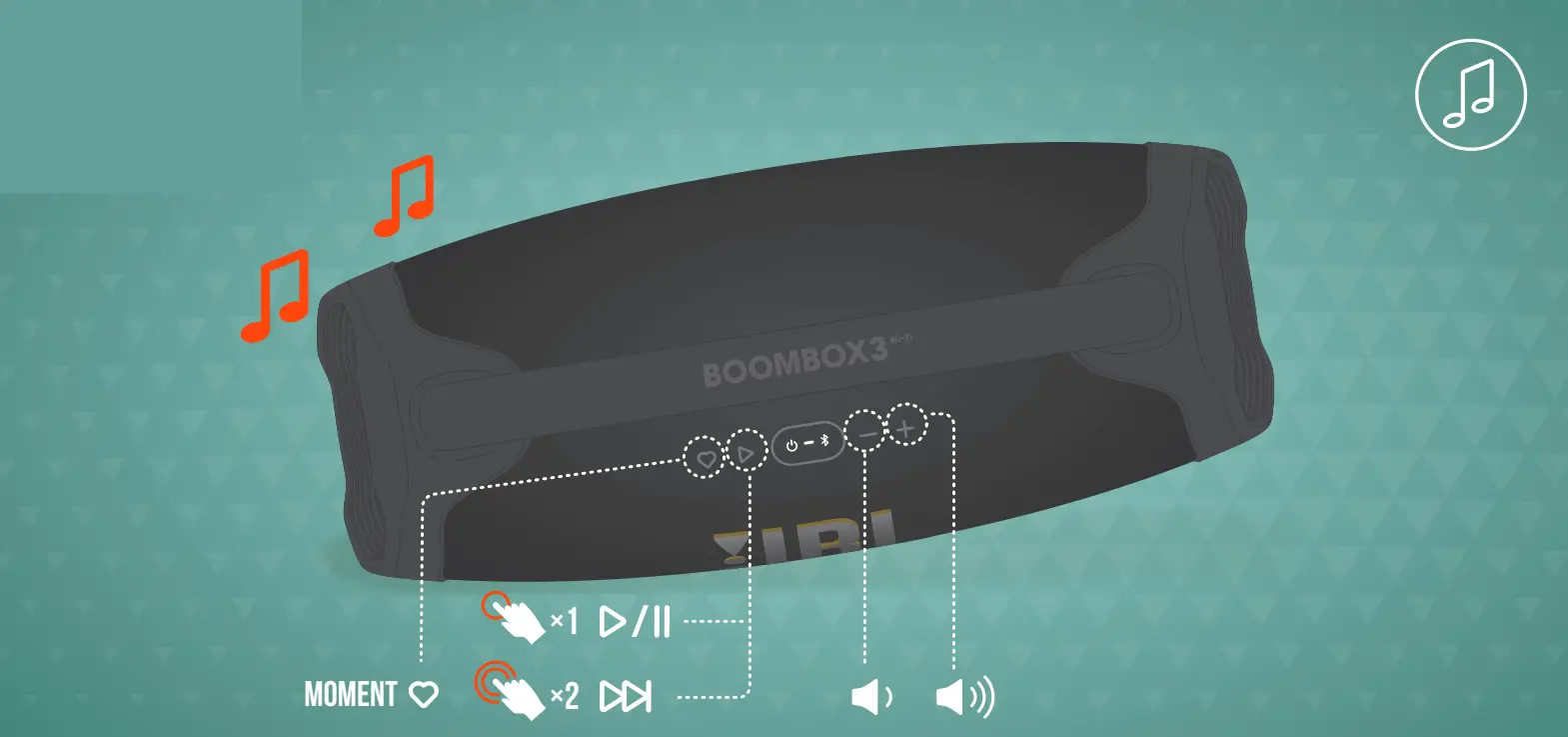

Play
Press to play the set playlist and speakers setting preset in the JBL One App.

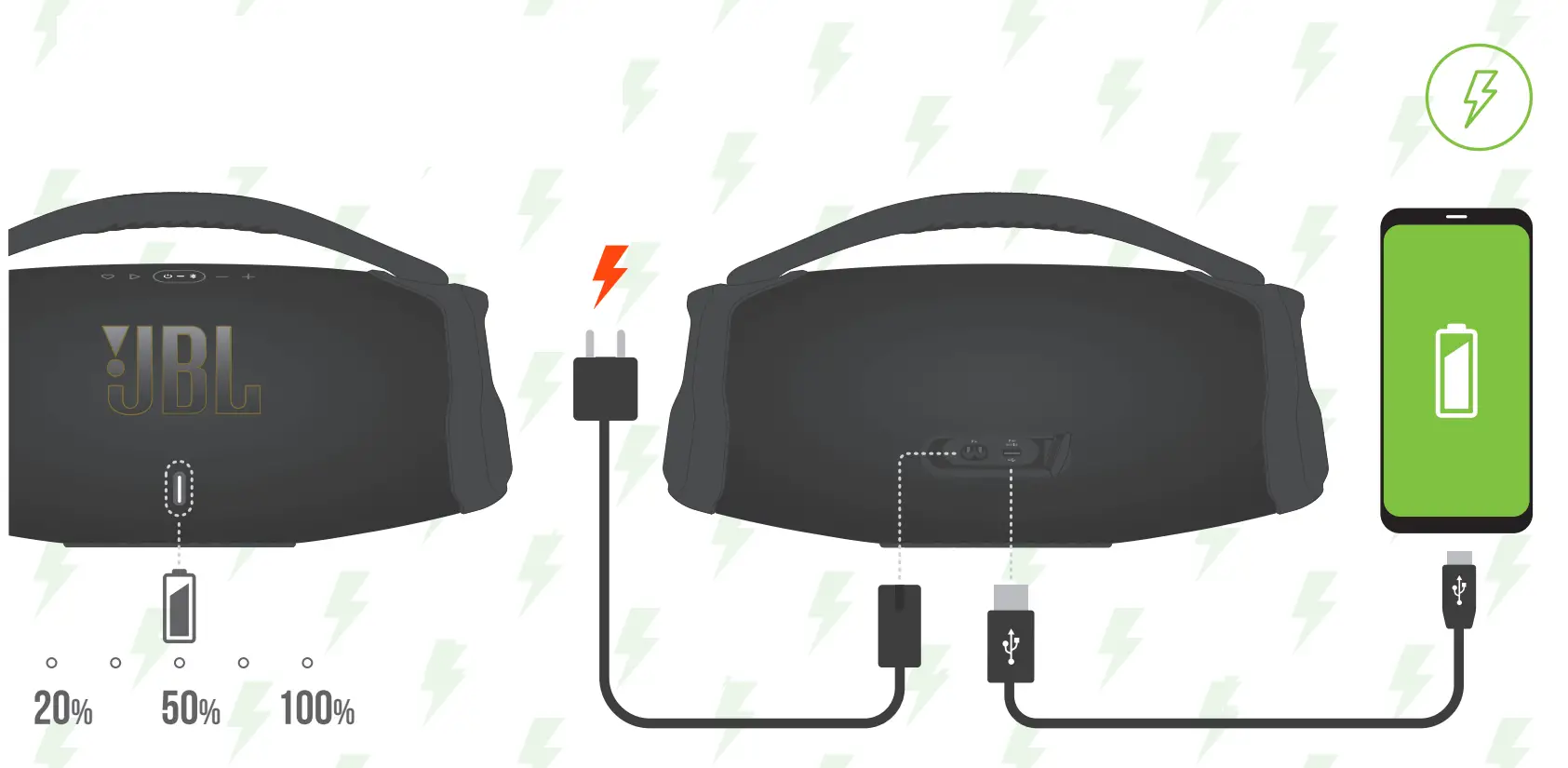

Charging
WATERPROOF DUSTPROOF IP67
Works with Smart Home
Factory reset
TECH SPEC
| Transducer: | (189 x 114)mm subwoofer, 2x (80.9 x 80.9)mm midrange/ 2×2.75”, 2x 20mm tweeter/2x 0.75” |
| Output power: | 1x 80W RMS-subwoofer + 2x 40W RMS-midrange + 2x 10W RMS-tweeter (AC mode) 1x 60W RMS-subwoofer + 2x 30W RMS-midrange + 2x 10W RMS-tweeter (Battery mode) |
| Power input: | 100 -240 Vac; 50/60 Hz; |
| Frequency response: | 40Hz – 20kHz (-6dB) |
| Signal-to-noise ratio: | >80dBrA (A-Weighted) |
| Battery type: | Li-ion Battery 69.12Wh (equivalent to 7.2V/9600mAh) |
| Battery charge time: | 4.5hours |
| Music play time: | up to 24hours (dependent on volume level and audio content) |
| Connection ports: | AC-in, USB-A |
| Cable type: | AC Power Cable |
| Cable length: | 2000mm/78.7” |
| USB charge out: | 5V/2A (maxmium) |
| Wireless network: | IEEE 802.11 a/b/g/n/ac/ax (2.4GHz/5GHz) |
| Bluetooth version: | 5.3 |
| Bluetooth profile: | A2DP 1.3, AVRCP 1.6 |
| Bluetooth transmitter frequency | |
| range: | 2.4GHz-2.4835GHz |
| Bluetooth transmitter power: | <12dBm (EIRP) |
| Bluetooth transmitter modulation: | GFSK, π/4-DQPSK, 8DPSK |
| 5G Wi-Fi transmitter frequency range: | 5.15-5.35GHz, 5.470-5.725GHz, 5.725-5.825GHz |
| 5G Wi-Fi transmitter power: | <23dBm |
| 5G Wi-Fi modulation: | OFDM (BPSK, QPSK, 16QAM, 64QAM, 256QAM, 256QAM, 1024QAM) |
| 5G Wi-Fi network compatibility: | 802.11a/n/ac/ax |
| 2.4G Wi-Fi transmitter frequency range: | 2.4GHz-2.4835GHz |
| 2.4G Wi-Fi transmitter power: | <20dBm |
| 2.4G Wi-Fi modulation: | DSSS (DBPSK, DQPSK, CCK), OFDM (BPSK, QPSK, 16QAM, 64QAM, 256QAM, 1024QAM) |
| 2.4G Wi-Fi network compatibility: | 802.11b/g/n/ax |
| Product dimensions (W x H x D): | 482.4 x 256.9 x 199.7mm/19.0 x 10.1 x 7.9” |
| Net weight: | 6.7kg/14.7lbs |
| Packaging dimensions (W x H x D): | 565 x 324 x 256mm/22.2 x 12.8 x 10” |
| Gross weight: | 9.5kg/21lbs |
| Maximum operation temperature: | 45°C |
To protect battery lifespan, fully charge at least once every 3 months. Battery life will vary due to usage patterns and environmental conditions.
Do not expose the JBL Boombox 3 Wi-Fi to liquids without removing cable connection. Do not expose JBL Boombox 3 Wi-Fi to water while charging. It may result in permanent damage to the speaker or power source.
Chemicals, salt or “foreign particles” in your pool or the ocean can damage the waterproof seals or harm the connector surface over time if not rinsed off after use. After a liquid spill or rinse, do not charge your speaker until it’s completely dry and clean. Charging when wet might damage your speaker.
Use Restriction: This device is restricted to indoor use when operating in the 5150 to 5350 MHz frequency range in following countries:
 | BE | EL | LT | PT | |
| BG | ES | LU | RO | ||
| CZ | FR | HU | SI | ||
| DK | HR | MT | SK | UK | |
| DE | IT | NL | FI | ||
| EE | CY | AT | SE | ||
| IE | LV | PL | UK(NI) |
The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by HARMAN International Industries, Incorporated is under license. Other trademarks and trade names are those of their respective owners.
Wi-Fi CERTIFIED 6™ and the Wi-Fi CERTIFIED 6™ Logo are trademarks of Wi-Fi Alliance®.
Dolby, Dolby Atmos, and the double-D symbol are registered trademarks of Dolby Laboratories Licensing Corporation. Manufactured under license from Dolby Laboratories. Confidential unpublished works. Copyright © 2012–2021 Dolby Laboratories. All rights reserved.
 |  |
Google, Android, Google Home and Chromecast built-in are trademarks of Google LLC.
Use of the Works with Apple badge means that an accessory has been designed to work specifically with the technology identified in the badge and has been certified by the developer to meet Apple performance standards.
Apple, and Air Play are trademarks of Apple Inc., registered in the U.S. and other countries. To control this AirPlay 2–enabled speaker, iOS 13.4 or later is required.
Amazon, Alexa, and all related marks are trademarks of Amazon.com, Inc. or its affiliates.
Use your phone, tablet or computer as a remote control for Spotify. Go to spotify.com/connect to learn how.
The Spotify Software is subject to third party licenses found here: https://www.spotify.com/connect/third-party-licenses.
