Lay-z-spa Rattan Spa Surround User Manual

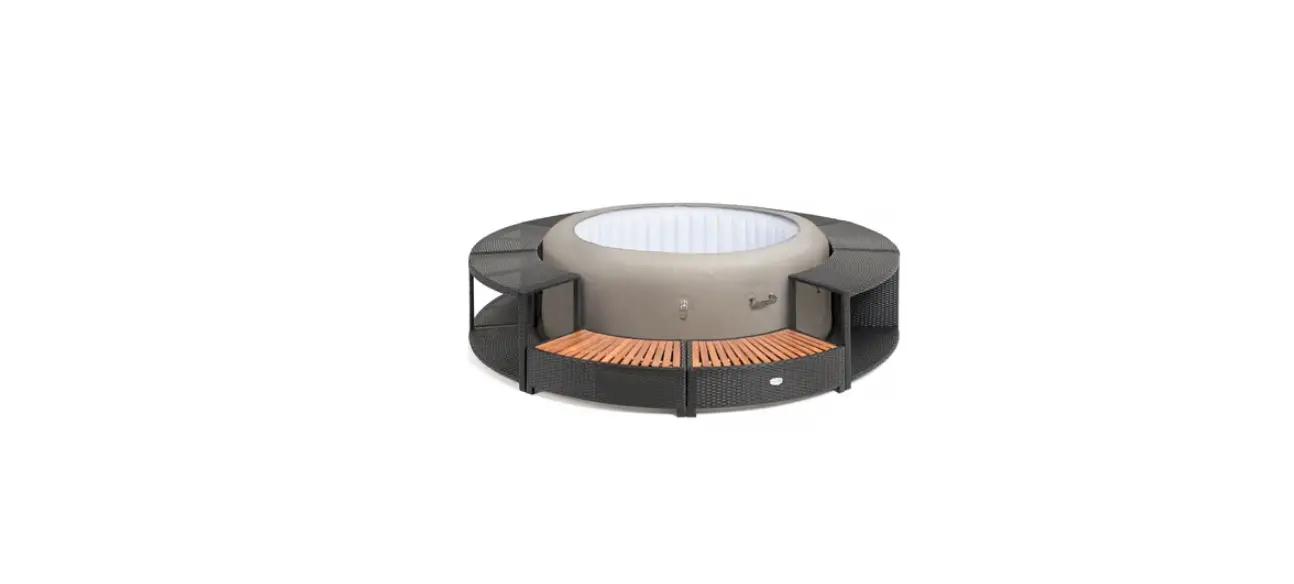

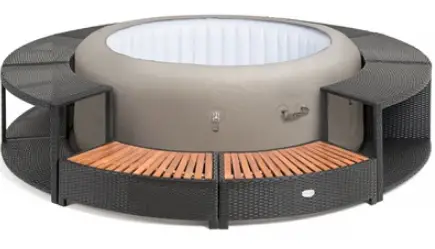

LAY-Z-SPA Rattan Spa Surround

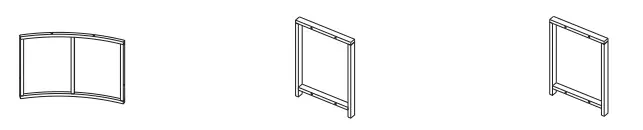

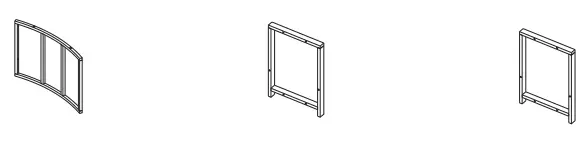

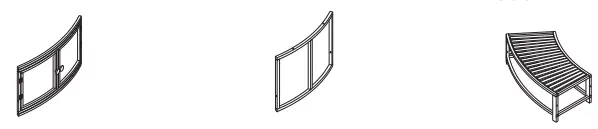

Components

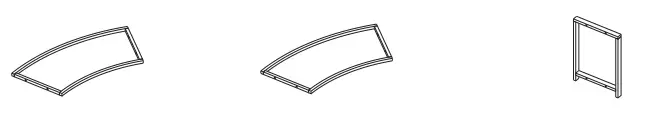

1. Top Frame x3
2. Bottom Frame x4

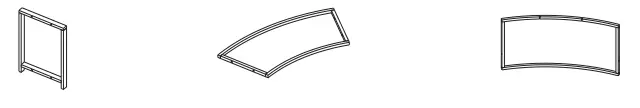

3. Leg C x2
4. Leg D x1
5. Top Frame E x3

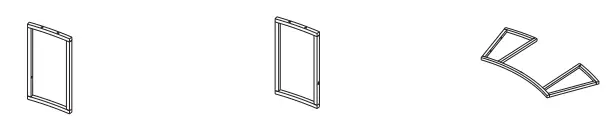

6. Outside Frame x2
7. Inside Frame G x2
8. Leg H x1
9. Leg I x2
10. Outside Frame G x1
11. Outside Frame K x1
12. Top Frame L x1
13. Inside Frame M x1
14. Leg N x1
15. Leg O x1
16. Door x1
17. Inside Frame Q x1

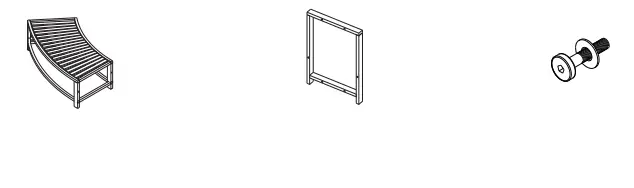

18. Frame R x1
19. Frame S x1
20. Leg N x1
21. Bolt M6x60 x6
22. Bolt M6x40 x78
23. Allen Key

Assembly Instructions

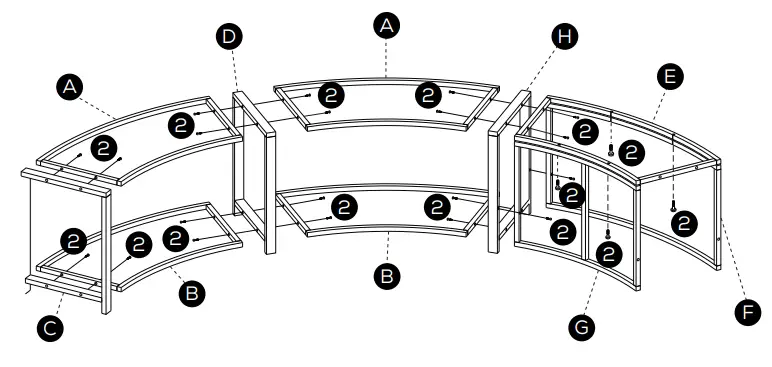

1. Connect parts A , B , C , D , H , E , F & G using bolts 2

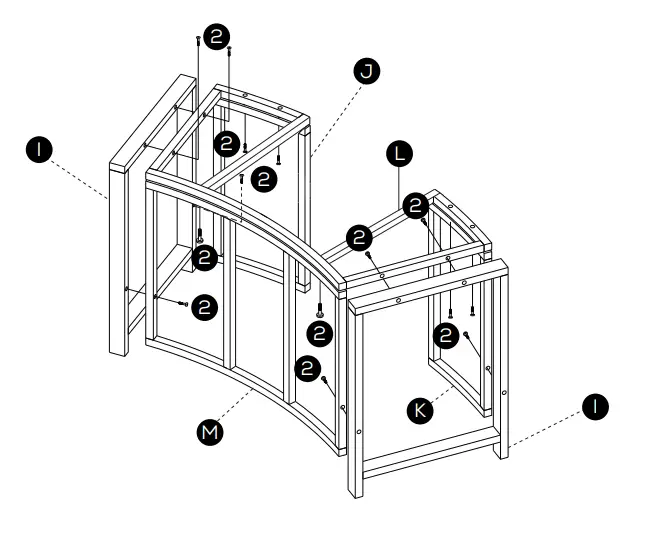

2. Connect parts L , I , J , K & M using bolts 2

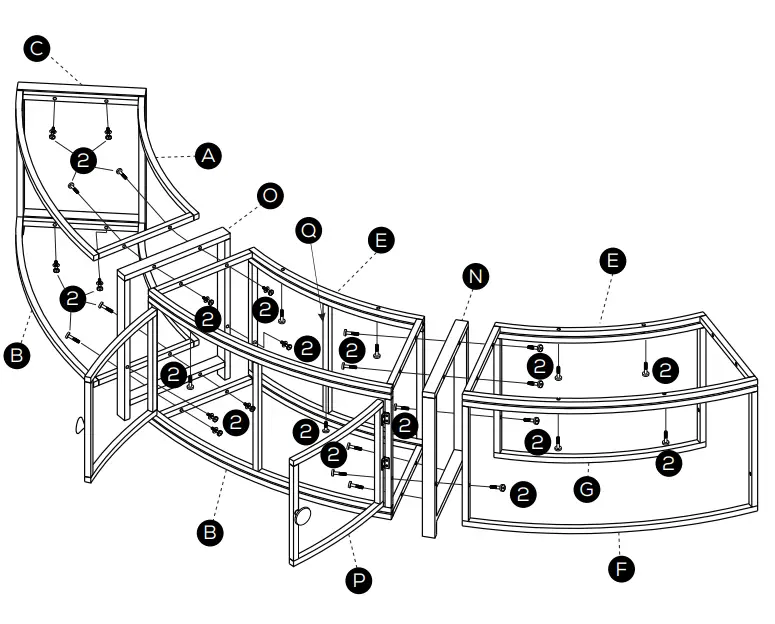

3. Connect parts A , E , B , C , O , N , P , Q , G & F using bolts 2

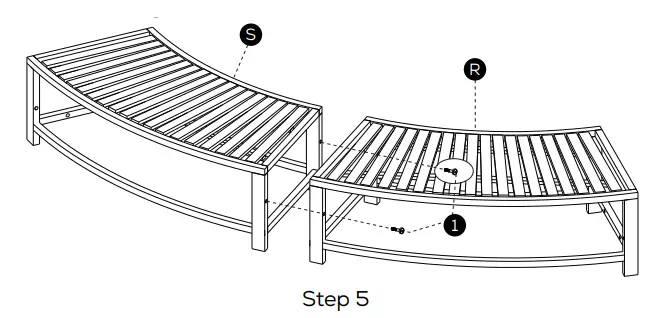

4. Connect parts R & S using bolts 1

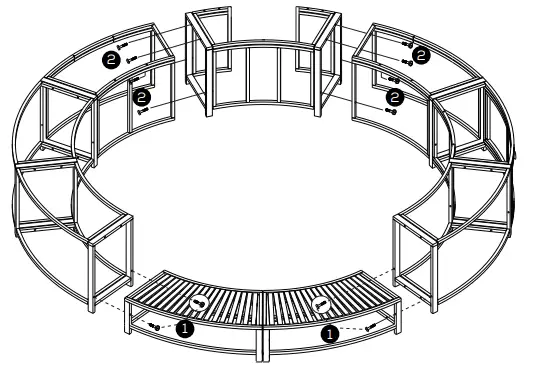

5. Connect parts from steps 1, 2, 3, 4 using bolts 1 & 2

This product is suitable for domestic use only.

Care and Maintenance

• Use a soft, clean cloth that will not scratch the surface when dusting.
• Use of furniture polish is not necessary.
• Should you choose to use polish, test first in an inconspicuous area.
• Using solvents of any kind on your furniture may damage the finish.
• Liquid spillss should be removed immediately. Using a soft clean cloth, blot the spill gently. Avoid rubbing.
• Check bolts/screws periodically and tighten them if necessary.
• Please protect your outdoor furniture with a cover when not in use since long-term sunlight exposure will result in damage on the surface.
• In addition to sunlight damage, wood and metal frame suffers when exposed to extremes in temperature and humidty.
• Proper care amd cleaning at home will extend the life of your purchase.
• Following these important and helpful tips will enhance your furniture as it ages.

Wilton Bradley Ltd., Heathfield, Newton Abbot, TQ12 6TL, UK
