BUILD SHEET
Digital Ally, Inc.
Product Model:
In-Vehicle Camera Kit (four-camera system): DVM-800
DVM-800 In Vehicle Camera Kit
Introducing the DVM-800 In-Car Camera System:

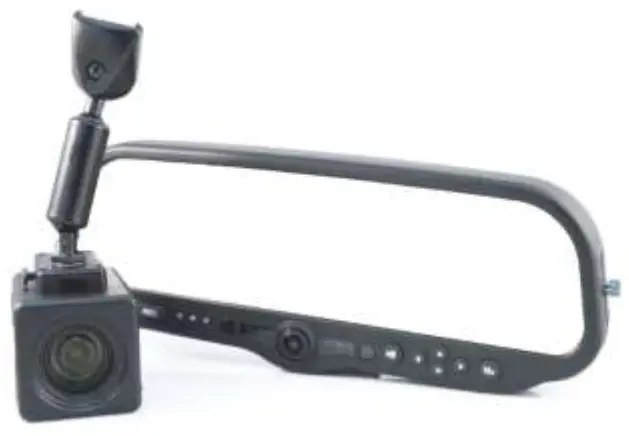

The DVM-800 is a complete digital in-vehicle video recording system integrated into a replacement vehicle rear-view mirror. The DVM-800 comes standard with four cameras and twochannel recording. The quality settings can be adjusted to meet your requirements.
NEVER MISS AN IMPORTANT EVENT
Evidence Capture Assurance (ECA)
ECA tells the system to record on a continuous loop. Individual events are recorded, but ECA enables an agency to go back and look at video from an entire shift.
Pre-Event Recording
With Pre-Event enabled, the system is always recording the last 30 seconds to capture the events leading up to the activation of a recording.
ENHANCED VIDEO AND AUDIO
High Quality Video | Crystal Clear Audio
Our cameras have high quality video ranging from Enhanced D1 Resolution to full HD Resolution. With the combination of our mirror units built in cameras and multiple options for external cameras, you can customize your video feeds, with up to two channels recording simultaneously. Our wireless microphone records enhanced audio for up to 3000 feet from the vehicle.
CUSTOM SOLUTION TO FIT YOUR NEEDS
Highly Configurable Systems
Our camera systems can be configured to work in any way your agency needs. All of our systems have multiple settings that you can configure to make the solution fit any requirements your policy might have, such as, audio/video quality, preevent customization, user control, multiple camera options, and more customization on the back-end with our VuVault Software series and VuVault.com cloud solution.
Included with Purchase:
- DVM-800, Main Unit 32GB
- 32GB SDHC card
- DVM Mount Assembly with Integrated 3.5” color monitor (can be invisible when not in use)
- 900MHz Wireless Microphone with 1000-foot range
- Two in-car covert microphones
- Accessory Kit: Includes Windshield Mounting Puck, Lanyard, Mounting Hardware, Security Tamper Resistant Screw & Key Kit

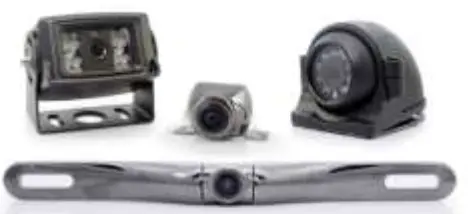

- Four Cameras:
- Full D1 resolution (720×480) road-facing camera with 12x variable zoom
- Passenger-facing Camera with Infrared illumination built into the rearview mirror
- Smart Infrared Backseat-facing Camera
- Choice between License Plate Camera, Side Mount Camera, or Infrared Backseat-facing Camera
- Vehicle Input Controller (modeiiFE-20)
- Main Power Cable to IF Box, 3.1 m (10.1ft.)
- Vehicle Input Controller Cable to DVM 4.6m (15.0ft.)
- DWM-928 System (900MHz) Includes Wireless Microphone, Charging Cradle, Mounting Bracket, and Lapel Microphone
- Backseat Microphone for DWM-928, 20ft., 2.5mm plug
- USB 2.0 Type A to Mini-B Cable, 3.3 ft.
- Wireless Microphone to DVM-800 Cable
- Vehicle Input Controller, Sensor, RJ45 Cable
- Wi-Fi Antenna
- GPS Module
- Reference Guide
Specifications for DVM-800:
| POWER | |
| Operating Voltage | 13.8VDC |
| On | 360mA @ 13.8VDC |
| Off | 260uA @ 13.8VDC |
| Low Power Standby | 170mA @ 13.8VDC |
| Backup Battery | 3.7v, 1150mA, Rechargeable Lithium Ion Polymer Battery |
| ENVIRONMENTAL/MECHANICAL | |
| Operating Temperature | -20° to +70° C |
| Storage Temperature | -40° to +80° C |
| Dimensions | 48mm (1.9in.)(D) x 279mm (11in.)(W) x 106mm (4.7in.)(H) |
| Weight | 733g (1.62lbs) |
| INTERNAL COMPONENTS | |
| LCD Monitor | 3.5” Color Ultra Bright. 640×480 resolution |
| Real Time Clock | On board, used when GPS signal is lost |
| Accelerometer | 3-axis, ±8g |
| Wi-Fi | 802.11(n) wireless adapter included. Secure FTP transfer through WAP or cellular modem |
| Microphone | Internal (max. input SPL 110dB, sensitivity -30dB) |
| GPS Receiver | 4Hz position update rate, 2.5m position accuracy |
| Video | 2-recording channels @ 30fps(max), H.264, AVI container |
| Audio | Stereo (internal to one channel, external on other) |
| MEDIA STORAGE | |
| Capacity | External SD Card Support: 8/16/32 GB, Class-10, commercial grade 80 R MB/s, 50 W MB/s Internal Memory matches external |
| Secure Media Access | Optional tamper resistant screw can be installed in the access door, requiring the corresponding security key to unlock the access door. (included with the DVM) |
| Pre-Event Buffer | Up to 30 seconds for each of the two recording channels, adjustable in 6 second increments |
| Vehicle Input Controller | |
| Dimensions | 57mm (2.24in) (D) x 29mm (1.14in) (H) x 110mm (4.33in) (L) |
| Input Triggers (Sensors) | Six customizable multi-purpose input triggers. |
| Operating Voltage | 13.8VDC |
| Output Alarm | One (1) normally open, active low output trigger, 2A maximum current |
| Operating Temperature | -20° to +70° C |
| Storage Temperature | -40° to +80° C |
| Radar Support | 9 Pin Serial Female (additional cables required) |
Camera Specifications
| Internal Passenger Facing Camera | Resolution: D1 FOV: 96˚(V) X 119˚(H) X 141˚(D) Fixed focus lens IR LED assisted for low light conditions 0.5 Lux with IR LEDs OFF 0.0 Lux with IR LED’s ON |
| Internal Road Facing Camera | Resolution: D1 FOV: 57.9˚(V) X 79.2˚(H) X 103.4˚(D) Fixed focus lens |
| 12XC External road-facing Camera | FOV: 76° (V) x 102° (H) Resolution: 768×494, Color 560TVL B&W 600TVL 1/4” Ex-HAD CCD imager Zoom magnification 12X Focal Length: f=3.6 ~ 44.3mm, f1.6 (Wide)/ f2.0 (Tele) Auto / Manual focus Auto / Manual Iris Auto White Balance Minimum Illumination: Color 2.0 Lux B&W 0.2Lux |
| Infrared External backseat-facing Camera | FOV: 76° (V) x 102° (H) x 115° (D) Shutter Speed: 1/60 second Resolution: 640TVL 1/3” Super HAD CCD imager Auto focus & Auto White Balance IR LED assisted for low light conditions 0.5 Lux with IR LEDs OFF 0.0 Lux with IR LED’s ON |
| License Plate Backup Camera | Resolution: 420TVL FOV: 95° (V) x 125.8° (H) x 155.4° (D) Fixed focus lens |
Wireless Microphone Specifications:
| System Range | 3000 feet typical |
| Communication | Bidirectional |
| Microphone Sensitivity | -30dB, Maximum Input SPL 110dB |
| Power | External 12VDC, 0.190mA typical |
| Size | DWM Cradle: 2.75in x 2.99in x 3.15in (70mm x 76mm x 80mm) DWM Microphone: 2.5in x 1.8in x 0.94in (64mm x 46mm x 24mm) |
| Weight | DWM Cradle (BTR800): 233g DWM Wireless Microphone (RMT800): 74g |
| Battery | Internal Li-ion 3.7V/1800mAh cell 20 hours In Use with full charge, 14 days Standby 4 hours charge time |
| Frequency | 900MHz FHSS, 50 possible channels |
| Frequency Response | 200 ~ 4200Hz +/- 3 dB Audio |
