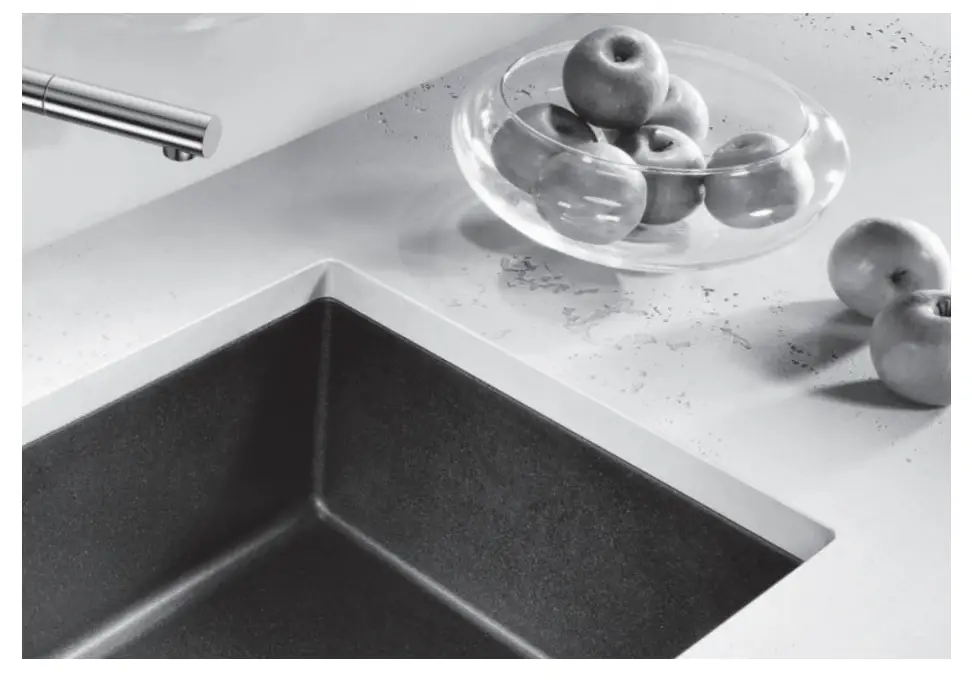

BLANCO SILGRANIT Diamond Silgranit Kitchen Sinks
INSTALLATION INSTRUCTIONS

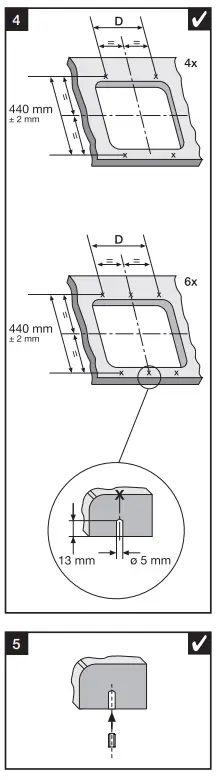

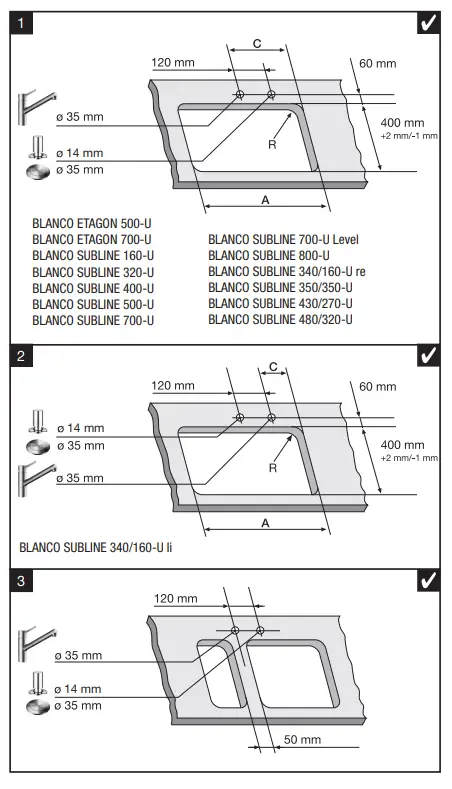

| +2mm – 1mm A | C | +2mm -2mm D | Ø 5 mm | R | |
| BLANCO ETAGON 500-U | 250 mm | 250 mm | 355 mm | 4x | 20 mm |
| BLANCO ETAGON 700-U | 350 mm | 350 mm | 555 mm | 4x | 20 mm |
| BLANCO SUBLINE 160-U | 80 mm | 80 mm | 150 mm | 4x | 10 mm |
| BLANCO SUBLINE 320-U | 160 mm | 160 mm | 310 mm | 4x | 10 mm |
| BLANCO SUBLINE 400-U | 200 mm | 200 mm | 255 mm | 4x | 10 mm |
| BLANCO SUBLINE 500-U | 250 mm | 250 mm | 355 mm | 4x | 10 mm |
| BLANCO SUBLINE 700-U BLANCO SUBLINE 700-U Level | 350 mm | 350 mm | 555 mm | 4x | 10 mm |
| BLANCO SUBLINE 800-U | 400 mm | 400 mm | 655 mm | 4x | 10 mm |
| BLANCO SUBLINE 340/160-U re | 352 mm | 352 mm | 515 mm | 6x | 10 mm |
| BLANCO SUBLINE 340/160-U li | 173 mm | 173 mm | 515 mm | 6x | 10 mm |
| BLANCO SUBLINE 350/350-U | 173 mm | 363 mm | 630 mm | 6x | 10 mm |
| BLANCO SUBLINE 430/270-U | 283 mm | 283 mm | 630 mm | 6x | 10 mm |
| BLANCO SUBLINE 480/320-U | 333 mm | 333 mm | 630 mm | 6x | 10 mm |
