Ravak B570000001 Sonata Bath Handles Instruction Manual

RAVAK B570000001 SONATA Bath Handles

MOUNTING INSTRUCTIONS FOR THE SONATA HANDLE

This type of bathtub has been prepared by the manufacturer with pre-drilled holes for the installation of a handle and headrest.

The handle must be mounted before installation of the bathtub.
It cannot be mounted afterwards!

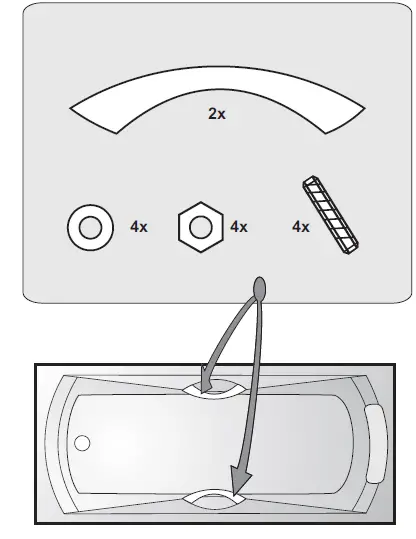

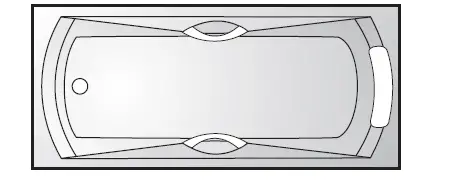

In the center of the side part of the bathtub there are 2 x 2 pre-drilled openings (9mm in diameter) for the 2 parts of the handle.
With the flat side up, place the handle against the pre-drilled holes. It should be seated to follow the shape of the bathtub.

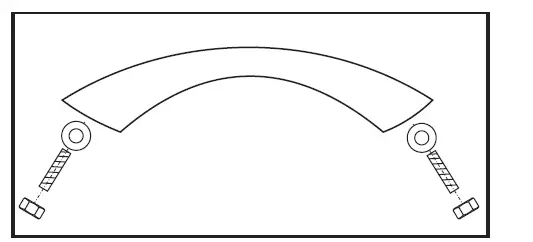

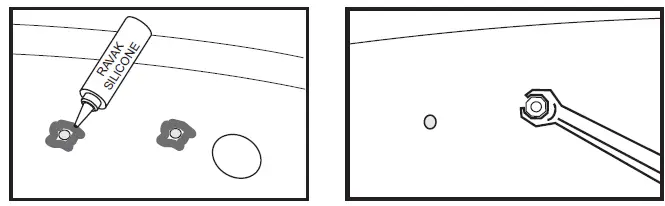

After finding the proper position, check that the holes in the bathtub coincide with the holes in the handle. If not, the handle can be slightly pressed into the proper position. Before final placement of the handle, place a small amount of silicone on the outer side of the holes, under the washers. Put the handle in place and tighten the M8 screws and washers from the under side of the bathtub. Tighten the screws normally. Over-tightening of the screws can cause deformation of the handle.
