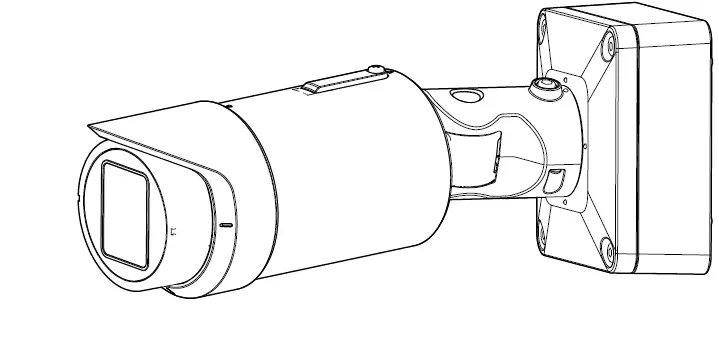

iPRO WV-S15500-V3L Outdoor Camera
Installation Procedure

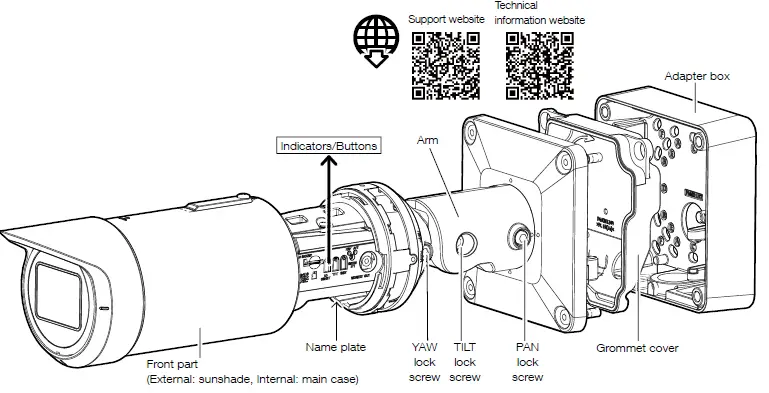

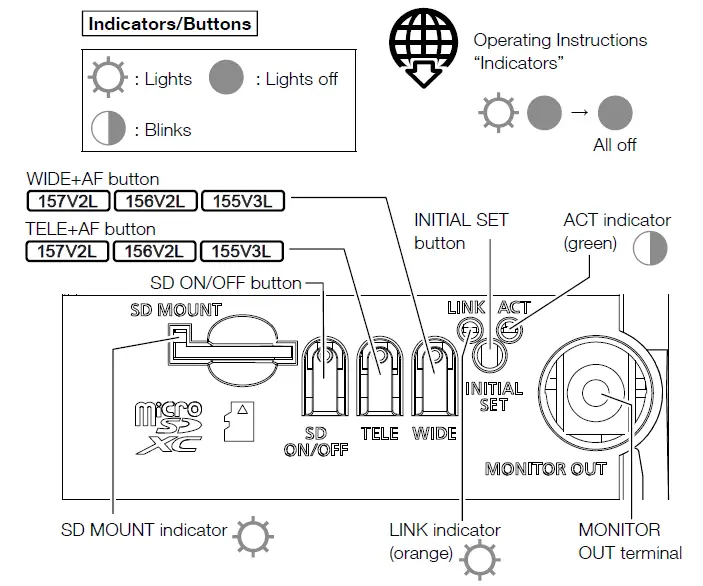

Parts and functions

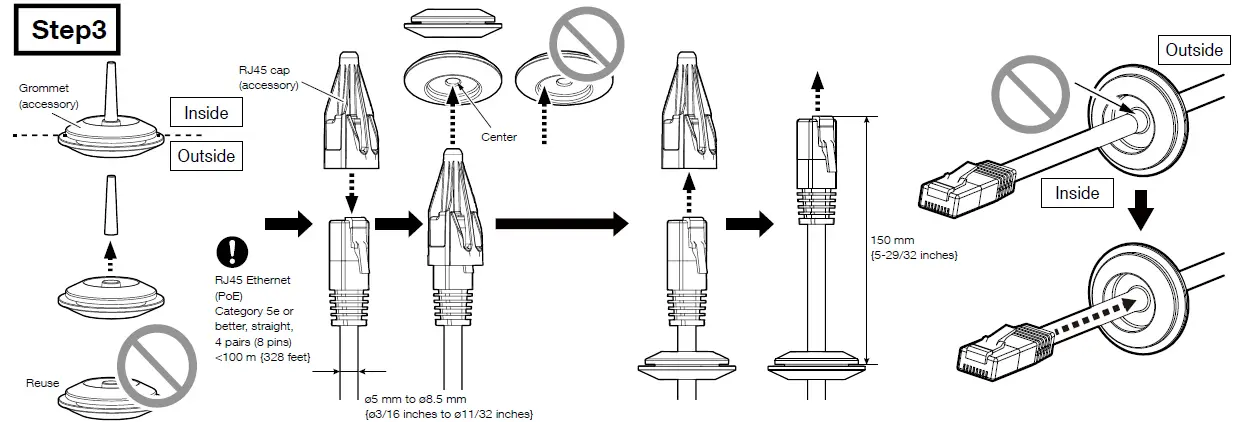

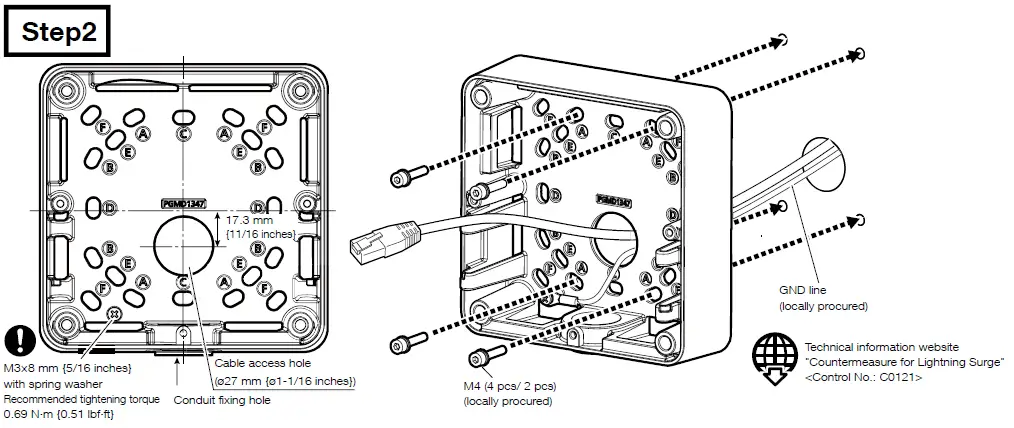

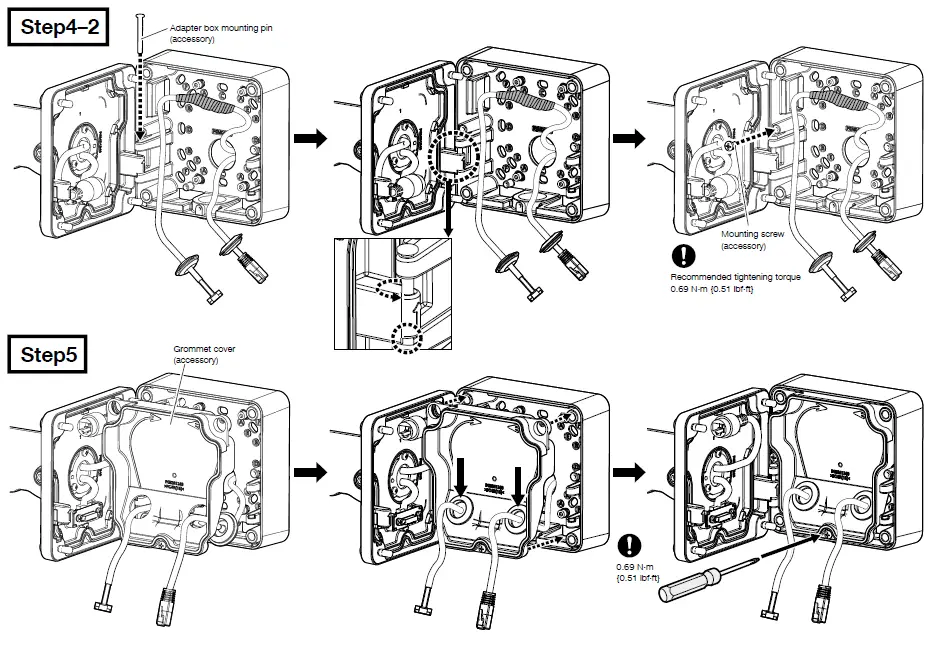

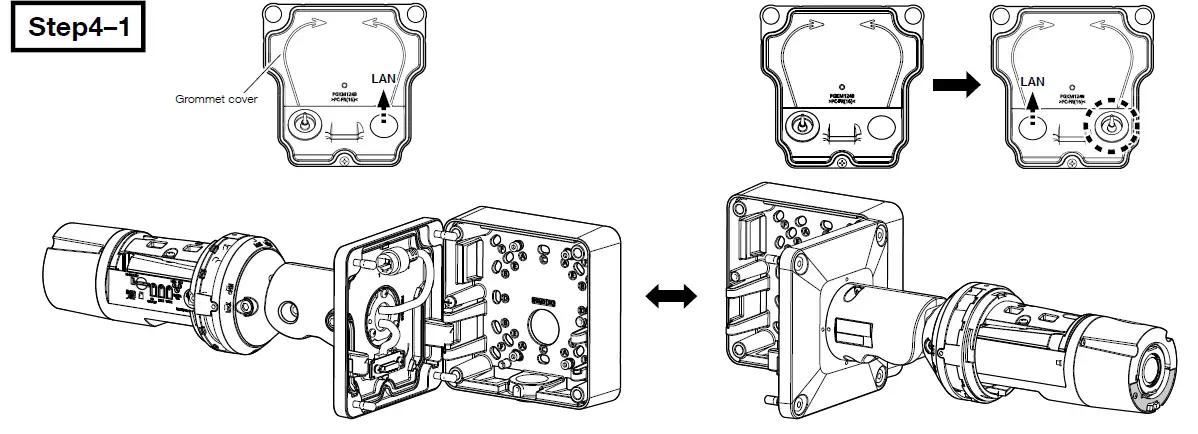

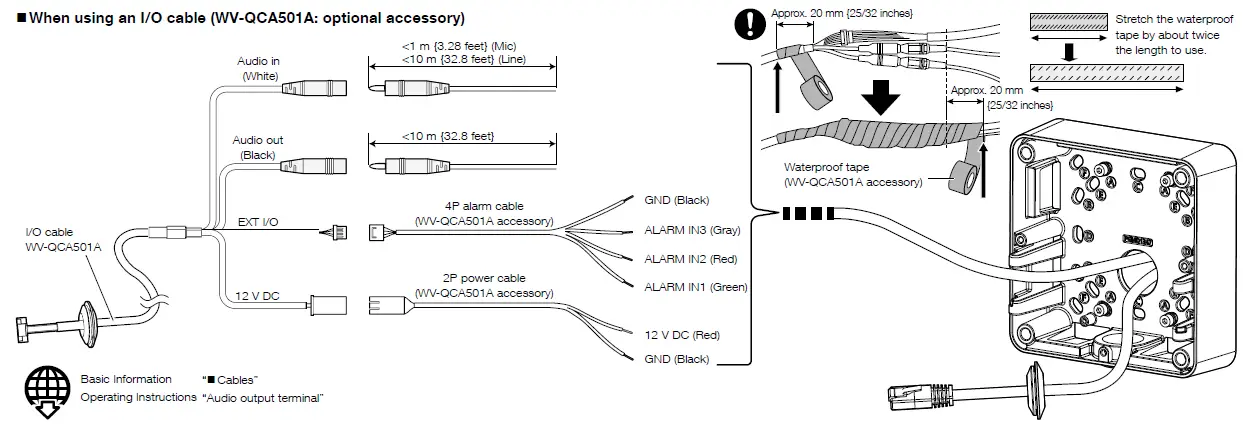

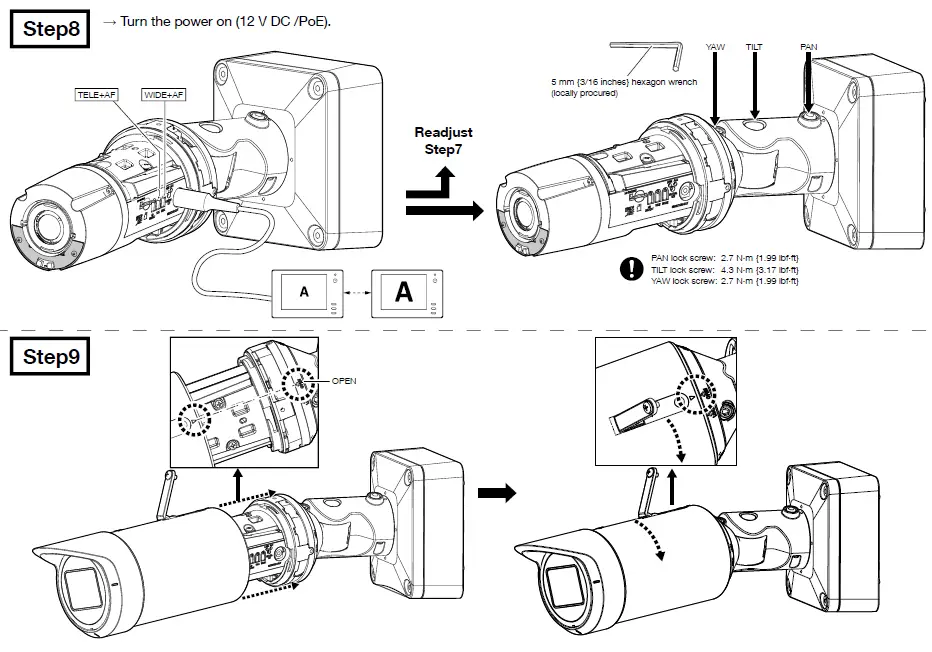

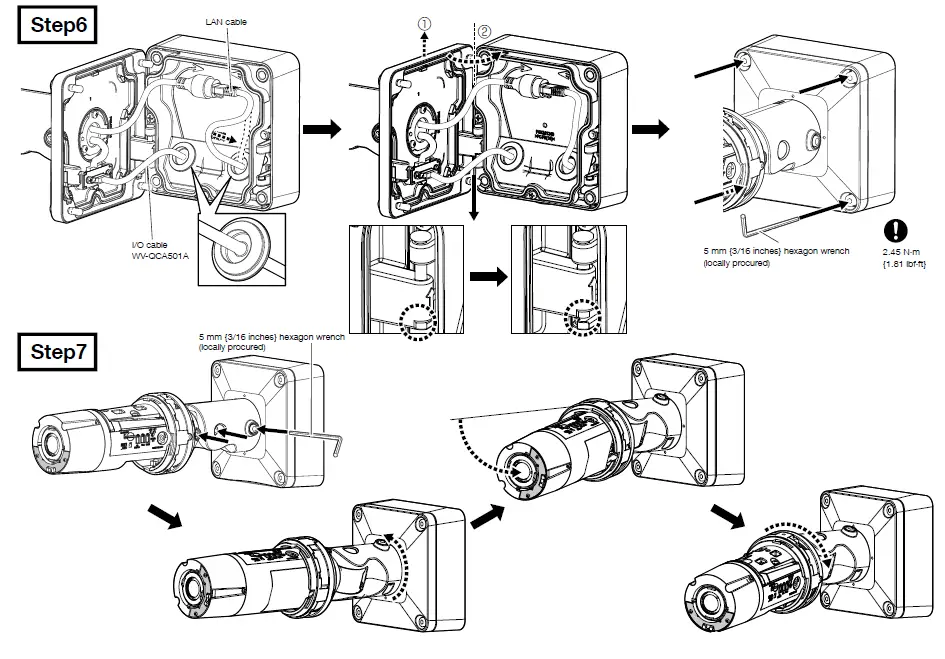

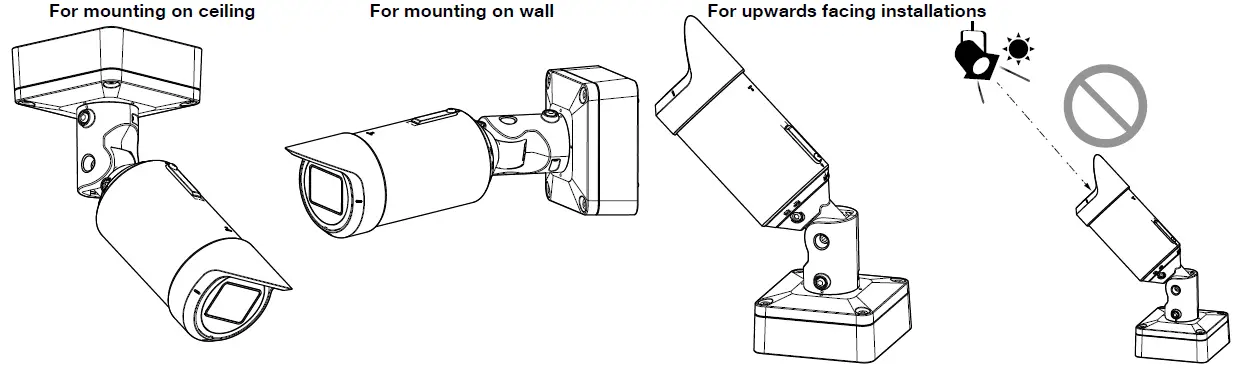

Installation method
Installation method
Preparations
| Vertical direction | Horizontal direction | |
| A | 83.5 mm {3-9/32 inches} (82.5 mm {3-1/4 inches}) | 46 mm {1-13/16 inches} (47.6 mm {1-7/8 inches}) |
| B | 46 mm {1-13/16 inches} (47.6 mm {1-7/8 inches}) | 83.5 mm {3-9/32 inches} (82.5 mm {3-1/4 inches}) |
| C | 83.5 mm {3-9/32 inches} (83.3 mm {3-9/32 inches}) | – |
| D | – | 83.5 mm {3-9/32 inches} (83.3 mm {3-9/32 inches}) |
| E | 63 mm {2-15/32 inches} | 63 mm {2-15/32 inches} |
| F | 85.7 mm {3-3/8 inches} | 85.7 mm {3-3/8 inches} |
Technical information website “IP Setting Software” <Control No.: C0123> or “ i-PRO Configuration Tool(iCT)” <Control No.: C0133> “Extra optical zoom” <Control No.: C0124> “How to take a wide depth of field” <Control No.: C0127>

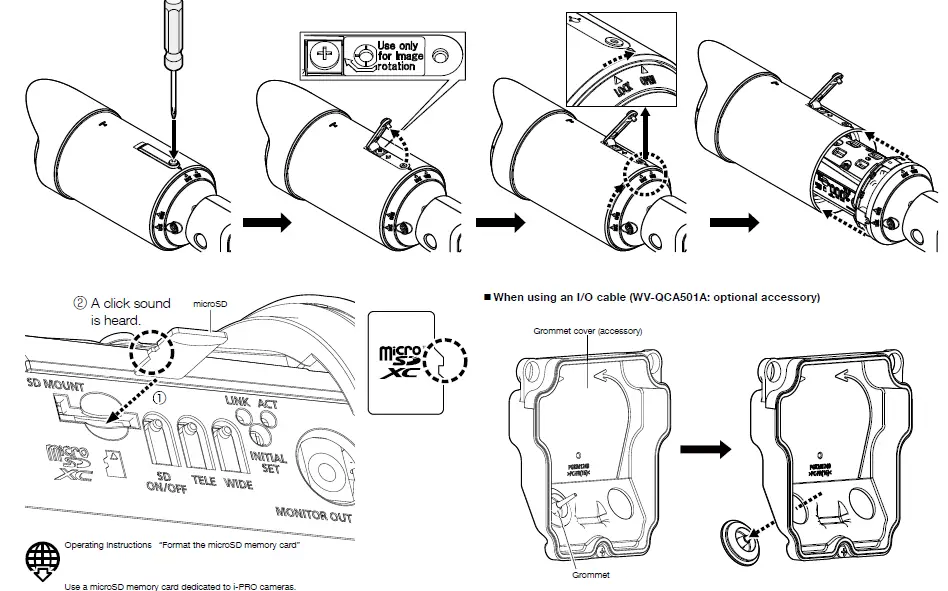

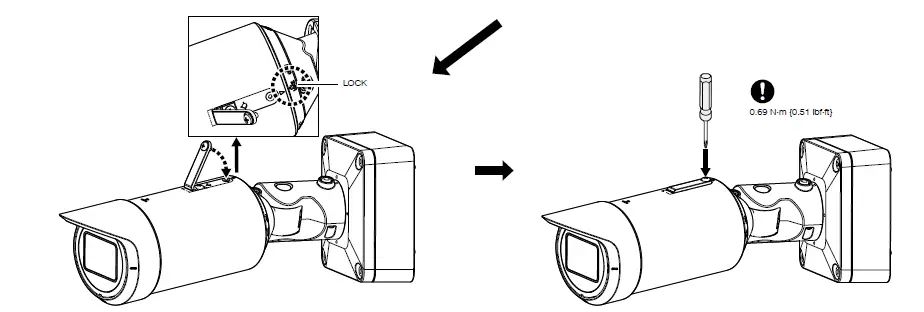

- When using image rotation → Rotate the sunshade.
Technical information website
“Installation method for rotating the sunshade” <Control No.: C0131>
