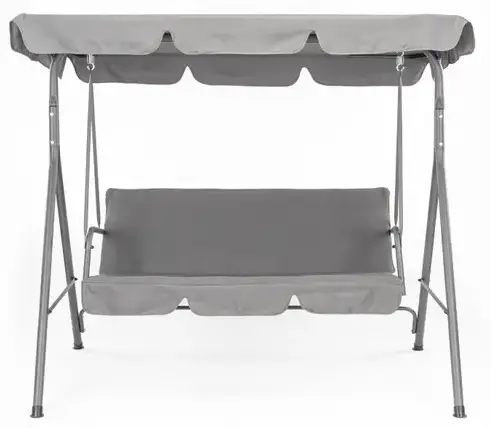

SHANGRI-LA SLSEATSW3GA Outdoor Swing Seat (3 Seater, Grey)
COMPONENTS
Parts:
Bolt, nut and washer sets:
ASSEMBLY

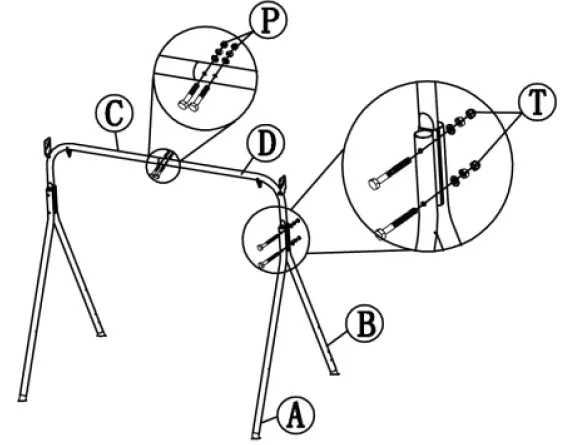

Step 1: Connect the A, B, C, and D rails with the P and T nut and bolt sets.
- One pair of A and B rails will attach to the short end of C using the T set
- The second pair of A and B will attach the short end of D using the T set
- Then both Cand D will be joined together using the P set

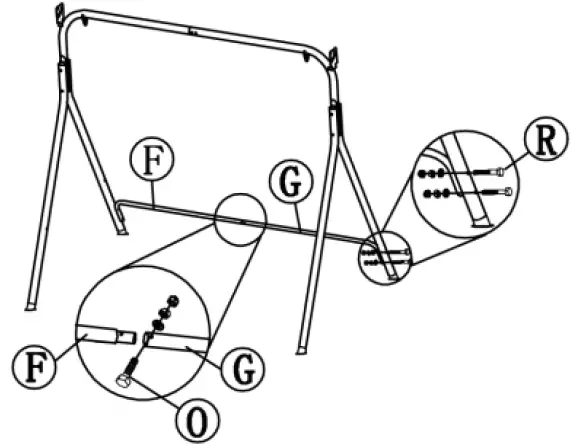

Step 2: Connect F and G rails together with the O nut and bolt set, then attach the combined F & G rail to the B rails with x2 R nut and bolt sets on each end.

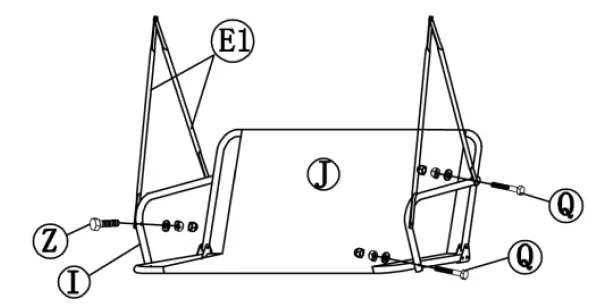

Step 3: Create the seat assembly by connecting the arm rests () to the seat (J) with the Q nut and bolt set.
Then attach the x4 El rails to the arm rests with the Z nut and bolt set.

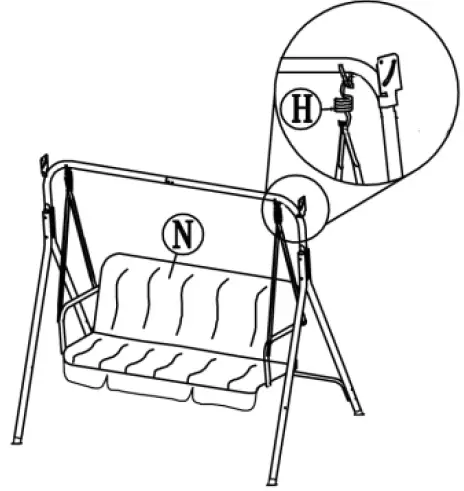

Step 4: Hang the seat assembly onto the frame with the x2 springs (H). The springs will first be connected to the El rails of the seat assembly, then lifted and attached to the top of the frame (C and D rails).
Place the seat cover (N) onto the seat assembly.

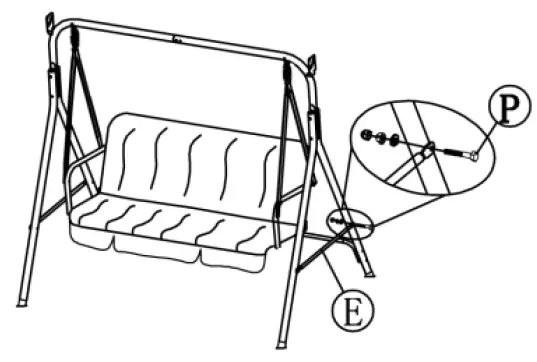

Step 5: Connect the E crossbeams onto the frame, using the P nut and bolt set to secure.

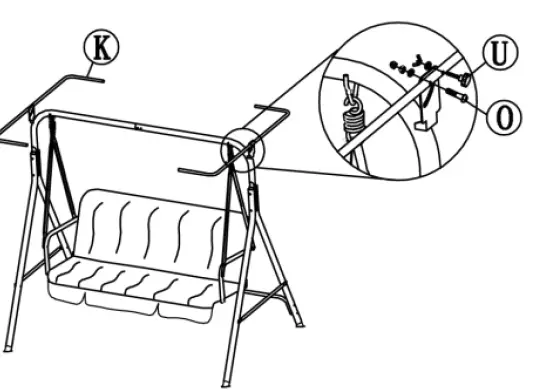

Step 6: To begin assembling the top canopy, attach the K rails to each sIde of the frame assembly using the butterfly clip (U) and the O nut and bolt set.

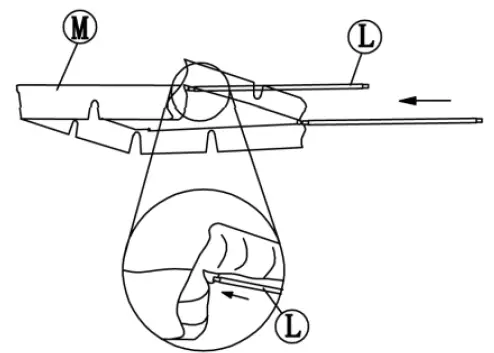

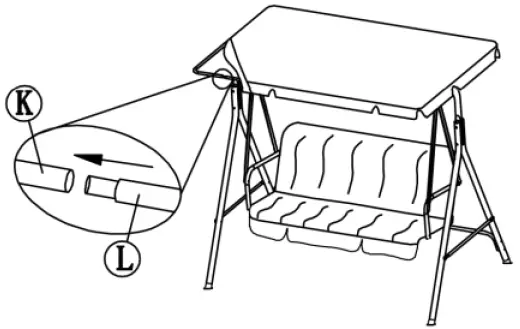

Step 7: lInsert the L rails into the canopy cover (M) as shown below.
Step 8: Secure the canopy cover to the frame assembly, fitting L rails into K rails on each side. Following this, assembly is complete.
Need more information?
We hope that this user guide has given you the assistance needed for a simple set-up.
For the most up-to-date guide for your product, as well as any additional assistance you may require,head online to help.kogan.com
