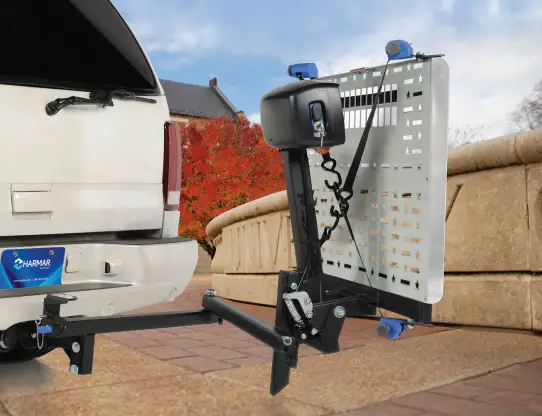

AL500 Platform Power Wheelchair
AL500 / AL500HD
UNIVERSAL POWER WHEELCHAIR LIFT
DESIGNED FOR POWER WHEELCHAIRS
The AL500 series lifts are among the most popular outside platform lifts. Featuring Harmar’s Stars -N- Stripes aluminum deck design, dedicated to our veterans and commemorating Harmar’s heritage as an American company.
The AL500 and AL500HD are easy to operate and built to last for years of trouble-free use. The universal design safely transports the power chair without making chair modifications.
- Easy, one-switch operation
- License Plate Light
- Key Switch and Courtesy Light
- 4- self-tensioning Q’Straint Retractors, no chair modifications required
- Manual Crank backup and License Plate Mount included
- Swing-Away option available
25SEP2020 | MKT-000032 REV C
Single switch operation
4-self tensioning w retractors
License plate mount
I am a caretaker for my father and this lift made it possible for me to take my dad to go out to eat and meet with friends and family. He now feels a sense of freedom and enjoys trips big and small.
AL500 PRODUCT SPECIFICATIONS
LIFTING CAPACITY 350 lb
ACCOMMODATES Power wheelchairs
INSTALLED WEIGHT 75 lb
PLATFORM SIZE 26″ x 39″
HITCH CLASS II or greater
POWERED Fully powered
WARRANTY 3-year
INCLUDED
– AL107 hitch post
– AL123 class III hitch adapter
– License plate mount
SECUREMENT 4 self-tensioning Q’Straint retractors
AVAILABLE OPTION(S)
– Battery pack
– Cover
– License plate riser
– Swing-away
AL500HD PRODUCT SPECIFICATIONS
LIFTING CAPACITY 400 lb
ACCOMMODATES Power wheelchairs
INSTALLED WEIGHT 77 lb
PLATFORM SIZE 26″ x 39″
HITCH CLASS III or greater
POWERED Fully powered
WARRANTY 3-year
INCLUDED
– AL107 hitch post
– AL123HD class III heavy duty hitch adapter
– License plate mount
SECUREMENT 4 self-tensioning Q’Straint
AVAILABLE OPTION(S)
– Battery pack
– Cover
– License plate riser
– Swing-away
Harmar.com
800.833.0478
25SEP2020 | MKT-000032 REV C
