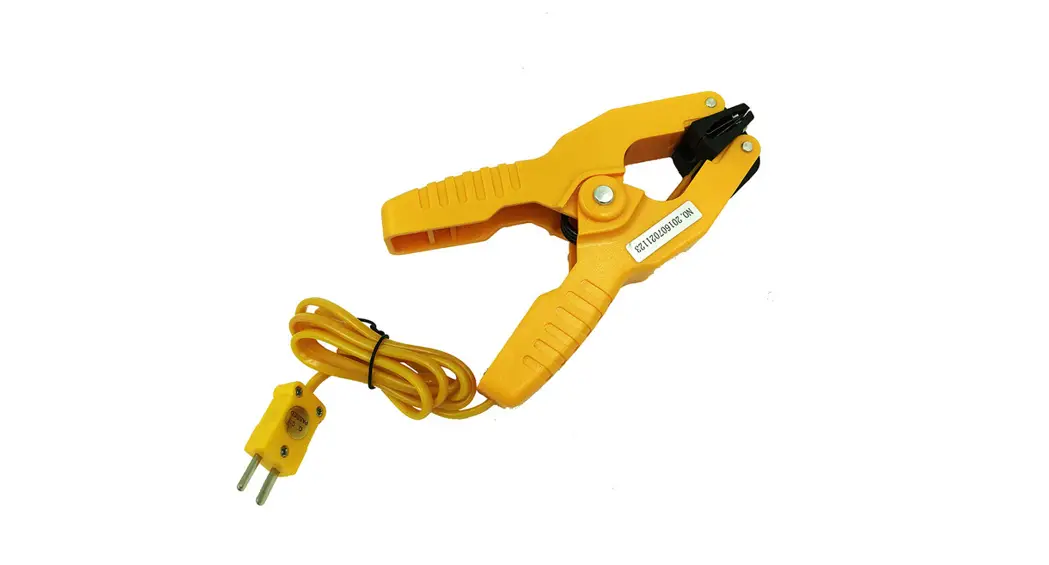

ThermoSensor Clamp
Completely read through the operating instructions, the “Warranty and Additional Information” booklet as well as the latest information under the internet link at the end of these instructions. Follow the instructions they contain. This document must be kept in a safe place and passed on together with the device.
Function / application

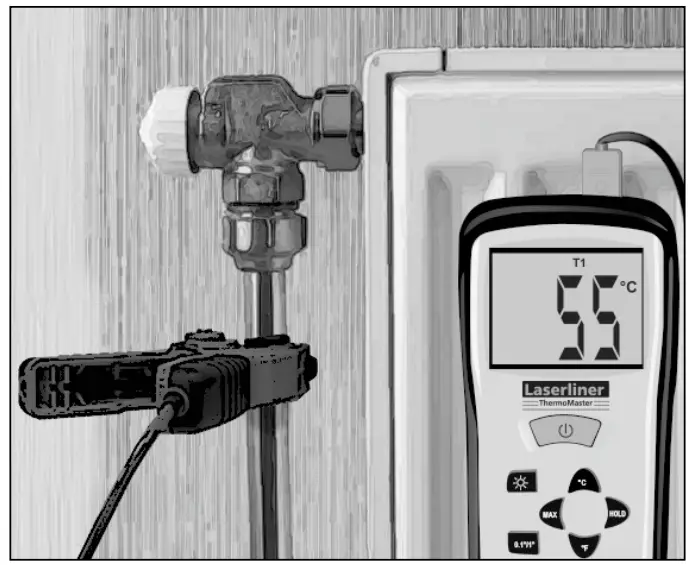

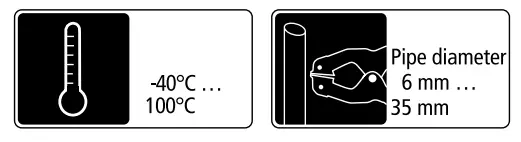

The ThermoSensor Clamp is a K-type temperature sensor for measuring the contact temperature on metal tubes from 6 to 35 mm. This product has a
heat-resistant handle and is suitable for use with the following devices: ThermoMaster, ThermoSpot XP, CondenseSpot XP, MultiMeter XP, and Lampeter
XP.
General safety instructions
– The device must only be used in accordance with its intended purpose and within the scope of the specifications.
– The measuring tools and accessories are not toys.
Keep out of reach of children.
– The structure of the device must not be modified in any way.
– Do not expose the device to mechanical stress, extreme temperatures, moisture, or significant vibration.
– Do not power the temperature sensor (K-type) with an external voltage.
– Risk of damage! The measuring surfaces may scratch sensitive material.
– Risk of pinching! Do not reach into the clamping bracket!
Safety instructions
Dealing with electromagnetic radiation
– The measuring device complies with electromagnetic compatibility regulations and limit values in accordance with EMC-Directive 2014/30/EU.
– Local operating restrictions – for example, in hospitals, aircraft, petrol stations, or in the vicinity of people with pacemakers – may apply. Electronic devices can potentially cause hazards or interference or be subject to hazards or interference.
Information on maintenance and care
Clean all components with a damp cloth and do not use cleaning agents, scouring agents, and solvents. Store the device in a clean and dry place.

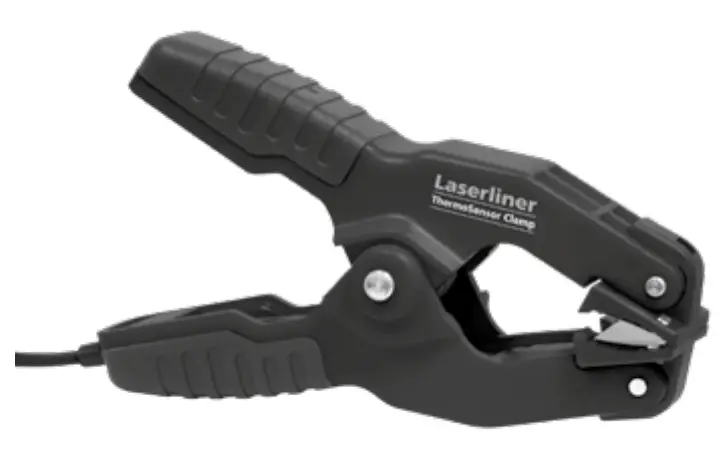

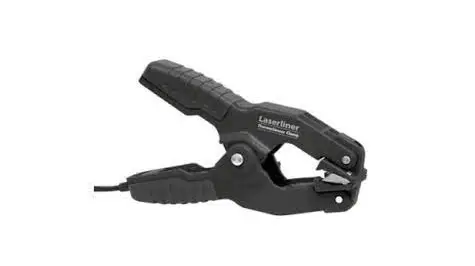

ThermoSensor Clamp
- K-type connection
- Cable 1.5 m
- Measuring surfaces
Technical data (Subject to technical changes without notice. 21W25)
| Measurement range | -40°C … 100°C |
| Accuracy | ± 2,5°C |
| Pipe diameter | 6 mm … 35 mm |
| Operating conditions | -10°C … 60°C, Max. humidity 80% RH, no condensation, Max. working altitude 4000 m above sea level |
| Storage conditions | -20°C … 70°C, Max. humidity 80% RH |
| Cable length | 1,5 m |
| Dimensions (W x H x D) | 130 x 79 x 39 mm (without cable) |
| Weight | 100 g |
EU directives and disposal
This device complies with all necessary standards for the free movement of goods within the EU.
This product is an electric device and must be collected separately for disposal according to the European Directive on waste electrical and electronic equipment.
Further safety and supplementary notices at: http://laserliner.com/info/?an=AGV
SERVICE
Umarex GmbH & Co. KG
Sonnenfeld 2
59757 Arnsberg, Germany
Tel.: +49 2932 638-300, Fax: -333
www.laserliner.com
Rev21W25
