Laserliner 2142038 ThermoSpot XP Thermometer Display
CAUTION
Completely read through the operating instructions, the „Warranty and Additional Information“ booklet as well as the latest information under the internet link at the end of these instructions. Follow the instructions they contain. This document must be kept in a safe place and passed on together with the device.
Function/Application
The ThermoSpot XP is an infrared and contact temperature measuring device with memory function
and a Digital Connection interface for transferring the measured data. Non-contact temperature measurement of surfaces is realised by measuring and evaluating the amount of electromagnetic energy in the infrared wavelength range. There is a connection for a temperature sensor (K-type) to facilitate contact temperature measurement.

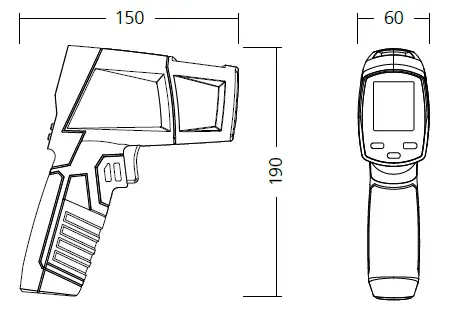

DIMENSIONS
General safety instructions
- The device must only be used in accordance with its intended purpose and within the scope of the specifications.
- The measuring tools and accessories are not toys. Keep out of reach of children.
- Modifications or changes to the device are not permitted, this will otherwise invalidate the approval and safety specifications.
- Do not expose the device to mechanical stress, extreme temperatures, moisture or significant vibration.
- The device must no longer be used if one or more of its functions fail or the battery charge is weak.
- Do not power the temperature sensor (K-type) with an external voltage.
- Please ensure compliance with the safety regulations set out by local and national authorities with regard to the correct and proper use of the device.
Safety instructions
Using class 2 lasers
Laser radiation!
Do not stare into the beam!Class 2 laser
< 1 mW · 650 nm
EN 60825-1:2014/AC:2017
- Attention: Do not look into the direct or reflected beam.
- Do not point the laser beam towards persons.
- If a person‘s eyes are exposed to class 2 laser radiation, they should shut their eyes and immediately move away from the beam.
- Under no circumstances should optical instruments (magnifying glass, microscope, binoculars)
- Do not use the laser at eye level (1.40…1.90 m)
- Tampering with (making changes to) the laser device is not permitted.

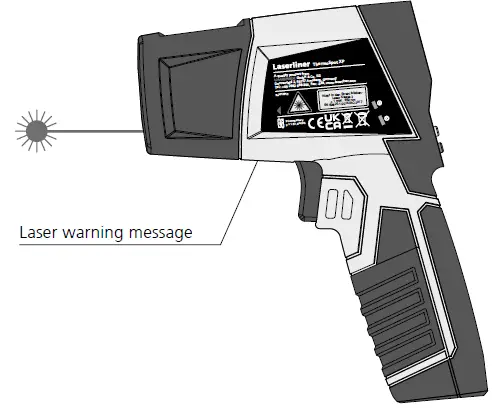

Laser outlet
Dealing with electromagnetic radiation
- The measuring device complies with electromagnetic compatibility regulations and limits in accordance with the EMC Directive 2014/30/EU which is covered by the Radio Equipment Directive 2014/53/EU.
- Local operating restrictions – for example, in hospitals, aircraft, petrol stations or in the vicinity of people with pacemakers – may apply. Electronic devices can potentially cause hazards or interference or be subject to hazards or interference.
- The measuring accuracy may be affected when working close to high voltages or high electromagnetic alternating fields.
Dealing with RF radiation
- The measuring device is equipped with a wireless interface.
- The measuring device complies with electromagnetic compatibility and wireless radiation regulations and limits in accordance with the RED 2014/53/EU.
- Umarex GmbH & Co. KG hereby declares that the ThermoSpot XP radio equipment complies
with the essential requirements and other provisions of the European Radio Equipment Directive 2014/53/EU (RED). The EU Declaration of Conformity can be found in its entirety at the following address: http://laserliner.com/info?an=AGA
Information on maintenance and care
Clean all components with a damp cloth and do not use cleaning agents, scouring agents and solvents. Remove the battery(ies) before storing for longer periods. Store the device in a clean and dry place.
Calibration
The meter needs to be calibrated and tested on a regular basis to ensure it produces accurate measurement results. We recommend carrying out calibration once a year.

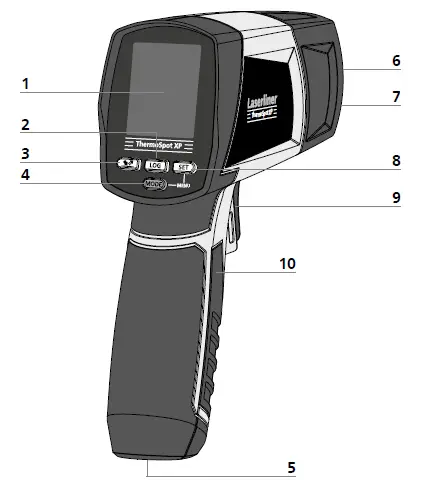

- LC display
- Memory function
- Set emissivity factor
- Moduseinstellung:
- T-K, MAX, MIN, AVG, diF /ON
- 1/4“-tripod threads Infrared sensor
- 8-point laser circle outlet
- SET button
- ON / trigger
- Battery compartment

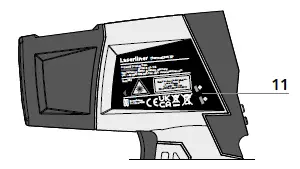

- Sockets for K-type

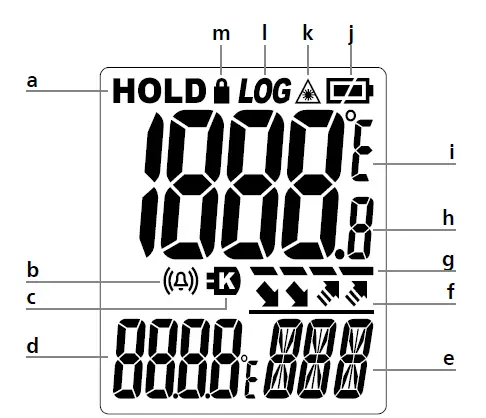

- a. Hold function
- b. Temperature alarm
- c. Temperature sensor (K-type) active
- d. Measured value in selected mode/emissivity factor display
- e. Mode display/storage location
- f. Quick emissivity display
- g. Infrared temperature measurement active
- h. Measured value, infrared temperature
- i. Measurement °C / °F
- j. Battery charge
- k. Laser beam switched on, temperature measurement (infrared)
- l. Memory function
- m. Continuous measurement active

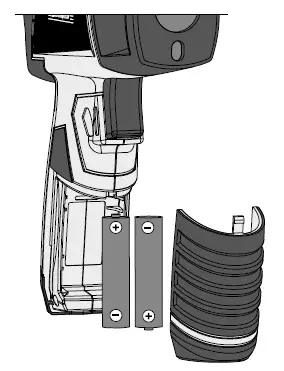

Inserting batteries
Open the battery compartment and insert batteries according to the symbols. Be sure to pay attention to polarity.
ON / OFF
The device can also be switched on with the MODE button (4). No measurement is triggered and the last measured values are displayed.
Auto switch-off after 30 seconds.

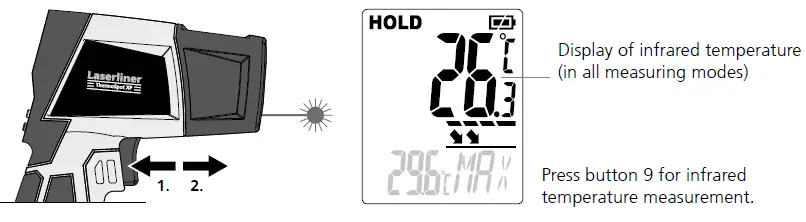

Infrared temperature measurement / continuous measurement / Hold

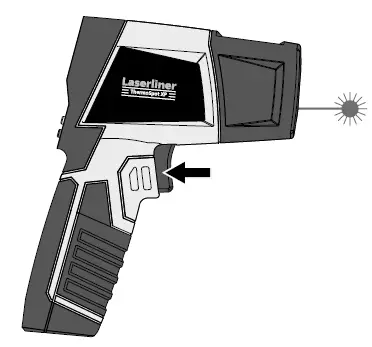

For continuous measurement activate the laser (see figure) and keep the button pressed.

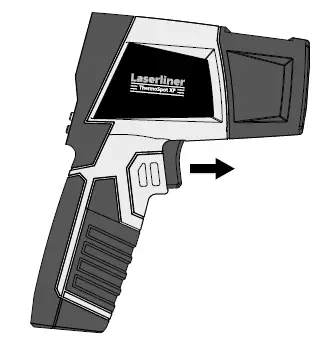

Release the button as soon as the target laser pinpoints the measurement location. The measured value is held.

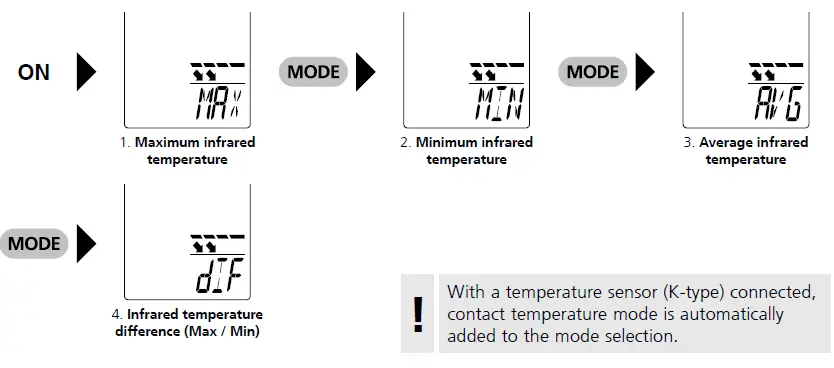

Mode selection
The device features various measuring modes.

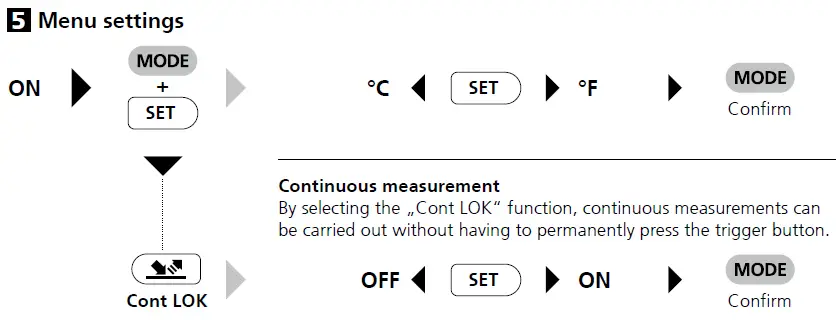

Continuous measurement starts by briefly pressing the trigger button. A lock symbol appears on the display. The value is held (HOLD) by long-pressing the button again.
CAUTION:
The battery charge must be at least 15% for continuous measurement.
Infrared temperature: Setting the emissivity
An integrated sensor head detects the material/surface-specific infrared radiation emitted by all objects. The level of these emissions is determined by the specific emissivity of the material (0,01 to 1,00).
After switching on for the first time, the device is preset to an emissivity factor of 0.95, which is suitable for most organic materials and non-metals (plastics, ceramics, wood, rubber, paints, varnishes and stone). For materials with different emissivity factors, refer to the table under Point 7.
Wherever possible, paint or matt black stickers can be applied on non-coated metals and metal oxides, which due to their low, temperature-unstable emissivity are suitable for IR measurement only for a limited extent, as well as on surfaces with unknown emissivity in order to set the emissivity factor to 0.95. If this is not possible, use a contact thermometer.
CAUTION:
The emissivity last selected is set after the device is switched on. Check the emissivity setting before each measurement.
The device features a quick selection function for the stored emissivity factors (0.95, 0.85, 0.75, 0.65, 0.55) and accurate setting between 0.01 – 1.00.

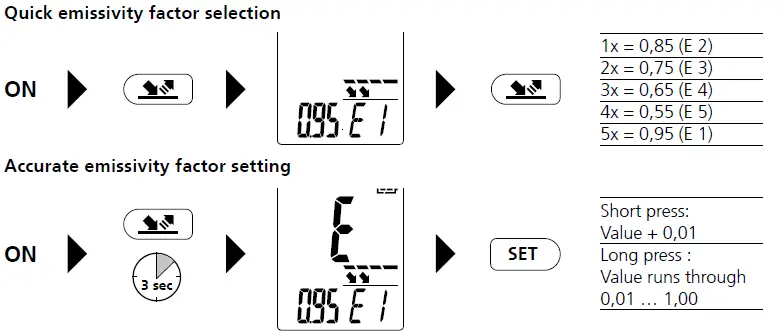

Quick emissivity factor selection
The storage locations E1 – E5 can be changed arbitrarily. By long-pressing on the storage location
it can be adapted and the value remains stored. The factory reset resets the values to 0.95 / 0.85 / 0.75 / 0.65 and 0.55.
Emission coefficient tables
Reference values with tolerances
| Metals | ||||||
| Alloy A3003 Oxidised Roughened | 0.20 0.20 | Iron Oxidised With rust | 0.75 0.60 | Steel Alloy (8% nickel, 18% chromium) Galvanised Oxidised Heavily oxidised Freshly rolled Rough, flat surface Rusty, red Sheet, nickel plated Sheet, rolled Stainless steel |
0.35 0.28 0.80 0.88 0.24 0.96 0.69 0.11 0.56 0.45 | |
| Aluminium Oxidised Polished | 0.30 0.05 | Iron, cast Non-oxidised Molten mass | 0.20 0.25 | |||
| Brass Polished Oxidised | 0.30 0.50 | Iron, forged Matt | 0.90 | |||
| Lead Rough | 0.40 | |||||
| Chromium oxide | 0.81 | |||||
| Copper Oxidised Copperoxide | 0.72 0.78 | Platinum Black | 0.90 | |||
| Zinc Oxidised | 0.10 | |||||
| Steel Cold rolled Ground plate Polished plate | 0.80 0.50 0.10 | |||||
| Inconel Oxidised Electropolished | 0.83 0.15 | |||||
| Nonmetals | ||||||
| Asbestos | 0.93 | Gravel | 0.95 | Paper All colours | 0.96 | |
| Asphalt | 0.95 | Grit | 0.95 | |||
| Basalt | 0.70 | Gypsum | 0.88 | Plastic Translucent PE, P, PVC | 0.95 0.94 | |
| Brick, red | 0.93 | Gypsum cardboard | 0.95 | |||
| Carborundum | 0.90 | Heat sink Black, anodized | 0.98 | Quartz glass | 0.93 | |
| Cement | 0.95 | Rubber Hard Soft, grey | 0.94 0.89 | |||
| Ceramics | 0.95 | Human skin | 0.98 | |||
| China Brilliant white With glaze | 0.73 0.92 | Ice Clear With heavy frost | 0.97 0.98 | |||
| Sand | 0.95 | |||||
| Screed | 0.93 | |||||
| Clay | 0.95 | Laminate | 0.90 | Snow | 0.80 | |
| Coal Non-oxidised | 0.85 | Lime | 0.35 | Soil | 0.94 | |
| Lime malm brick | 0.95 | |||||
| Tar | 0.82 | |||||
| Concrete, plaster, mortar | 0.93 | Limestone | 0.98 | |||
| Tar paper | 0.92 | |||||
| Cotton | 0.77 | Marble Black, dull finish Greyish, polished | 0.94 0.93 | |||
| Transformer paint | 0.94 | |||||
| Earthenware, matt | 0.93 | |||||
| Wallpaper, light-coloured | 0.89 | |||||
| Fabric | 0.95 | |||||
| Masonry | 0.93 | Water | 0.93 | |||
| Glass | 0.90 | |||||
| Paint Black, matt Heat-resistant White | 0.97 0.92 0.90 | Wood Untreated Beech, planed | 0.88 0.94 | |||
| Glass wool | 0.95 | |||||
| Graphite | 0.75 | |||||

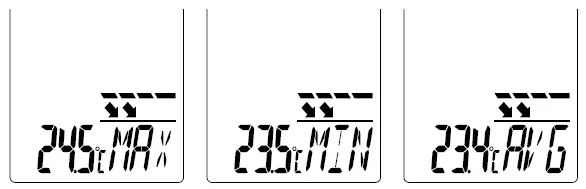

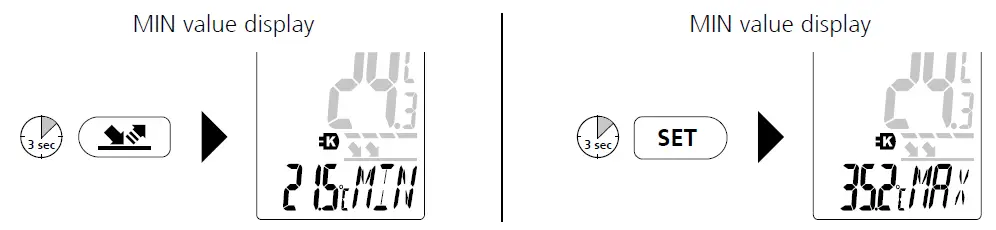

Max/Min/AVG modes refer to the infrared temperature and show the maximum, minimum or average infrared temperature. With the trigger (9) pressed, the Max/Min/AVG values are determined while measuring. The value is deleted and calcu- lated again at the start of a new measurement or by pressing the trigger (9).
Difference mode dIF
This mode refers to the infrared temperature and calculates the difference between the maximum and minimum infrared temperature while measuring. The value is deleted and calculated again at the start of a new measurement or by pressing the trigger (9).
CAUTION:
Difference mode dIF enables fast assessment with the aid of the maximum temperature difference within a structural element, e.g. house door / window / masonry.
Contact temperature mode T-K (K-type)
The device automatically switches to contact temperature mode T-K as soon as a temperature sensor (K-type) is connected. With a minimum battery charge of 15%, the device does not switch off automatically while the temperature sensor remains connected.

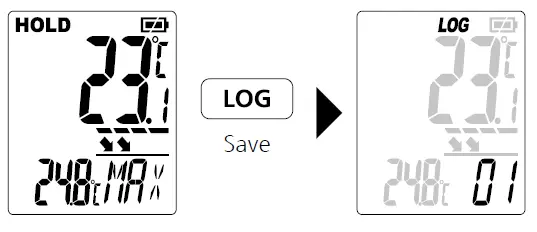

Memory function
The device is has 50 storage locations.
An acoustic signals confirms successful storage.
CAUTION:
In contact temperature mode the measured value will be stored only if it is selected.

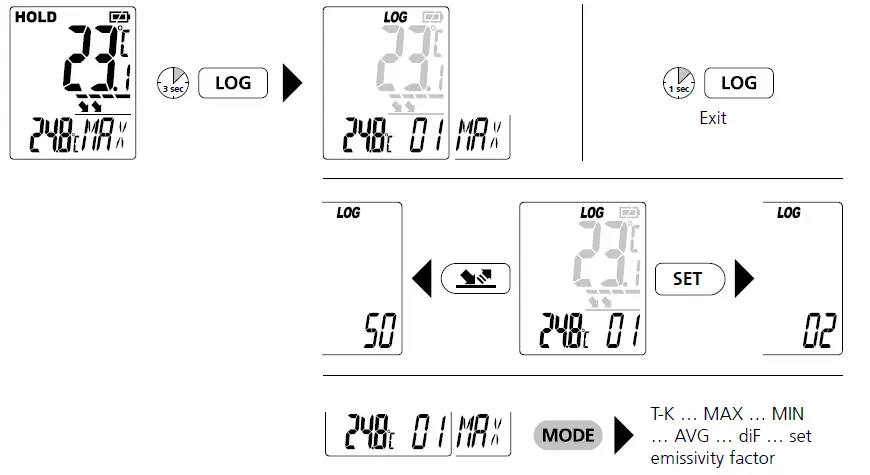

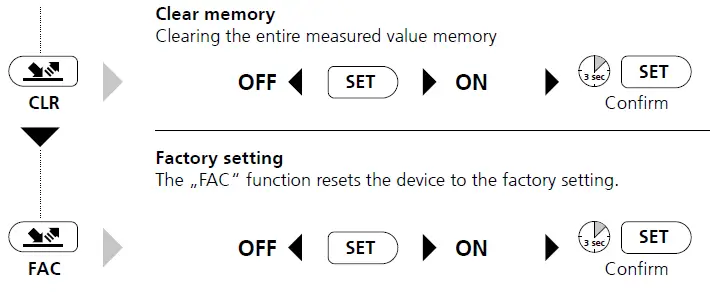

Call up memory

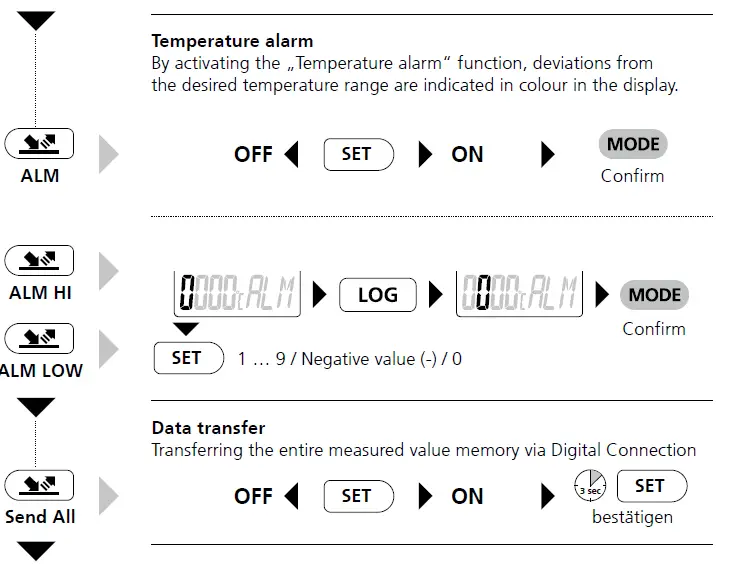

Data transfer
This device has digital connectivity which allows wireless data transfer to mobile devices such as smart phones or tablets with a wireless interface.
The system prerequisites for a digital connection are specified at http://laserliner.com/info?an=ble This device can generate a wireless connection to devices which are compatible with the wireless standard IEEE 802.15.4. The wireless standard IEEE 802.15.4 is a transfer protocol for Wireless Personal Area Networks (WPAN).
The range is set to a maximum distance of 10 m from the terminal device and greatly depends on the ambient conditions such as the thickness and composition of walls, sources of interference as well as the transmit / receive properties of the terminal device.
The digital connection is activated as soon as the device is switched on as the wireless system is designed to use very little electricity. A mobile device can link up to the active measuring device via an app.
Application (app)
An app is required to use the digital connection.
You can download the app from the corresponding stores for for the specific type of terminal device:
CAUTION:
Make sure that the wireless interface of the mobile device is activated.
After starting the app and activating the digital connection, a connection can be set up between a mobile device and the measuring device.
If the app detects several active measuring devices, select the matching device.
This measuring device can be connected automatically the next time it is switched on.
| Technical data (Technical revisions reserved. 21W12) | ||
|
Infrared temperature | -40°C…1500°C -40°C…0°C (± (1°C + 0.1°C / 1°C)) 0°C…33°C (± 1°C) >33°C (± 2°C or ± 2%, greater value applies) | -40°F…2732°F -40°F…32°F (± (1.8°F + 0.18°F / 1°F)) 32°F…91,4°F (± 1.8°F) >91.4°F (± 3.6°F or ± 2%, greater value applies) |
| Display resolution | 0.1°C / 1°C (≥1000°C) | 0.1°F / 1°F (≥1000°F) |
| Contact temperature, K-type | -30°C…1372°C (± 1°C or ± 1%, greater value applies) | -22°F…2501.6°F (± 1.8°F or ± 1%, greater value applies) |
| Optics | 50:1 (50 m distance : 1 m measured spot) | |
| Emission coefficient | 0.01 – 1.0 adjustable | |
| Laser | 8-point laser circle | |
| Laser wavelength | 650 nm | |
| Laser class | 2 / < 1 mW (EN 60825-1:2014/AC:2017) | |
| Power supply | 2 x 1.5V LR6 (AA) | |
| Runtime | approx. 20 hours | |
| Operating conditions | 0°C … 50°C, max. humidity 80% rH, no condensation, max. working altitude 2000 m above sea level | |
| Storage conditions | -10°C … 60°C, max. humidity 80% rH, no condensation | |
| Radio module operating data | IEEE 802.15.4. LE ≥ 4.x (Digital Connection) interface; Frequency band: ISM band 2400–2483.5 MHz, 40 channels; Transmission power: max. 10 mW; Bandwidth: 2 MHz; Bit rate: 1 Mbit/s; Modulation: GFSK/FHSS | |
| Dimensions (W x H x D) | 150 x 190 x 60 mm | |
| Weight | 486 g (incl. batteries) | |
EU directives and disposal
This device complies with all necessary standards for the free movement
of goods within the EU.
This product is an electric device and must be collected separately for disposal according to the European Directive on waste electrical and electronic equipment.
Further safety and supplementary notices at:
http://laserliner.com/info?an=AGA
Umarex GmbH & Co. KG Donnerfeld 2
59757 Arnsberg, Germany
Tel.: +49 2932 638-300, Fax: -333 www.laserliner.com
