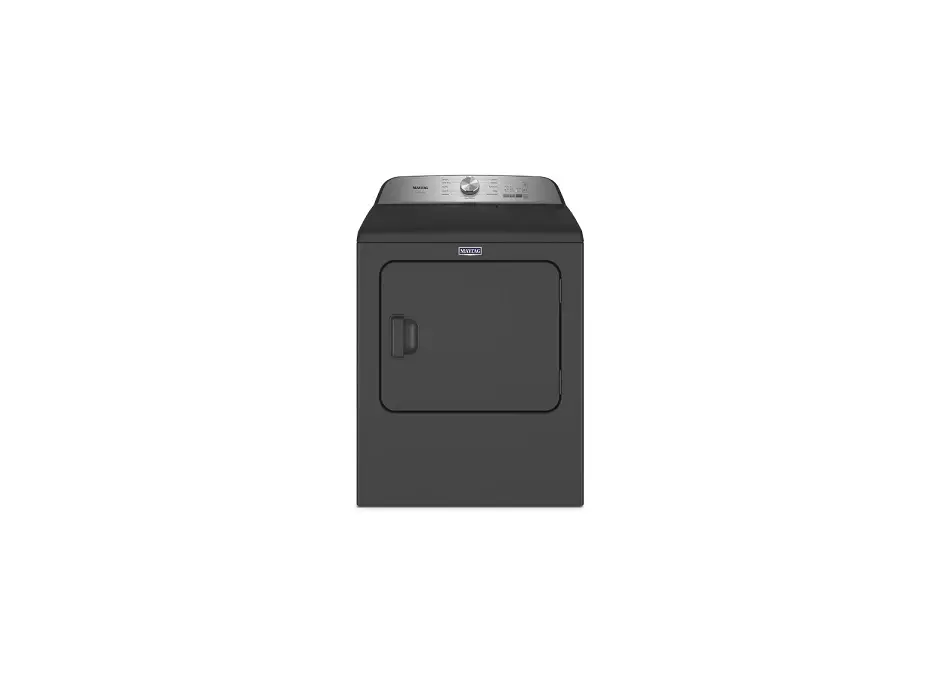

MAYTAG YMED6500MW Pet Pro Top Load Electric-Gas Dryer User Guide
DETAILED PLANNING DIMENSIONS
WARNING: To reduce the risk of fire, electric shock, or injury to persons, read the IMPORTANT SAFETY INSTRUCTIONS and INSTALLATION INSTRUCTIONS, located in your appliance’s Owner’s Manual, before installing and operating this appliance.
| Electrical Requirements | ||
| Fuel Type | Electric | Gas |
| Minimum Circuit Amperage Rating | 30 A | 15 A |
| Maximum AMP Draw | 26 A | 6 A |
| Operating Voltage | 120/240 V – AC only | 120 V – AC only |
| Current Canada Rating | 24 A | N/A |
| Operating Frequency | 60 Hz | |

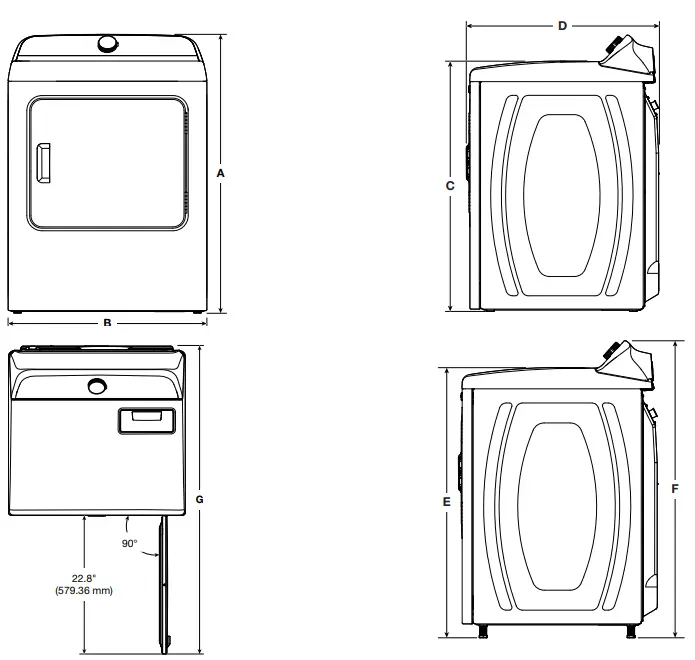

| Product Dimensions | |||
| in | mm | ||
| A | Height (With leveling legs not extended) | 4011∕16 | 1034 |
| B | Width | 29 | 737 |
| C | Top Height (with min. feet) | 367∕8 | 937 |
| D | Depth | 283∕8 | 722 |
| E | Top Height (With leveling legs fully extended) | 381∕2 | 978 |
| F | Height (With leveling legs fully extended) | 425∕16 | 1075 |
| G | Depth with Door Open | 5011∕16 | 1288 |
DETAILED PLANNING DIMENSIONS
Spacing for recessed area or closet installation
The dimensions shown are for the recommended spacing allowed.
- Additional spacing should be considered for ease of installation and
- Additional clearances might be required for wall, door, and floor
- Additional spacing of 1″ (25 mm) on all sides of the dryer is recommended to reduce noise
- For closet installation, with a door, minimum ventilation openings in the top and bottom of the door are Louvered doors with equivalent ventilations openings are acceptable.
Companion appliance spacing should also be considered.
