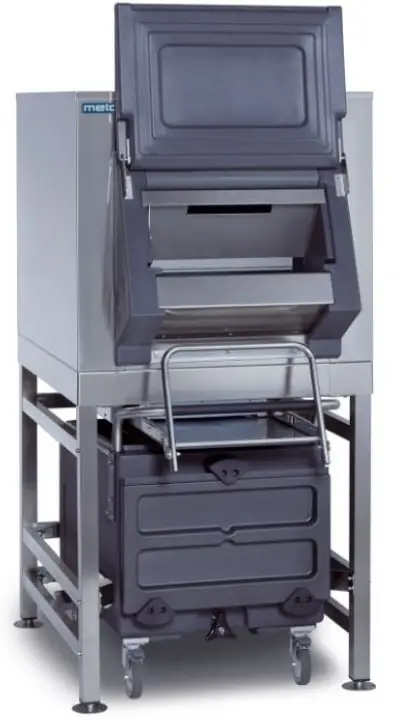

metos SIS700 Ice Shuttle System
Assembling instructions
WARNING
- Not move the Storage , without first removing all the ice and the ice maker
- For handling and removal of ice, use only the supplied devices

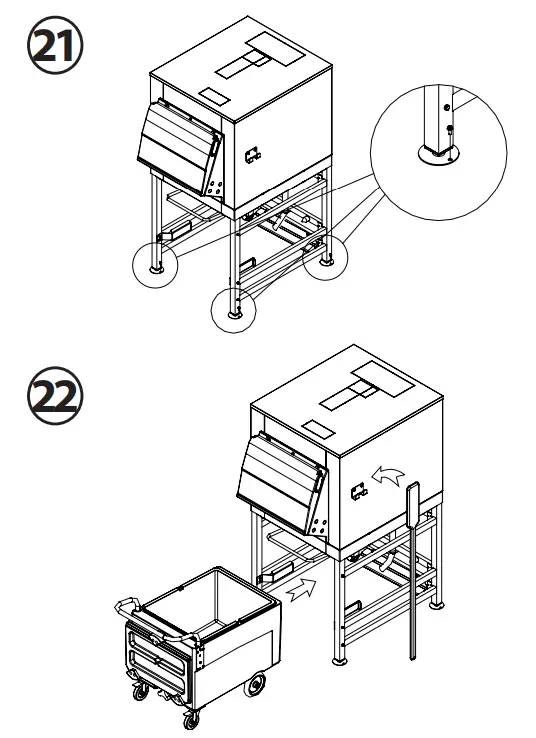

- After placed the Storage, anchored to the floor
- To ensure the hygiene, periodically clean the water storage
- Lock caster of the cart before you load or take ice from the cart, and when the cart is parked in bay Keep the floor clean by water and ice
- Pay attention to the storage door during opening and closing
- Move the cart at low speed
- Place the cart under the Storage ,to drain the water from background by opening the tap
- Do not put anything foreign in the storage, use only the scoop
- During the transport ice by cart keep the ice covered with a cover ( to prevent ice contamination)
- Put the cover into the appropriate slot located under the handle ( to prevent ice contamination)
- This ice storage bin is designed to contain only Flake or Nugget Ice, other types of ice can damage the drawer in closing phase
- Remove the ice only with the paddle or with appropriate plastic tools, do not use your hands
INSTRUMENTS

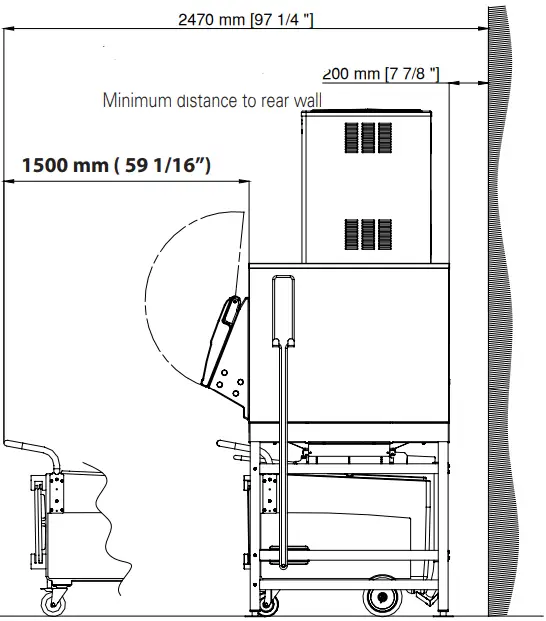

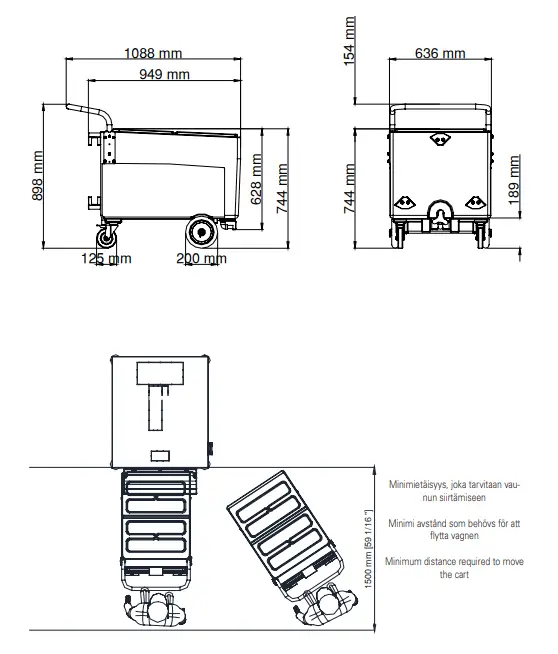

Minimum distance required to move the cart

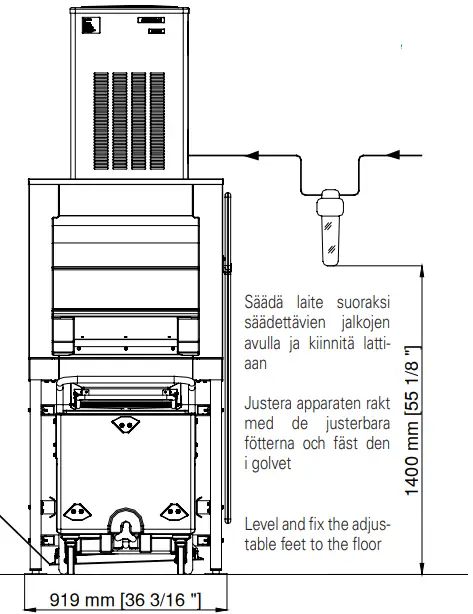

Water drain connection is reversible and can exit to the left or right. We recommend installation on a floor equipped with a water drainage grid. Preferably, this grid should be compatible with the water discharge areas of the deposit and of the trolley located in the rear part. The exhaust accepts pipes from 25 to 30 mm in diameter.

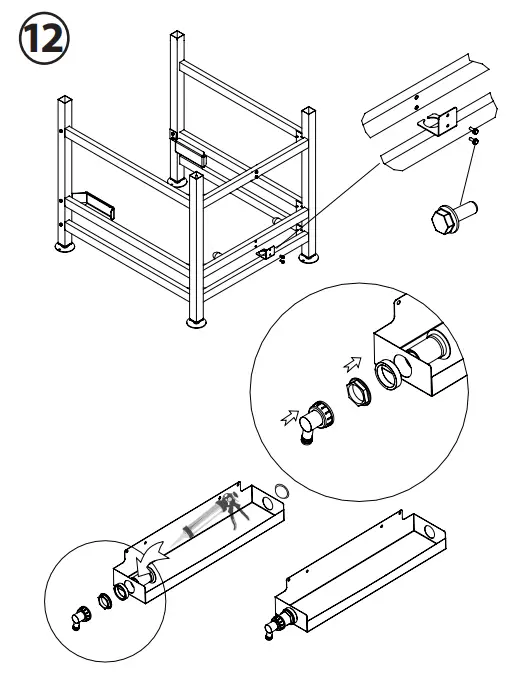

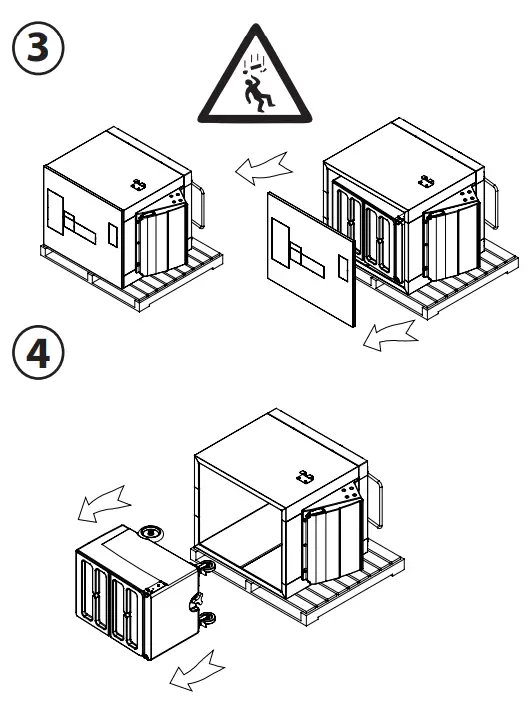

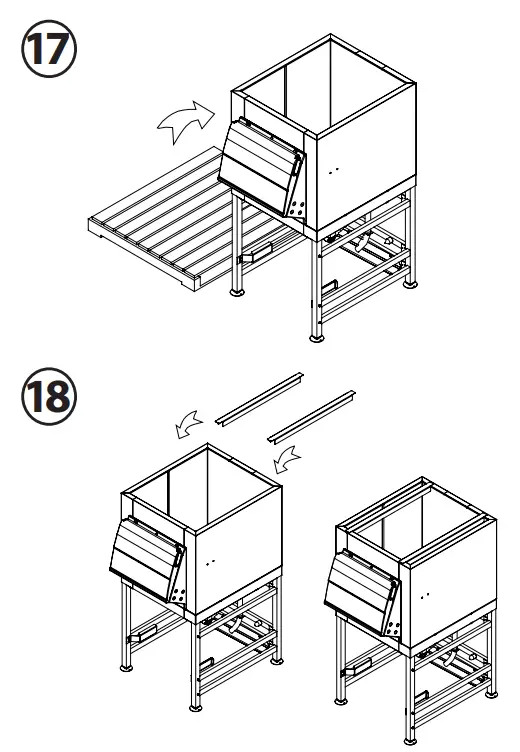

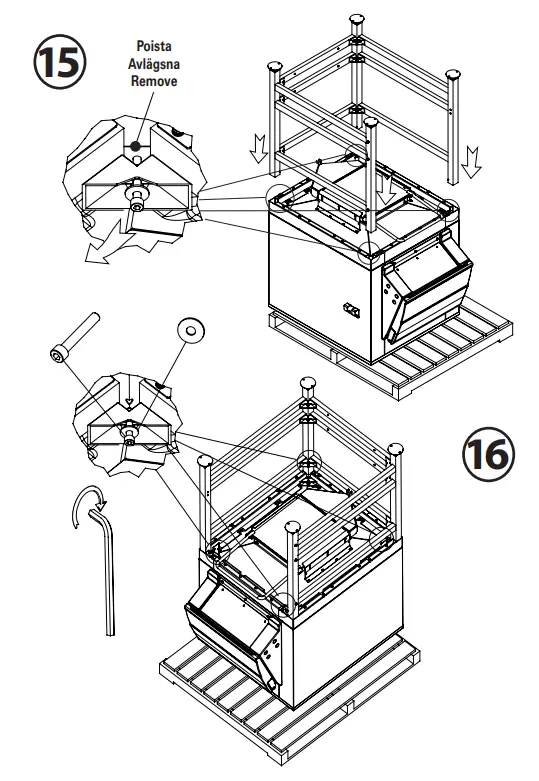

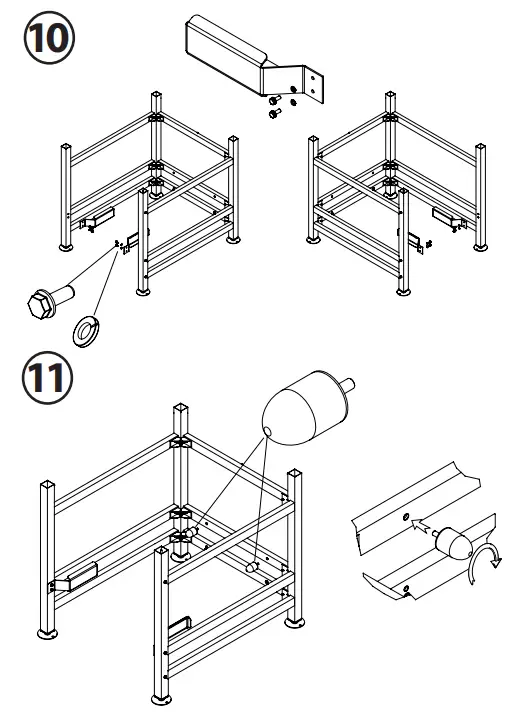

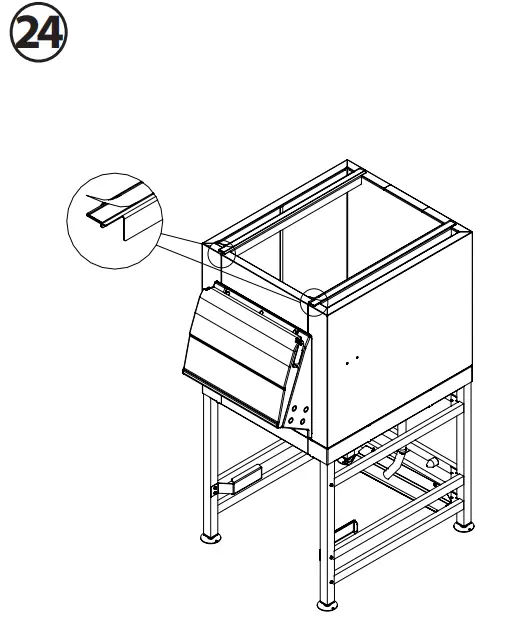

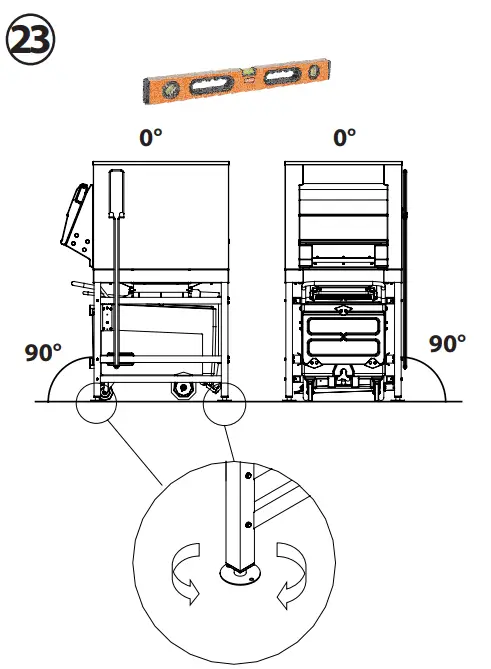

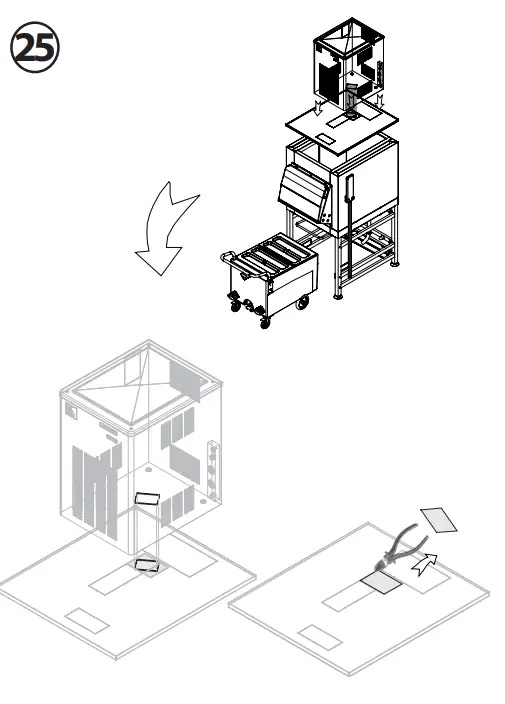

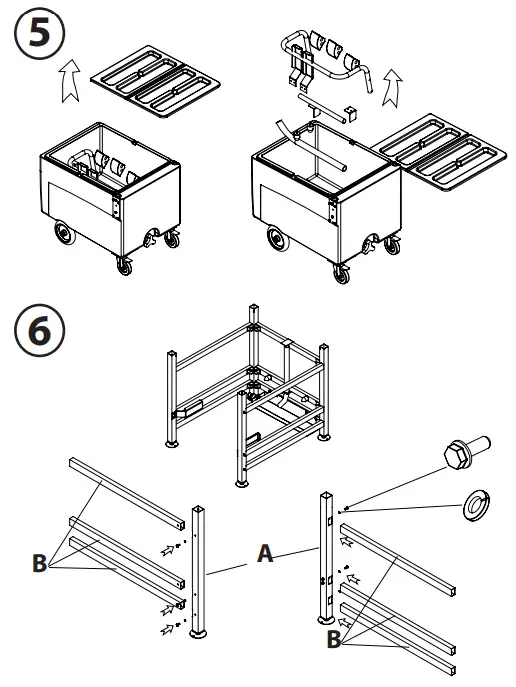

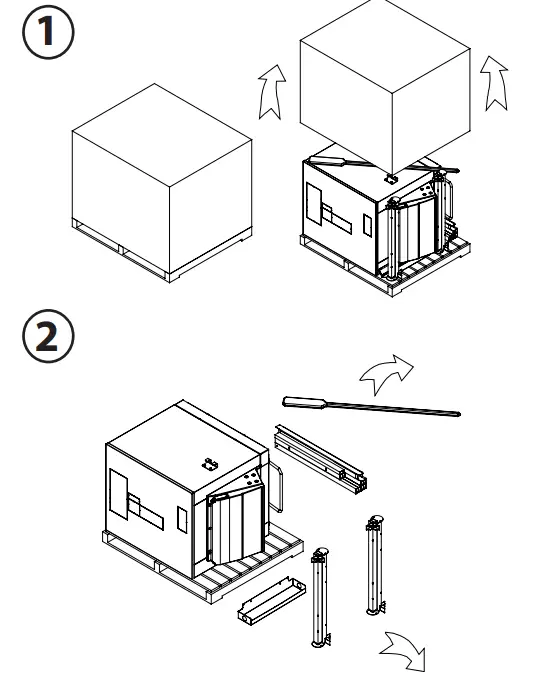

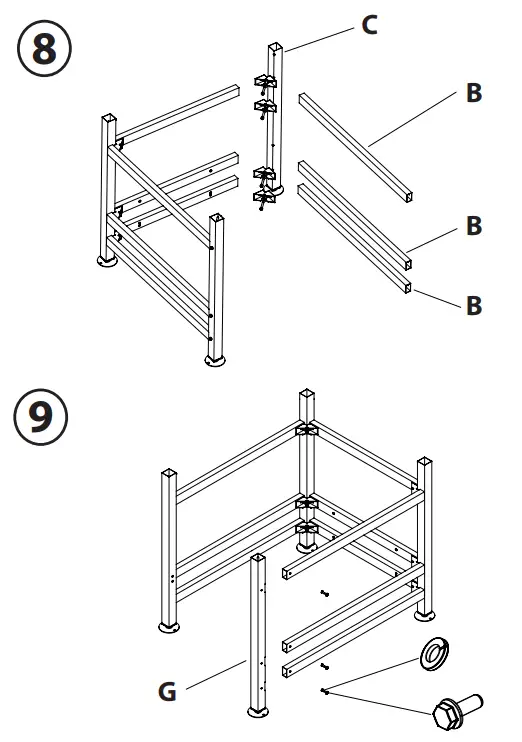

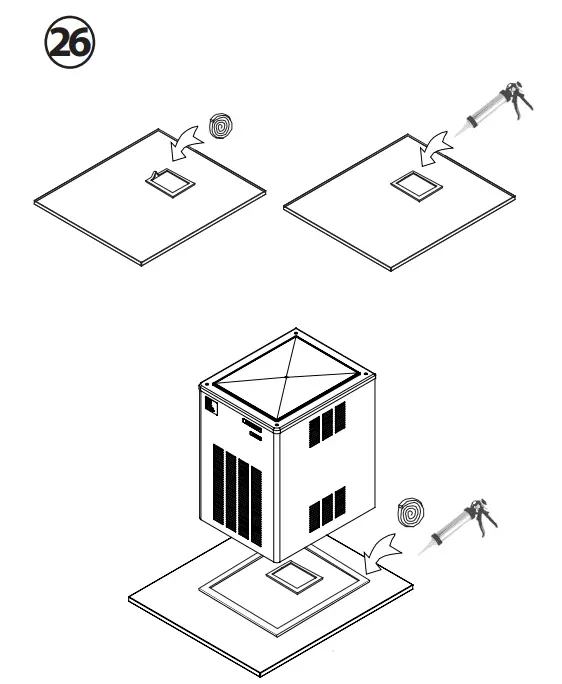

INSTALLATION
WARNING
WARNING

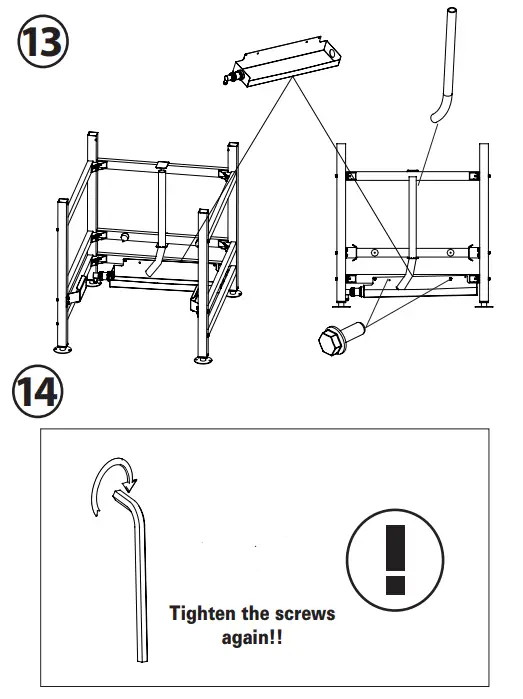

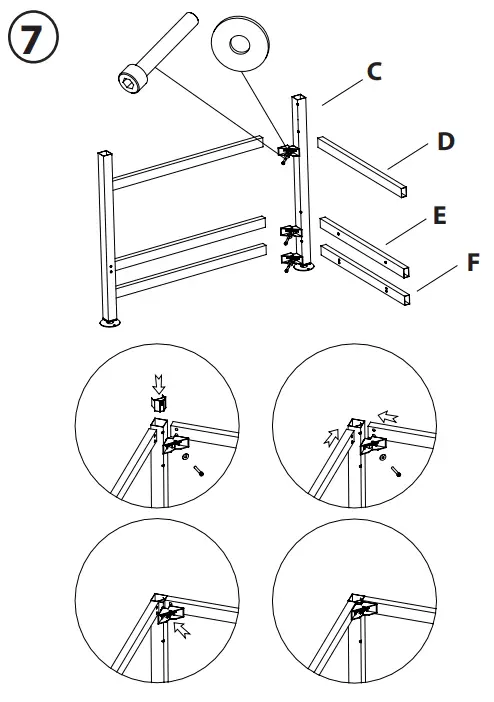

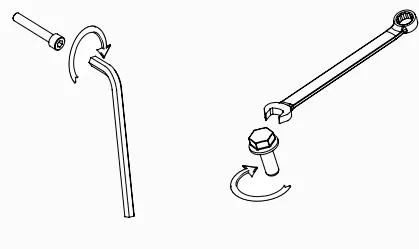

Make sure all screws are well-tight.
Please check again!!

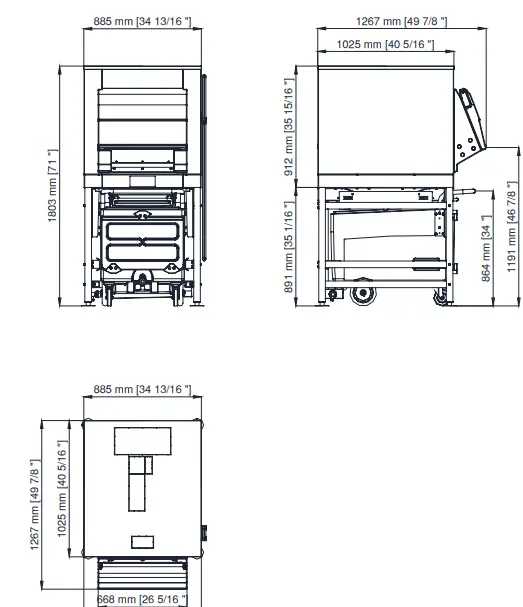

Dimensions
WARNING

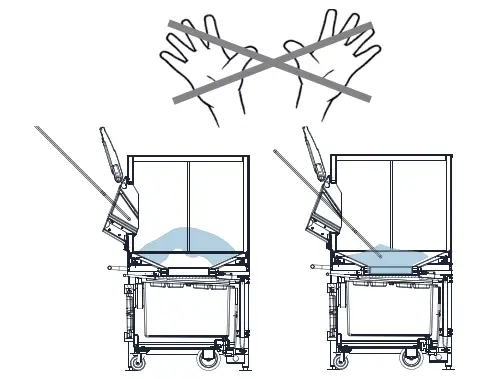

Remove the ice only with the paddle or with appropriate plastic tools.
Do not use your hands!
