1. General Overview
1.1 System Requirements
- Intel ® Z97 series Chipset Platform with Intel® Core i5 series Processors
- 8GB of system memory
- 1.5GB of available hard-driver space
- Windows 10/7 64bit
1.2 Bus Support Features
- Fully compliant with PCI Express Base Specification 3.0 and backward compatible to 2.0 and 1.0a
- Supports x16 (does not support < x16) lane reversal.
1.3 Graphics Technology
- Geforce GTX 1080 graphics technology
1.4 Memory Configuration
- Onboard 8GB memory; 256-bits memory interface
1.5 Operating System Support
- Windows® 7 64 bit
- Windows® 10 64 bit (April 2018 or later version)
1.6 Monitor Support
- HDMI monitor
- DisplayPort monitor
1.7 Display Support
- Supports VESA PnP compatible displays
- DDC1/2b/2b+ monitor support
- VESA Display Power Management Support
- Separate horizontal and vertical synchronization at TTL levels
- HDCP 2.2
- G-Sync
2. Product Details
2.1 Graphics ASIC
- Nvidia Geforce GTX 1080 at 1607base clock, 1733Mhz boost clock
- Nvidia P/N: GP104-400
- Max. Board Power: 180W
2.2 Memory
- Onboard memory size: 8GB,
- Memory clock: 10010MHz,
- Memory bus width: 256-bits
2.3 PCBA
- Form factor
- Bracket – ATX
- PCB – ATX
- Number of layers: 10
- Color: Black
- Cooling system:
- ASIC: Cooling Fan
- Connectors
- DVI-D
- DP x 3
- HDMI
2.4 Production Dimension: 148mm x 325mm x 56.6mm
Connectors

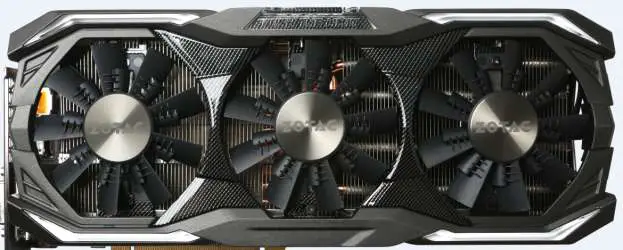

Cooling Fan
2.4 Accessories
- Manual
2.5 Regulatory Standards
- CE
- FCC
- BSMI
2.6 Product number & description
- ZOTAC GeForce GTX 1080 8GB 256-bit (P/N: 9288-1N426-401Z8/288-1N426-401Z8)
3. Labels and Marking
3.1 Product labels
- Product number (barcode and characters)
- Serial number (barcode and characters)
- Zotac sku number (characters only)
Example :
TBD
3.2 Packing
In black box
5pcs per carton
carton dimension: 520mm x 445mm x 320mm
carton box with 4in1 label
3.3 Carton label
Example: (the value will be varied according to different model of card)
TBD

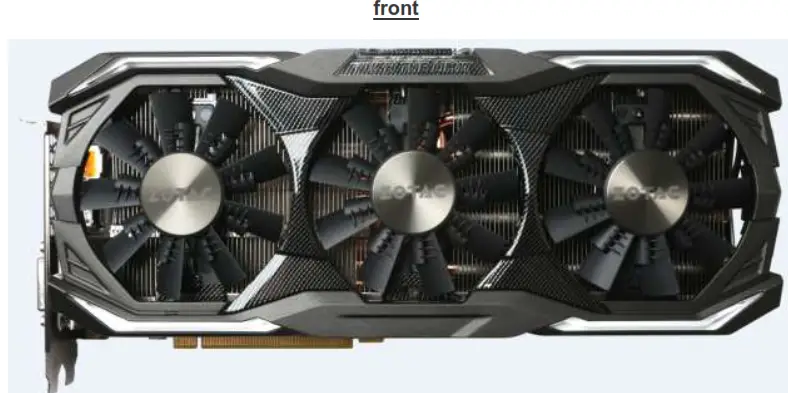

4. Product photos

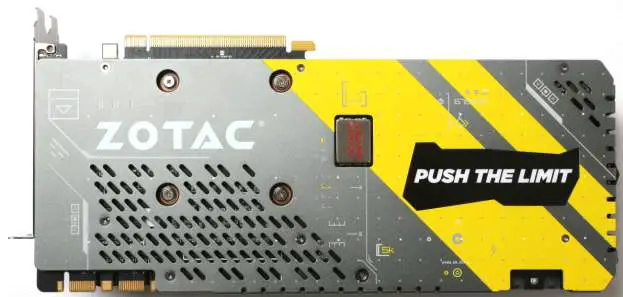

back
End of product specification
