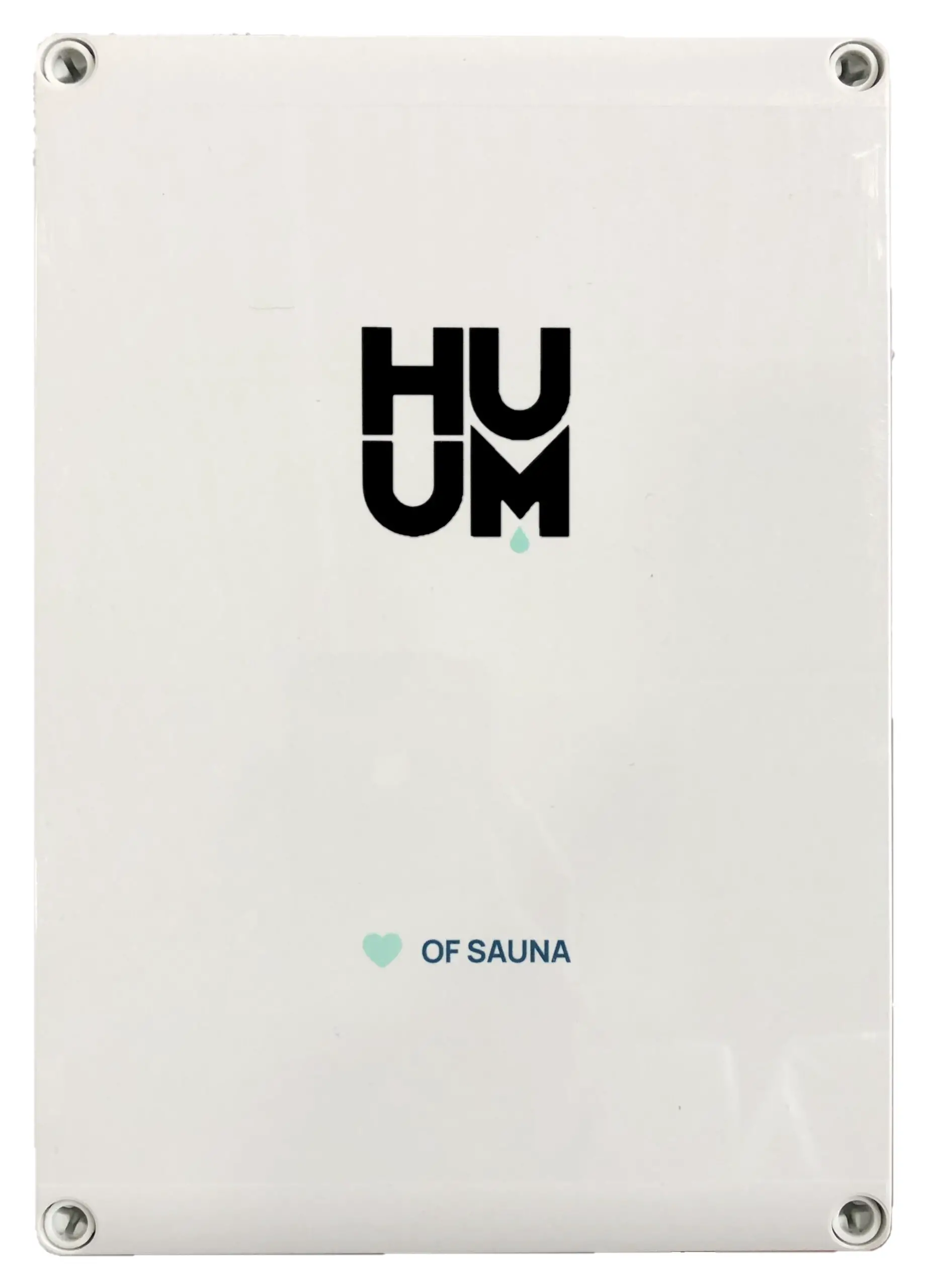

HUUM HIVE Heaters Extension Box 63

EXTENSION BOX 63 for HIVE Heaters 240V, 2x63A, 60Hz

Only used with controller models UKU Wi-Fi and UKU Local. This installation drawing replaces the installation drawing in UKU manual.
The following scheme is used to connect the heater over 9 kW (CLIFF, HIVE, HIVE Mini, STEEL 10.5, 12, 15 and 18 kW). Fix the unit to the wall with 4 screws.

Placement
The extension box has to be located outside the steam room, near UKU main module.
Find the latest updates on our webpage www.huumsauna.com

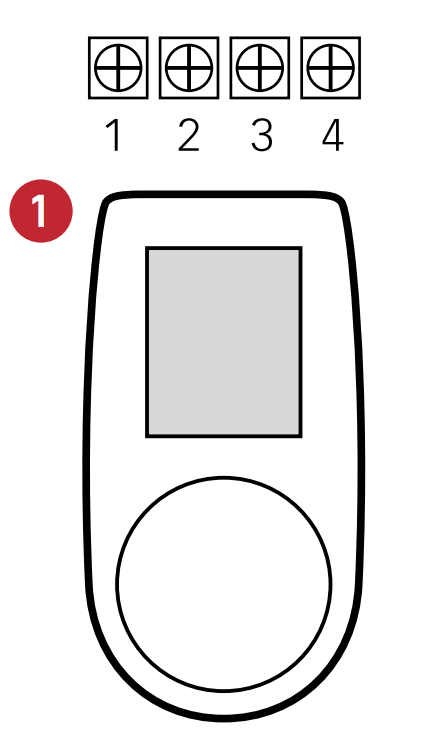

1. UKU control panel

2. Main module

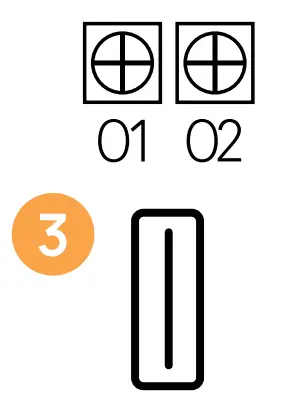

3. Door sensor

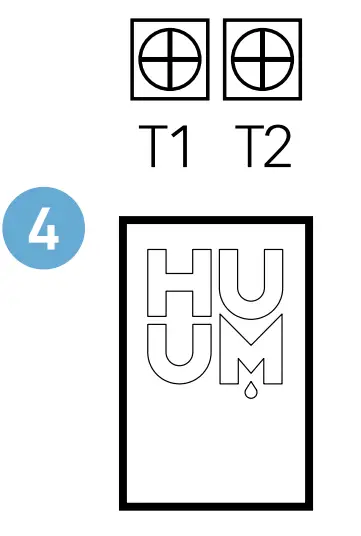

4. Temperature sensor

5. Heater (not included)

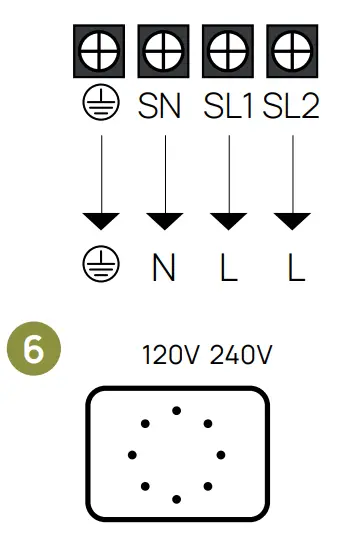

6. Vaporizer (not included)

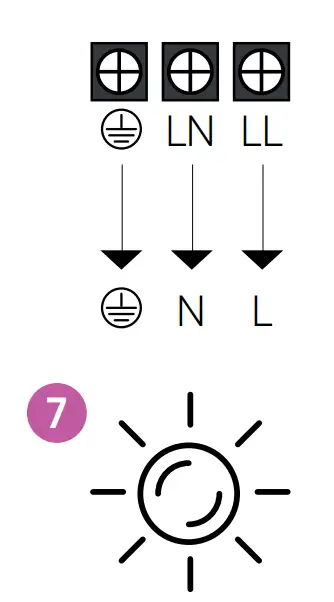

7. Light (not included)

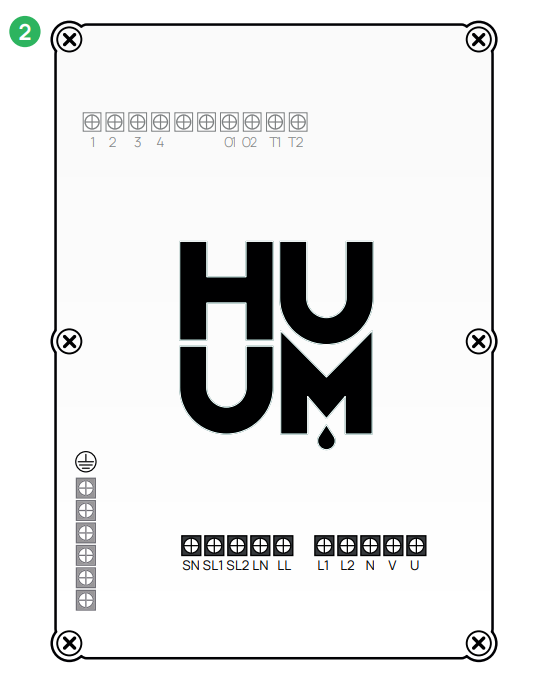

8. UKU extension box
