420-78 8in1 96000 Survivor Power bank
User Guide

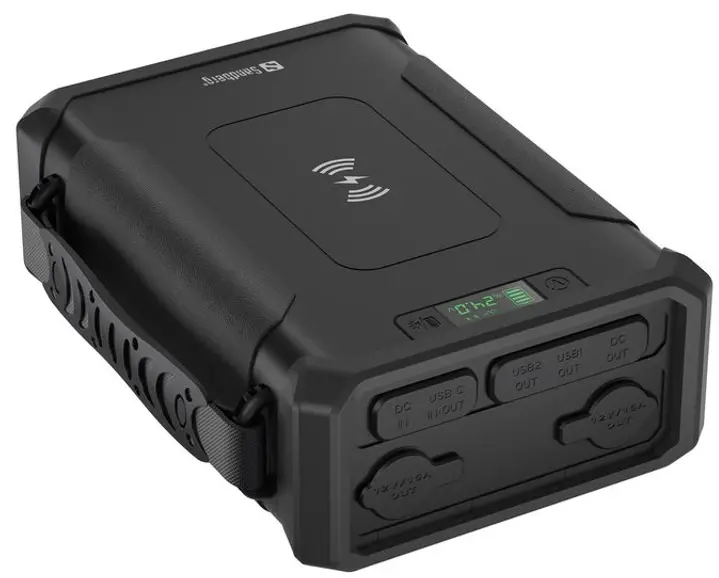

Survivor Power bank 8in1 96000
Quick guide 420-78

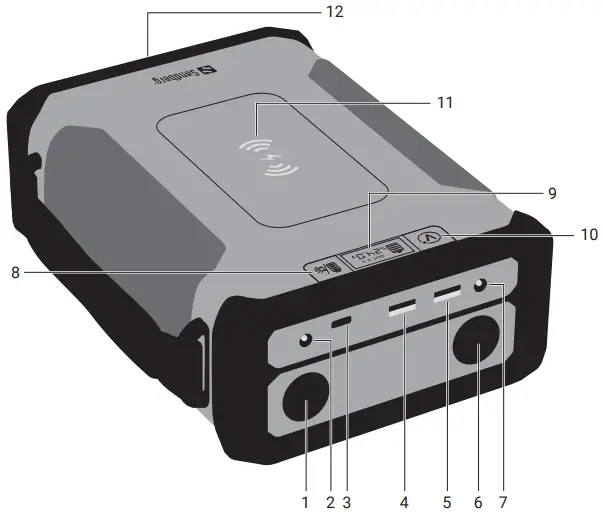

Overview
| 1. 12V Car Lighter Output Socket 2. DC Input (Can’t work simultaneously with USB-C port) 3. USB-C Input/Output 4. USB-A 2 Output 5. USB-A 1 Output 6. 12V Car Lighter Output Socket | 7. DC Output 8. Power button 9. LED Display 10. DC Out voltage set button 11. Wireless charging area 12. Flashlight and emergency light |

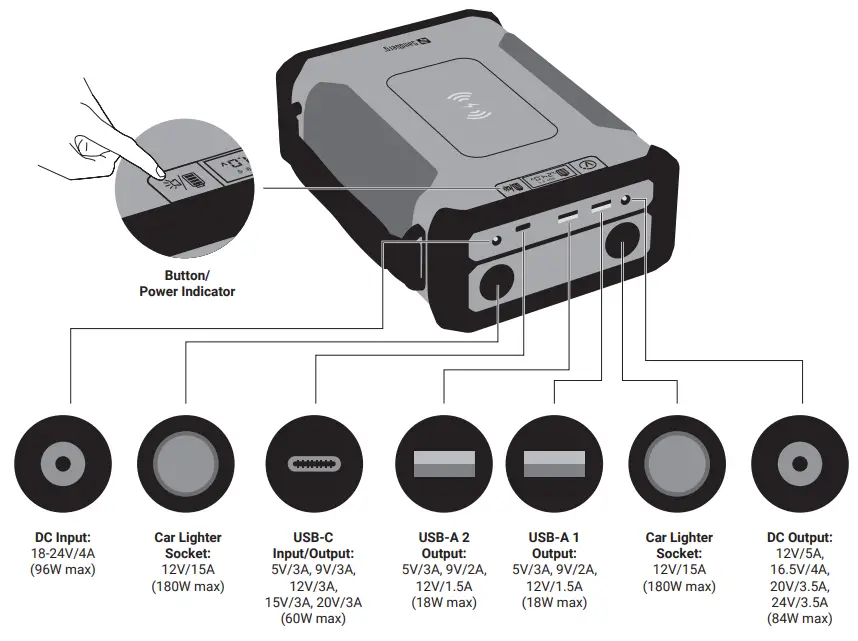

Detailed specification

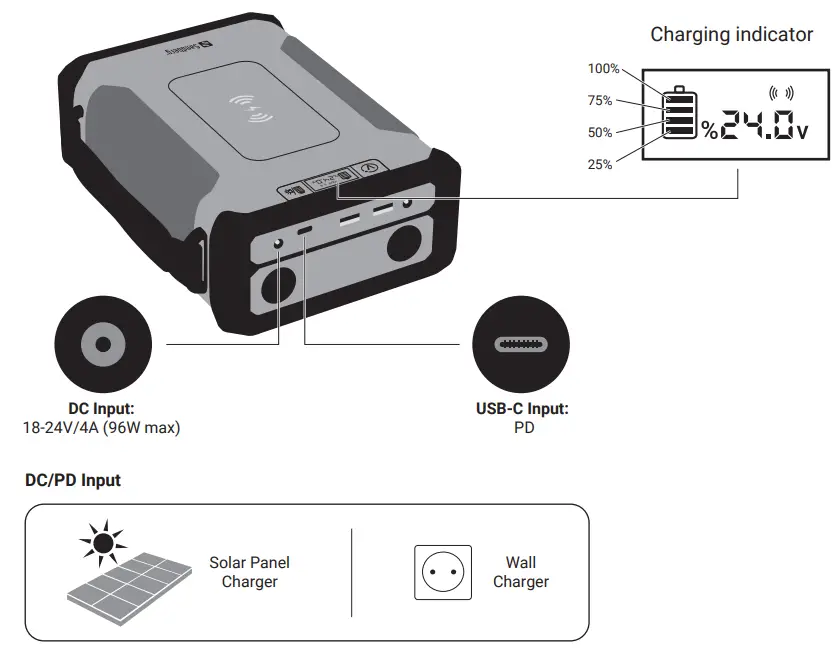

Charge the power bank

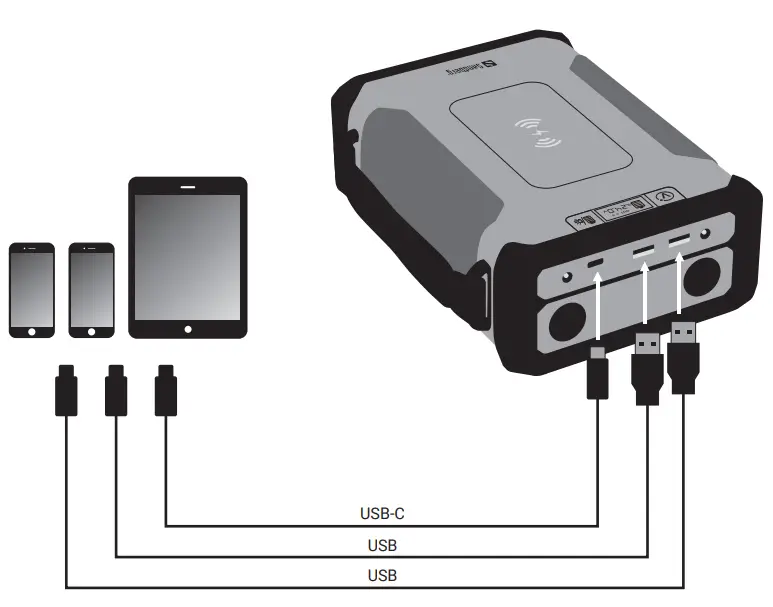

Charge mobile devices (USB and USB-C Output)

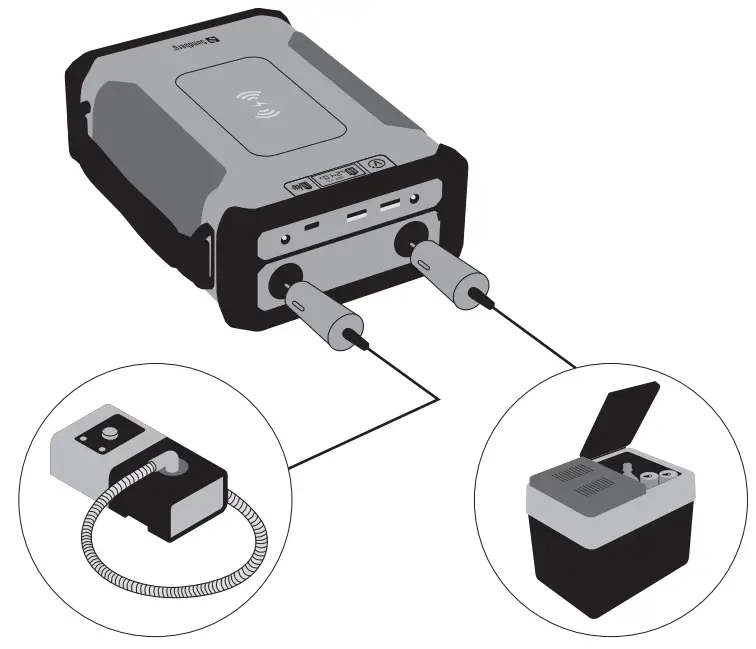

Charge equipment (Car Lighter Socket)

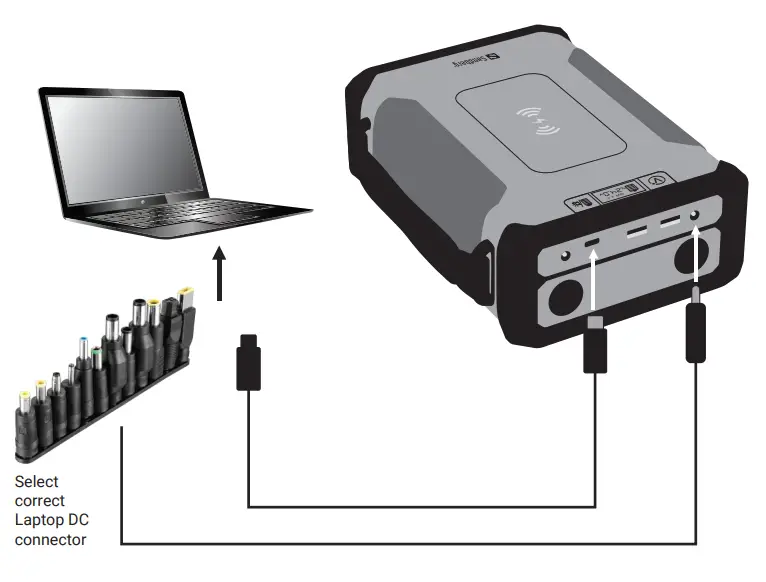

Charge laptop (DC or USB-C Output)

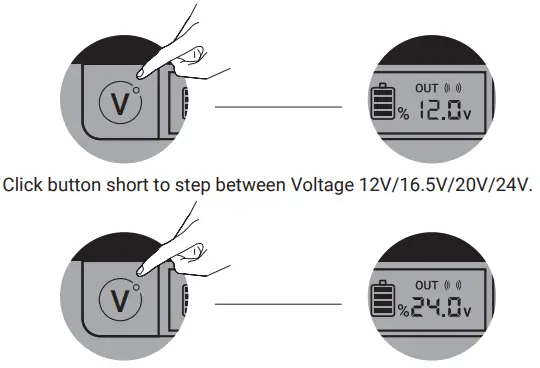

Charging a laptop with DC cable – important note
- Choose correct tip to fit the DC port of your laptop.
- Set the correct voltage on the power bank:
Keep long press on the button until display is flashing.
- Connect the laptop, charge will start.
- After disconnecting the laptop, you need to set the Voltage next time.
For safety it will always start the cycle at lowest setting 12V.
NOTE: If you are in doubt on what DC-Voltage to choose, have a look at the label on the AC charger for the laptop.

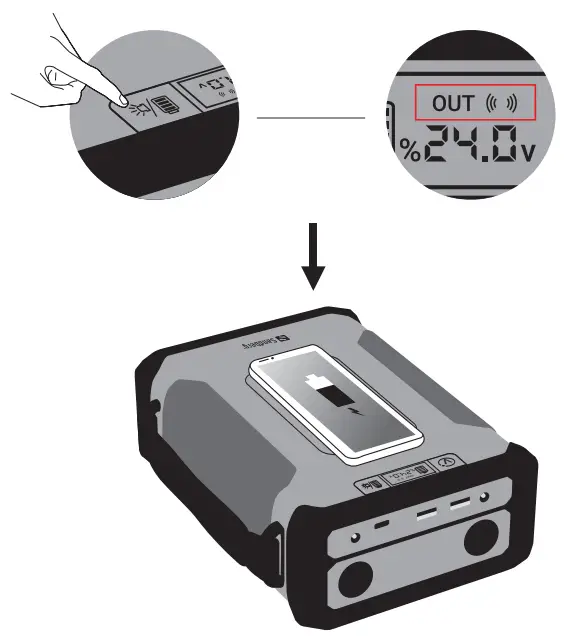

Wireless charger

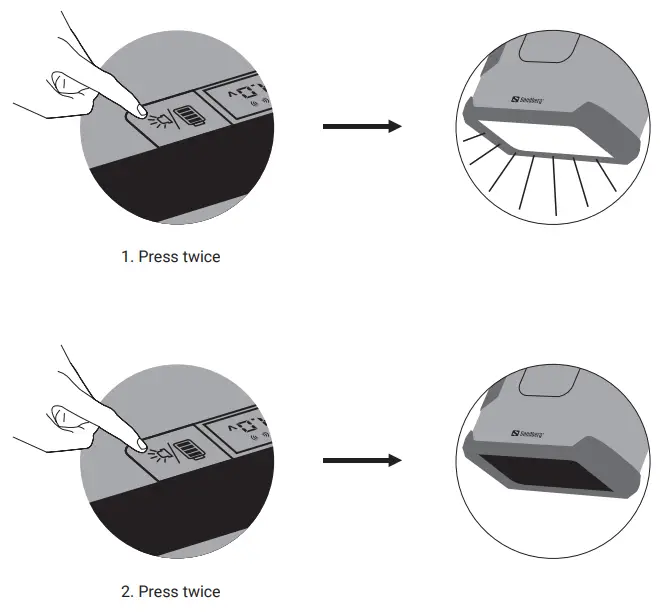

Lamp

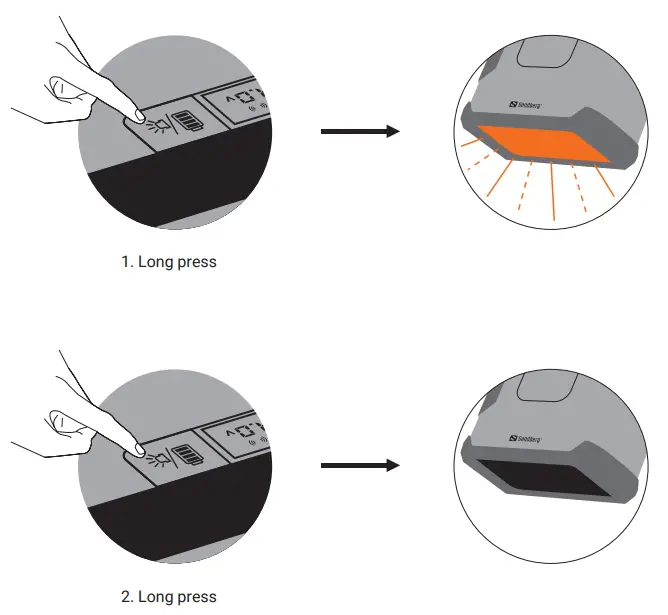

Lamp
Support
http://helpdesk.sandberg.world
Warranty
There is a five-year warranty on your Sandberg product.
Please read the warranty terms and register your new Sandberg product at www.sandberg.world/warranty
5Years Warranty
Survivor Power bank 8in1 96000
Battery capacity: 96000 mAh (307.2 Wh)
Battery type: Lifepo4 battery cell (32700)
1 x DC-port input: 18-24V/4A (96W max)
1 x DC-port output: 12V/5A, 16.5V/4A, 20V/3.5A, 24V/3.5A (84W max)
2 x USB-A QC output: 5V/3A, 9V/2A, 12V/1.5A (18W max)
1 x USB-C PD in/out: 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/3A (60W max)
2 x Car Lighter Socket: 12V/15A (180W max)
1 x Wireless charger: 10W (max)
