DOD 280 Compressor Reissue Pedal
Fresh squeezed. We proudly present the DOD Compressor 280. With the DOD 280, you can tame the wildest peaks and even out dynamics between single notes and chords. Deftly tear your way through licks that blend fretted notes and open strings without dramatic changes in volume.
Whether you’re goin’ deep country with spankin’ clean tone or rattling teeth with staccato-driven ri!s, the DOD 280 will add finesse o your picking attack for consistent performances.
The DOD Compressor 280 will help you manage the dynamic range of the input signal from your instrument. Compressing your dynamic range will make notes sustain longer, the sound seem tighter and help you avoid clipping the signal going into other e!ects or your amplifie .
Like its predecessor, the DOD Compressor 280 o!ers independent Compression and Output controls. True bypass allows your guitar tone to remain pristine even when the DOD 280 is o!. This is a big di!erence from the original, which would color your bypassed tone. The modern 9V DC power supply input makes the pedal more pedalboard friendly.
MAIN SELLING POINTS
ADDITIONAL FEATURES:
- Modern 9V DC power supply input
- New, orange metallic !ake paint with !at black bottom
TARGET CUSTOMER:
- Instrument – Guitar, Bass Guitar
- Skill Level – All
SPECIFICATIONS
- Dimensions: 4.68” x 2.63”x 2.25” (L x W x H) 11.88 cm (L) x 6.68 cm (W) x 5.71 cm (H)
- Weight: ~0.62 lbs. ~ 0.281 kg.
- Input(s) 1 x ¼” instrument
- Output(s) 1 x ¼”
- Chassis Material All Metal
- Power Supply 9V Alkaline Dry Battery PS0913DC power supply
- Warranty 1 Year
PRODUCT INFORMATION:
- SKU DOD410-14
COMPARISON CHART
| DOD | DigiTech | Boss | MXR | Keeley | Xotic | |
| Compressor 280 | Main Squeeze | CS-3 Compressor/ Sustainer | M102 Dyna Comp | Compressor (2 Knob) | SP Compressor | |
 |  |  |  |  |  | |
| MSRP | – | – | – | – | – | – |
| Stereo In/Out | – | Dry/Effect Out | – | – | – | |
| Analog/Digital | Analog | Digital | Analog | Analog | Analog | Analog |
| Output Control | Yes | Yes | Yes | Yes | Yes | Yes |
| True Bypass | Yes | – | – | Yes | Yes |
COMPETITIVE ADVANTAGES:
- Based on classic DOD 280 Compressor circuit design
- True Bypass
- Compact size

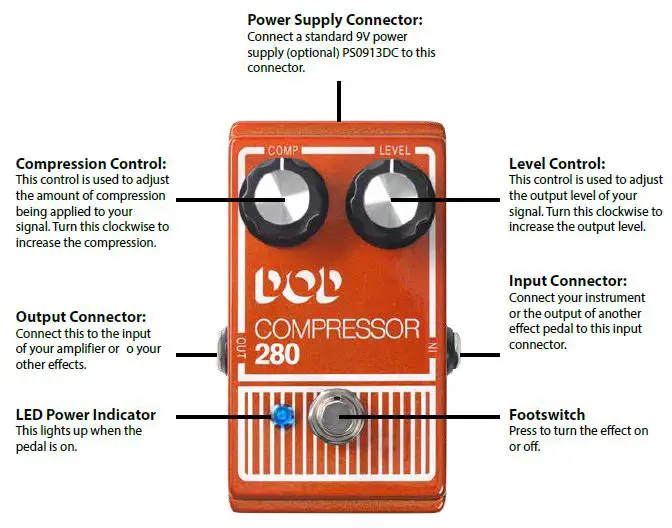

HOW IT WORKS
Placement of the DOD Compressor 280:
- Most guitarists/bassists favor placing the DOD Compressor 280 at the beginning of their chain of e!ects, so start with that placement.
- Since compressors have a great a!ect on your approach, dynamics and sustain, placing it towards the front or your chain of e!ects will “preserve the vibe” no matter the pedal combination.
- That being said, you may wish to experiment with e!etc placement to find the sound th t best fits our playing.
Setup of the DOD Compressor 280:
- Start with both controls at 12:00, their midpoint.
Then adjust to taste. If the result is too extreme, then turn the compression control down to a lower setting. - All settings will be heavily dependent on the output level of your instrument, the dynamic range of your playing style and the results you want from the compression.
Important: This Product Announcement is intended for internal use by DigiTech distributors only.
