item number: 14866/10/12
EAN code: 5411212143860
item number: 14866/10/30
EAN code: 5411212143877

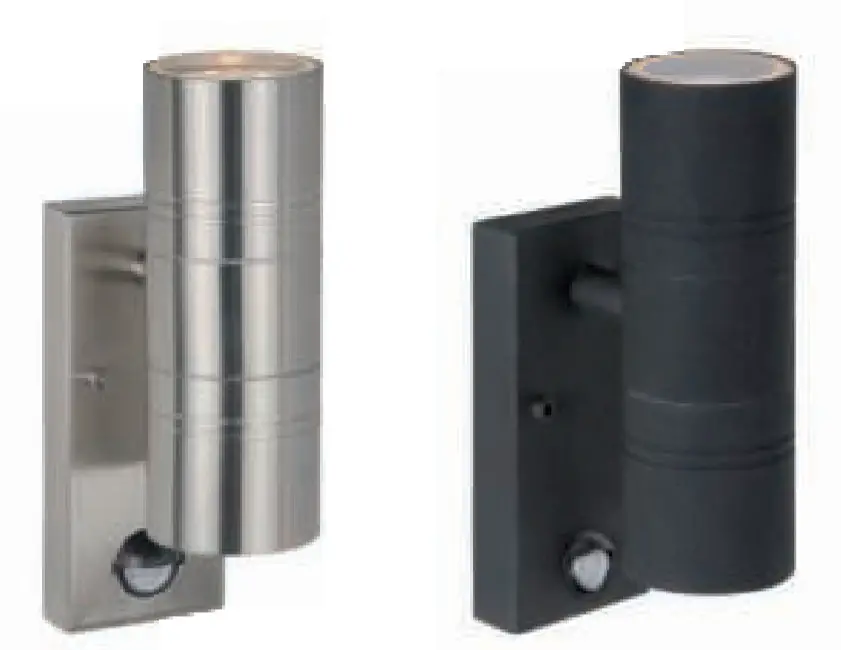

ARNE-LED
GENERAL SPECIFICATIONS

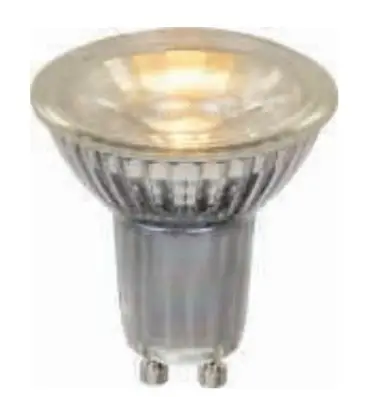

RECOMMENDED LUCIDE LIGHT SOURCE
49008/05/60
Light source dimmable: No
Light source incl. : Yes
General
| Dimensions LxWxH : | 12 cm x 6.3cm x 22.5 cm |
| Height minimum : | 22.5 cm |
| Height maximum : | 22.5 cm |
| Dimensions shade LxWxH : | 6.3 cm x 6.3cm x 7.2 cm |
| Main material : | Stainless steel |
| Ceiling rose material : | Stainless steel |
| Color : | Satin chrome+Black |
| Style : | Modern |
| Shape : | Round |
| Weight : | 0.81 kg |
| Warranty : | 2 years |
Product specifications
| Dimmable : | No |
| Light direction : | Downlight |
| Adjustable in height : | No |
| Directional : | Directional |
| Cable : | No |
| Cable length : | No |
| Sensor : | With Sensor |
| Control : | Light Switch Control |
| IP-Class : | 44 |
| Electric class : | 1 |
| Light source including: | Yes |
| Lamp socket : | GU10 |
| Light source number : | 2 |
| Power requirements : | 220-240V˜50Hz |
| Bulb type & maximum wattage : | GU10 LED 5W |

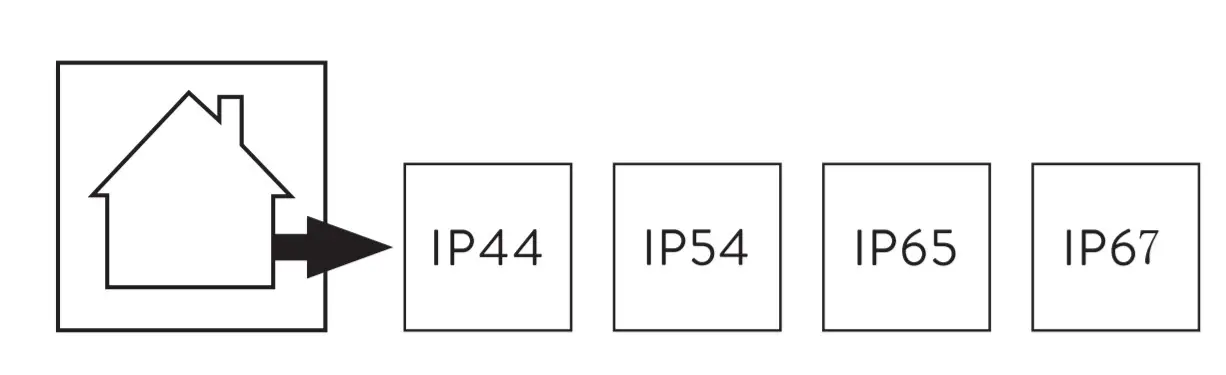

Explanation of IP numbers for degrees of protection, see safety instruction manual in the box.
For more specifications of this product please visit http://www.lucide.com

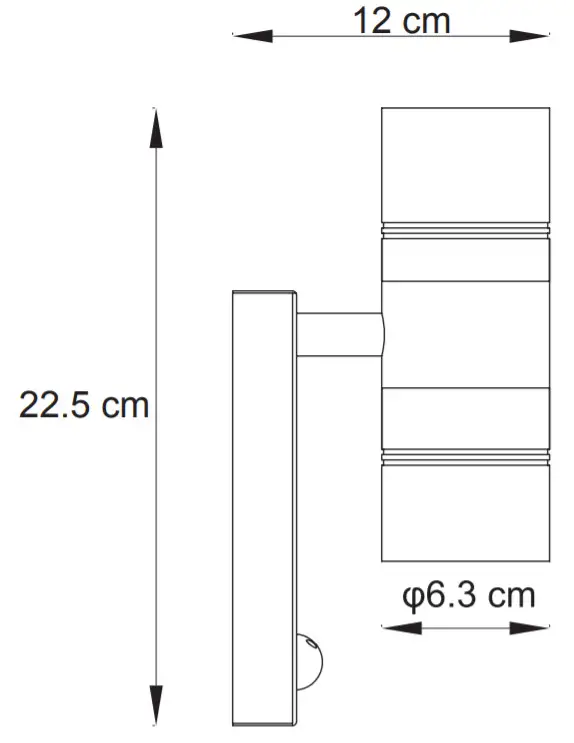

TECHNICAL DRAWING&DIMENSIONS
For more specifications, dimensions please visit www.lucide.com

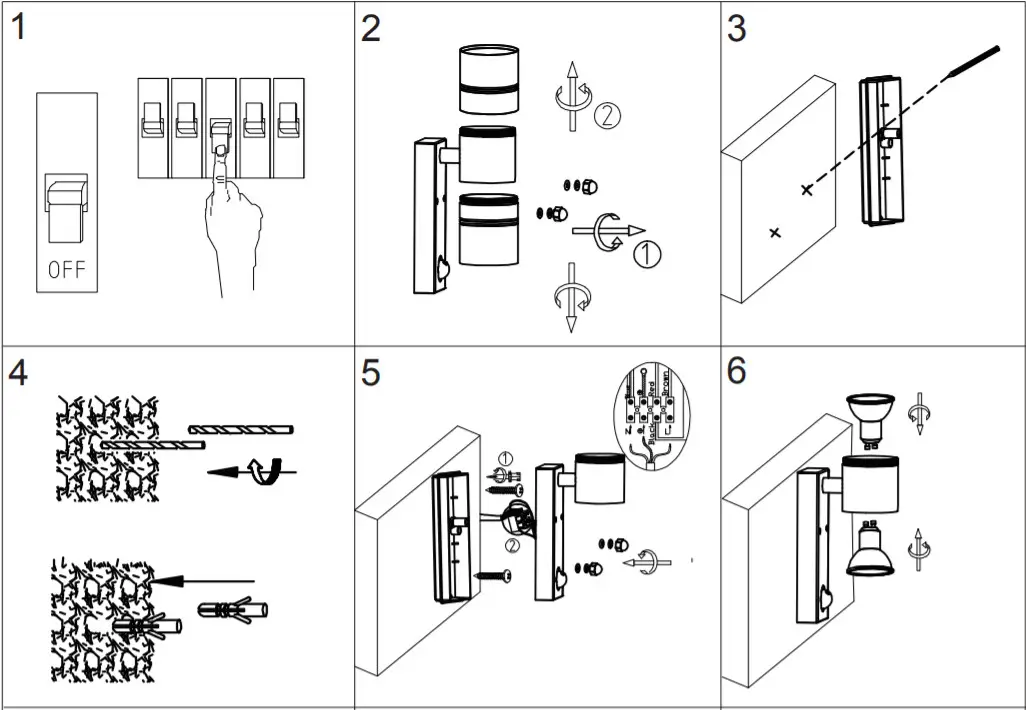

INSTALLATION DRAWING SPECIFICATIONS
Dit product bevat een lichtbron van energie-efficiëntieklasse G (oude klasse A+).
Lucide lighting - Illuminates your world.
