Honeywell Controls Monitors & Pressure Switches
FOR INNOVATION THAT’S WELL APART, THERE’S ONLY HONEYWELL
With more than 50,000 products ranging from snap-action, limit, toggle, and pressure switches to position, speed, pressure, and airflow sensors, Honeywell has one of the broadest sensing and switching portfolios.
Honeywell sensor, switch, and control components are tailored to exact specifications for stronger performance, longer productivity, and increased safety. Enhanced accuracy and durability are built into every part, improving output and endurance. For our customers, this can reduce expenditures and operational costs. Our global footprint and channels help to competitively price such components for your chosen application and provide immediate technical support.
While Honeywell’s switch and sensor solutions are suitable for a wide array of basic and complex applications, our custom-engineered solutions offer enhanced precision, repeatability, and ruggedness. We offer domain knowledge and technology resources, along with a close working relationship, to develop and deliver cost-effective, individually tailored solutions. Whether clean-slate development or simple modifications to an existing design are needed, our expertly engineered solutions help to meet the most stringent requirements with world-class product designs, technology integration, and customer-specific manufacturing.
Global service, sourcing, and manufacturing. Industry-leading engineers. Value-added assemblies and solutions. A one-stop, full-service, globally competitive supplier.

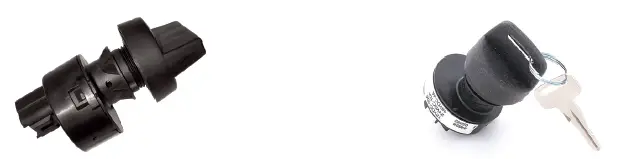

KEY & ROTARY SWITCHES
Often used on control panels or machinery in harsh environments, Honeywell key and rotary switches use o-rings to help keep dirt and moisture out of the contact chamber and prolong the switch’s life.
| KEY SERIES | INTEGRAL CONNECTOR | SCREW TERMINAL |
| Connector | Metripack 280 and Sumitomo | screw |
| Electrical ratings (res.) | 12 Vdc, 20 A; 24 Vdc, 8 A | 12 Vdc, 20 A; 24 Vdc, 10 A; 48 Vdc, 4 A |
| Operating temperature | -40 °C to 85 °C [-40 °F to 185 °F] | -40 °C to 85 °C [-40 °F to 185 °F] |
| Cycle life at electrical load | 25000 cycles | 25000 cycles |
| Position | 2 position (off-on); 3 position (off-on-start); 3 position (off-on-start), magnetoground; 4 position (off-on-preheat-start) | 2 position (off-on); 3 position (off-on-start); 3 position (on-off-on) |
| Mounting | panel | panel |
| Approvals | UL available | UL available |
| Measurements | Ø 1.62 in x 2.95 in L | Ø 1.62 in x 2.85 in L |
| Features | can be designed to match existing keys; options for up to 300 unique key codes per part number; environ- mentally sealed; recoil spring allows momentary positions | can be designed to match existing keys; options for up to 300 unique key codes; environmentally sealed; recoil spring allows momentary positions; sliding precious metal contacts |
| ROTARY SERIES | INTEGRAL CONNECTOR |
| Connector | Metripack 280 and Sumitomo |
| Electrical ratings (res.) | 12 Vdc, 20 A; 24 Vdc, 8 A |
| Operating temperature | -40 °C to 85 °C [-40 °F to 185 °F] |
| Cycle life at electrical load | 25000 cycles |
| Position | 3 position (on-off-on); 3 position (off-on-start); 3 position (off-on-on); 4 position (off-on-acc-start); 4 position (off-ignition-ignition heat-start) |
| Actuator | lever or knob |
| Mounting | panel |
| Approvals | UL available |
| Measurements | Ø 1.62 in x 2.95 in L |
| Features | environmentally sealed; recoil spring allows momentary positions |

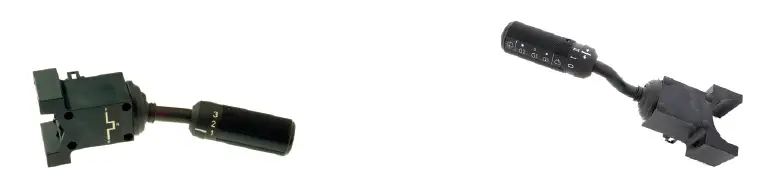

SHIFTERS & TURN SIGNALS
Crafted for enhanced off-highway application performance, precision, direction, and speed control. Sealed and built to withstand rugged conditions and harsh environments. Often used in agricultural equipment, construction and material handling equipment, on-highway and military vehicles, motor coaches, and ground support.
| SERIES | SHIFTER | TURN SIGNAL |
| Mounting | left, right | – |
| Column size | 38 mm, 45 mm, 55 mm | 38 mm, 45 mm, 55 mm |
| Neutral lock | none, drop-down | – |
| Speeds | 2, 3, 4, and 6 | – |
| Lights | – | turn signal, head lamp switch/dimmer, flash to pass, hazard warning |
| Wiper speeds | – | 1 speed, hi/lo, intermittent |
| Buttons | horn, wash, drop-down | wash, horn |
| Connectors | integral Packard, integral Deutsch, wire harness | integral Packard, integral Deutsch, wire harness |
| Expected life cycle | 1 million (rotary); 500000 (shifter handle) | 50000 cycles |
| Lever | 3 million (with drop-down neutral lock); 1 million (without drop-down neutral lock) | – |
| Operating temperature range | -40 °C to 85 °C [-40 °F to 185 °F] (0 % to 95 % relative humidity) | -40 °C to 85 °C [-40 °F to 185 °F] (0 % to 95 % relative humidity) |
| Operating volt. range | 3 V to 32 V | 3 V to 32 V |
| Handle dead weight | 160 lb [712 Newtons] | 160 lb [712 Newtons] |
| Solenoid load | 2 A @ 12.8 V with arc suppression | 2 A @ 12.8 V with arc suppression |
| Measurements | Ø 65,02 mm x 220,47 mm L [Ø 2.56 in x 8.68 in L] | Ø 65,02 mm x 232,16 mm L [Ø 2.56 in x 9.14 in L] |
| Features | IP67; turn signals are built to complement the shifter, or can also be mounted as stand alone | |

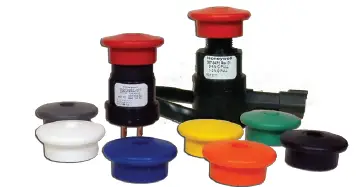

PUSH-PULL SWITCHES & CUSTOM CONTROLS
Robust, environmentally sealed, sliding contact switch incorporating two circuits with multiple combinations. Potential applications include control panels or machinery in harsh environments, including construction, agriculture, marine, material handling, military, machine tools, and mining
| SERIES | PUSH-PULL/E-STOP |
| Connector | screw, wire-out |
| Position | 2NO circuits in push; 2NC circuits in push; 1NO/1NC circuit |
| Cycle life | 25000 cycles (rotary) |
| Mounting | panel |
| Chamber sealing | o-ring (IP67 sealing) |
| Measurements | Ø 45,21 mm [Ø 1.78 in] |
| Temperature | -40 °C to 100 °C [-40 °F to 212 °F] |
| Electrical rating | 12 Vdc to 14 Vdc, 20 A; 24 Vdc, 10 A |
| Features | UV resistant button for outdoor use; moisture, contamination, and vibration resistant; sliding contacts; momentary switch option; knob available in a variety of colors |

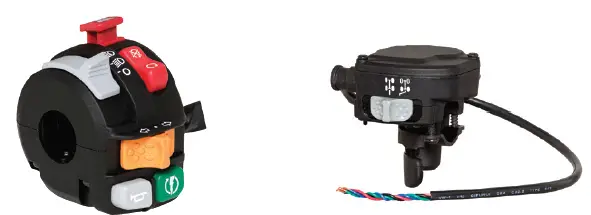

| SERIES | HANDLEBAR AND CUSTOM CONTROLS | |
| Features | Custom controls designed for most applications requiring multi-functional electrical/electromechanical applications: throttle controls, indicator lights, custom switches, and integrated panel assemblies. Honeywell possesses switch design and packaging expertise when engineering complete, competitive, custom designs. all custom control products are designed to meet customers’ specifications. | |
| Description of controls and indicator panels | ||
| LEFT HAND CONTROL • Compact design offers small profile control with high functionality Offers up to seven independent functions •Electrical loads up to 14 A, 12 V, varies by function Wire harness •Length, wire colors, and connector type fully customizable Accessory mounting features • Located on bottom of control • Allows for optional accessory modules such as: airflow choke (standard offering option), custom auxiliary function Electrical circuit customizations •Custom circuit designs allow for customer specific electrical customization while leveraging cost benefits of using platform components for the rest of a control assembly | RIGHT HAND CONTROL • Two- or three-position switch available • Adjustable cable travel Wire harness Length, wire colors, and connector type fully customizable Throttle cable seating • Can be customized to fit any size or thread type Micro switch • Provision for optional micro switch Electrical circuit customizations •Custom circuit designs allow for customer specific electrical customization while leveraging cost benefits of using platform components for the rest of a control assembly | |
PRESSURE SWITCHES
Feature set points ranging from 3.5 psi to 3000 psi. These rugged components have enhanced repeatability of set points and wide media capability. Potential applications include transmissions, hydraulics, brakes, power steering, fuel pressure, oxygen concentrators, dental air, generators/compressors, and pool/spa water pressure.
| 1000 SERIES | 5000 SERIES | LP SERIES | LE SERIES | MH SERIES | ME SERIES | HP SERIES | HE SERIES | |
| Type | hydraulic brake pressure switch | low pressure | low pressure | low pressure | medium pressure | medium pressure | high pressure | high pressure |
| Set point range | 20 psi ±10 psi [1,37 bar ±0,69 bar] | 75 psi to 150 psi | 3.5 psi to 150 psi | 3.5 psi to 150 psi | 40 psi to 500 psi | 25 psi to 350 psi | 100 psi to 4500 psi | 150 psi to 4500 psi |
| Contacts | silver-plated copper | silver-plated copper | gold-plated | gold-plated | gold-plated | gold-plated | silver / gold inlay | silver |
| Oper. pressure | 1200 psi | 150 psi, 250 psi | 250 psi max. | 250 psi max. | 600 psi max. | 500 psi max. | 5000 psi max. | 5000 psi max. |
| Proof pressure | 2400 psi | 500 psi | 500 psi | 500 psi | 6000 psi | 4000 psi | 10,000 psi (Base A); 6,500 psi (Base B) | 10000 psi |
| Burst pressure | 4800 psi | 4000 psi | 1250 psi | 1250 psi | 9000 psi | 8000 psi | 20,000 psi (Base A); 9,000 psi (Base B) | 20000 psi |
| Hysteresis option | no | no | yes | no | no | no | yes | yes |
| Smart Diagnostic Technology option | no | no | yes | yes | no | yes | yes | yes |
| Connector/ Pressure ports | M10 x 1.25 banjo fitting (single or double); M10 x 1; 1/8-27 NPT |
1/8-27 NPT | 1/4-18 NPT, 1/8-27 NPT, 1/2-20 UNF, 1/8-27 PTF, M12 × 1.5, M14 × 1.5, 9/16-18 UNF, 3/4-16 UNF, G1/8 BSPP, 7/16-20 UNF, R1/8 BSPT, M10 × 1.0, R1/2 BSPT, G1/4 BSPP, R1/4 BSPT | 1/4-18 NPT, 1/8-27 NPT, 1/2-20 UNF, 1/8-27 PTF, M12 × 1.5, M14 × 1.5, 9/16-18 UNF, 3/4-16 UNF, G1/8 BSPP, 7/16-20 UNF, R1/8 BSPT, M10 × 1.0, R1/2 BSPT, G1/4 BSPP, R1/4 BSPT | 1/4-18 NPT, 1/8-27 NPT, 1/2-20 UNF, M12 × 1.5, M14 × 1.5, 9/16-18 UNF, 3/4- 16 UNF, M18 x 1.5, 7/16-20 UNF, 7/8-14 UNF, 1/2-14 NPT, M10 × 1.0, G1/4 BSPP (see note 1) | 1/2-20 UNF, M14 × 1.5, 9/16-18 UNF, 3/4-16 UNF, M18 × 1.5, 7/8-14 UNF | ||
|
Terminals |
1/4 in blade |
1/4 in blade, screw, Metripack |
same terminations as ME, HP, and HE Series |
same terminations as ME, HP, and HE Series | spade terminals, screw terminals, Amp Super Seal 1.5 – 282105-1 (3-pin connector), 10-inch cable with 18 AWG (wire out, no connector), 10-inch cable w/Metripack 280 Delphi 15300002 (2-pin connector) (18 AWG)*, 10-inch cable w/Deutsch DT04-2P-E005 (2-pin connector) (18 AWG), 3-inch cable w/Packard 2P tower connector – 12015792 (2-pin connector) (18 AWG), 2.75-inch cable w/Packard 2P shroud connector – 12010973 (2-pin connector) (18 AWG), 4-inch cable w/Packard 2P shroud connector – 12010973 (2-pin connector) (16 AWG), 5.5-inch cable w/ITT Cannon 2P Sure-Seal circular connector – SS2R-120-1804-000 (2-pin connector) (18 AWG), 4.5-inch cable w/blade terminals 6,3 mm x 0,8 mm (16 AWG)*, 10-inch cable w/ Metripack 2-pin shroud connector 153000027 (18 AWG), 6-inch cable w/Amp Super Seal 1.5 – 282104-1 (2-pin connector) (18 AWG)*, 10-inch cable w/Deutsch DT06-2S-CE06 (2-socket connector) (18 AWG), Deutsch DT04-2P-E005 (2-pin connector), 6-inch cable w/ AMP Super Seal 1.5 – 282080-1 (2-pin connector) (18 AWG), 10-inch cable w/AMP 2,5 mm system series connector 1-967402-1 (18 AWG)*, 4.5-inch cable w/Packard shroud connector 12015792 (2-pin connector) (18 AWG), 10-inch cable w/Metripack 150 Delphi 12052641 (2-pin connector) (18 AWG) |
spade terminals, screw terminals, Deutsch DT04-3P-E005 (3-pin connector), Amp Super Seal 1.5 – 282105-1 (3-pin connector), 10-inch cable, 18 AWG (wire out, no connector), 10-inch cable with Deutsch DT04-3P-E005 (3-pin connector) (16 AWG), 10-inch cable with Amp Super Seal 1.5 – 282105-1 (3-pin connector) (18 AWG), 10-inch cable with Metripack 280 Delphi 15300002 (2-pin connector) (18 AWG), 10-inch cable with Din43650-C (3-pin connector) (18 AWG), 10-inch cable with M12x1 (Brad Harrison micro) – 21032121306 Harting P/N (3-pin connector) (18 AWG), 10-inch cable with Packard Weatherpack male terminal – 12020827 (3-pin connector) (18 AWG), 10-inch cable with Deutsch DT04- 2P-E005 (2-pin connector) (18 AWG), 3-inch cable with Packard 2P tower connector – 12015792 (2-pin connector) (18 AWG), 2.75-inch cable with Packard 2P shroud connector – 12010973 (2-pin connector) (18 AWG), 4-inch cable with Packard 2P shroud connector – 12010973 (2-pin connector) (16 AWG), 5.5-inch cable with ITT Cannon 2P Sure-Seal circular connector – SS2R-120-1804-000 (2-pin connector) (18 AWG), 8.5-inch cable with ITT Cannon 3P Sure-Seal circular connector – SS3R-120-8551-001 (3-pin connector) (16 AWG), 10-inch cable – vacuum impregnated with Deutsch DT06-3S-EP06 (3-Socket connector) (16 AWG), 10-inch cable – vacuum impregnated with Deutsch DT04-3P-E005 (3-pin connector) (16 AWG), 4.5-inch cable with blade terminals 6,3 mm x 0,8 mm (16 AWG), 10-inch cable with Metripack 2-pin shroud connector 153000027 (18 AWG), 6-inch cable with Amp Super Seal 1.5 – 282104-1 (2-pin connector) (18 AWG), 10-inch cable with Deutsch DT06-2S- CE06 (2-socket connector) (18 AWG), Deutsch DT04-2P-E005 (2-pin connector), 10-inch cable with Metripack 150 Delphi 12129615 (3-pin connector) (18 AWG), 6-inch cable with AMP Super Seal 1.5 – 282080-1 (2-pin connector) (18 AWG), 10-inch cable with AMP 2,5 mm system series connector 1-967402-1 (18 AWG), 4.5-inch cable with Packard shroud connector 12015792 (2-pin connector) (18 AWG), 10-inch cable with Metripack 150 Delphi 12052641 (2-pin connector) (18 AWG), 8.5-inch cable with Deutsch Plug HD 16-3 96S (3-pin connector) (16 AWG) | ||
| Dimensions | Ø 18 mm hex x 54,10 mm [2.13 in] L | 0.50 in hex x 60,96 mm [2.4 in] L | varies, depends upon configuration | varies, depends upon configuration | varies, depends upon configuration | varies, depends upon configuration | varies, depends upon configuration | varies, depends upon configuration |
| Features | IP65; low set point; high burst rating; banjo bolt fitting | UL approvals (custom); 100,000 life cycle, 8 set-point ranges | up to 2 million life cycle rating; IP67 sealing; up to ±2 % switching point accuracy | up to 1 million life cycle rating; IP67 sealing; up to ±2 % switching point accuracy | up to 1 million life cycle rating; IP67 sealing rating; up to ±2 % switching point accuracy | up to 1 million life cycle rating; IP67 sealing rating; up to ±2 % switching point accuracy | up to 2 million life cycle rating; IP67 sealing rating; up to ±2 % switching point accuracy | up to 1 million life cycle rating; IP67 sealing rating; up to ±2 % switching point accuracy |
1Port Style C: Switches less than 975 psi will use Base Style B; switches greater than 975 psi will use Base Style A. Port Styles F and G: Switches less than 350 psi will use Base Style B; switches greater than 350 psi will use Base Style A. Port Styles A, B, E, M, P, T, and Y will use Base Style B. Switches less than 150 psi will only use Base Style B.
VACUUM SWITCHES
Honeywell’s 5000 Series stands up to extended-duty applications. Factory set, it features a fluorosilicone rubber diaphragm for compatibility with a wide variety of fluids. Various terminations, including a Metripack connect that forms a tight seal when connected.
| SERIES | 5000 VACUUM |
| Type | direct-action blade contact |
| Set point range | factory set: 1.1 in-Hg to 22 in-Hg |
| Vacuum | 1.1 in-Hg to 22 in-Hg |
| Contacts | composite-gold plate |
| Operating pressure | 30 in-Hg max. |
| Burst pressure | 150 psi |
| Connector | 1/8-27 NPT male thread standard (others, including metric, available) |
| Terminals | #8-32 screws, 1/4 in blade, Metripack 280 |
| Dimensions | Ø 1.47 in x 2.3 in L (screw); Ø 1.47 in x 2.9 in L (Metripack 280) |
| Features | stands up to extended-duty applications; factory set; fluorosilicone rubber diaphragm |

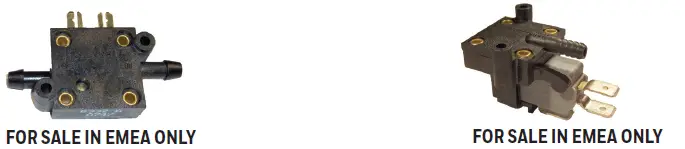

PRESSURE SWITCHES/SENSORS EMEA ONLY
Range of versatile, low-cost, ultra-low pressure switches and sensors. Compact, lightweight, feature high reliablity, and are designed to yield a repeatable response over millions of cycles. They can be mounted in virtually any orientation and their rugged construction allows use in the most rigorous environments.
| SERIES | PBN1 | PBN3 |
| Type | direct action blade contact | snap-action switch |
| Set point range | 0.018 psi to 1.8 psi | 0.036 psi to 40.0 psi |
| Contacts | gold inlay | silver |
| Operating pressure | 6 psi for 0.018 psi to 0.108 psi; 12 psi for 0.144 psi to 1.8 psi | 12 psi for 0.036 psi to 2.71 psi; 60 psi for 3.0 psi to 40.0 psi |
| Proof pressure | 8 psi for 0.018 psi to 0.108 psi; 15 psi for 0.144 psi to 1.8 psi | 15 psi for 0.036 psi to 2.71 psi; 100 psi for 3.0 psi to 40.0 psi |
| Burst pressure | 30 psi | 60 psi for 0.036 psi to 2.71 psi; 150 psi for 3.0 psi to 40.0 psi |
| Connector | 5 mm smooth perpendicular, 5 mm barbed radial | 5 mm smooth perpendicular, 5 mm barbed radial |
| Terminals | 4,8 mm x 0,5 mm blades | 6,3 mm x 0,8 mm blades |
| Approvals | FOR SALE IN EMEA ONLY | FOR SALE IN EMEA ONLY |
| Features | sensitive to ultra-low pressures; gage, vacuum, and differential measurement | high current switching capacity; sensitive to low gage pressures |
HOUR METERS
Records and tracks total elapsed time of equipment usage. All parts are in-process tested for functionality and timing accuracy before shipping. Often used in lawn and garden, generators, compressors, panel assemblies, sport/utility vehicles, on-and-off highway, transportation, mining, lifts, and recreational vehicles.
| SERIES | LM |
| Type | ac or dc micro-controller LCD unit |
| Counting range | 0 to 99,999.9 hours |
| Sealing | IP67 |
| Voltage range | 9 V to 64 V dc/ac (50 Hz to 500 Hz) |
| Accuracy | ±200 ppm/hour |
| Termination | 1/4 in blades; 3/16 in blades |
| Approvals | UL, CE |
|
Mount/panel cutout opening | diamond and diamond (no bezel): 24,13 mm x 44,45 mm [0.95 in H x 1.75 in W] standard: 24,13 mm x 36,83 mm [0.95 in H x 1.45 in W] round: Ø 50,8 mm [Ø 2.00 in] rectangle: 22,35 mm x 44,96 mm [0.88 in H x 1.77 in W] |
| Operating temperature | -40 °C to 85 °C [-40 °F to 185 °F] |
| Number size | 7 mm |
| Case material | Makroblend |
|
Measurements | diamond: 31,75 mm x 54,10 mm x 34,29 mm [1.25 in H x 2.13 in W x 1.35 in D] standard: 27,43 mm x 40,64 mm x 34,29 mm [1.08 in H x 1.60 in W x 1.35 in D] round: Ø 57,66 mm x 33,78 mm [Ø 2.27 in x 1.33 in D] rectangle: 24,13 mm x 48,26 mm x 32,77 mm [0.95 in H x 1.90 in W x 1.29 in D] diamond (no bezel): 26,16 mm x 52,07 mm x 34,29 mm [1.03 in H x 2.05 in W x 1.35 in D] |
| Features | backlight and large 7 mm display; digital, microcontrol unit LCD; durable design of mounting assembly, IP67 environmental sealing |
WARRANTY/REMEDY
Honeywell warrants goods of its manufacture as being free of defective materials and faulty workmanship during the applicable warranty period. Honeywell’s standard product warranty applies unless agreed to otherwise by Honeywell in writing; please refer to your order acknowledgment or consult your local sales office for specific warranty details. If warranted goods are returned to Honeywell during the period of coverage, Honeywell will repair or replace, at its option, without charge those items that Honeywell, in its sole discretion, finds defective. The foregoing is buyer’s sole remedy and is in lieu of all other warranties, expressed or implied, including those of merchantability and fitness for a particular purpose. In no event shall Honeywell be liable for consequential, special, or indirect damages.
While Honeywell may provide application assistance personally, through our literature and the Honeywell web site, it is buyer’s sole responsibility to determine the suitability of the product in the application. Specifications may change without notice. The information we supply is believed to be accurate and reliable as of this writing. However, Honeywell assumes no responsibility for its use. 009592
FOR MORE INFORMATION
Honeywell Advanced Sensing Technologies services its customers through a worldwide network of sales offices and distributors. For application assistance, current specifications, pricing, or the nearest Authorized Distributor,
visit sps.honeywell.com/ast or call:
USA/Canada +302 613 4491
Latin America +1 305 805 8188
Europe +44 1344 238258
Japan +81 (0) 3-6730-7152
Singapore +65 6355 2828
Greater China +86 4006396841
