On-Air! Podcast Kit Instruction Manual
with Multifunctional Microphone
Model PCAST4
80 Little Falls Road, Fairfield, NJ 07004
1-800-631-0868 • www.HamiltonBuhl.com
ON-AIR! Podcast Kit
Making a great audio recording for a podcast is easy if you have the right broadcasting equipment. HamiltonBuhl® has specially designed the PCAST4 Podcast Kit to provide excellent sound quality for recording music, singing, and podcasting needs.
This Kit consists of:
- USB Omnidirectional/Cardioid Podcasting Microphone with Desktop Stand
This portable USB Type-C Multifunctional Microphone, excellent for voice and
instruments have a built-in switch for Omnidirectional and Cardioid polar patterns.
This mic provides the versatility and flexibility needed to do quality broadcasts,
from nearly any location, with clear, rich sound. Compatible with Windows or Mac.
- USB plug-and-play
- Rich, clear sound quality
- Omnidirectional and cardioid option
- Microphone adjusts to any angle
- Headphone Volume Control Knob
- Gain Control Knob
- Removable base
(1) Round Microphone Windscreen/Pop Filter
This double-nylon layer Microphone Windscreen/Pop Filter provides noise protection, helping you get better audio recordings. The 360° flexible gooseneck arm allows precise positioning and the swivel mount is easy to install. - Windscreen diameter: 5.9”
- Gooseneck Holder Length: 14.6”
- Adjustable C Clamp: affixes securely to the mic stand
(1) Folding Sound Isolation Shield
This Sound Isolation Shield makes clean, controlled, and noise-free recordings, reducing unwanted room noise. Great for home recording studios, podcasts, YouTube recordings, music recordings, and more. Compact, portable, lightweight, foldable design. Kit includes the stand and base for the Isolation Shield.

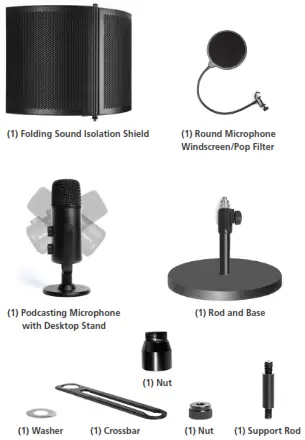

In the Box

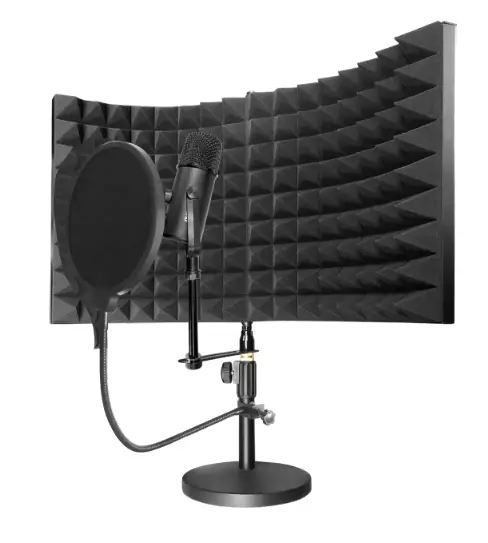

Assembly
Use the diagram below to assemble your podcast system.
USB Omnidirectional/Cardioid Podcast Microphone
with Desktop Stand
Microphone Specifications
| Microphone Core | Condenser Diameter 0.55” x 2 |
| Polar Pattern | Cardioid/Omnidirectional |
| Frequency Response | 20Hz~20KHz |
| Sensitivity | -35dB ±3dB (0dB=1V/Pa at 1kHz) |
| Maximum SPL S/N Ratio | 110dB |
| Sampling Rate Cable | 70dB |
| Maximum SPL S/N Ratio | 44.1kHz/48kHz; 16 bit |
| Sampling Rate Cable | 3’ USB A to C Cable |

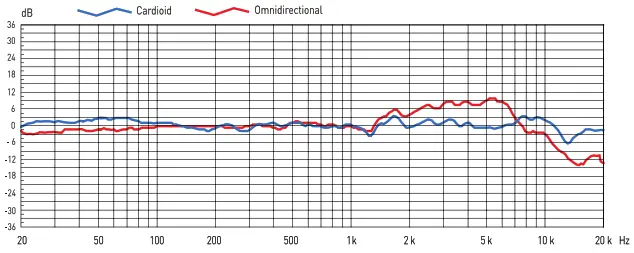

| Frequency Response | Polar Pattern |
![]() | ![]() |

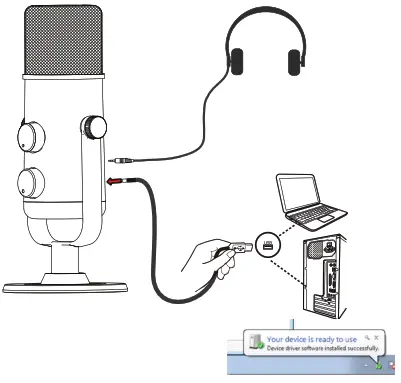

Connecting to Computer/Computer Settings

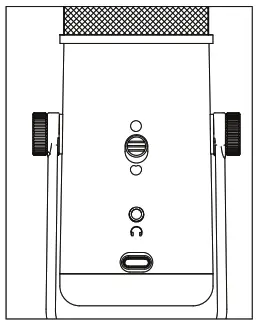

Polar pattern selection

Symbol | Sound Direction | Polar Pattern | Use Scenarios |
![]() | ![]() | Omnidirectional | Multi-person podcasts, internet conference |
![]() | ![]() | Cardioid | Streaming, Podcasts voiceovers, studio recording |

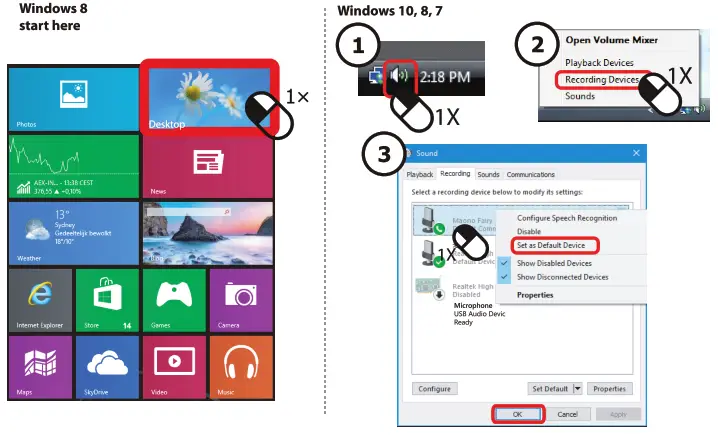

Microphone Input

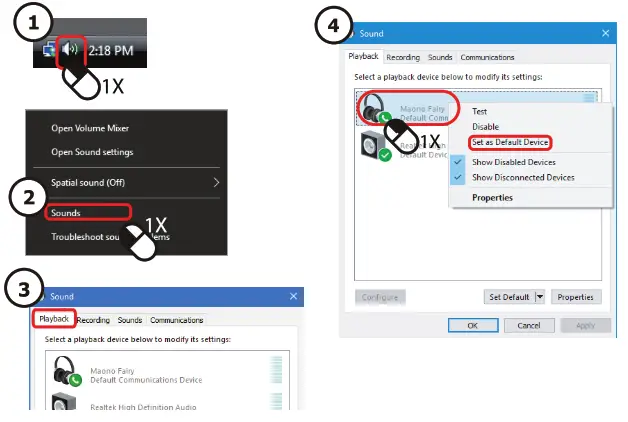

Playback Settings

Microphone Settings

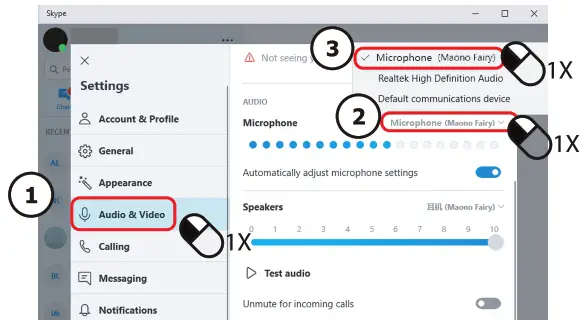

Application Settings
Example: SKYPE. Enter in sequence: 1, 2, 3.

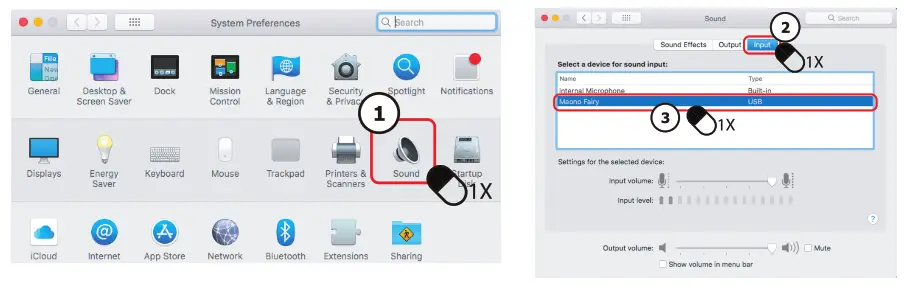

Using Fairy with Mac
Supports Mac OS 10.7.5 or later version, USB 2.0 or later.
Product Registration Instructions
Visit: www.HamiltonBuhl.com
- Click on Customer Care
- Click on the Product Registration Form
- Please fill out all fields marked with * to register your product
Warranty
Warranty begins the date the item ships from our warehouse. All products have a one-year warranty from the original date of shipment unless otherwise noted.
