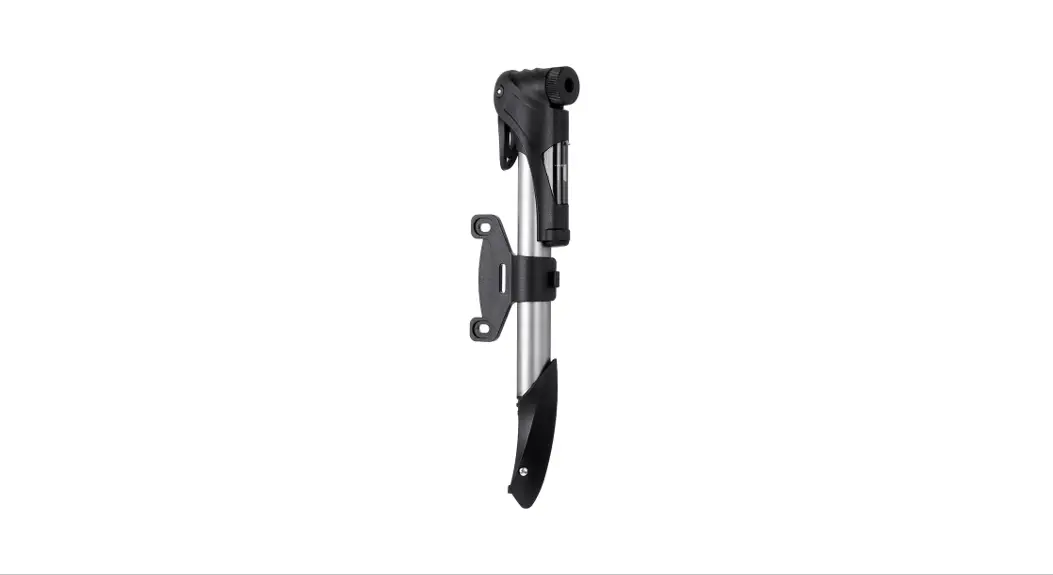

Mini Inflator
User Manual
Precautions for use
Please read this manual carefully before installing this product.
Please use within the scope of product attributes.
This product is not child-friendly. Do not allow children to play with parts.
Executive standard
Q/ZFQT 01-2014 QB/T2182-95
Applicable Scope
Applicable models
Schrader/ Presta value bicycles and electric bicycles.
Using the Scene
Cycling, basketball, balloon products cheer
Accessories
Ball-type air needle; balloon-type air needle; fixed frame
Specification
| Product Name | HIMO Mini Inflator |
| Dimension | 270 x 52 x 29 mm |
| Product Weight | 150 g |
| Rated capacity | 39 ml |
| Rated air pressure | 6 Bar |
| Cylinder body material | Aluminum alloy |
| Valve type | Schrader/Presta Value |
| 1. Valve | 3. Storage of Valve |
| 2. Lock | 4. Handle |
Installation
Valve installation (Ball and inflatable toys)
 |  |

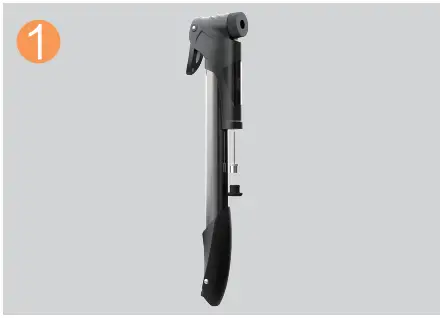

| Take out the gas needle. | Install the gas needle. |
 |  |

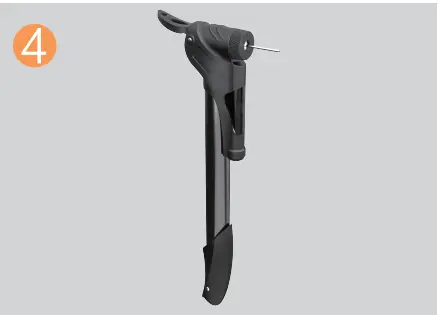

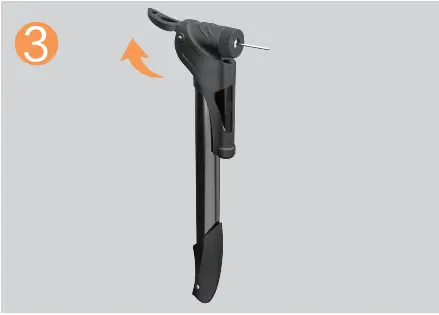

| After installing the air needle, open the lock. | Insert the air needle into the air hole to pump air. |
Use steps
 |  |

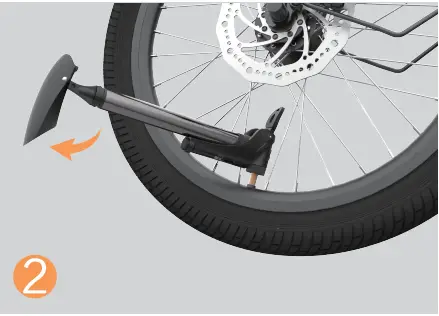

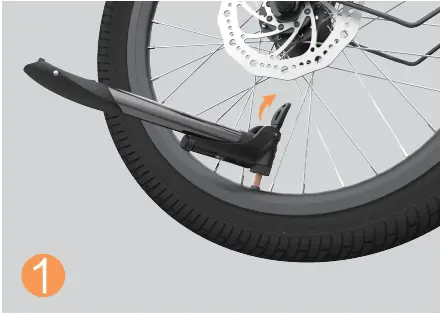

| Align the valve and insert and lock the lock | Open the handle |
 |  |

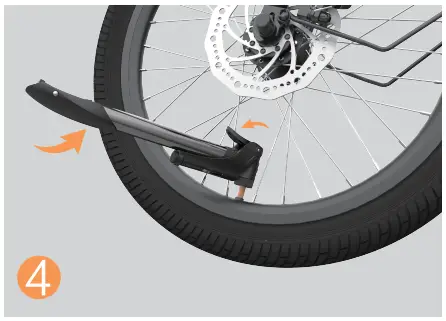

| Hold the handle tightly and pull to pump up | After pumping up, put away the handle and restore the lock |
Storage environment
- Store it in a cool place and avoid exposure to sunlight.
- Avoid high temperatures, such as heating sources, to avoid excessive aging of rubber parts.
- It should be stored upright, and no heavy objects can be squeezed to avoid deformation of the barrel.
- Avoid all kinds of stains. If it is stained during use, please wash it with soap immediately, not alcohol.
Maintenance
It is recommended that in order to avoid overheating of the piston when pumping the air cylinder, it is necessary to make necessary intervals, so as to extend the life of the piston.
