Oneodio F1 True Wireless Earphones User Manual (+ PDF)

User ManualF1 True Wireless
Earphones

Contents hide

1 Product Specifications

9 Documents / Resources

9.1 References

10 Related Posts

Product Specifications

Model Name	Fl	Charging Interface	Type-C
Impedance	320±15%	Bluetooth Range	10m/33ft
Bluetooth Chip	AD6973D	Driver Diameter	910mm
Bluetooth Version	V5.0	Frequency Response	20-20kHz
Sensitivity	103±3dB	Charging Voltage	DC 5V
Charging Time	2–1.5h	Battery Capacity	50mAh (Earphones)

Battery Capacity	300mAh (Charging Case) 300
Working Time at 50% Volume	≅5h
Working Time at 100% Volume	≅4.5h
Working Time at 80% Volume	≅4h

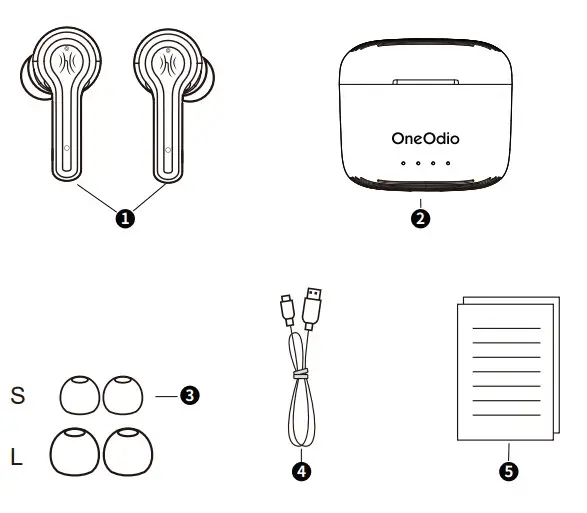

What’s in the Box?

Earphones x1 Pair
Charging Case x1
Eartips x2 M Size Installed
Type-C Charging Cable x1
User Manual

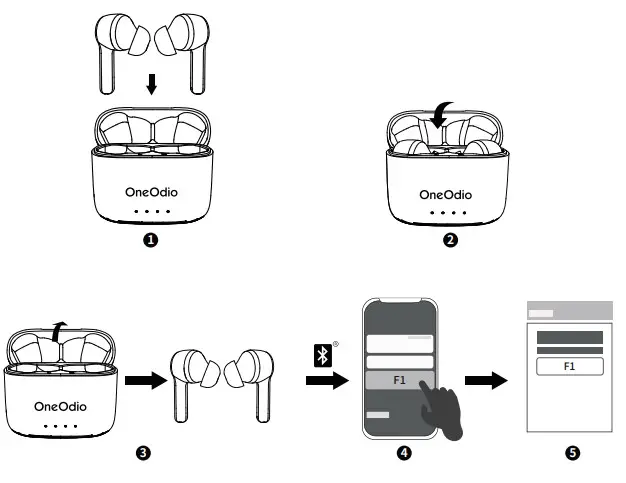

How to Pair?

Put Fl earbuds into charging case
Close the charging case
Open the charging case and take out earbuds, Fl will enter pairing mode automatically
Choose Fl from the Bluetooth list on your phone
Fl earbuds are connected

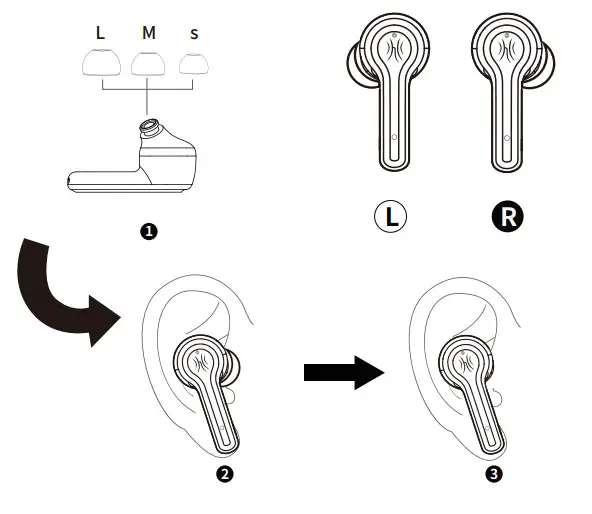

How to Wear?

Choose the suitable ear tips
Insert F1 into the ears
Twist slightly until fits well

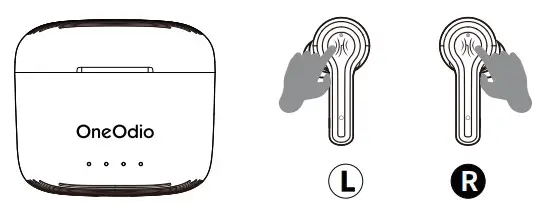

Control

Play/Pause	x1	or	x1
Previous Track	x2
Next Track			x2
Answer/End Call	x1	or	x1
Reject Call	x2	or	x2
Voice Assistant	x1 for 2sec	or	x1 for 2sec
Turn on	x1 for 2sec		x1 for 2sec
Turn off	x1 for 5sec		x1 for 5sec
Reset	x5	or	x5

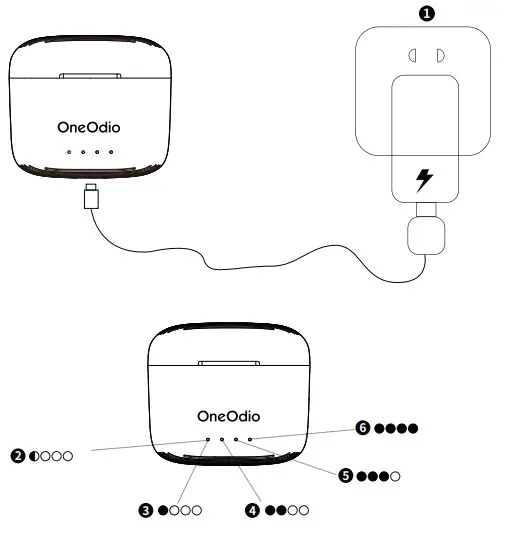

Charging

Output: DC 5V
Low battery <15%
15%-30%
30%-50%
50%-75%
75%-100%

Limited Warranty

Our friendly customer service team are ready and waiting to help. Here is how we can connect:

Global: oneodio.com/pages/support
Japan: oneodio.jp/pages/support
India: oneodio.in/pages/support

Global: +85269403848 (Mon to Fri 9:00 am-6:30 pm, UTC +8 HKT)
India: +918929369620 (Mon to Fri 9:30 am-5:30 pm, IST)

Global: [email protected]
India: [email protected]

FCC Warning

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
The device has been evaluated to meet general RF exposure requirements. The device can be used in portable exposure conditions without restriction. FCC ID:2A25A-F1 MIC:214-14851
