INTRODUCTION

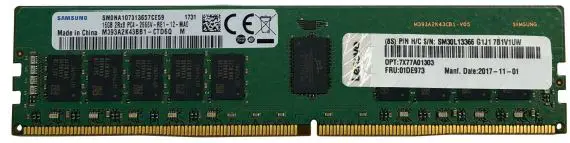

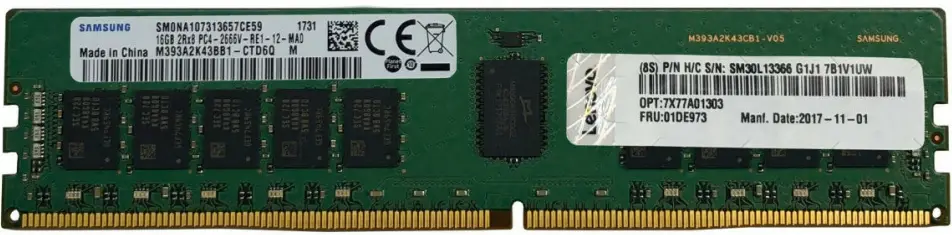

ThinkSystem TruDDR5 and TruDDR4 memory delivers trusted, tested, quality, performance, and reliability throughout the ThinkSystem portfolio. We use the highest quality industry-standard memory components sourced from Tier 1 DRAM suppliers. The only memory that meets these strict requirements is selected for memory in Lenovo servers. It is then compatibility tested and tuned on every ThinkSystem server to maximize reliability. In addition, Lenovo memory DIMMs for servers have a unique signature programmed into them so your system can verify that TruDDR4 Memory is installed in your system. Since the memory will be authenticated, memory stretch goals are enabled only when TruDDR4 Memory DIMMs are detected. Together with lower power consumption, these new DIMMs can provide the lowest TCO for data centers.

High-Performance Memory
Lenovo offers high-performance and high-capacity memory options in ThinkSystem servers.

Persistent Memory

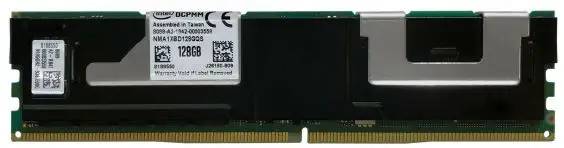

Lenovo ThinkSystem servers configured with Intel Optane Persistent Memory transforms the memory/storage hierarchy enabling faster insights from data. This breakthrough technology delivers large capacity, high speed, and affordable memory with data persistence and advanced encryption capabilities. These modules significantly increase the capacity of available system memory, keeping more hot data closer to the CPU, and enabling greater operational efficiency by processing larger data sets with more user instances.

3DS RDIMMs
To meet the ever-increasing demand for higher-density server memory modules, Lenovo offers 3DS (3 Dimensional Stacked) DDR4 RDIMMs which apply TSV (Through Silicon Via) technology from our partnership with a leading Tier 1 DRAM supplier. The new TSV 3DS stack technology enables higher-density DRAM stack packages with higher operational frequency and reduced power consumption. The RDIMM configuration along with 3DS TSV DRAM packages exhibits performance benefits and lower power consumption over alternative high-density solutions to ultimately provide the lowest TCO for data centers.

Part Number Information

The following tables list the ordering information:

• 4800 MHz DDR5 memory for Intel servers
• 4800 MHz DDR5 memory for AMD servers
• 3200 MHz DDR4 memory for Intel servers
• 3200 MHz DDR4 memory for AMD servers
• 2933 MHz DDR4 memory for Intel servers
• 2933 MHz DDR4 memory for AMD servers
• 2666 MHz DDR4 memory
• Intel Optane Persistent Memory 200 Series (3200 MHz)
• Intel Optane Persistent Memory 100 Series (2666 MHz

4800 MHz DDR5 memory for Intel servers
Table 1. 4800 MHz DDR5 memory for Intel servers

9×4 RDIMMs (also known as Optimized or EC4 RDIMMs) are a new lower-cost DDR5 memory option supported in ThinkSystem V3 servers. 9×4 DIMMs offer the same performance as standard RDIMMs (known as 10×4 or EC8 modules), however they support lower fault-tolerance characteristics. Standard RDIMMs and 3DS RDIMMs support two 40-bit subchannels (that is, a total of 80 bits), whereas 9×4 RDIMMs support two 36-bit subchannels (a total of 72 bits). The extra bits in the subchannels allow standard RDIMMs and 3DS RDIMMs to support Single Device Data Correction (SDDC), however 9×4 RDIMMs do not support SDDC. Note, however, that all DDR5 DIMMs, including 9×4 RDIMMs, support Bounded Fault correction, which enables the server to correct most common types of DRAM failures For more information on DDR5 memory, see the Lenovo Press paper, Introduction to DDR5 Memory, available from https://lenovopress.com/lp1618

4800 MHz DDR5 memory for AMD servers
Table 2. 4800 MHz DDR5 memory for AMD servers

9×4 RDIMMs (also known as Optimized or EC4 RDIMMs) are a new lower-cost DDR5 memory option supported in ThinkSystem V3 servers. 9×4 DIMMs offer the same performance as standard RDIMMs (known as 10×4 or EC8 modules), however they support lower fault-tolerance characteristics. Standard RDIMMs and 3DS RDIMMs support two 40-bit subchannels (that is, a total of 80 bits), whereas 9×4 RDIMMs support two 36-bit subchannels (a total of 72 bits). The extra bits in the subchannels allow standard RDIMMs and 3DS RDIMMs to support Single Device Data Correction (SDDC), however 9×4 RDIMMs do not support SDDC. Note, however, that all DDR5 DIMMs, including 9×4 RDIMMs, support Bounded Fault correction, which enables the server to correct most common types of DRAM failures. For more information on DDR5 memory, see the Lenovo Press paper, Introduction to DDR5 Memory, available from https://lenovopress.com/lp1618

3200 MHz DDR4 memory for Intel servers
Table 3. 3200 MHz TruDDR4 DIMMs for Intel processor-based servers

3200 MHz DDR4 memory for AMD servers
Table 4. 3200 MHz TruDDR4 DIMMs for AMD processor-based servers

2933 MHz DDR4 memory for Intel servers
Table 5. 2933 MHz TruDDR4 DIMMs for Intel processor-based servers

2933 MHz DDR4 memory for AMD servers
Table 6. 2933 MHz TruDDR4 DIMMs for AMD processor-based servers

2666 MHz DDR4 memory
Table 7. 2666 MHz TruDDR4 DIMM ordering information

Intel Optane Persistent Memory 200 Series (3200 MHz)
Table 8. Intel Optane Persistent Memory 200 Series – 3200 MHz

Intel Optane Persistent Memory 100 Series (2666 MHz)
Table 9. Intel Optane Persistent Memory 100 Series – 2666 MHz

Server Support

Configurations notes:

• Some 2666 MHz memory is only supported with Gen 1 Xeon Scalable processors (codenamed “Skylake”), whereas other 2666 MHz memory is only supported with Gen 2 Xeon Scalable processors (codenamed “Cascade Lake”). These are indicated with the (1) and (2) footnotes in the table, respectively.
• 2933 MHz memory is not supported by Intel Xeon SP Gen 1 processors
• The support of 32GB UDIMMs on ST50, ST250, SR150 and SR250 requires a Intel Xeon E Series processor and UEFI firmware ISE114H or later
• 2666 MHz Persistent Memory is only supported by Intel Xeon SP Gen 2 processors
• 3200 MHz Persistent Memory is only supported by Intel Xeon SP Gen 3 processors
• Some servers support mixing memory speeds; all memory will operate at the lowest speed

Table 10. Server Support (Part 1 of 3)

Table 11. Server Support (Part 2 of 3)

Table 12. Server Support (Part 3 of 3)

Operating system support

Most memory is operating system independent, however Persistent Memory is supported only by specific operating systems as listed in the following tables:

• Intel Optane Persistent Memory 200 Series
• Intel Optane Persistent Memory 100 Series

Table 13. Operating system support for ThinkSystem 128GB TruDDR4 3200MHz (1.2V) Intel Optane Persistent Memory, 4ZC7A08732

Table 14. Operating system support for ThinkSystem 128GB TruDDR4 2666MHz (1.2V) Intel® Optane™ DC Persistent Memory, 4ZC7A15110

Learn More
For more information, see these resources:

• Intel Optane DC Persistent Memory product guide
  • https://lenovopress.com/lp1066-intel-optane-dc-persistent-memory
• Optimizing Memory Performance of Lenovo ThinkSystem Servers
  • https://lenovopress.com/lp0697-optimizing-memory-performance-of-lenovo-thinksystem-servers
• Lenovo ThinkSystem SD530 Performance Considerations with 12 DIMMs and 16 DIMMs
  • https://lenovopress.com/lp0659-thinksystem-sd530-performance-considerations
• ThinkSystem Memory Configurator
  • https://dcsc.lenovo.com/#/memory_configuration

Related product families
Product families related to this document are the following:

• Memory
