POYNTING ICR-2031 4G Industrial Instap Router
A guide with compatible antennas for routers. This guide integrates both the antenna – EPNT Series – and router brands. A great guide that will give options based on the router configurations and dimensions.
BENEFITS OF ROUTER HOUSING IN THE ANTENNA
- Lower Cable Loss
- Higher Throughput
- Cleaner Installation Site

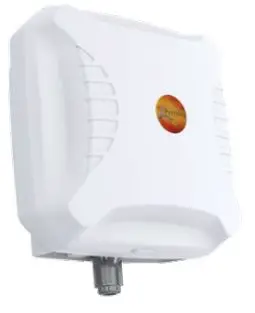

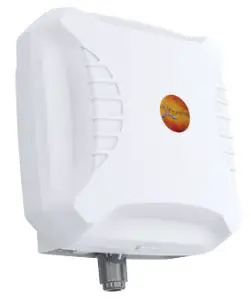

EPNT-1 EPNT -2 EPNT-4
 |  |  |
POYNTING Compatible Antennas for Routers
| Advantech Router Model | Router Configuration n | Router Dimensions (L x W x H) | EPNT-1 | EPNT-2 | EPNT-4 | EPNT Type | Maximum Router Dimensions | Configuration |
| ICR-2031 | 2 x SMA for LTE | 103 x 95 x 25 mm | Yes | Yes | Yes | EPNT-1 | 185 mm x 145 mm x 45 mm | 4 x LTE Ports 2 x Wi-Fi Ports |
| ICR-2412 | 1 x SMA for LTE | 103 × 95 × 25 mm | Yes | Yes | Yes | EPNT-2 | 185 mm x 145 mm x 45 mm | 4 x LTE Ports 2 x Wi-Fi Ports |
| ICR-2431 | 2 x SMA for LTE | 103 x 95 x 25 mm | Yes | Yes | Yes | EPNT-4 | 140 mm x 120 mm x 50 mm | EPNT-4/15: 2 x LTE Ports 2 x Wi-Fi Ports 1 x GPS
EPNT-4/17: 4 x LTE Ports 2 x Wi-Fi Ports 1 x GPS |
| ICR-2432 | 2 x SMA for LTE | 103 × 95 × 25 mm | Yes | Yes | Yes | |||
| ICR-2436 | 2 x SMA for LTE | 103 × 95 × 25 mm | Yes | Yes | Yes | |||
| ICR-2437 | 2 x SMA for LTE | 103 × 95 × 25 mm | Yes | Yes | Yes | |||
| ICR-2531 | 2 x SMA for LTE | 130 x 95 x 25 mm | Yes | Yes | Yes | |||
| ICR-2631 | 2 x SMA for LTE | 130 × 95 × 25 mm | Yes | Yes | Yes | |||
| ICR–1601G/W | 2 x SMA for LTE 1 x RP-SMA for Wi-Fi (optional) 1 x SMA for GPS (optional) | 93 × 90 × 27mm | Yes | Yes | Yes | |||
| EKI-1642W/I | 2 x SMA for LTE 1 x RP-SMA for Wi-Fi (optional) 1 x SMA for GPS (optional) | 93 x 90 x 27 mm | Yes | Yes | Yes | |||
| EKI-1654I | 2 x SMA for LTE | 110 x 187 x 31 mm | No | No | No | |||
| ICR-4453/S | 4 x SMA for LTE 3 x RP-SMA for Wi-Fi 1 x SMA for GPS | 47 × 109 × 195 mm | No | No | No | |||
| ICR-4453W/S | 4 x SMA for LTE 3 x RP-SMA for Wi-Fi 1 x SMA for GPS | 47 × 109 × 195 mm | No | No | No | |||
| Advantech Router Model ICR-4434/S/W/WS | Router Configuration n 2 x SMA for LTE 3 x RP-SMA for Wi-Fi 1 x SMA for GPS | Router Dimensions (L x W x H) 47 × 109 × 195 | EPNT-1 No | EPNT-2 No | EPNT-4 No |
| mm | |||||
| ICR-4401/S/W/WS | 3 x RP-SMA for Wi-Fi | 47 × 109 × 195 mm | No | No | No |
| SmartStart SL305 | 2 x SMA for LTE 1 x RP-SMA for Wi-Fi | 30 × 87 × 150 mm | Yes | Yes | No |
| ICR- | 2 x SMA for | Metal Case: 42 × | Yes | Yes | Yes |
| 2734/P/A01/PA01/A | LTE | 80.3 × 113.2 mm | |||
| 02/PA02 Libratum | Plastic Case: 51.4 | ||||
| × 83.8 × 115.5 mm | |||||
| ICR- | 2 x SMA for | Metal Case: 42 × | Yes | Yes | Yes |
| 2834G/GP/GA01/GP | LTE | 80.3 × 113.2 mm | |||
| A01/GA02/GPA02 | 1 x SMA for | Plastic Case: 51.4 | |||
| GPS | × 83.8 × 115.5 mm | ||||
| ICR-3231/W | 2 x SMA for | 31.2 × 94 × 129 | Yes | Yes | Yes |
| LTE | mm | ||||
| 2 x RP-SMA | |||||
| for Wi-Fi | |||||
| (Optional) | |||||
| 1 x SMA for | |||||
| GPS | |||||
| (Optional) | |||||
| ICR-3232/W | 2 x SMA for | 31.2 × 94 × 129 | Yes | Yes | Yes |
| LTE | mm | ||||
| 2 x RP-SMA | |||||
| for Wi-Fi | |||||
| (Optional) | |||||
| 1 x SMA for | |||||
| GPS | |||||
| (Optional) | |||||
| ICR-3241/W/1ND/W- | 2 x SMA for | 31.2 × 94 × 129 | Yes | Yes | Yes |
| 1ND | LTE | mm | |||
| 2 x RP-SMA | |||||
| for Wi-Fi | |||||
| (Optional) | |||||
| 1 x SMA for | |||||
| GPS | |||||
| (Optional) |
| Advantech Router Model Smartflex BB- SR30508120/ BB- SR30508110/ BB- SR30508010/ BB- SR30500420/ BB- SR30500310/ BB- SR30500120/ BB- SR30500110 | Router Configuration n 2 x SMA for LTE 1 x SMA for GPS | Router Dimensions (L x W x H) 55 x 97 x 125 mm | EPNT-1 No | EPNT-2 No | EPNT-4 No |
| SmartFlex SR309: BB-SR30910320- SWH/BB- SR30910120-SWH/ BB-SR30910020- SWH/ BB- SR30900320-SWH/ BB-SR30900120- SWH/ BB- SR30900020-SWH | 2 x SMA for LTE 1 x RP-SMA for Wi-Fi 1 x SMA for GPS | 55 × 97 × 125 mm | No | No | No |
| SmartFlex SR308: | 2 x SMA for | 55 × 97 × 125 mm | No | No | No |
| BB-SR30810425- | LTE | ||||
| SWH/ BB- | 1 x RP-SMA | ||||
| SR30810125-SWH/ | for Wi-Fi | ||||
| BB-SR30810025- | 1 x SMA for | ||||
| SWH/ BB- | GPS | ||||
| SR30800325-SWH/ | |||||
| BB-SR30800125- | |||||
| SWH/ BB- | |||||
| SR30800115-SWH/ | |||||
| BB-SR30800015- | |||||
| SWH | |||||
| SmartFlex SR307: | 2 x SMA for | 55 x 97 x 125 mm | No | No | No |
| BB-SR30710125- | LTE | ||||
| SWH/ BB- | 1 x RP-SMA | ||||
| SR30700021/ BB- | for Wi-Fi | ||||
| SR30700015-SWH |
| Advantech Router Model SmartFlex SR303: | Router Configuration n 2 x SMA for LTE 1 x RP-SMA for Wi-Fi 1 x SMA for GPS | Router Dimensions (L x W x H) 55 x 97 x 125 mm | EPNT-1 No | EPNT-2 No | EPNT-4 No |
| BB-SR30310321/ | |||||
| BB-SR30310125- | |||||
| SWH/ BB- | |||||
| SR30310121/ BB- | |||||
| SR30300425-SWH/ | |||||
| BB-SR30300325- | |||||
| SWH/ BB- | |||||
| SR30300125-SWH/ | |||||
| BB-SR30300121/ | |||||
| BB-SR30300110- | |||||
| SWH/ BB- | |||||
| SR30300021/ BB- | |||||
| SR30300015-SWH/ | |||||
| BB-SR30300010- | |||||
| SWH/ BB- | |||||
| SR30300011/ BB- | |||||
| SR30300011-SWH/ | |||||
| BB-SR30300025- | |||||
| SWH/ BB- | |||||
| SR30300111/ BB- | |||||
| SR30300115-SWH/ | |||||
| BB-SR30300120- | |||||
| SWH/ BB- | |||||
| SR30300311/ BB- | |||||
| SmartFlex SR304: | 2 x SMA for | 55 x 97 x 125 mm | No | No | No |
| BB-SR30400010/ | LTE | ||||
| BB-SR30400015/ | 1 x SMA for | ||||
| BB-SR30400020 | GPS | ||||
| and many more – | – they are all | ||||
| they are all different | different | ||||
| SmartFlex SR307 : | they are all different | 55 x 97 x 125 mm | No | No | No |
| SmartFlex SR310: | 2 x SMA for LTE 1 x RP-SMA for Wi-Fi 1 x SMA for GPS | 55 x 97 x 125 mm | No | No | No |
| SmartMotion ST352 | 4 x SMA for | 55 x 97 x 125 mm | No | No | No |
| ST355: | LTE | ||||
| BB-ST35518025- | 1 x RP-SMA | ||||
| SWH/ BB- | for Wi-Fi | ||||
| ST35510025/ BB- | 1 x SMA for | ||||
| ST35500025- | GPS | ||||
| SWH/BB- | |||||
| ST35219025-SWH/ | |||||
| and many more | |||||
| ICR–3831: RAILWAY 4G LTE ROUTER & GATEWAY ICR-3831B/ ICR- 3831BD | 2 x TNC-F for LTE 1 x TNC-F for GPS | 203 x 59 x 113.1mm | No | No | No |
| Celerway Router Model | Router Configuration | Router Dimensions (L x W x H) | EPNT-1 | EPNT-2 | EPNT-4 | EPNT Type | Maximum Router Dimensions | Configuration |
| Arcus | 10 x SMA for LTE 3 x RP-SMA for Wi-Fi 1 x SMA for GPS | 200 x 55 x 280 mm | No | No | No | 185 mm x 145 mm x 45 mm | 4 x LTE Ports 2 x Wi-Fi Ports | |
| GO | 2 x SMA for LTE | 79 x 141 x 30 mm | Yes | Yes | yes | EPNT-2 | 185 mm x 145 mm x 45 mm | 4 x LTE Ports 2 x Wi-Fi Ports |
|
Stratus | 2 x SMA for LTE or 4 x SMA for LTE (depending on model) 2x RP-SMA for Wi-Fi or 4 x RP-SMA for Wi-Fi (depending on model) 1 x SMA for GPS |
210 x 43 x 145 mm |
No |
No |
No |
|
140 mm x 120 mm x 50 mm | EPNT-4/15: 2 x LTE Ports 2 x Wi-Fi Ports 1 x GPS
EPNT-4/17: 4 x LTE Ports 2 x Wi-Fi Ports 1 x GPS |
|
Stratus 5G | 4 x SMA for LTE or 8 x SMA for LTE (depending on the model) 4 x RP-SMA for Wi-Fi 1 x SMA for GPS |
210 x 43 x 145 mm |
No |
No |
No | |||
| Cisco Router Model | Router Configuration | Router Dimensions (H x W x D) | EPNT-1 | EPNT-2 | EPNT-4 | EPNT Type | Maximum Router Dimensions | Configuration |
| IR807 | 2 x TNC-F for LTE 1 x SMA for GPS | 46.74 x 128.78 x 110.99 mm | No | No | Yes | EPNT-1 | 185 mm x 145 mm x 45 mm | 4 x LTE Ports 2 x Wi-Fi Ports |
| IR809 | 2 x TNC-F for LTE 1 x SMA for GPS | 29.21 x 128 x 159.2 mm | Yes | Yes | No | EPNT-2 | 185 mm x 145 mm x 45 mm | 4 x LTE Ports 2 x Wi-Fi Ports |
| EPNT-4 | 140 mm x 120 mm x 50 mm | EPNT-4/15: 2 x LTE Ports 2 x Wi-Fi Ports 1 x GPS
EPNT-4/17: 4 x LTE Ports 2 x Wi-Fi Ports 1 x GPS | ||||||
| Cradlepoint Router Model | Router Configuration | Router Dimensions (L x W x H) | EPNT-1 | EPNT-2 | EPNT-4 | EPNT Type | Maximum Router Dimensions | Configuration |
| R1900 Series 5G | 4 x SMA for LTE 2 x RP-SMA for Wi- Fi 1 x SMA for GPS 1 x RP-SMA for Bluetooth | 172 x 148 x 41 mm | No | No | No | EPNT-1 | 185 mm x 145 mm | 4 x LTE Ports 2 x Wi-Fi Ports |
| IBR1700 Series | 4 x SMA for LTE or 2 x SMA for LTE 6 x RP-SMA for Wi- Fi 1 x SMA for GPS | 224.3 × 190 × 44 mm | No | No | No | EPNT-2 | 185 mm x 145 mm | 4 x LTE Ports 2 x Wi-Fi Ports |
| IBR900 Series | 2 x SMA for LTE 2 x RP-SMA for Wi- Fi 1 x SMA for GPS | 118 x 114 x 30 mm | Yes | Yes | Yes | EPNT-4 | 140 mm x 120 mm | EPNT-4/15: 2 x LTE Ports 2 x Wi-Fi Ports 1 x GPS
EPNT-4/17: 4 x LTE Ports 2 x Wi-Fi Ports 1 x GPS |
| IBR200 Series | 2 x SMA for LTE 1 x RP-SMA for Wi- | 76.5 × 94.5 × 24.5 mm | Yes | Yes | Yes | |||
| E100 Series | 2 x SMA for LTE 1 x SMA for GPS | 135 × 270 × 48 mm | No | No | No | |||
| IBR600C | 2 x SMA for LTE 2 x RP-SMA for Wi- Fi 1 x SMA for GPS | 118 x 113.5 x 29.3 mm | Yes | Yes | Yes | |||
| R500-PLTE Series | 2 x SMA for LTE 2 x RP-SMA for Wi- Fi 1 x SMA for GPS | 118 x 113.5 x 29.3 mm | Yes | Yes | Yes | |||
| E102 Series | 2 x SMA for LTE 1 x SMA for GPS | 135 × 270 × 32.4 mm | No | No | No | |||
| W4005 5G Series | 4 x N-TYPE (F) for LTE 1 x SMA for GPS | 323 x 300 x 79 mm | No | No | No | |||
| W2005 Series | 4 x N-TYPE (F) for LTE 1 x SMA for GPS | 323 x 300 x 79 mm | No | No | No | |||
| W1850 | 4 x SMA for LTE | 165.1 x 165.1 x 38.1 mm | No | No | No | |||
| E3000 Series | 4 x SMA for LTE 4 x RP-SMA for Wi- Fi 1 x SMA for GPS | 160 x 320 x 44 mm | No | No | No | |||
| E300 Series | 2 x SMA for LTE or 4 x SMA for LTE 1 x SMA for GPS | 135 x 270 x 44 mm | No | No | No | |||
| AER2200 Series | 2 x SMA for LTE or 4 x SMA for LTE 4 x RP-SMA for Wi- Fi 1 x SMA for GPS | 185 x 210 x 44 mm | No | No | No | |||
| L950 Series | 2 x SMA for LTE | 145 x 145 x 30 mm | Yes | Yes | No | |||
| CBA850 Series | 4 x SMA for LTE 1 x SMA for GPS | 122 x 122 x 42 mm | Yes | Yes | No | |||
| Cradlepoint Router Model CBA550 Series | Router Configuration
2 x SMA for LTE | Router Dimensions (L x W x H) 100 x 100 x 34 mm | EPNT-1 Yes | EPNT-2 Yes | EPNT-4 Yes |
| MC400 | 4 x SMA for LTE 1 x SMA for GPS (MC400-1200M-B Model) | 93 x 74 x 13 mm | Yes | Yes | Yes |
| Huawei Router Model | Router Configuration | Router Dimensions (W x H x D) | EPNT-1 | EPNT-2 | EPNT-4 | EPNT Type | Maximum Router Dimensions | Configuration |
| B622-335 LTE CPE | 2 x SMA for LTE | 240 x 155 x78 mm | No | No | No | EPNT-1 | 185 mm x 145 mm x 45 mm | 4 x LTE Ports 2 x Wi-Fi Ports |
| B535-232 LTE CPE | 2 x SMA for LTE | 219 x 138 x 25.6 mm | No | No | No | EPNT-2 | 185 mm x 145 mm x 45 mm | 4 x LTE Ports 2 x Wi-Fi Ports |
| B311As-853 & B311s-220 & B311- 521 | 2 x SMA for LTE | 181 x 126 x 36 mm | Yes | Yes | No | EPNT-4 | 140 mm x 120 mm x 50 mm | EPNT-4/15: 2 x LTE Ports 2 x Wi-Fi Ports 1 x GPS
EPNT-4/17: 4 x LTE Ports 2 x Wi-Fi Ports 1 x GPS |
| B628-350 4G CPE Pro 3 | 2 x TS-9 for LTE | 95 x 95 x 190 mm | No | No | No | |||
| B628-265 CPE Pro 2 | 2 x TS-9 for LTE | 95 x 95 x 190 mm | No | No | No | |||
| B818 | 2 x TS-9 for LTE | 103 × 103 × 225 mm | No | No | No | |||
| CPE Pro 2 | BUILT-IN ANTENNAS | 90 x 96.6 x 178 mm | No | No | No | |||
| B315 | 2 x SMA for LTE | 186 x 139 x 46 mm | No | No | No | |||
| B310 | 2 x SMA for LTE | 181 mm x 126 x 70 mm | No | No | No | |||
| B593 | 2 x SMA for LTE | 190 x 35 x 176 mm | No | No | No | |||
| B618 | 2 x TS-9 for LTE | 95 × 95 × 208 mm | No | No | No | |||
| B612 4G LTE Cat.6 Router Series | 2 x SMA for LTE | 240 × 155 × 78 mm | No | No | No | |||
| B525s-65a / B525s- 23a | 2 x SMA for LTE | 163 x 52 x 226 mm | No | No | No | |||
| E5186s- 22a/E5186s-61a | 2 x SMA for LTE | 190 × 200 × 32 mm | No | No | No | |||
| B528s-23a | 2 x TS-9 for LTE | 105 x 90 x 181 mm | No | No | No | |||
| E5175 | 2 x SMA for LTE | 215 x 187 x 47.2 mm | No | No | No | |||
| B529s-23a | 2 x TS-9 for LTE | 120 x 120 x 125 mm | No | No | No | |||
| B5338-68 | 4 x SMA for LTE | 217.5 x 56 x 170 mm | No | No | No | |||
| B5338-168 | 4 x SMA for LTE | 217.5 x 56 x 170 mm | No | No | No | |||
| B715s-23c | 2 x SMA for LTE | 240 × 448 × 47 mm | No | No | No | |||
| E5180s-610 | 2 x TS-9 for LTE | 70 ×70 × 110 mm | No | No | No | |||
| B890 | 2 x SMA for LTE | 222 x 48 x 161 mm | No | No | No | |||
| B880 | 2 x SMA for LTE | 150 x 180 x 90 mm | No | No | No | |||
| E5172 | 1 x SMA for LTE | 173 x 124 x 31.5 mm | No | No | No | |||
| B390s-2 | 2 x SMA for LTE | 195 x 169 x 64 mm | No | No | No | |||
| B612 | 2 x SMA for LTE | 240 × 155 × 78 mm | No | No | No | |||
| Inhand Router Model | Router Configuration | Router Dimensions (L x W x H) | EPNT-1 | EPNT-2 | EPNT-4 | EPNT Type | Maximum Router Dimensions | Configuration |
| EdgeRouter800 (ER800) | 4 x 5G or 2 x 4G Cellular 2 x Wi-Fi | 210 x 140 x 35mm | No | No | No | EPNT-1 | 185 mm x 145 mm x 45 mm | 4 x LTE Ports 2 x Wi-Fi Ports |
| InRouter305 (IR305) | 4G：SMA x 1; Wi-Fi：RP-SMA x 1 | 120 x 99 x 25 mm | Yes | Yes | Yes | EPNT-2 | 185 mm x 145 mm x 45 mm | 4 x LTE Ports 2 x Wi-Fi Ports |
| Note: North America models: 2* SMA 4G antenna connectors. | ||||||||
| InRouter301/30 2 (IR301/IR302) | IR301: 4G: SMA x 1; Wi-Fi: RP-SMA x 1 | 90 x 90 x 25mm | Yes | Yes | Yes | EPNT-4 | 140 mm x 120 mm x 50 mm | EPNT-4/15: 2 x LTE Ports 2 x Wi-Fi Ports 1 x GPS |
| IR302: 3G/4G: SMA x 1; Wi-Fi: RP-SMA x 1 Note: North America models (FQ38, FQ33): 2 x SMA 4G antenna connectors. | EPNT-4/17: 4 x LTE Ports 2 x Wi-Fi Ports 1 x GPS | |||||||
| InRouter611-S | 3G/4G:SMA x 1, | 100 x 98.5 x 23.5 | Yes | Yes | Yes | |||
| (IR611-S) | WLAN: RP-SMA x 2 | mm | ||||||
| Note: | ||||||||
| FS18/FS39/FB13/FB | ||||||||
| 23/FT43 models | ||||||||
| have 2 x SMA 4G | ||||||||
| antennas. | ||||||||
| InRouter615- | 3G/4G: SMA x 2, | 127 x 108.2 x 35 | Yes | Yes | Yes | |||
| S(IR615-S) | WLAN: RP-SMA x 2 | mm | ||||||
| InRouter900(IR9 | InRouter912: | 132.6 x 112.8 x 45 | Yes | Yes | Yes | |||
| 00) | 3G/4G: SMA Female | mm | ||||||
| Connector x 2 | ||||||||
| InRouter915: | ||||||||
| 3G/4G: SMA Female | ||||||||
| Connector x 2, | ||||||||
| WLAN: | ||||||||
| RP-SMA x 1 | ||||||||
| GPS: SMA x 1 | ||||||||
| InGateway502 | 3G/4G: SMA Female | 127 x 108.2 x 35 | Yes | Yes | Yes | |||
| Connector x 1, | mm | |||||||
| WLAN& BLE: | ||||||||
| RP-SMA x 1 | ||||||||
| GPS: SMA x 1 | ||||||||
| Milesight Router Model | Router Configuration | Router Dimensions (L x W x H) | EPNT-1 | EPNT-2 | EPNT-4 | EPNT Type | Maximum Router Dimensions | Configuration |
| UR32L Lite Series | 1 x SMA for LTE | 108 x 90 x 26 mm | Yes | Yes | Yes | EPNT-1 | 185 mm x 145 mm x 45 mm | 4 x LTE Ports 2 x Wi-Fi Ports |
| UR3x Pro Series: UR32 | 2 x SMA for LTE 1 x GPS/Wi-Fi Connector | 108 x 90 x 26 mm | Yes | Yes | Yes | EPNT-2 | 185 mm x 145 mm x 45 mm | 4 x LTE Ports 2 x Wi-Fi Ports |
| UR3x Pro Series: UR35 | 2 x SMA for LTE 1 x SMA for GPS 1 x RP-SMA for Wi-Fi | 135 x 100 x 45 mm | Yes | Yes | Yes | EPNT-4 | 140 mm x 120 mm x 50 mm | EPNT-4/15: EPNT-4/17: 2 x LTE Ports 4 x LTE Ports 2 x Wi-Fi Ports x Wi-Fi Ports 1 x GPS |
| 5G Ultra Series: UR75-5G | 3 x SMA for LTE 1 x SMA for GPS 2 x RP-SMA for Wi-Fi | 135 × 118 × 45 mm | Yes | Yes | Yes | |||
| UF51 5G CPE | IN-built Antennas (5G/LTE, Wi-Fi & GPS) | ф105 x 110 x 188 mm | No | No | No | |||
| Mikrotik Router Model | Router Configuration | Router Dimensions (W x H x D) | EPNT-1 | EPNT-2 | EPNT-4 | EPNT Type | Maximum Router Dimensions | Configuration |
| Chateau LTE6-US | 2 x SMA for LTE | 240 x 156 x 44 mm | No | No | No | EPNT-1 | 185 mm x 145 mm x 45 mm | 4 x LTE Ports 2 x Wi-Fi Ports |
| Chateau LTE18 ax | 2 x SMA for LTE | 240 x 156 x 44 mm | No | No | No | EPNT-2 | 185 mm x 145 mm x 45 mm | 4 x LTE Ports 2 x Wi-Fi Ports |
| Chateau 5G ax | 4 x SMA for LTE/5G | 240 x 156 x 44 mm | No | No | No | EPNT-4 | 140 mm x 120 mm x 50 mm | EPNT-4/15: 2 x LTE Ports 2 x Wi-Fi Ports 1 x GPS
EPNT-4/17: 4 x LTE Ports 2 x Wi-Fi Ports 1 x GPS |
| Chateau LTE12 | 2 x SMA for LTE | 240 x 156 x 44 mm | No | No | No | |||
| Chateau 5G | 2 x SMA for LTE | 240 x 156 x 44 mm | No | No | No | |||
| RB4011 | 4 x Wi-Fi Connectors | 228 x 120 x 30 mm | No | No | No | |||
| KNOT | 1 x SMA for NB/CAT-M 1 x SMA for GNSS | 122 x 87 x 26 mm | Yes | Yes | Yes | |||
| Moxa Router Model | Router Configuration | Router Dimensions (L x W x H) | EPNT-1 | EPNT-2 | EPNT-4 | EPNT Type | Maximum Router Dimensions | Configuration |
| OnCell 3120-LTE-1 Series | 2 x SMA for LTE | 128.5 x 26 x 89.1 mm | Yes | Yes | Yes | EPNT-1 | 185 mm x 145 mm x 45 mm | 4 x LTE Ports 2 x Wi-Fi Ports |
| OnCell G3150A-LTE Series | 2 x SMA for LTE | 126 x 30 x 107.5 mm | Yes | Yes | Yes | EPNT-2 | 185 mm x 145 mm x 45 mm | 4 x LTE Ports 2 x Wi-Fi Ports |
| OnCell G3470A-LTE Series | 2 x SMA for LTE 1 x SMA for GPS | 66.3 x 124 x 90 mm | Yes | Yes | Yes | EPNT-4 | 140 mm x 120 mm x 50 mm | EPNT-4/15: 2 x LTE Ports 1 x GPS EPNT-4/17: 4 x LTE Ports 2 x Wi-Fi Ports |
| OnCell 5104-HSPA Series | 1 x SMA for LTE | 51 x 135 x 103 mm | Yes | Yes | Yes | |||
| AWK-1137C Series | 2 x RP-SMA for Wi- Fi | 129.75 x 85.9 x 26 mm | Yes | Yes | Yes | |||
| AWK-1131A Series | 2 x RP-SMA for Wi- Fi | 115 x 80 x 57.3 mm | Yes | Yes | Yes | |||
| AWK-3131A Series | 2 x RP-SMA for Wi- Fi | 52.7 x 135 x 105 mm | Yes | Yes | Yes | |||
| AWK-4131A Series | 2 x N-Type for Wi- Fi | 224 x 147.7 x 66.5 mm | No | No | No | |||
| Peplink Router Model | Router Configuration | Router Dimensions (L x W x H) | EPNT-1 | EPNT-2 | EPNT-4 | EPNT Type | Maximum Router Dimensions | Configuration |
| Max Br1 Classic | 2 x SMA for LTE 1 x RP-SMA for Wi-Fi 1 x SMA for GPS | 110 x 107 x 35 mm | Yes | Yes | Yes | EPNT-1 | 185 mm x 145 mm x 45 mm | 4 x LTE Ports 2 x Wi-Fi Ports |
| Max BR1 Mini (HW3) | 2 x SMA for LTE 2 x RP-SMA for Wi-Fi 1 x SMA for GPS | 125.7 x 107 x 35 mm | Yes | Yes | Yes | EPNT-2 | 185 mm x 145 mm x 45 mm | 4 x LTE Ports 2 x Wi-Fi Ports |
| Max BR1 Mini Core | 2 x SMA for LTE | 117 x 107 x 35 mm | Yes | Yes | Yes | EPNT-4 | 140 mm x 120 mm x 50 mm | EPNT-4/15: 2 x LTE Ports 2 x Wi-Fi Ports 1 x GPS
EPNT-4/17: 4 x LTE Ports 2 x Wi-Fi Ports 1 x GPS |
| Max BR1 MK2 | 2 x SMA for LTE 2 x RP-SMA for Wi-Fi (2.4 & 5GHz) 1 x SMA for GPS | 147 x 128 x 40 mm | Yes | Yes | No | |||
| Max BR1 Pro | 2 x SMA for LTE 2 x RP-SMA for Wi-Fi 1 x SMA for GPS | 130 x 110 x 41 mm | Yes | Yes | Yes | |||
| Max BR1 Pro CAT-20 | 4 x SMA for LTE 2 x RP-SMA for Wi-Fi 1 x SMA for GPS | 146.8 x 129 x 29.3 mm | Yes | Yes | No | |||
| Max BR1 Pro 5G | 4 x SMA for LTE 2 x RP-SMA for Wi-Fi 1 x SMA for GPS | 146.8 x 129 x 29.3 mm | Yes | Yes | No | |||
| Max BR1 ENT | 2 x SMA for LTE 1 x SMA for GPS | 147 x 128 x 40 mm | Yes | Yes | No | |||
| Max BR1 M2M | 2 x SMA for LTE | 120 x 97 x 26.5 mm | Yes | Yes | Yes | |||
| Max BR2 Pro | 8 x SMA for LTE 2 x RP-SMA for Wi-Fi 1 x SMA for GPS | 218 x 195 x 29.5 mm | No | No | No | |||
| HD2 MBX 5G | 8 x SMA for LTE 4 x RP-SMA for Wi-Fi 1 x SMA for GPS | 292 x 177 x 43 mm | No | No | No | |||
| Max HD2 Mini | 4 x SMA for LTE 1 x SMA for GPS | 147 x 128 x 40 mm | Yes | Yes | No | |||
| Max HD2 | 4 x SMA for LTE 4 x RP-SMA for Wi-Fi 1 x SMA for GPS | 260 x 143 x 40 mm | No | No | No | |||
| Max HD4 | 8 x SMA for LTE 4 x RP-SMA for Wi-Fi 2 x SMA for GPS | 292 x 177 x 50 mm | No | No | No | |||
| Max HD4 MBX | 8 x SMA for LTE 4 x RP-SMA for Wi-Fi 1 x SMA for GPS | 292 x 177 x 43 mm | No | No | No | |||
| HD4 MBX 5G | 16 x QMA for LTE 4 x RP-SMA for Wi-Fi 1 x QMA for GPS | 292 x 177 x 43 mm | No | No | No | |||
| Balance 20X | 2 x SMA for LTE 2 x RP-SMA for Wi-Fi 1 x SMA for GPS | 262 x 160 x 33 mm | No | No | No | |||
| Balance 310X | 6 x SMA for LTE 1 x SMA for GPS | 292 x 177 x 43 mm | No | No | No | |||
| Peplink Router Model | Router Configuration | Router Dimensions (L x W x H) | EPNT-1 | EPNT-2 | EPNT-4 |
| MBX Mini | 8 x QMA for LTE 4 x RP-SMA for Wi-Fi 1 x QMA for GPS | 204.5 x 186 x 41 mm | No | No | No |
| Balance 30 LTE | 2 x SMA for LTE | 260 x 133 x 35 mm | No | No | No |
| Balance 30 Pro | 2 x SMA for LTE 4 x RP-SMA for Wi-Fi | 260 x 143 x 40 mm | No | No | No |
| Balance 310 | 6 x SMA for LTE | 252 x 180 x 50 mm | No | No | No |
| Balance 310X 5G | 4 x SMA for LTE 1 x SMA for GPS | 292 x 177 x 43 mm | No | No | No |
| UBR LTE | 4 x SMA for LTE 2 x RP-SMA for Wi-Fi 1 x SMA for GPS | 130 x 110 x 41 mm | Yes | Yes | Yes |
| UBR PLUS | 4 x SMA for LTE 2 x RP-SMA for Wi-Fi 1 x SMA for GPS | 171.8 x 160 x 29.3 mm | No | No | No |
| Max Transit | 4 x SMA for LTE 2 x RP-SMA for Wi-Fi 1 x SMA for GPS | 160 x 97 x 33.5 mm | Yes | Yes | No |
| Max Transit Duo | 4 x SMA for LTE 2 x RP-SMA for Wi-Fi 1 x SMA for GPS | 160 x 97 x 33.5 mm | Yes | Yes | No |
| Max Transit Mini | 2 x SMA for LTE 1 x RP-SMA for Wi-Fi 1 x SMA for GPS | 110 x 107 x 35 mm | Yes | Yes | Yes |
| Max Transit 5G | 4 x SMA for LTE 2 x RP-SMA for Wi-Fi 1 x SMA for GPS | 160 x 97 x 33.5 mm | Yes | Yes | No |
| Max Transit Core | 4 x SMA for LTE 1 x SMA for GPS | 160 x 97 x 33.5 mm | Yes | Yes | No |
| Max Transit Pro E | 4 x SMA for LTE 2 x RP-SMA for Wi-Fi 1 x SMA for GPS | 160 x 97 x 33.5 mm | Yes | Yes | No |
| Surf SOHO | 3 x RP-SMA for Wi-Fi | 233 x 142 x 30 mm | No | No | No |
| Max HD2 IP67 | 4 x N-Type (F) for LTE 1 x N-Type (F) for GPS | 310 x 230 x 66 mm | No | No | No |
| Max HD4 IP67 | 8 x N-Type (F) for LTE 1 x N-Type (F) for GPS | 390 x 295 x x 66 mm | No | No | No |
| Rajant Router Model | Router Configuration | Router Dimensions (W x H x D) | EPNT-1 | EPNT-2 | EPNT-4 | EPNT Type | Maximum Router Dimensions | Configuration |
| Peregrine BreadCrumb Series | 2 x N-Type (F) for Wi-Fi – 2,4 GHz 2 x N-Type (F) for Wi-Fi – 5 GHz | 264.9 x 253.7 x 46.2 mm | No | No | No | EPNT-1 | 185 mm x 145 mm x 45 mm | 4 x LTE Ports 2 x Wi-Fi Ports |
| Peregrine LTE BreadCrumb Series | 2 x N-Type (F) for LTE 2 x N-Type (F) for Wi-Fi – 2,4 GHz 2 x N-Type (F) for Wi-Fi – 5 GHz | 264.9 x 253.7 x 46.2 mm | No | No | No | EPNT-2 | 185 mm x 145 mm x 45 mm | 4 x LTE Ports 2 x Wi-Fi Ports |
| BreadCrumb® LX5 Series | 1 x N-Type (F) for LTE (900 MHz) Upto 2 x N-Type (F) for Wi-Fi – 2,4 GHz Upto 2 x N-Type (F) for Wi-Fi – 5 GHz | 197 x 220 x 29 mm | No | No | No | EPNT-4 | 140 mm x 120 mm x 50 mm | EPNT-4/15: 2 x LTE Ports 2 x Wi-Fi Ports 1 x GPS
EPNT-4/17: 4 x LTE Ports 2 x Wi-Fi Ports 1 x GPS |
| Hawk BreadCrumb Series | 2 x N-Type (F) for 4.9 GHz / 5 GHz 2 x N-Type (F) for Wi-Fi – 2,4 GHz 2 x N-Type (F) for Wi-Fi – 5 GHz | 264.9 x 253.7 x 46.2 mm | No | No | No | |||
| BreadCrumb® ME4 Series | 2 x N-Type (F) for 4.9 GHz 2 x N-Type (F) for Wi-Fi – 2,4 GHz 2 x N-Type (F) for Wi-Fi – 5 GHz 1 x N-Type (F) for LTE (900 MHz) | 189 x 95 x 51 mm | No | No | No | |||
| BreadCrumb® KM3 Series | 1 x N-Type (F) for LTE (900 MHz) 2 x N-Type (F) for Wi-Fi – 2,4 GHz 2 x N-Type (F) for Wi-Fi – 5 GHz | 138.735 x 143.154 x 57.150 mm | No | No | No | |||
| BreadCrumb® ES1 Series | 2 x N-Type (F) for 4.9 GHz / 5 GHz 2 x N-Type (F) for Wi-Fi – 2,4 GHz 2 x N-Type (F) for Wi-Fi – 5 GHz | 155 x 149 x 41 mm | No | No | No | |||
| Robustel Router Model | Router Configuration | Router Dimensions (L x W x H) | EPNT-1 | EPNT-2 | EPNT-4 | EPNT Type | Maximum Router Dimensions | Configuration |
| EG5120 | 4G Option: 2 x SMA-K for LTE 2 x RP-SMA-K for Wi-Fi 1 x SMA-K for GPS
5G Option: 4 x SMA-K for LTE 2 x RP-SMA-K for Wi-Fi Optional GPS | 128 x 105 x 49 mm | Yes | Yes | Yes | EPNT-1 | 185 mm x 145 mm x 45 mm | 4 x LTE Ports 2 x Wi-Fi Ports |
| EG5100 | 2 x SMA-K for LTE 2 x RP-SMA-K for Wi-Fi 1 x SMA-K for GPS (Optional) | 128 x 105 x 49 mm | Yes | Yes | Yes | EPNT-2 | 185 mm x 145 mm x 45 mm | 4 x LTE Ports 2 x Wi-Fi Ports |
| LG5100 | 2 x SMA-K for LTE 1 x SMA-K for LoRa | 128 x 105 x 49 mm | Yes | Yes | Yes | EPNT-4 | 140 mm x 120 mm x 50 mm | EPNT-4/15: 2 x LTE Ports 2 x Wi-Fi Ports 1 x GPS
EPNT-4/17: 4 x LTE Ports 2 x Wi-Fi Ports 1 x GPS |
| R5 020 | 4 x SMA-K for LTE 2 x RP-SMA-K for Wi-Fi 2 x SMA-K for GPS | 125 x 100 x 48 mm | Yes | Yes | Yes | |||
| R1520 Global | 2 x SMA-K for LTE 2 x RP-SMA-K for Wi-Fi | 105 x 90 x 46 mm | Yes | Yes | Yes | |||
| R2 011 | 2 x SMA-K for LTE 2 x RP-SMA-K for Wi-Fi | 127 x 82 x 30 mm | Yes | Yes | Yes | |||
| R2 010 | 2 x SMA-K for LTE 2 x RP-SMA-K for Wi-Fi | 127 x 82 x 30 mm | Yes | Yes | Yes | |||
| R1 511 | 2 x SMA-K for LTE 1 x RP-SMA-K for Wi-Fi | 91.5 x 91.5 x 31.5 mm | Yes | Yes | Yes | |||
| R1 520 | 2 x SMA-K for LTE 2 x RP-SMA-K for Wi-Fi | 105 x 90 x 46 mm | Yes | Yes | Yes | |||
| R1 510 | 2 x SMA-K for LTE 1 x RP-SMA-K for Wi-Fi | 91.5 x 91.5 x 30.8mm | Yes | Yes | Yes | |||
| R1 500 | 2 x SMA-K for LTE | 118 x 97.5 x 28.5 mm | Yes | Yes | Yes | |||
| R2 110 | 2 x SMA-K for LTE | 125 x 100 x 48 mm | Yes | Yes | Yes | |||
| R2 000 | 2 x SMA-K for LTE 2 x RP-SMA-K for Wi-Fi | 127.5 x 82.5 x 29.5 mm | Yes | Yes | Yes | |||
| R2000 Dual | 4 x SMA-K for LTE 1 x RP-SMA-K for Wi-Fi | 145 x 130 x 46 mm | Yes | Yes | No | |||
| R2000 Enterprise | 4 x SMA-K for LTE 2 x RP-SMA-K for Wi-Fi | 193 x 113 x 32 mm | No | No | No | |||
| Robustel Router Model | Router Configuration | Router Dimensions (L x W x H) | EPNT-1 | EPNT-2 | EPNT-4 |
| R3 000 | 2 x SMA-K for LTE 1 x RP-SMA-K for Wi-Fi 1 x SMA-K for GPS | 125 x 104 x 43.5 mm | Yes | Yes | Yes |
| R3000 Quad | 2 x SMA-K for LTE | 125 x 104 x 43.5 | Yes | Yes | Yes |
| 1 x RP-SMA-K for | mm | ||||
| Wi-Fi | |||||
| 1 x SMA-K for GPS | |||||
| R3000 Lite | 2 x SMA-K for LTE | 105 x 98 x 29.5 mm | Yes | Yes | Yes |
| R3 010 | 2 x SMA-K for LTE | 134 x 98 x 32 mm | Yes | Yes | Yes |
| R3000LG-OG | 2 x SMA-K for LTE 1 x SMA-K for LoRa | 310 x 245 x 93.4 mm | No | No | No |
| R3000 LG | 2 x SMA-K for LTE 1 x SMA-K for LoRa 1 x SMA-K for GPS | 125 x 104 x 43.5 mm | Yes | Yes | Yes |
| M1200 | 1 x SMA-K for LTE | 85 x 75 x 28.5 mm | Yes | Yes | Yes |
| M1000 MP | 1 x SMA-K for LTE | 85 x 75 x 28.5 mm | Yes | Yes | Yes |
| R1511P | 2 x SMA-K for LTE 1 x RP-SMA-K for Wi-Fi | 94.6 x 84.5 mm | Yes | Yes | Yes |
| Sierra Wireless Router Model
Airlink XR90 | Router Configuration 4 x FAKRA for Cellular 8 x FAKRA for Wi-Fi 1 x FAKRA for GPS 1 x FAKRA for Bluetooth 1 x FAKRA for LPWA | Router Dimensions (L x W x H)
220 x 170 x 53 mm | EPNT-1
No | EPNT-2
No | EPNT-4
No | EPNT Type
| Maximum Router Dimensions
185 mm x 145 mm x 45 mm | Configuration
4 x LTE Ports 2 x Wi-Fi Ports |
| Airlink XR80 | 4 x FAKRA for Cellular 5 x FAKRA for Wi-Fi 1 x FAKRA for GPS 1 x FAKRA for LPWA | 220 x 170 x 53 mm | No | No | No | EPNT-2 | 185 mm x 145 mm x 45 mm | 4 x LTE Ports 2 x Wi-Fi Ports |
| Airlink RX55 | 2 x SMA for LTE 2 x RP-SMA for Wi-Fi 1 x SMA for GP | 119 x 102 x 33 mm | Yes | Yes | Yes | EPNT-4 | 140 mm x 120 mm x 50 mm | EPNT-4/15: 2 x LTE Ports 2 x Wi-Fi Ports 1 x GPS
EPNT-4/17: 4 x LTE Ports 2 x Wi-Fi Ports 1 x GPS |
| Airlink RV55 | 2 x SMA for LTE 2 x RP-SMA for Wi-Fi 1 x SMA for GPS | 119 x 102 x 33 mm | Yes | Yes | Yes | |||
| Airlink RV50X | 2 x SMA for LTE 1 x SMA for GPS | 119 x 94 x 34 mm | Yes | Yes | Yes | |||
|
Airlink MG90 | 4 x SMA for LTE 6 x RP-SMA for Wi-Fi 1 x SMA for GPS 1 x RP-SMA for Bluetooth |
272 x 220 x 60 mm |
No |
No |
No | |||
| Airlink MP70 | 2 x SMA for LTE 3 x RP-SMA for Wi-Fi (Optional) 1 x SMA for GPS | 190 x 45 x 112 mm | No | No | No | |||
| Airlink LX40 | 2 x SMA for LTE 1 x RP-SMA for Wi-Fi | 111 x 79 x 25 mm | Yes | Yes | Yes | |||
| Airlink LX60 | 2 x SMA for LTE 1 x RP-SMA for Wi-Fi 1 x SMA for GPS | 146 x 106 x 42 mm | Yes | Yes | No | |||
| Teltonika Router Model | Router Configuration | Router Dimensions (L x W x H) | EPNT-1 | EPNT-2 | EPNT-4 | EPNT Type | Maximum Router Dimensions | Configuration |
| RUT200 | 2 x SMA for LTE 1 x RP-SMA for Wi-Fi | 83 x 25 x 74 mm | Yes | Yes | Yes | EPNT-1 | 185 mm x 145 mm x 45 mm | 4 x LTE Ports 2 x Wi-Fi Ports |
| RUT240 | 2 x SMA for LTE 1 x RP-SMA for Wi-Fi | 83 x 25 x 74 mm | Yes | Yes | Yes | EPNT-2 | 185 mm x 145 mm x 45 mm | 4 x LTE Ports 2 x Wi-Fi Ports |
| RUT241 | 2 x SMA for LTE 1 x RP-SMA for Wi-Fi | 83 x 25 x 74 mm | Yes | Yes | Yes | EPNT-4 | 140 mm x 120 mm x 50 mm | EPNT-4/15: 2 x LTE Ports 2 x Wi-Fi Ports 1 x GPS
EPNT-4/17: 4 x LTE Ports 2 x Wi-Fi Ports 1 x GPS |
| RUT360 | 2 x SMA for LTE 2 x RP-SMA for Wi-Fi | 100 x 30 x 85 mm | Yes | Yes | Yes | |||
| RUT950 | 2 x SMA for LTE 2 x RP-SMA for Wi-Fi | 110 x 50 x 100 mm | Yes | Yes | Yes | |||
| RUT951 | 2 x SMA for LTE 2 x RP-SMA for Wi-Fi | 110 x 50 x 100 mm | Yes | Yes | Yes | |||
| RUT955 | 2 x SMA for LTE 2 x RP-SMA for Wi-Fi 1 x SMA for GPS | 110 x 50 x 100 mm | Yes | Yes | Yes | |||
| RUT956 | 2 x SMA for LTE 2 x RP-SMA for Wi-Fi 1 x SMA for GPS | 110 x 50 x 100 mm | Yes | Yes | Yes | |||
| RUTX09 | 2 x SMA for LTE 1 x SMA for GPS | 115 x 44.2 x 95.1 mm | Yes | Yes | Yes | |||
| RUTX11 | 2 x SMA for LTE 2 x RP-SMA for Wi-Fi 1 x SMA for GPS 1 x RP-SMA for | 115 x 44.2 x 95.1 mm | Yes | Yes | Yes | |||
| RUTX12 | 4 x SMA for LTE 2 x RP-SMA for Wi-Fi 1 x SMA for GPS 1 x RP-SMA for | 132 x 44.2 x 95.1 mm | Yes | Yes | Yes | |||
| RUTX14 | 4 x SMA for LTE 2 x RP-SMA for Wi-Fi 1 x SMA for GPS 1 x RP-SMA for | 132 x 44 x 95 mm | Yes | Yes | Yes | |||
| RUTX50 | 4 x SMA for LTE 2 x RP-SMA for Wi-Fi 1 x SMA for GPS | 132 x 44.2 x 95.1 mm | Yes | Yes | Yes | |||
| RUTXR1 | 2 x SMA for LTE 2 x RP-SMA for Wi-Fi | 272 x 42.6 x 122.6 mm | No | No | No | |||
| TCR100 | 2 x SMA for LTE | 150 x 37 x 105 mm | Yes | Yes | No | |||
| RUTX10 | 2 x RP-SMA for Wi-Fi 1 x RP-SMA for | 115 x 32.2 x 95.2 mm | Yes | Yes | Yes | |||
| TRB140 | 1 x SMA for LTE | 74.5 x 25 x 64.4 mm | Yes | Yes | Yes | |||
| TRB141 | 1 x SMA for LTE | 74.5 x 25 x 64.4 mm | Yes | Yes | Yes | |||
| TRB142 | 1 x SMA for LTE | 74.5 x 25 x 64.4 mm | Yes | Yes | Yes | |||
| TRB145 | 1 x SMA for LTE | 74.5 x 25 x 64.4 mm | Yes | Yes | Yes | |||
| TRB245 | 1 x SMA for LTE 1 x SMA for GPS | 83 x 25 x 74.2 mm | Yes | Yes | Yes | |||
| TRB255 | 1 x SMA for LTE 1 x SMA for GPS | 83 x 25 x 74.2 mm | Yes | Yes | Yes | |||
| TRB500 | 4 x SMA for LTE | 100 x 30 x 93.4 mm | Yes | Yes | Yes | |||
| TP-Link Router Model | Router Configuration | Router Dimensions (L x W x H) | EPNT-1 | EPNT-2 | EPNT-4 | EPNT Type | Maximum Router Dimensions | Configuration |
| Antenna | ||||||||
| Archer AX11000 (Wi-Fi 6) | 8 x Wi-Fi connectors | 288 × 288 × 184 mm | No | No | No | EPNT-1 | 185 mm x 145 mm x 45 mm | 4 x LTE Ports 2 x Wi-Fi Ports |
| Archer GX90 (Wi-Fi 6) | 8 x Wi-Fi connectors | 212 × 212 × 51.8 mm | No | No | No | EPNT-2 | 185 mm x 145 mm x 45 mm | 4 x LTE Ports 2 x Wi-Fi Ports |
| Archer AX90 (Wi-Fi 6) | 8× Fixed Wi-Fi Antennas | 311 × 207 × 174 mm | No | No | No | EPNT-4 | 140 mm x 120 mm x 50 mm | EPNT-4/15: 2 x LTE Ports 2 x Wi-Fi Ports 1 x GPS
EPNT-4/17: 4 x LTE Ports 2 x Wi-Fi Ports 1 x GPS |
| Archer AX6000 (Wi-Fi 6) | 8× Fixed Wi-Fi Antennas | 261.2 × 261.2 × 60.2 mm | No | No | No | |||
| Archer AX50 (Wi-Fi 6) | 4× Fixed Wi-Fi Antennas | 260.2 x 135.0 x 38.6 mm | No | No | No | |||
| Archer AX20 (Wi-Fi 6) | 4× Fixed Wi-Fi Antennas | 260.2 × 135.0 × 38.6 mm | No | No | No | |||
| Archer AX10 (Wi-Fi 6) | 4× Fixed Wi-Fi Antennas | 260.2 × 135.0 × 38.6 mm | No | No | No | |||
| Archer AX1500 (Wi-Fi 6) | 4× Fixed Wi-Fi Antennas | 260.2 × 135.0 × 38.6 mm | No | No | No | |||
| Archer AX73 (Wi-Fi 6) | 6× Fixed Wi-Fi Antennas | 272.5 × 147.2 × 49.2 mm | No | No | No | |||
| Archer AX72 (Wi-Fi 6) | 6× Fixed Wi-Fi Antennas | 272.5 × 147.2 × 49.2 mm | No | No | No | |||
| Archer C5400X (Wi-Fi 5) | 8 x Wi-Fi connectors | 288 × 288 × 184 mm | No | No | No | |||
| Archer C4000 (Wi-Fi 5) | 6× Fixed Wi-Fi Antennas | 200.7 × 200.7 × 38.1 mm | No | No | No | |||
| Archer C2300 (Wi-Fi 5) | 3 x Wi-Fi connectors | 216 × 164 × 36.8 mm | No | No | No | |||
| Archer A10 (Wi-Fi 5) | 4× Fixed Wi-Fi Antennas | 216 × 164 × 36.8 mm | No | No | No | |||
| Archer A9 (Wi-Fi 5) | 4× Fixed Wi-Fi Antennas | 243.5 × 186.5 × 32.7 mm | No | No | No | |||
| Archer A8 (Wi-Fi 5) | 3× Fixed Wi-Fi Antennas | 243 × 160.6 × 32.5 mm | No | No | No | |||
| Archer C80 (Wi-Fi 5) | 4× Fixed Wi-Fi Antennas | 215 × 117 × 32 mm | No | No | No | |||
| Archer C8 (Wi-Fi 5) | 3 x Wi-Fi connectors | 221 × 86 × 168.5 mm | No | No | No | |||
| Archer C7 (Wi-Fi 5) | 3× Fixed Wi-Fi Antennas | 243 × 160.6 × 32.5 mm | No | No | No | |||
| Archer C6U (Wi-Fi 5) | 4× Fixed Wi-Fi Antennas | 215 × 117 × 32 mm | No | No | No | |||
| Archer A6 (Wi-Fi 5) | 4× Fixed Wi-Fi Antennas | 230 × 144 × 35 mm | No | No | No | |||
| Archer C6 (Wi-Fi 5) | 4× Fixed Wi-Fi Antennas | 230 × 144 × 35 mm | No | No | No | |||
| Archer C60 (Wi-Fi 5) | 5× Fixed Wi-Fi Antennas | 230 × 144 × 37 mm | No | No | No | |||
| Archer C1200 (Wi-Fi 5) | 3× Fixed Wi-Fi Antennas | 243 × 160.6 × 32.5mm | No | No | No | |||
| Archer C55 (Wi-Fi 5) | 3× Fixed Wi-Fi Antennas | 225 × 148 × 33 mm | No | No | No | |||
| Archer A5 (Wi-Fi 5) | 4× Fixed Wi-Fi Antennas | 229.9 × 144.2 × 36.9 mm | No | No | No | |||
| TP-Link Router Model Archer C50 (Wi-Fi 5) | Router Configuration 4× Fixed Wi-Fi Antennas | Router Dimensions (L x W x H) 229.9 × 144.2 × 36.9 mm | EPNT-1 No | EPNT-2 No | EPNT-4 |
| Antenna No | |||||
| Archer A2 (Wi-Fi 5) | 3× Fixed Wi-Fi Antennas | 230 × 144 × 35 mm | No | No | No |
| Archer C20 (Wi-Fi 5) | 3× Fixed Wi-Fi Antennas | 230 × 144 × 35 mm | No | No | No |
| Archer AX53 (Wi-Fi 6) | 4× Fixed Wi-Fi Antennas | 260.2 × 135 × 41.6 mm | No | No | No |
| Archer C59 (Wi-Fi 5) | 3× Fixed Wi-Fi Antennas | 225 × 148 × 33 mm | No | No | No |
| Archer AX23 (Wi-Fi 6) | 4× Fixed Wi-Fi Antennas | 260.2 × 135.0 × 38.6 mm | No | No | No |
| Archer C58HP (Wi-Fi 5) | 3 x Wi-Fi connectors | 249 × 217 × 54 mm | No | No | No |
| TL-WR941HP (Wi-Fi 4) | 3 x Wi-Fi connectors | 227.5 × 190 × 48.3 mm | No | No | No |
| TL-WR841HP (Wi-Fi 4) | 2 x Wi-Fi connectors | 227.5 × 190 × 48.3 mm | No | No | No |
| TL-WR940N (Wi-Fi 4) | 3× Fixed Wi-Fi Antennas | 230 × 144 × 35 mm | No | No | No |
| TL-WR845N (Wi-Fi 4) | 3× Fixed Wi-Fi Antennas | 230 × 144 × 35 mm | No | No | No |
| TL-WR841N (Wi-Fi 4) | 2× Fixed Wi-Fi Antennas | 173 × 118 × 33 mm | Yes- but the router has a fixed antenna s | Yes- but the router has fixed antennas | No |
| TL-WR840N (Wi-Fi 4) | 2× Fixed Wi-Fi Antennas | 182 × 128 × 35 mm | Yes- but the router has a fixed antenna s | Yes- but the router has fixed antennas | No |
| TL-WR844N (Wi-Fi 4) | 2× Fixed Wi-Fi Antennas | 115 × 106.7 × 24.3 mm | Yes- but the router has a fixed antenna s | Yes- but the router has fixed antennas | Yes- but the router has a fixed antenna s |
| TL-WR820N (Wi-Fi 4) | 2× Fixed Wi-Fi Antennas | 288 × 288 × 184 mm | No | No | No |
| Archer MR600 V2 | 2 x SMA for LTE | 202 × 141 × 33.6 mm | No | No | No |
| Archer MR400 | 2 x SMA for LTE (V3/V1) | 202 x 141 x 33.6 mm | No | No | No |
| Archer MR200 | 2 x SMA for LTE (V4/V2/V1) | 202 x 141 x 33.6 mm | No | No | No |
| TL-MR6400 | 2 x SMA for LTE (V4/V2/V1) | 202 x 141 x 33.6 mm | No | No | No |
| TL-MR150 | 2 x SMA for LTE | 202 × 141 × 33.6 mm | No | No | No |
| TL-MR100 | 2 x SMA for LTE | 154 × 114 × 36 mm | Yes | Yes | No |
| TL-MR3420 | 2 x RP-SMA for Wi-Fi (V1&V2) | 204 x 138 x 44 mm | No | No | No |
| Westermo Router Model | Router Configuration | Router Dimensions (W x H x D) | EPNT-1 | EPNT-2 | EPNT-4 | EPNT Type | Maximum Router Dimensions | Configuration |
| Antenna | ||||||||
| CyBox GW-P | up to 17 QLS antenna connectors | 251 (284) x 76 x 246 mm (incl. mounting points) | No | No | No | 185 mm x 145 mm x 45 mm | 4 x LTE Ports 2 x Wi-Fi Ports | |
| CYBOX LTE 2- W | 6 x QLS antenna connectors | 105 (130) x 55 x 206 mm (incl. mounting | No | No | No | 185 mm x 145 mm x 45 mm | 4 x LTE Ports 2 x Wi-Fi Ports | |
| CyBox RT 2-A | 10 x QLS antenna connectors | 251 (284) x 70 x 170 mm (incl. mounting points) | No | No | No |
|
140 mm x 120 mm x 50 mm | EPNT-4/15: 2 x LTE Ports 2 x Wi-Fi Ports 1 x GPS
EPNT-4/17: 4 x LTE Ports 2 x Wi-Fi Ports 1 x GPS |
| CyBox RT 3-W | 9 x QLS antenna connectors | 105 (130) x 70 x 204 mm (incl. mounting points) | No | No | No | |||
| GW1042W-X- QFR | 2 x SMA female WiFi antenna connector (optional) | 115W x 111D x 38H mm | Yes | Yes | Yes | |||
| GW2028W-QFR- DCi1860 | 2 x SMA for LTE | 40(W) x 115(D) x 160(H) mm | Yes | Yes | No | |||
| GW2304W-PE4- 2S-2DI2O-QFR | 2 x SMA for LTE 1 x SMA for GPS | 170W x 50H x 125D mm | No | No | No | |||
| Ibex-RT-330 | 2 x QMA connectors for LTE 1 x QMA connector for GNSS | 195.4 x 83 x 111.4 mm | No | No | No | |||
| Ibex-RT-630 | 3 x QMA connectors for Wi-Fi 2 x QMA connectors for LTE 1 x QMA connector for GNSS | 195.4 x 93 x 111.4 mm | No | No | No | |||
| Merlin-4605-T4- DI6-DO2-LV | 2 x SMA for LTE 1 x SMA for GPS | 50 x 170 x 100 mm | No | No | No | |||
| Merlin-4607-T4- S2-LV | 2 x SMA for LTE 1 x SMA for GPS | 50 x 170 x 100 mm | No | No | No | |||
| Merlin-4609- F2G-T4-S2-DI6- DO2-LV | 2 x SMA for LTE 1 x SMA for GPS | 50 x 170 x 100 mm | No | No | No | |||
| MRD-405 | 1 x SMA for LTE | 30.5 x 103 x 103 mm | Yes | Yes | Yes | |||
| MRD-415 | 2 x SMA for LTE 1 x SMA for GPS | 103 x 32 x 156 mm | Yes | Yes | No | |||
| MRD-455 | 2 x SMA for LTE 1 x SMA for GPS | 53 x 103 x 103 mm | No | No | No | |||
| MRD-455-NA | North American version | 2 x SMA for LTE 1 x SMA for GPS | 53 x 103 x 103 mm | No | No | No | |||
