Kimba
Frame and Seat
Article number: 470G71=5_AA04_C
Figure includes accessories

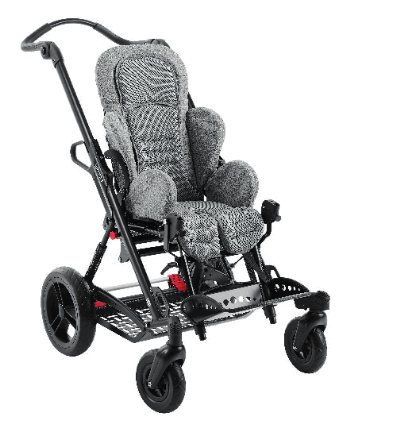

Kimba Frame and Seat
Standard equipment
- Seat and back support
- Seat width, seat depth, back support height and lower leg length are continuously adjustable
- Seat inclination and knee angle continuously adjustable
- Back support angle adjustable
- Optimized quick-release mechanism to remove the seat
- Position the seat in/against the direction of travel
- Leg support assembly with fl ip-up foot plate
- Lateral side supports
- Adjustable pelvic laterals
- Frame colour: black
- Padding colour grey
- Folding outdoor mobility base made of highgrade aluminium
- Optimized rear axle suspension
- Push bar with ratchet joint, height-adjustable
- Seat tilt with tilt activation at the frame incl. locking pin
- Integrated storage space (also usable as a platform for respirators)
- Automatic folding lock
- Optimized seat adapter with automatic tilt limitation
- EVA tyres with frictionbrake
- Front wheels 7“, swivelling with integrated swivel lock
- Integrated anchor points for mounting to wheelchair accessible vehicle
| Dimensions kid | Dimensions Kimba size 1 | Dimensions Kimba size 2 | |
 |  | ||
| Back length [mm] | 410 – 610 | 560 – 700 | |
| ‚ Seat depth [mm] | 190 – 310 (140 shortened) | 240 – 400 | |
| Seat width [mm] | 200 – 300 | 260 – 350 | |
| ƒ Lower leg length [mm] | 190 – 310 (122 shortened) | 200 – 370 | |
| Load capacity | Seating unit: 40 kg* Outdoor mobility base: 55 kg | ||
| a) User weight | |||
| b) Medical Equipment | |||
| * With option „footrest angle adjustable for short lower leg length“ the maximum load decreases to 35 kg. | |||
| Seating unit | ||
| KC01 |  | Size 1 (from approx. 1 – 6 years) £1040.00 |
| KC02 | | Size 2 (from approx. 4 – 10 years) £1151.00 |
| Head support | |||||
| KD01 | |  | Without head support | Inclusive | |
| KD02 |  | With integrated head support with slight lateral support | £216.00 | ||
| KD03B KD03 |  | Head support (laterally adjustable) B = nclosed | mounted | £172.00 £178.00 | |
| KL01B | |  | Head support concave, S, enclosed (incl. holder; is delivered in combination with a short back) | £257.00 | |
| KL05B |  | Head support holder, enclosed (is delivered in combination with a short back) | £158.00 | ||
| Padding | |||
| KD41B |
| Padding, Inclusive enclosed | |
| KD41 | Padding, £15.00 mounted | ||
| Inlays | ||||
| KD33B |
|  | Inlay grey, enclosed | £65.00 |
| KD34B | Inlay turquoise, enclosed | £65.00 | ||
| KD35B | Inlay pink, enclosed | £65.00 | ||
| KD36B | Inlay green, enclosed | £65.00 | ||
| Pelvic belts | |||||
| KP02B KP02 |  | Lap belt, padded |
|
| £65.00 £75.00 |
| KP18B KP18 |  | 4-Point paediactric lap belt, with plastic buckles (width: 2,5 cm; length: 100 cm) |
|
| £109.00 £120.00 |
| KP06B KP06 |  | Groin strap |
|
| £68.00 £79.00 |
| KP15B |  | Pediatric lap belt, with buckles | £104.00 | ||
| KP15 | (width: 2,5 cm; length: 100 cm) |
|
| £109.00 | |
| Chest and shoulder supports | |||||
| KP16B KP16 |  | Shoulder harness Size S |
|
| £174.00 £180.00 |
| KP17B KP17 | Shoulder harness Size M |
|
| £174.00 £180.00 | |
| KP19B KP19 |  | Chest and shoulder pad Size S |
|
| £160.00 £167.00 |
| KP20B KP20 | Chest and shoulder pad Size M |
|
| £160.00 £167.00 | |
| KP21B KP21 |  | Slimline sternum harness |
|
| £146.00 £152.00 |
| KP22B KP22 |  | Dynamic harness Size XS |
|
| £151.00 £156.00 |
| KP23B KP23 | Dynamic harness Size S |
|
| £157.00 £162.00 | |
| KP24B KP24 | Dynamic harness Size M |
|
| £157.00 £162.00 | |
| KP03B KP03 |  | 4-point belt, padded |
|
| £112.00 £117.00 |
| KP05B KP05 |  | 5-Point belt, small buckle (recommended for seating unit size 1) |
|
| £112.00 £124.00 |
| KP04B KP04 | 5-Point belt, large buckle |
|
| £112.00 £124.00 | |
| KP10B KP10 |  | Positioning vest |
|
| £90.00 £101.00 |
| Preassembly | |||
| KP14 | | Mounting kit strap/vest, £30.00 mounted | |
| Trunk support | ||||||
| KD04B KD04 |  | Thoracic support |
|
| £90.00 £101.00 | |
| KD31B |
|  | Swing away thoracic supports (laterals),enclosed £388.00 | |||
| KD10B |  | Lumbar support padding, enclosed | £54.00 | |||
| KD11B |  | Neck support enclosed | £64.00 | |||
| KC10 |  | Seat depth reducer (seat depth possible up to 14 cm) | £112.00 | |||
| KC13B |  | Inlay small, enclosed £112.00 (spacer fabric grey, only for size 1) | ||||
| Arm supports | |||
| KE01 |
|  | Arm support, Standard, £106.00 mounted |
| KE02 |  | Arm support hight/low, adjustable, mounted £149.00 | |
| Tray | |||
| KS01B |
|  | Tray, grey, enclosed (only possible in direction of travel and in combination with KE 02 „arm support high/ low“ in lowest setting only) £214.00 |
| KS02B |  | Tray, transparent, enclosed (only possible in direction of travel and in combination with KE 02 „arm support high/ low“ in lowest setting only)) £346.00 | |
| Leg and foot support | |||
| KB03 |
|  | Leg support, Standard, mounted Inclusive (from LLL 19 cm) |
| KB05 |  | Leg support, angle-adjustable, mounted £68.00 (from LLL 19 cm) | |
| KB10 |  | Leg support, angle-adjustable for short lower leg length, mounted (only for size 1, from LLL 14 cm)£88.00 | |
| Accessories leg and foot support | ||||||
| KB08B KB08 |  | Slip resistant footrest cover (not mounted in combination with KB10) | B = enclosed | mounted | £24.00 £28.00 | |
| KB09B |
|  | Padding, enclosed | £64.00 | ||
| KB12B |  | Foot support – sandals, enclosed | £101.00 | |||
| KB07B |  | Velcro footstraps, instep padded | £28.00 | |||
| KC06B KC06 |  | Abductor size 1, only for seat size 1, (L 9 cm × W 6 cm × H 9 cm) | B = enclosed | mounted | £101.00 £107.00 | |
| KC07B KC07 | Abductor size 2 (L 10 cm × W 7,5 cm × H 10 cm) | B = enclosed | mounted | £106.00 £110.00 | ||
| KC08B KC08 | Abductor size 3, only for seat size 2 (L 12 cm × W 9 cm × H 10 cm) | B = enclosed | mounted | £109.00 £115.00 | ||
| Canopy | |||
| KW13 | |  | Canopy in grey-melange, inside grey, incl. rain cover and mounted adapter £268.00 |
| Slip sack | ||||
| KW01B |
|
| Summer/winter slipsack Size S, enclosed | £272.00 |
| KW02B | Summer/winter slipsack Size M, enclosed | £272.00 | ||
| KW03B | Summer/winter slipsack Size L, enclosed | £272.00 | ||
| Accessories seat | |||
| KQ04B |
|  | Grip bar with padding, enclosed £57.00 |
| KD20 |  | Back angle limitation, mounted £24.00 | |
| KW04B |  | Rain cape, grey, enclosed £50.00 | |
| KD12B |  | Incontinence cover, enclosed £134.00 | |
| Outdoor mobility base size | ||
| KA01 |
| Size 1 (from approx. 1 to 6 years) £1459.00 |
| KA05 | Size 2 (from approx. 4 to 10 years) £1570.00 | |
| Frame colour | ||
| 013 |
| Jet black RAL 9005 matte |
| 023 | White RAL 9016 | |
| Reflector sticker | |||
| KA13 |

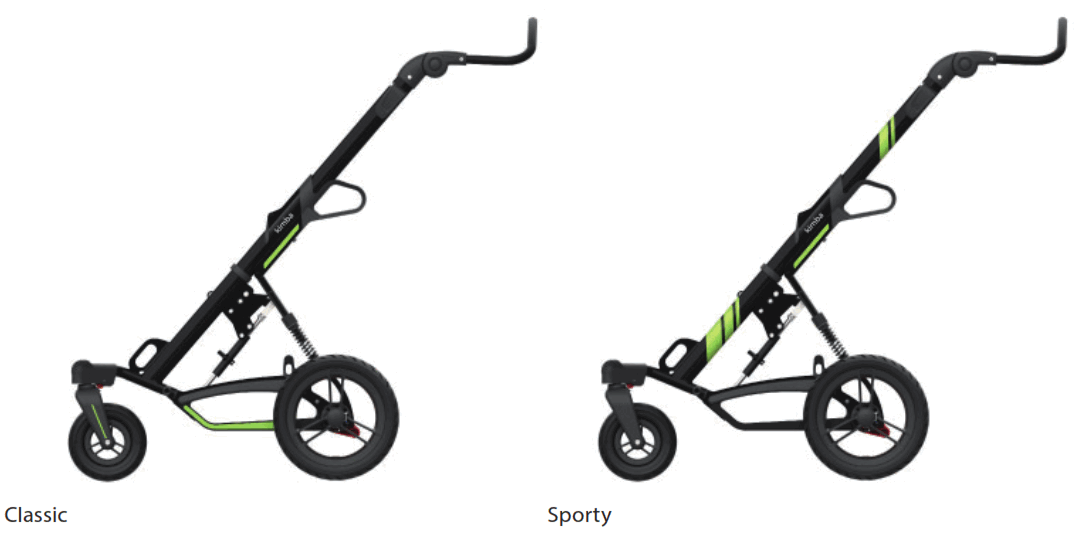

| Classic £28.00 | |
| KA14 | Sporty £47.00 | ||
| Colour reflector sticker | |||
|  | Gey | |
 | Green | ||
 | Turquoise | ||
| Tyres | |||
| KF03 |
|  | EVA Inclusive |
| KF04 |  | Pneumatic £50.00 | |
| Rear wheel type | ||
| KG01 |
| Wheel lock (actuated by the foot via wheel lock bar) Inclusive |
| KG02 | With frictionbrake (manually actuated via brake levers at the push bar) £293.00 | |
| Accessories | ||||
| KA07B |
|  | Frame padding, pair, enclosed | £33.00 |
| KS03B |  | Buggy board, enclosed | £130.00 | |
| KA08 |  | Tip-assist, left | £30.00 | |
| KA12 | Tip-assist, right | £30.00 | ||
| KS14B |  | Tether band, enclosed | £19.00 | |
| Accessories general | ||||
| KS07B |  | Cupholder, enclosed | £24.00 | |
| KS13B |  | Diaper bag, grey-melange, enclosed (Contains extensive accessories such as: changing mat, dummy bag, isolation pocket for bottles and a plastic uten- sil bag, as well as numerous compartments and zipped pockets) £134.00 | ||
