ANBAUANLEITUNG
mounting instructions

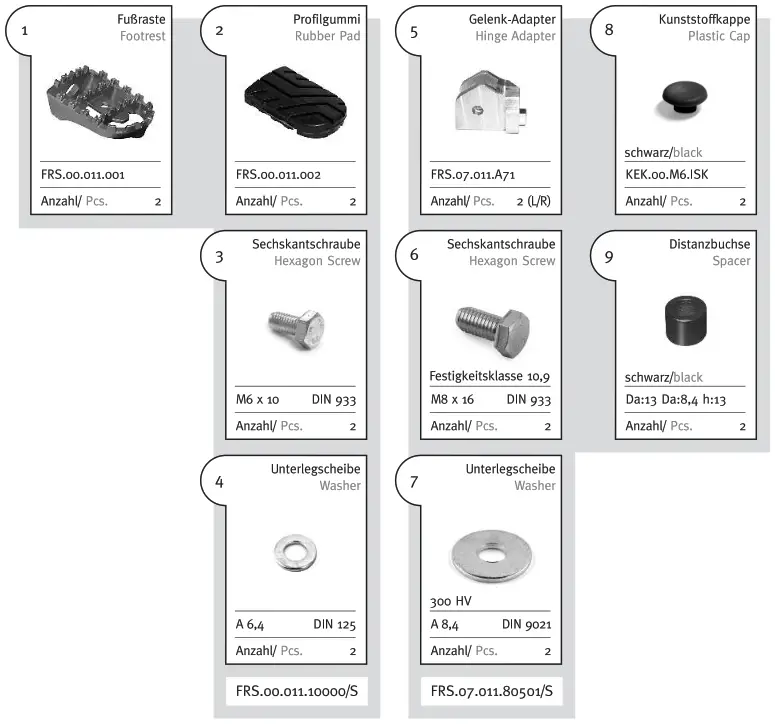

FRS.07.011.10501/S
contiene
FRS.07.011.80501/S

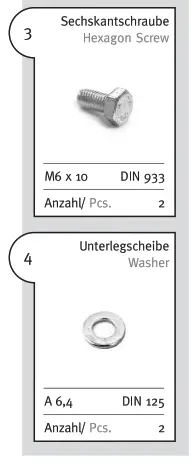

FRS.00.011.10000/S

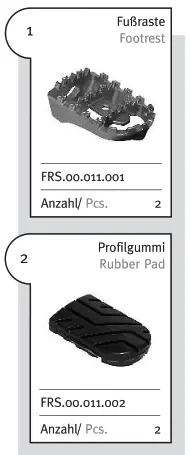

Footrest Kit
BMW R 1200 GS, R 1150 GS, R noo GS
Mounting Instructions
All screws, bolts, and nuts, including all replacement hardware provided by SW-MOTECH, should be tightened to the torque specified in the OEM maintenance manual for your motorcycle. If no torque specifications are provided in the OEM maintenance manual, the following torques may be used:
| M6 | 9,6 Nm |
| M8 | 23 Nm |
All screws, bolts, and nuts should be checked after driving the first 5o km to ensure that all are tightened to the proper torque.
Attention: Cornering and ground clearance can be reduced by using this accessory.
INFORMATION
Before removing the original footrests Please make sure to note the order and direction of the original fixing parts. These parts will be needed for mounting the SW-MOTECH footrests in the same order and direction.
WARNUNG ATTENTION
Use medium strength thread locker (Loctite) to secure ALL screws.
INFORMATION

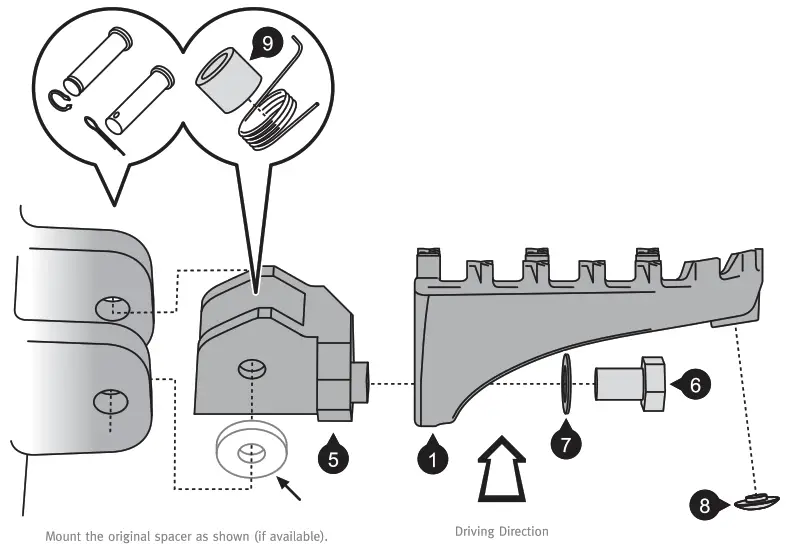

Use the original fixing parts (springs, pins, etc.) for mounting the SW-MOTECH footrests at the shown positions on both sides of the motorcycle. Make sure to mount the parts the same way as with the original footrests. Insert spacers (9) into the original springs, as shown in the drawing.

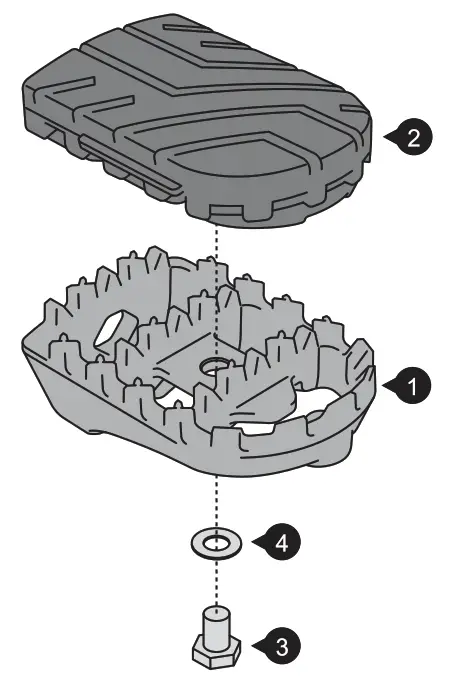

EXAMPLE FOOTREST MOUNT SHOWN
SW-MOTECH GmbH & Co. KG Ernteweg 8/10 35282 Rauschenberg Germany
Tel. +49 (0) 64 25/8 i6 8-00 Fax +49 (0) 64 25/8 16 8-10
[email protected] www.sw-motech.com
Mounting Instructions
All screws, bolts, and nuts, including all replacement hardware provided by SW-MOTECH, should be tightened to the torque specified in the OEM maintenance manual for your motorcycle. If no torque specifications are provided in the OEM maintenance manual, the following torques may be used:
| M6 | 9,6 Nm |
All screws, bolts, and nuts should be checked after driving the first 5o km to ensure that all are tightened to the proper torque.
Medium strength liquid thread-locker (i.e., ‘Locktitel should be used to secure all screws, bolts, and nuts.
Attention: Cornering and ground clearance can be reduced by using this accessory.
 |  |
