HORIZON BLADE AR6250MHX 150 S Smart BNF Basic with AS3X and Safe
This receiver wiring diagram and instructions apply only to the Blade® 230 S Smart with Spektrum® AR6250MHX Helicopter Flight Control and Receiver.
Using the Swashplate for reference. Follow the diagram here to trace the control linkage from the corresponding Swashplate arm down to the servo. A helpful tip, if you are having trouble, is to plug in a single servo into any of the 3 Servo Ports, power on the model, and see which one centers and moves. Using this procedure will help determine where each servo is located in reference to the swashplate diagram.

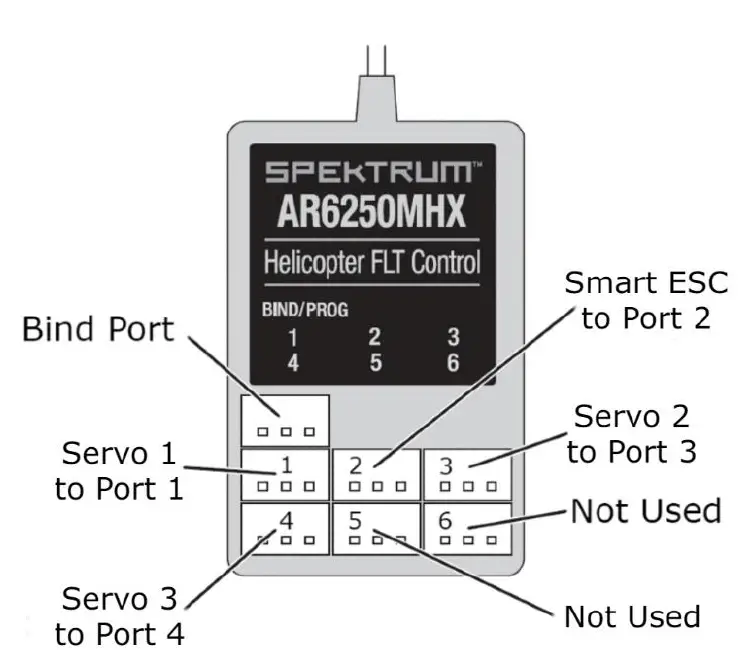

Once the servo location has been determined, use the receiver port assignment diagram to plug in the servos and Smart ESC.
PLEASE NOTE – The Smart ESC included with the Blade 230 S Smart does have a single yellow wire that is not connected to any port on the receiver. This wire is not used and should remain disconnected in this application.
