SAFETY AND WARNINGS

Thank you for buying this Kogan product. Please read all safety instructions before using your TV.

WARNING

Never place a television set in an unstable location. A television set may fall, causing serious personal injury or death. Many injuries, particularly to children, can be avoided by taking simple precautions such as:

• Using cabinets or stands recommended by the manufacturer of the television set.
• Only using furniture that can safely support the television set.
• Ensuring the television set is not overhanging the edge of the supporting furniture.
• Not placing the television set on tall furniture (for example, cupboards or bookcases) without anchoring both the furniture and the television set to a suitable support.
• Not placing the television set on cloth or other materials that may be located between the television set and supporting furniture.
• Educating children about the dangers of climbing on furniture to reach the television set or its controls

If your existing television set is being retained and relocated, the same considerations as above should be applied.

• To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.
• The apparatus shall not be exposed to dripping or splashing, and no objects filled with liquids, (for example, vases), shall be placed on the apparatus.
• When discarding used batteries, always be mindful of the environment. Ensure you follow any guidelines for recycling and safe disposal of batteries that apply in your local area. Don’t throw used batteries in rubbish bin.
• When installing your TV, maintain a distance of at least 10 cm between the TV and other objects (walls, cabinet sides, etc.) to ensure proper ventilation. Failing to maintain proper ventilation may result in a fire or a problem with the product caused by an increase in its internal temperature.
• The openings/slots on the back of the apparatus have been provided for necessary ventilation. Ventilation should not be impeded by blocking these openings in any way (for example, newspapers, table-cloths, curtains, etc.)
• No naked flame sources, such as lit candles, should be placed on the apparatus. To prevent the spread of fire, keep candles or other open flames away from this product at all times.
• The device may malfunction when under electrostatic discharge. It can be manually resumed by switching power off completely (at wall outlet), then switching power on again.
• To avoid any injury caused by overturn of the product when installed with base stands, please always ensure the whole product is placed horizontally within the supporting surface and that the television is not overhanging the edge of the supporting furniture.
• If not using with base stands, use only a wall or ceiling mount which has been recommended by the manufacturer of the television
• Keep small accessories out of reach of children so they are not mistakenly swallowed.

CAUTION: Connecting the power cord

Most appliances recommend they be placed upon a dedicated circuit; that is, a single outlet circuit which powers only that appliance and has no additional outlets or branch circuits.

Do not overload wall outlets. Overloaded wall outlets, loose or damaged wall outlets, extension cords, frayed power cords, or damaged or cracked wire insulation are dangerous. Any of these conditions could result in electric shock or fire. Periodically examine the cord of your appliance, and if appearance indicates damage or deterioration, immediately discontinue use of the appliance until the cord is replaced with an exact replacement part by an authorized servicer.
Protect the power cord from physical or mechanical abuse, such as being twisted, kinked, pinched, closed in a door, or walked upon. Pay particular attention to plugs, wall outlets, and the point where the cord exits the appliance.

The MAINS plug is used as the disconnect device, and the disconnect device shall remain readily operable.

CAUTION

Do not attempt to modify this product in any way without written authorization from supplier. Unauthorized modification could void the user’s authority to operate this product.

It is not recommended to keep a certain still image displayed on the screen for a long time as well as displaying extremely bright images on screen.

Figures and illustrations in this User Manual are provided for reference only and may differ from actual product appearance. Product design and specifications may be changed without notice.

Refer to the table below as a guide to the symbols and warnings which may be on your TV.

	CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER TO QUALIFIED SERVICE PERSONNEL.
	The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the products enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons
	The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.
	Class II product: This symbol indicates that a safety connection to electrical earth (ground) is not required. If this symbol is not present on a product with a mains lead, the product MUST have a reliable connection to protective earth (ground).
	AC voltage: Rated voltage marked with this symbol is AC voltage.
	DC voltage: Rated voltage marked with this symbol is DC voltage
	Caution. Consult instructions for use: This symbol instructs the user to consult the user manual for further safety related information.

COMPONENTS

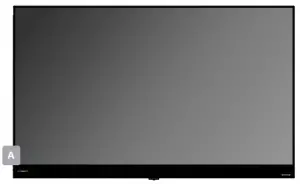

• A Kogan 43” Smart HDR 4K LED TV

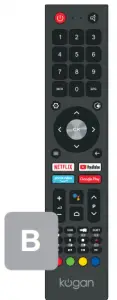

• Remote control

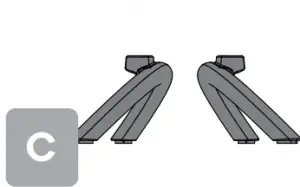

• Stand (x2)

• M4 x 20mm screw (x4)

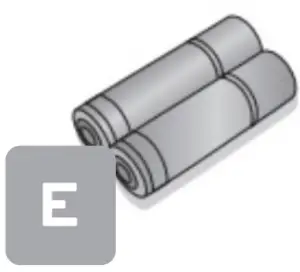

• AAA battery (x2)

• Quick-start guide

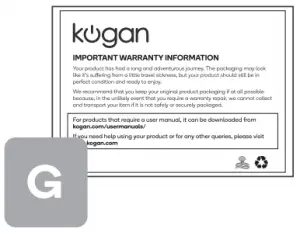

• Warranty card


NOT INCLUDED Phillips head screwdriver, antenna cable, broadband internet connection.

PRODUCT OVERVIEW

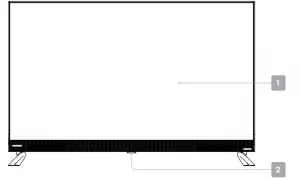

1. HDR 4K LED display screen
   • Remote sensor / Standby light

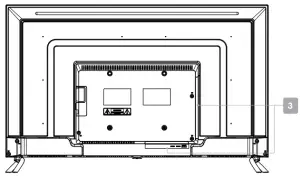

2. Inputs/Ports

3. Power button


Inputs

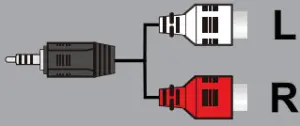

Audio in			Stereo (2.0) audio input.
Composite video in			Usually paired with stereo audio inputs (red and white cables), the single-wire composite cable provides video signal.

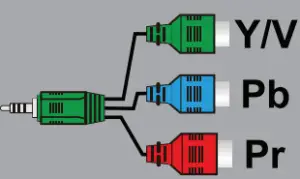

Component video in			Three cables (“Y,” “Pb” and “Pr”) provide a higher quality connection than the single- wire composite cable (“Y”) commonly used to hook up earlier AV equipment.
HDMI			Connect an HDMI cable between the HDMI port on the TV and the HDMI port on the DVD player/Set-Top Box. Ports marked ‘ARC’ also support Audio Return Channel.
USB 2.0			USB storage devices can be inserted to record and pause live TV in PVR mode, or to watch media files stored on device in media mode.
VGA			Connect to a desktop or laptop computer.
ANT			For free-to-air TV, use an antenna cable (not supplied) to connect to a working antenna, either via an antenna wall socket, or directly.
LAN			For a wired internet connection via a broadband modem or router, connect an Ethernet cable to the LAN port.
Digital audio out (optical)			Audio out for digital audio devices. Port and cable may look different depending on an optical or coaxial input. Please use the cable appropriate for your device.
Digital audio out (coaxial)
3.5mm audio out			Line audio out port for use with headphones, amplifier, soundbar or any other audio device via an AUX cable (not supplied).

This is a general guide to inputs and ports, your TV may not feature all of the above.

ASSEMBLY AND INSTALLATION

BEFORE YOU GET STARTED

Spread cushioning flat to lay the TV on. This will help to prevent damage.

Stand assembly

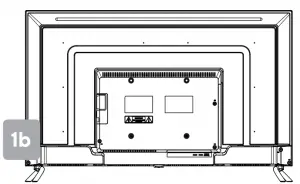

• Attach stands to base of TV, ensuring ‘L’ and ‘R’ markings on the TV and
  stands match.

• Insert two 20mm screw for each stand and use Phillips head screwdriver
  (not supplied) to tighten.


Connect to antenna

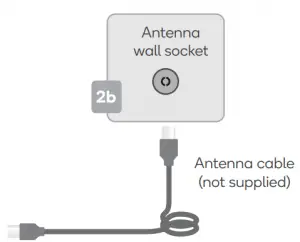

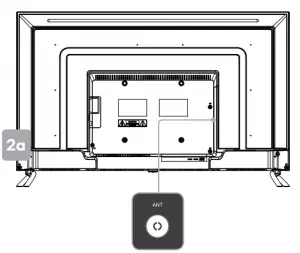

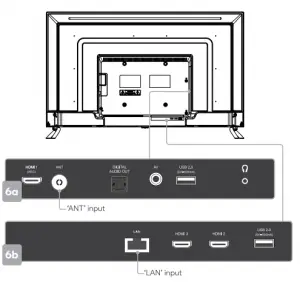

• Connect an antenna cable (not supplied) via the ‘ANT’ input port at the
  back of the TV .

• Ensure the antenna cable is also connected to a working antenna, either via an antenna wall socket in your home, or directly.


USING REMOTE CONTROL / POWER BUTTON

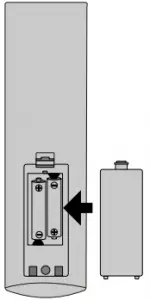

Remote control assembly

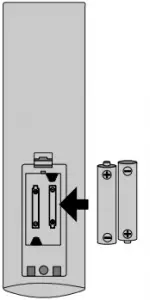

• Open the battery compartment cover on the back side.

• Insert two 1.5V AAA size batteries, making sure to match the polarity
  markings (+ / -) of the batteries with the diagram inside the compartment.

• Replace battery compartment cover.


WARNINGS

• One loading of batteries will last for 1 year under normal use.
• If you do not intend to use the remote controller for a long period of time, remove them to avoid damage due to leakage.
• Do not use old and new batteries together.
• The batteries (battery pack or batteries installed) shall not exposed to excessive heat such as sunshine, fire or the like.

Using remote control without bluetooth

Your Android TV remote control has bluetooth capability, but until this is paired with your TV, you will need to ensure the distance between the remote control and the TV is no greater than 8 metres, at an angle of no more that 30 degrees on either side (4a). Point the remote towards the sensor at the front of the TV (this may differ from the illustration).

TIPS
Do not block the path between the sensor and the remote control.

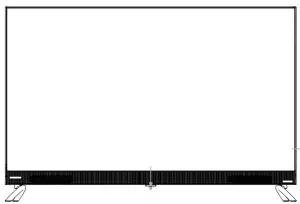

Turning TV on

• Plug the power cord into a suitable power outlet. The standby will display
  a light, showing that the TV is receiving power.

• Press the POWER button(on your remote or at the button of the TV

• The standby light will turn off when the TV is on.

TURNING TV OFF

Press the POWER ( ) button on the remote control to enter standby mode.
To power down the TV completely, unplug the power cord from the power outlet. Do not leave your set in standby mode for long periods of time. If you will not use the TV for a long time, it is recommended to unplug the set from both the power outlet and aerial.

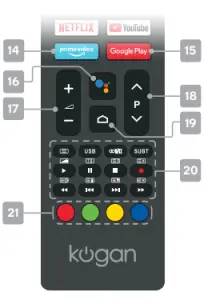

REMOTE CONTROL OVERVIEW

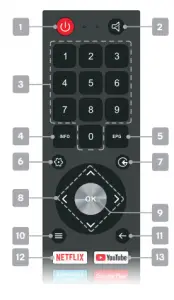

1. Power, press to enter or exit standby mode
2. Mute to toggle sound on/off
3. Number buttons to select channels  or input passwords
4. info displays the current program information
5. epg Electronic Program    Guide in DTV mode
6. Device preferences to display sound and picture options
7. Source displays the list of input  source channels.
8. Direction buttons for navigating menus and settings
9. ok Enter  select the current item or confirm selection, display Channel
   list in DTV mode
10. Quick Menu to display TV options with optional, adjustable settings
11. Back to the previous menu
12.   to open app homepage
13.  to open app homepage
14. to open app homepage
15. Google Play to open app homepage
16. Google Assistant to launch the built-in virtual assistant for voice commands
17. to adjust the volume up or down
18. to scroll channels
19.   to access the home page
20.  to show/hide Teletext (Teletext not available in Australia or New Zealand)

USB Press to switch to the USB source.

Audio to select available languages and audio channels.

SUBT Subtitles to select subtitles

Start playback in media mode;

MIX mode in teletext

 Pause in media/PVR mode;

Time shift function in DTV mode

Stop in media/PVR mode;
Hold teletext page on display press again to release

Record in DTV mode;
Change size of teletext screen

Reverse playback rapidly in media mode; Subtitle mode or  Submenu

Skip to previous in media mode; Index page

Skip to next in media mode;   Reveal hidden information in some teletext pages

Advance playback rapidly in media mode; Cancel teletext but not exit

Colour buttons for navigational use within apps

FIRST TIME SETUP

When turning the TV on for the first time, the Welcome screen will appear. Use the ▲, ▼ and OK buttons to navigate the following options.

Language and Location

Select your menu language, and select your country/region from the

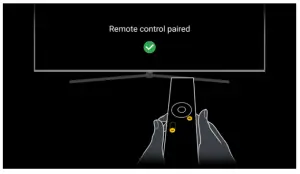

Bluetooth

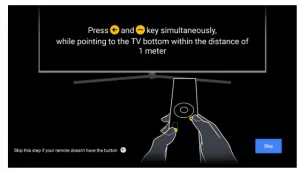

Your Android TV remote control has bluetooth capabilities. Follow the onscreen prompts to pair the remote with the TV, holding the – Volume and Back buttons simultaneously. Your remote’s LED light will flash while pairing, and the TV will display ‘Remote control paired’ when successful. This will allow you to use voice commands with your remote via the Google Assistant button. Pairing your bluetooth remote control with your Android TV will enable your remote’s Google Assistant voice control function.
If the Bluetooth pairing process is skipped, refer to the Remotes &
Accessories section of the Settings menu.

Quickly set up with Android phone: If you have an Android smartphone, you can easily transfer your phone’s Wi-Fi network and Google account to your TV. If not, select ‘Skip’.

Select Wi-Fi network

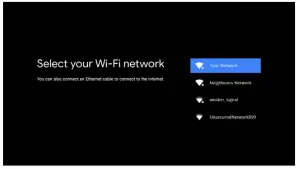

Your Android TV will automatically scan for wireless networks nearby. Ensure the TV is within range of your wireless modem or router, and have your password handy. Follow the prompts to input your password and connect your TV to your selected network

If you’d prefer to connect an Ethernet cable to connect to the internet, simply insert the cable (not supplied) to the ‘LAN’ input port at the back of the TV (6b, next page), and ensure that it is correctly connected to the internet.

Connect to Wi-Fi by selecting your network and entering your password. A broadband internet connection is required for this step.

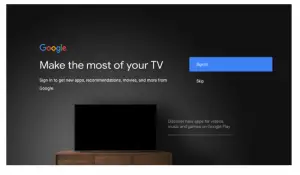

Google Account sign-in

Linking your Google Account to your Android TV will allow you to install new apps from the Play store, as well as receive recommendations from Google.

Sign in to your Google account here. If you use Gmail, you already have a Google account.

Terms of Service

This page will allow you to read each of the Google Terms of Service, Privacy Policy, and Google Play Terms of Service in full, and to accept.

Location permission

Grant permission for your Android TV to detect your location. You can adjust these permissions at any time from Settings.

Help improve Android

Grant permission for your Android TV to detect your location to automatically send diagnostic information to Google.

Choose a name for your TV

Give you TV a name to help identify it when casting or connecting to it from other devices. Select a preset option or enter a custom name.

Select a name for your TV.

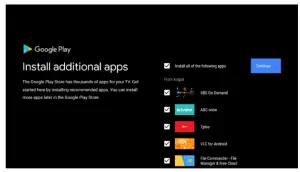

Install additional apps

Get started with some of our handpicked selections from the Play Store.
Following this you will be shown a brief overview of Android TV’s features.

Installing additional apps from the Google Play Store.

Password:  Set a default password.

Select TV mode

The ‘home mode’ is optimized for efficient usage for home use. The ‘retail mode’ is optimized for store Demo with fixed settings

Select ‘home mode’ or ‘retail mode’.

WOL

Select on or off for the Wake On LAN function (if using Ethernet cable).

FIRST TIME SETUP (cont’d)

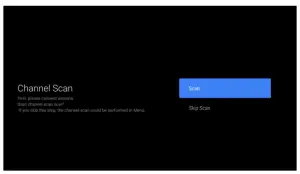

Following these options, the Channel Scan screen will appear. Ensure you have an antenna cable connected to the ‘ANT’ input port at the back of the TV (6a).

The auto tuning function will search for and save all available free-to-air TV channels. After confirming your settings (the default will be set for Australia), the process will automatically begin. The number of searched channels will be displayed on the screen.

When setup is complete, you will be able to access the Home screen.

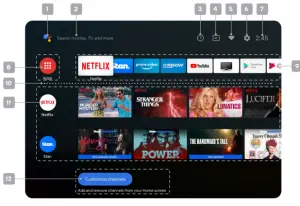

1. Google Assistant  Click to launch the built-in virtual assistant, which will begin listening for voice commands. Give it a try, ask “What’s the weather today?”
2. Text search Enter text manually to search TV apps.
3. System notifications This option will only appear when notifications are present.
4. Source Access free-to-air channels (‘DTV’) or other input source channels.
5. Internet connection This will display as a Wi-Fi or LAN icon, depending on your connection. Select for connectivity options.
6. Settings Access the global settings menu.
7. Clock Time and date settings can be adjusted in the global settings.
8. Apps Access the App Centre to display all installed apps. Free-to-air channels can be accessed under the ‘Live TV’ option.
9. Favourites list A customisable list of apps available at a single click.
10. Play next Displays the program you are watching or have queued to play next. You can add to this list by long pressing the ok button, then selecting “Add to play next”. If the play next queue is empty, it will not be shown on the home page.
11. Pinned channels Show the program list of pinned channels. The order of this list can be adjusted by pressing from the channel icon and selecting the “<>” icon. Empty channels will not be shown on the home page.
12. Customise channels Add or remove pinned channels from the home page.


BASIC OPERATION

Selecting channels

There are two ways to select channel:

1. Using number buttons followed by the ok button on the remote control to
   select channel directly.
   • To select channel 5, press: 5.
   • To select channel 21, press: 2 -1 in quick succession. When using the number buttons, you can directly select channels that were either not saved during the auto tuning, or manually erased.
2. Using buttons on the remote control or on your TV to select channel. When you pressthe buttons, the TV changes channels in sequence. You will see all the channels that the TV has saved, but will not see channels that were either not saved, or manually erased.

Volume adjustment and mute setup

Press buttons on the remote control or the TV to adjust the volume of the TV-

• To increase the volume, press  button
•  To decrease the volume, press  button

Press the Mute button to toggle TV sound on and off. The mute icon will appear in the lower-right corner of the screen. To resume sound when TV is muted, press the Mute button again, or simply press the button.

Input source

Input options are accessible directly from the home screen by selecting the Source icon. Press the ok button to confirm your selection.

Alternatively, you can use the button on your remote control to access the list from any channel or screen.

Colour buttons

In some menus and apps, the remote control’s four colour buttons ( ) can be used.

Navigating menus

• Press the Menu button to display the quick menu.
• Press the / Navigational buttons to select the desired sub item.
•  Press the ok Enter or Navigational button to access the menu of the next level.
•  Select More on quick menu list to bring up the full settings menu.
•  Press the Back button to return to the previous menu.
