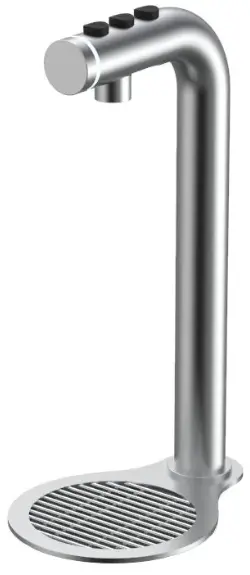

marco MIX / POUR’D Cold Coffee Dispenser
Font Box Contents
3 & 1 Button Models
- 3 /1 button MIX Font 1000879 / 1000878
- Vent Hosing 1860388
- 8mm Water Hose 1860387
- 1/4” Water Hose 1860387
- Instruction Manual
- Vent plug 1401482
- 8mm-1/4” reducer 1400820
3B Concentrate 1000942
- 3B POUR’D concentrate Font
- 8mm Water Hose 2301250
- 1/4” Water Hose 2301251
- Vent Hosing 1860630
- Instruction Manual

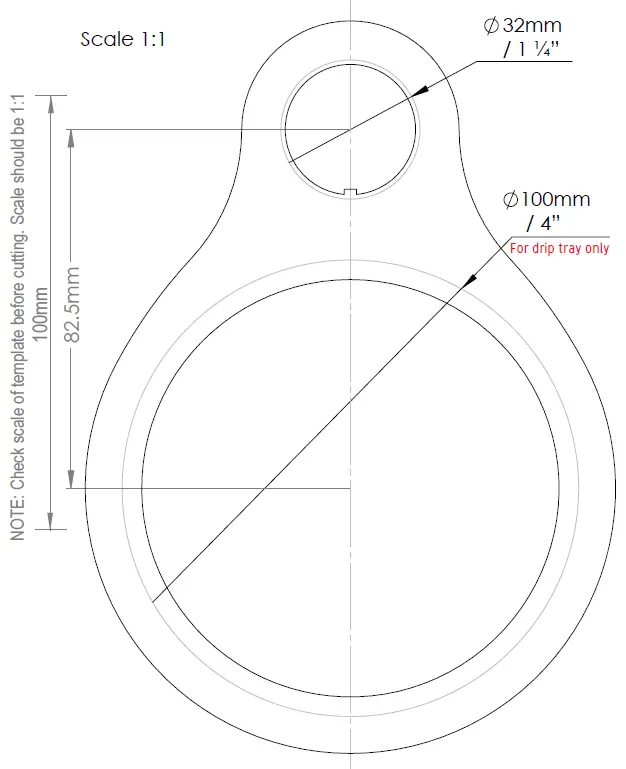

Counter Cut Out
- The 100mm /4” cut-out is only required for the font with drip tray.
- The font without drip tray requires the 32mm / 1 ¼” cut out only.
- Use a 32mm/ 1 ¼” & a 100mm /4” circular hole saw piece to make the holes.
Installation

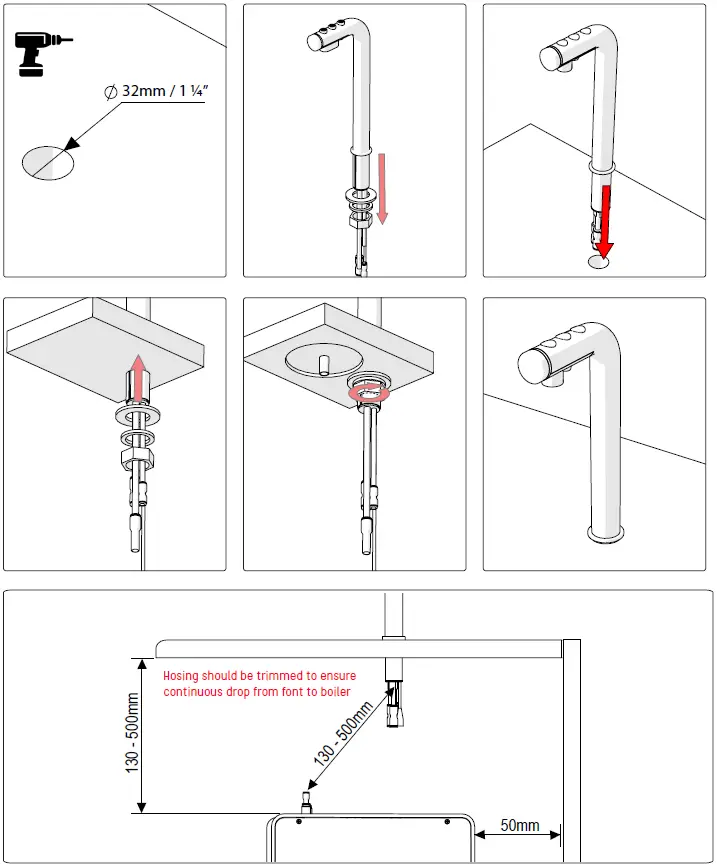

- No Drip Tray

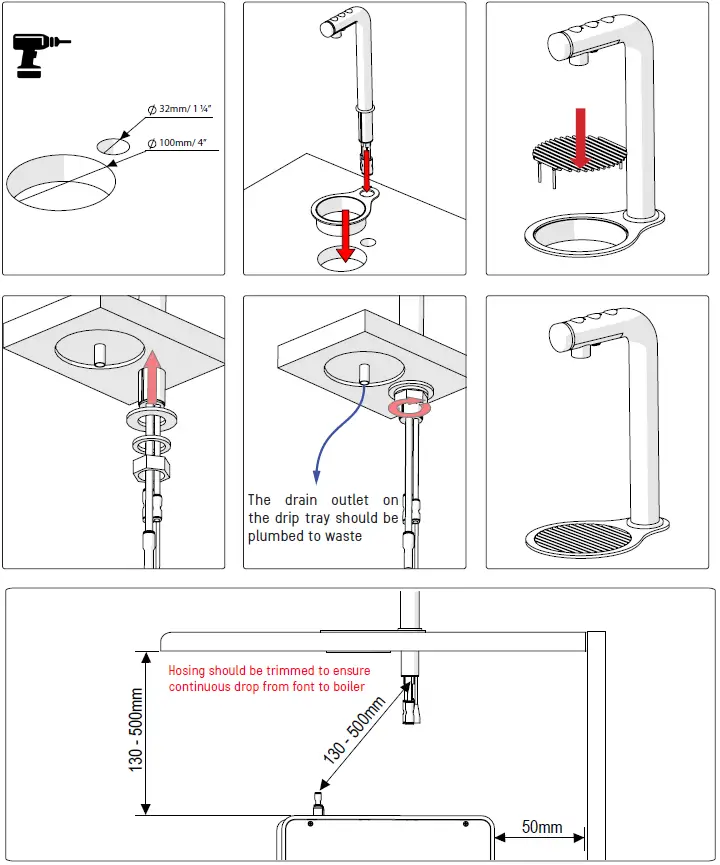

- Drip Tray (sold separately p/n. 2300268)

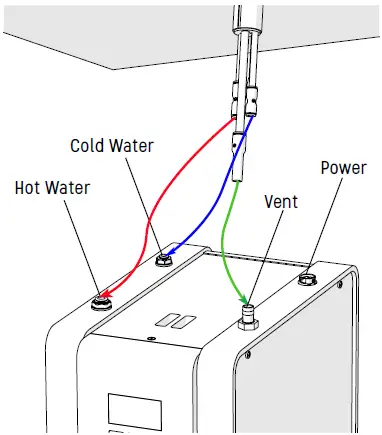

Connecting Hoses
MIX 3 Button Font Connections

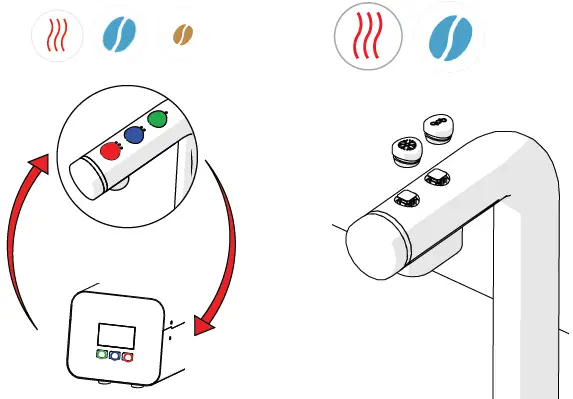

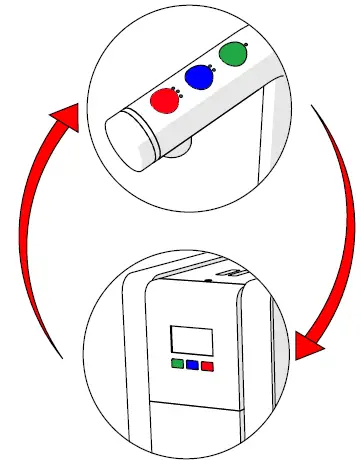

MIX programmable buttons
Operating Font

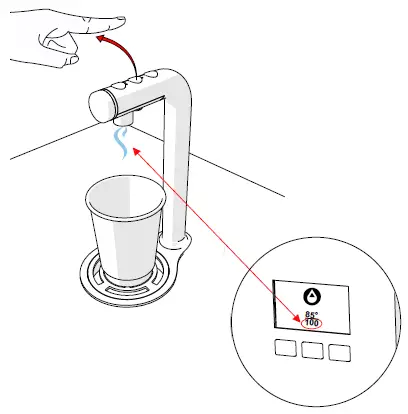

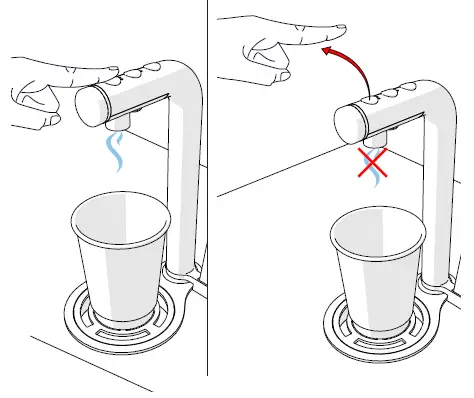

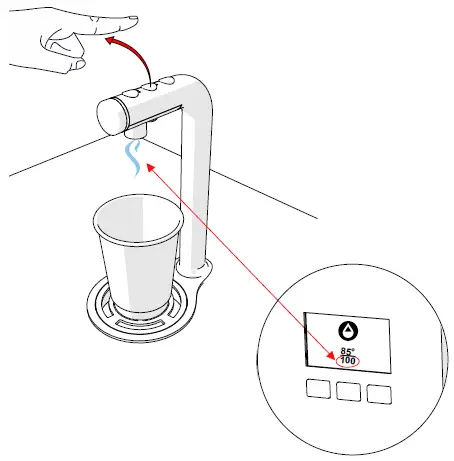

- Push & Hold
- Push & Release
HOT/AMBIENT WATER, DILUTED CONCENTRATE & CONCENTRATE SHOT

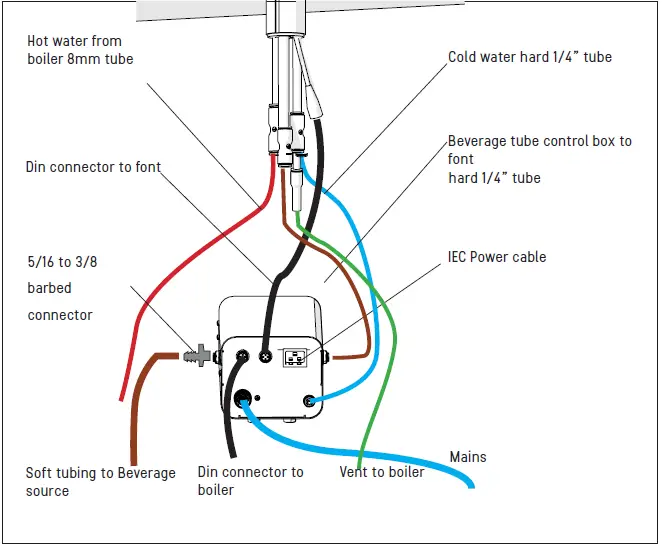

3 button connections (1000942 3b concentrate)

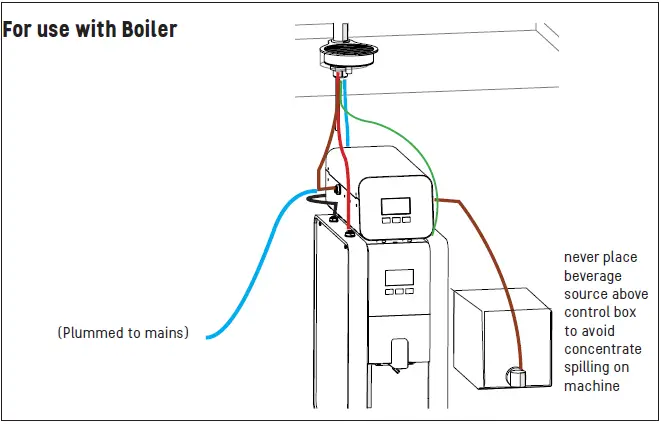

For use with a Boiler

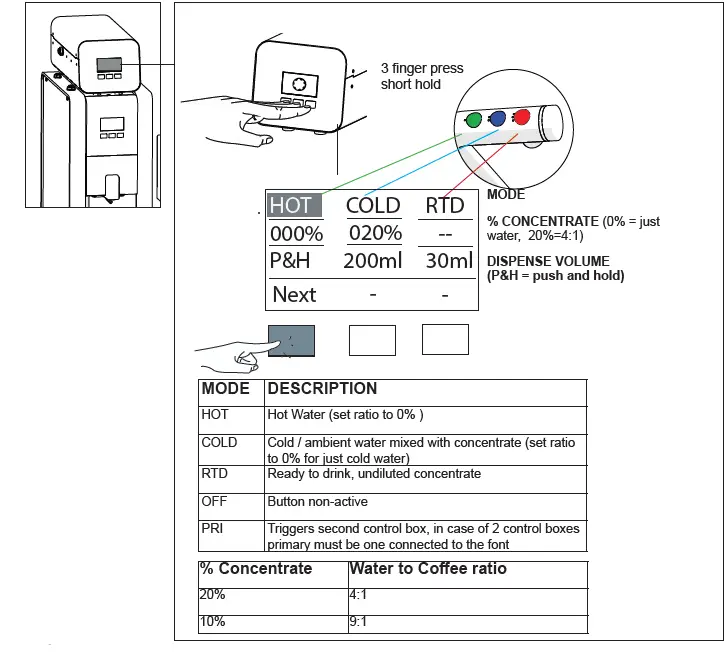

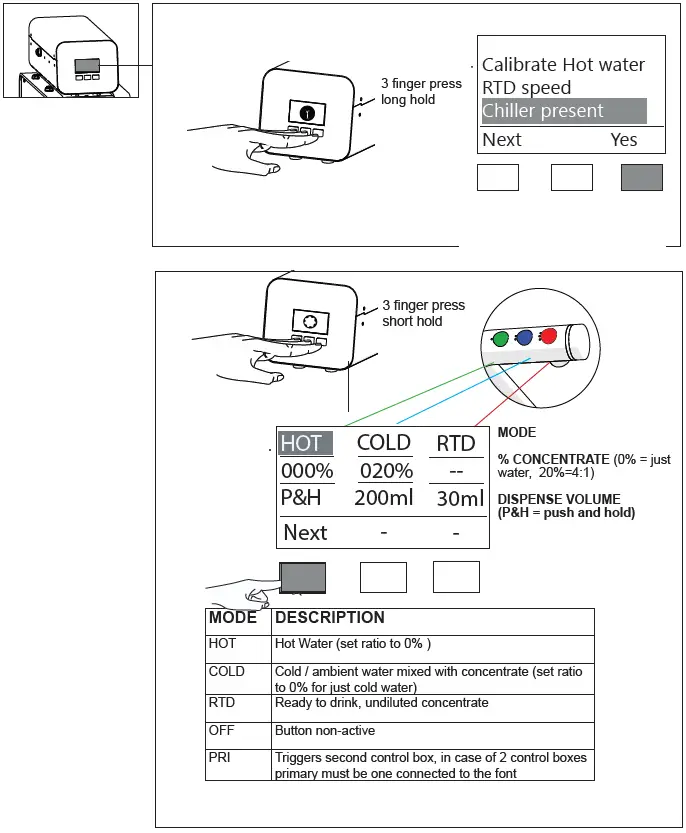

Control box setup
| MODE | DESCRIPTION | |
| HOT | Hot Water (set ratio to 0% ) | |
| COLD | Cold/ambient water mixed with concentrate (set ratio to 0% for just cold water) | |
| RTD | Ready-to-drink, undiluted concentrate | |
| OFF | Button non-active | |
| PRI | Triggers second control box, in case of 2 control boxes primary must be one connected to the font | |
| % Concentrate | Water to Coffee ratio | |
| 20% | 4:1 | |
| 10% | 9:1 | |
Boiler setup

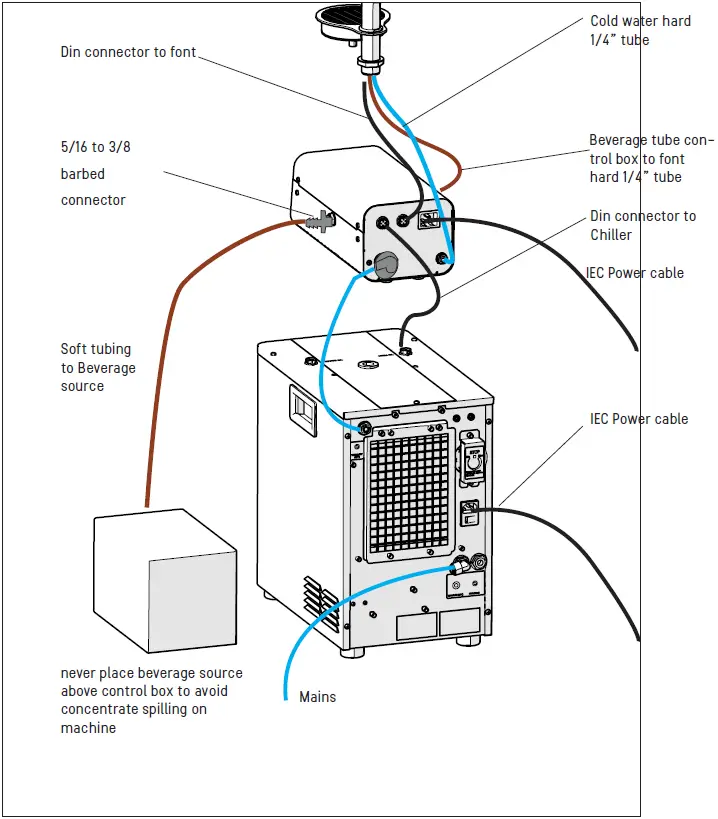

CHILLED WATER, DILUTED CONCENTRATE & CONCENTRATE SHOT
3 button connections (1000942 3b concentrate).
For use with chiller
Control box setup
| MODE | DESCRIPTION |
| HOT | Hot Water (set ratio to 0% ) |
| COLD | Cold/ambient water mixed with concentrate (set ratio to 0% for just cold water) |
| RTD | Ready-to-drink, undiluted concentrate |
| OFF | Button non-active |
| PRI | Triggers second control box, in case of 2 control boxes primary must be one connected to the font |

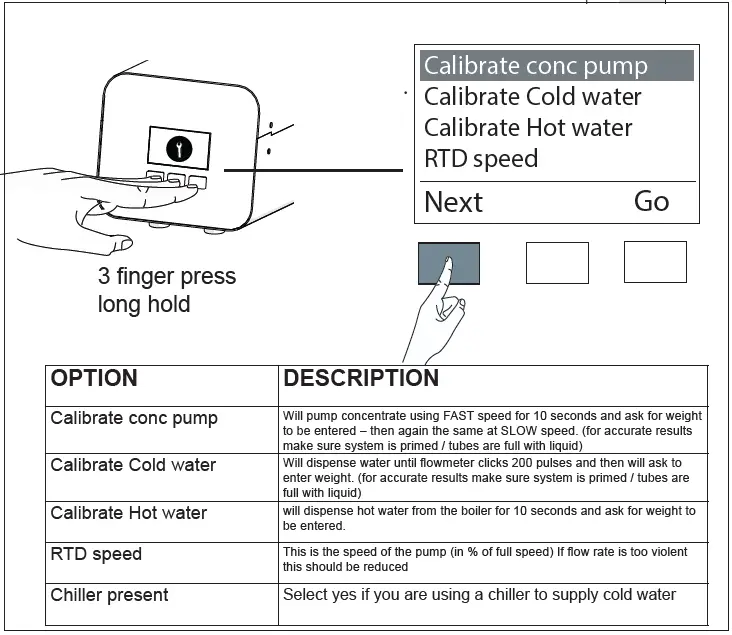

User Setup
- Programmable buttons
- Program and change buttons accordingly
| OPTION | DESCRIPTION |
| Calibrate conc pump | Will pump concentrate using FAST speed for 10 seconds and ask for weight to be entered – then again the same at SLOW speed. (for accurate results make sure system is primed / tubes are full with liquid) |
| Calibrate Cold water | Will dispense water until flowmeter clicks 200 pulses and then will ask to enter weight. (for accurate results make sure system is primed / tubes are full with liquid) |
| Calibrate Hot water | will dispense hot water from the boiler for 10 seconds and ask for weight to be entered. |
| RTD speed | This is the speed of the pump (in % of full speed) If flow rate is too violent this should be reduced |
| Chiller present | Select yes if you are using a chiller to supply cold water |
Operating Font

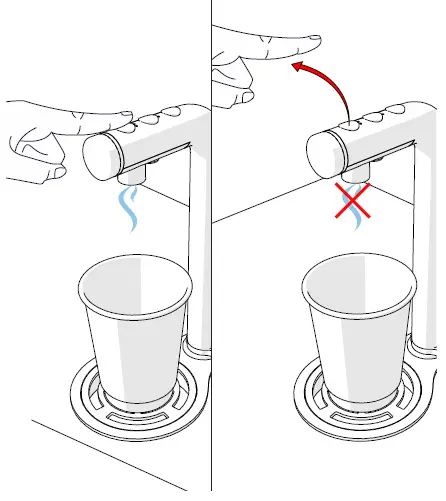

- Push & Hold
- Push & Release
Cleaning & Maintenance
RISK OF SCALDING
Turn off the boiler before cleaning to prevent accidental triggering of a dispense. Beware of accidentally operating the font – especially when cleaning around the push buttons. The appliance may not be immersed in water or a cleaning solution. The exterior of this font may be cleaned with a damp cloth and a light detergent. The external surfaces of the appliance must not be cleaned by a water jet.

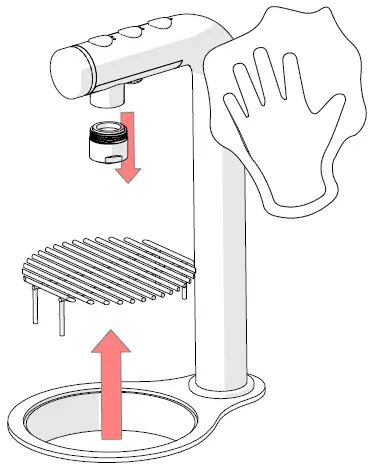

For cleaning the internal tubing and components, the recommended cleaning solution is Urnex Cafiza cleaner. Twist off and wash out the flow straightener. Do not use abrasive cloths or creams, as this will.
