User Manual
Kennel G21 KEN 886

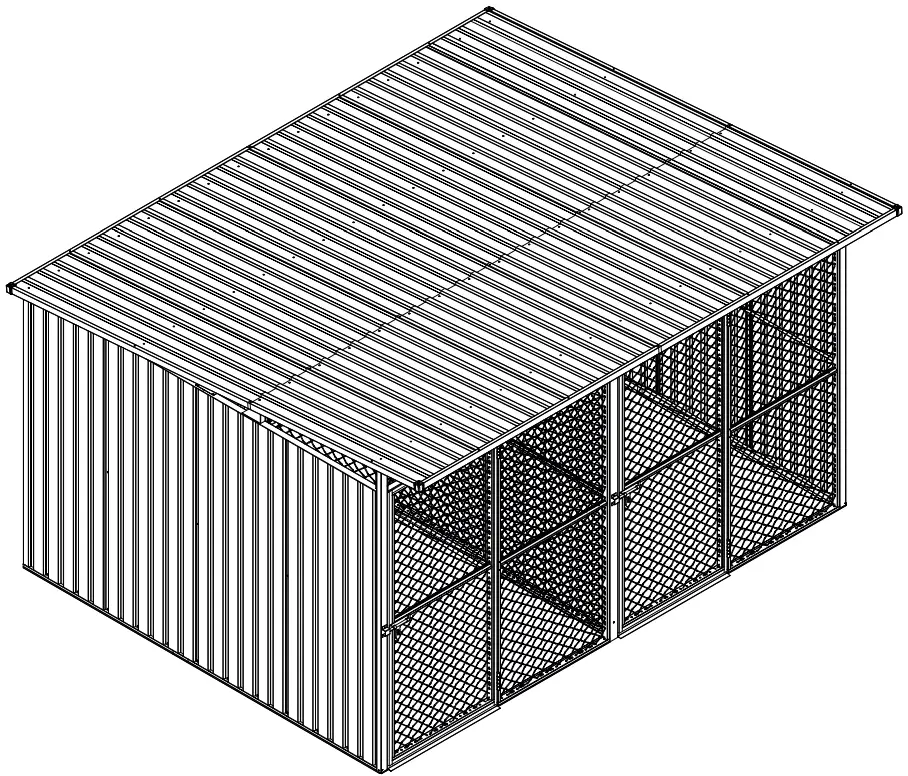

Kennel G21 KEN 886 Dog Bed
Thank you for purchasing our product.
Before using this unit, please read this manual.
Assembly instructions:
Prior to the assembly please read all instructions and information carefully. The kennel has to be anchored to its base in order to prevent damage. The base is not included in the delivery and it has to be built separately.
Check whether you have all parts which are necessary for the assembly.
Please mind your own safety.
- 2-3 persons are required for the assembly of this kennel.
- Use protective clothing and gloves as some parts might be sharp.
- During the assembly, no children or pets should be present in the working area.
- Do not stand on the roof with all your weight.
Care and maintenance:
- Clean the kennel using cloth and water
- In case of snowfall remove the snow from the roof regularly.
The English version of the manual is an exact translation of the original manufacturer‘s instructions.
Images used in this manual are for illustrational purposes only and may differ from the actual product.

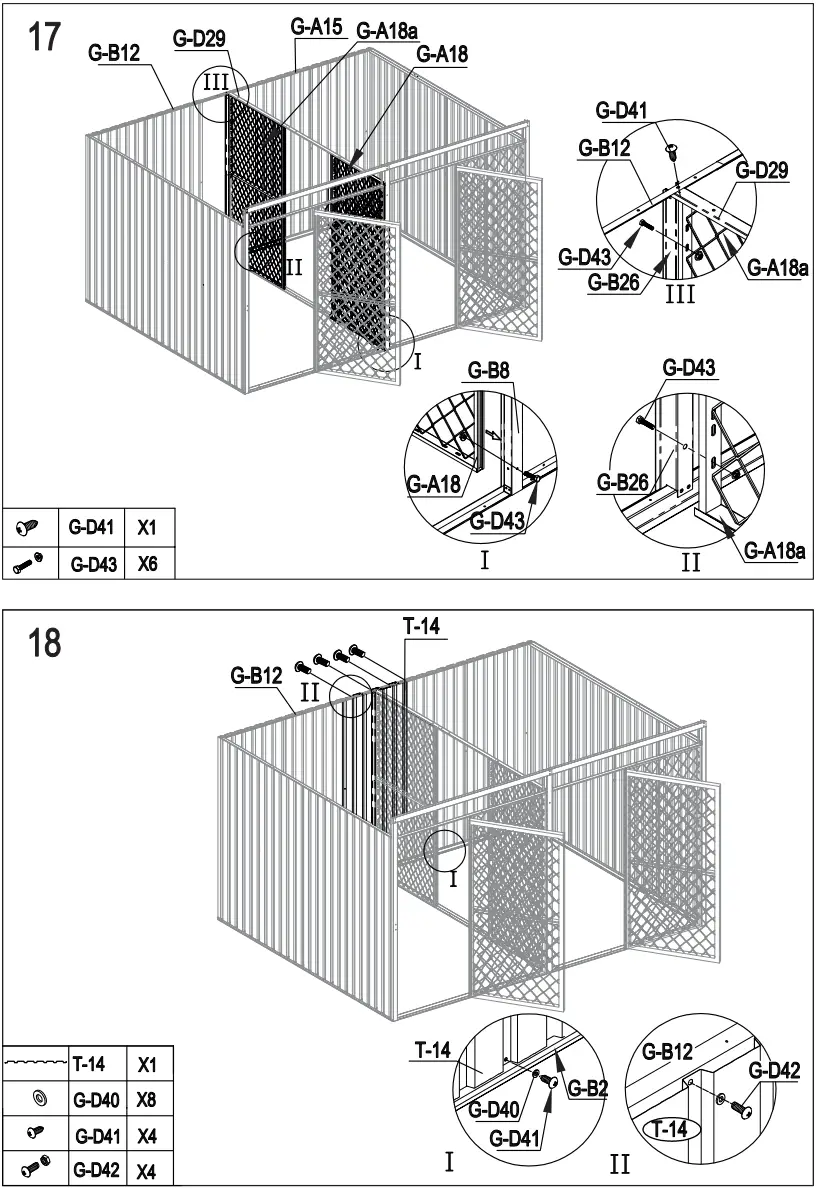

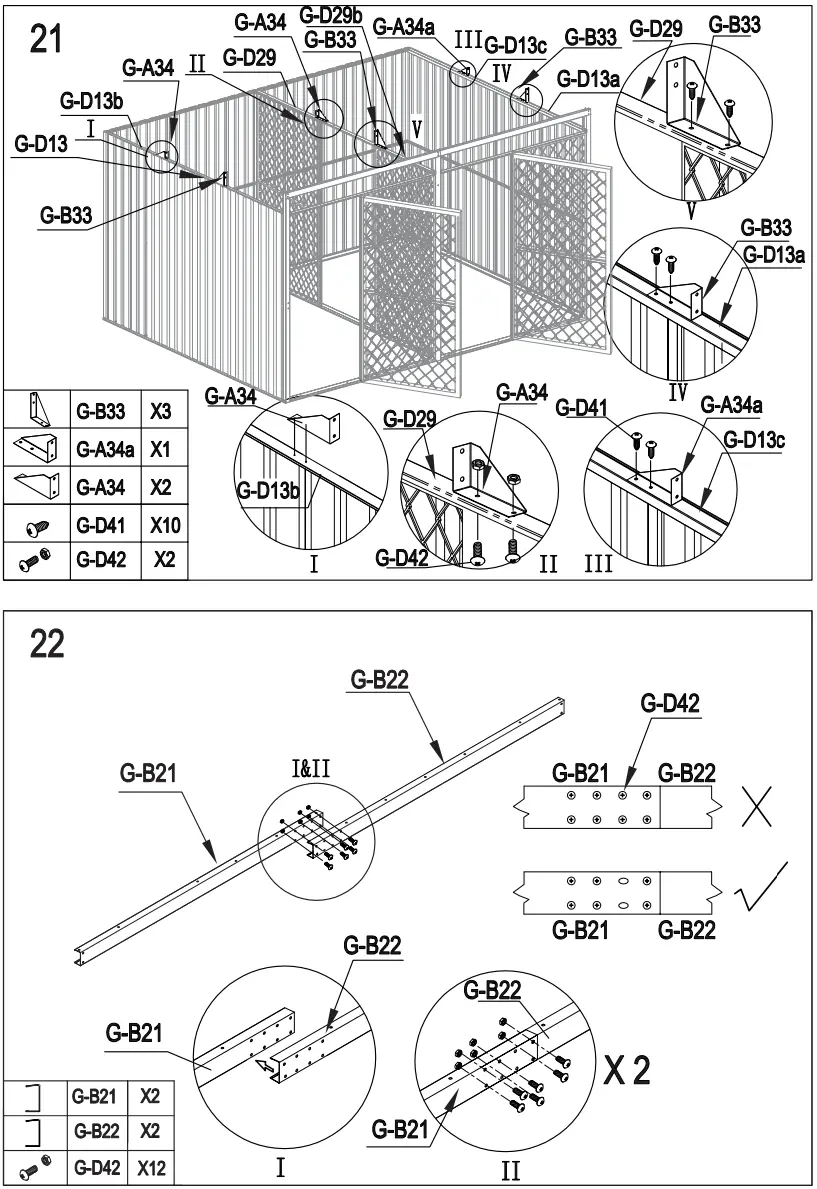

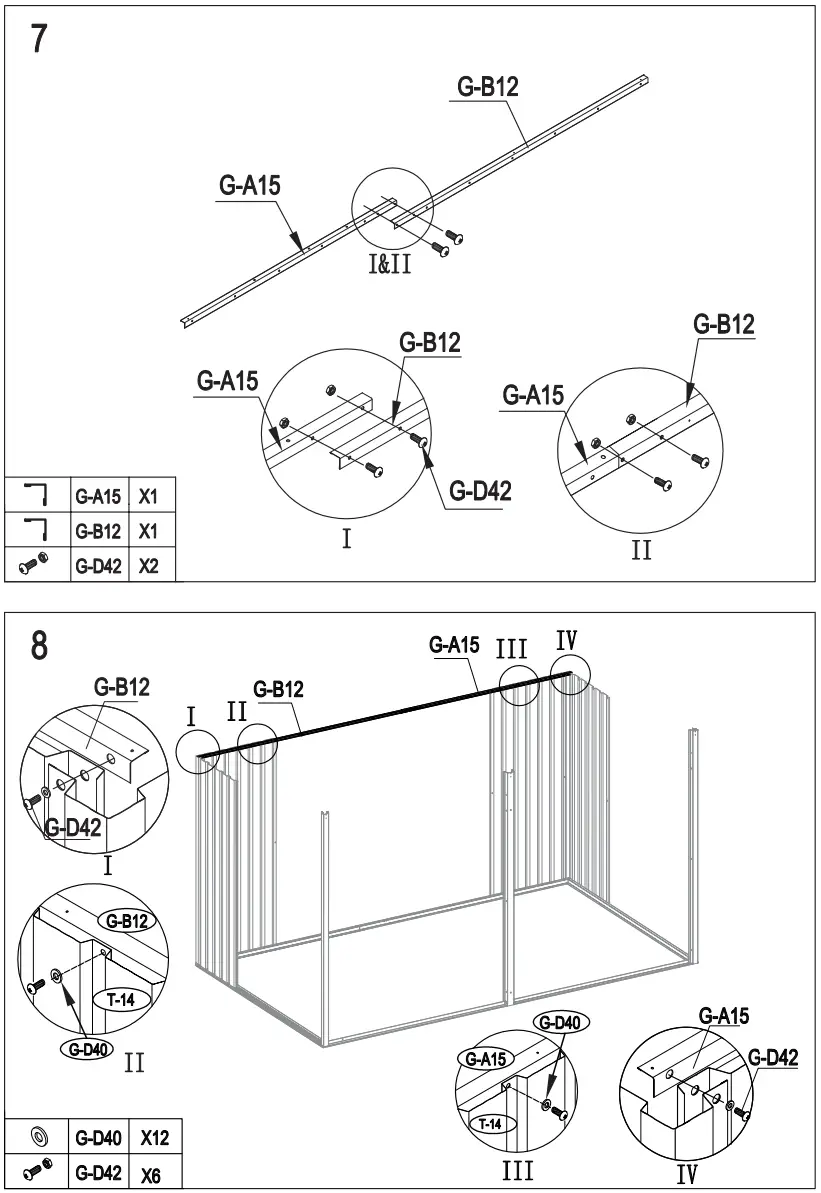

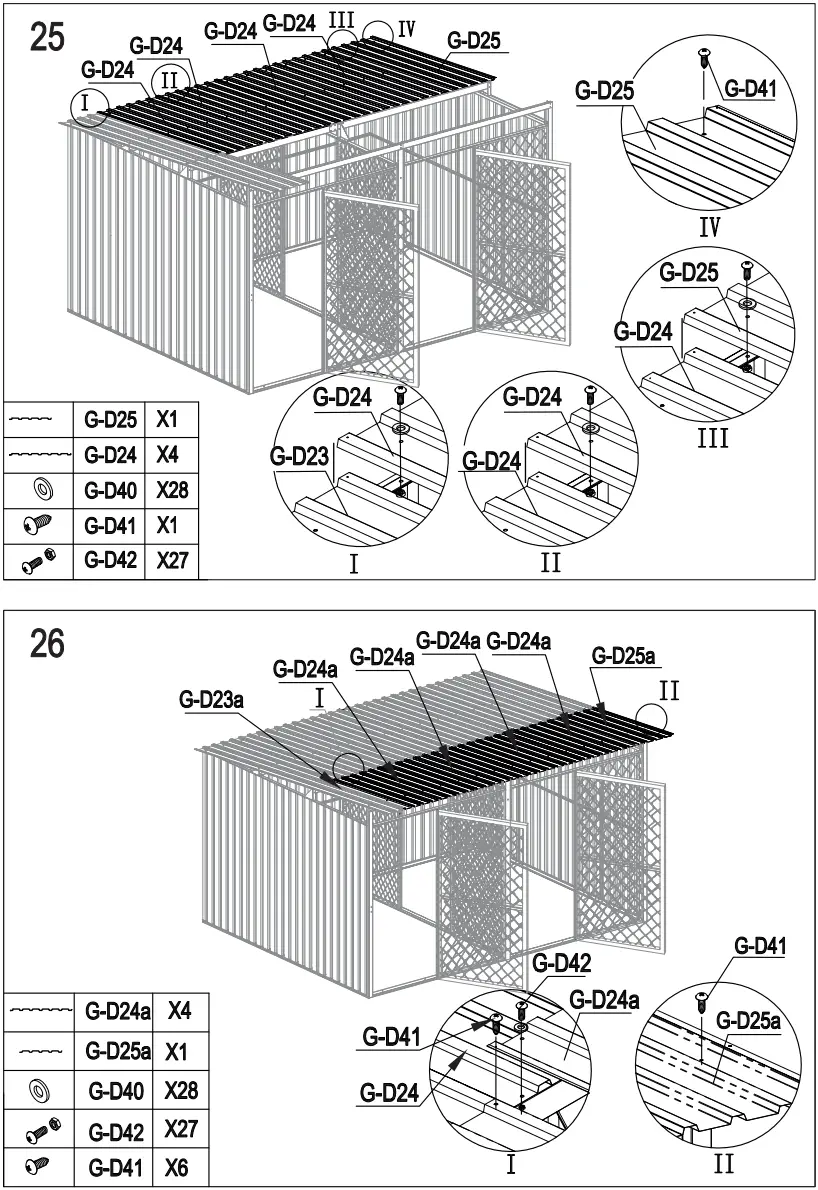

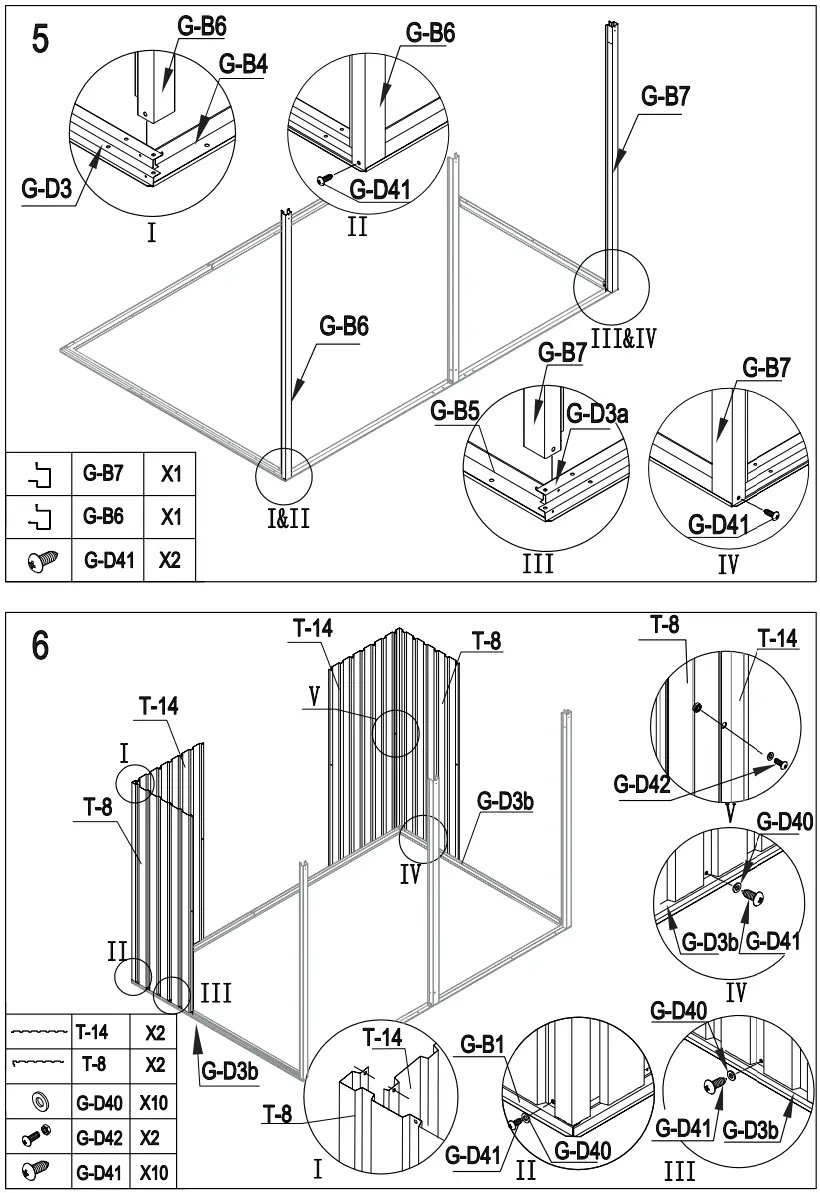

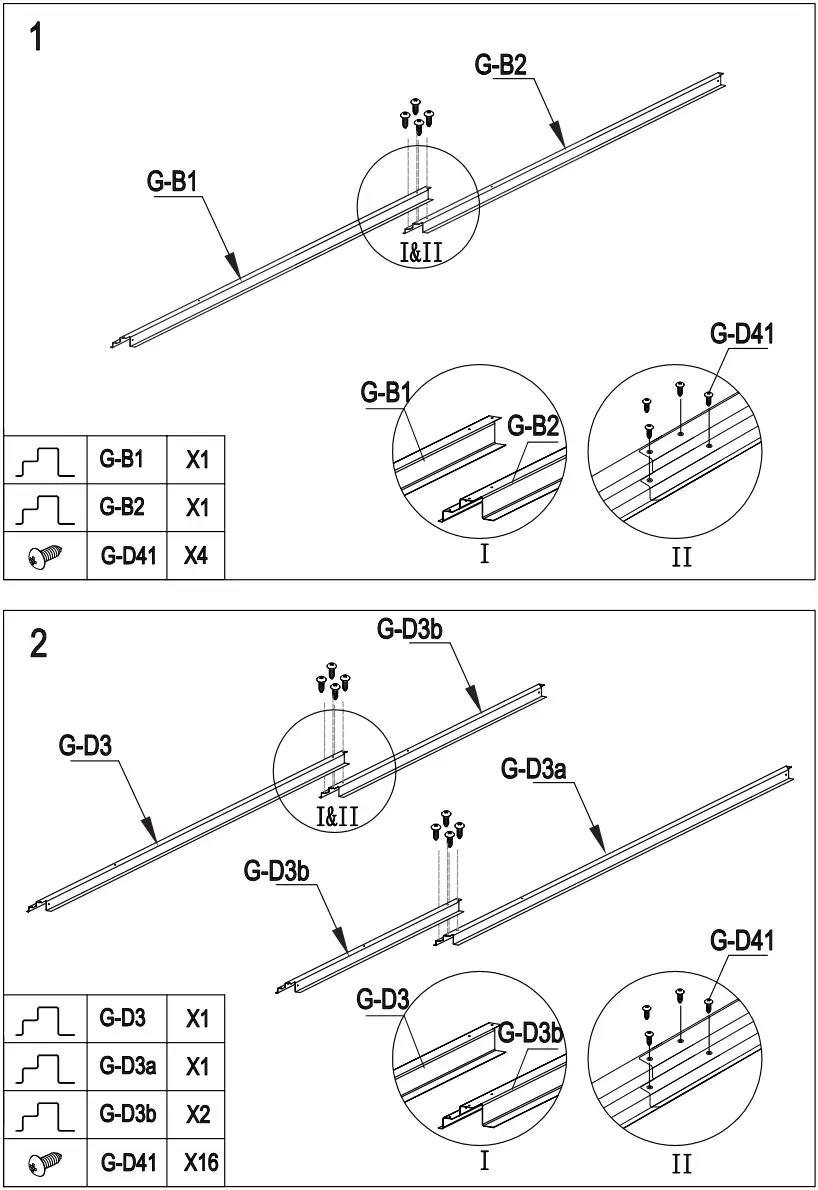

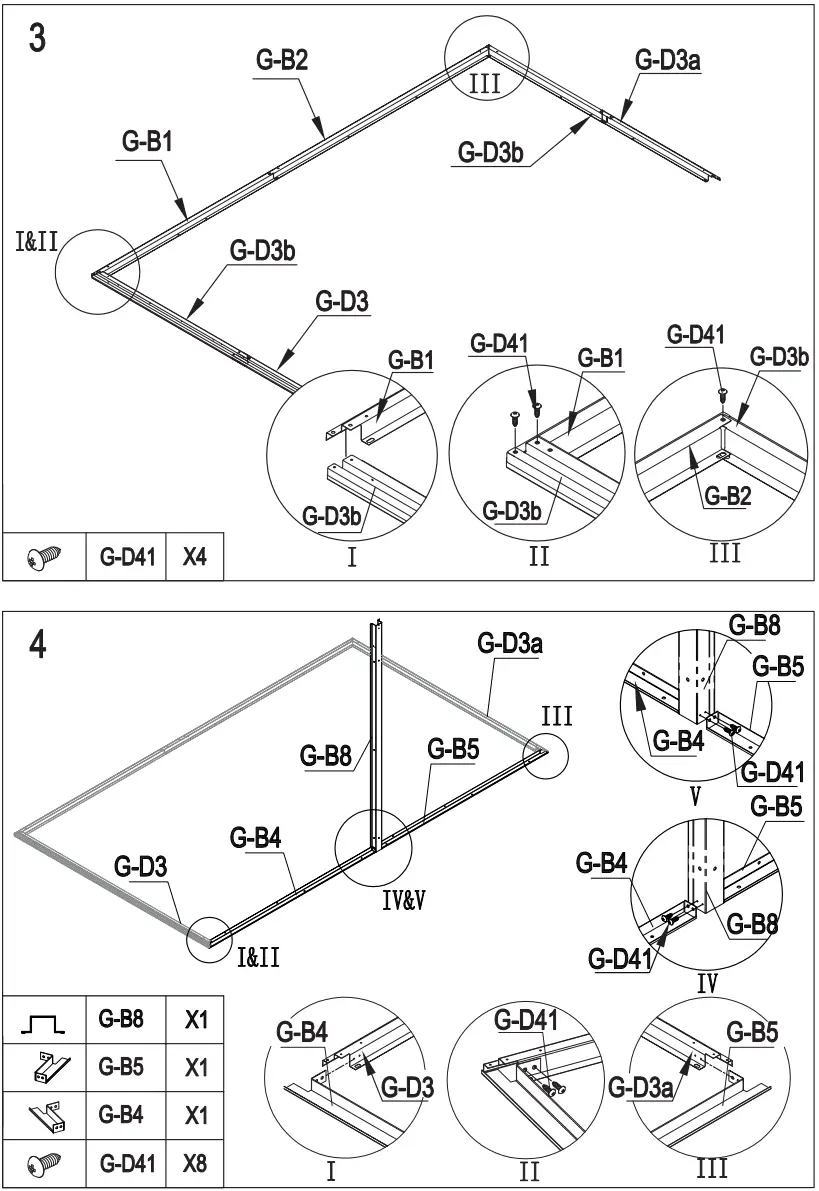

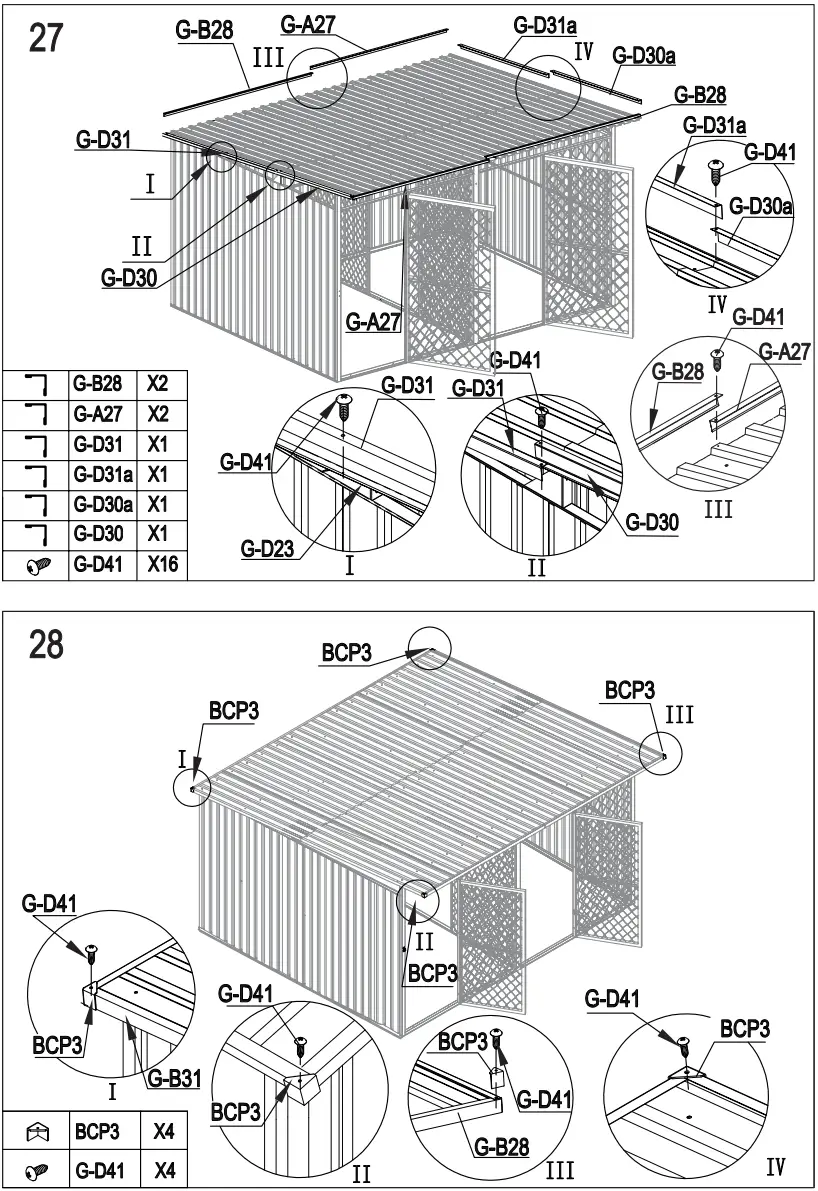

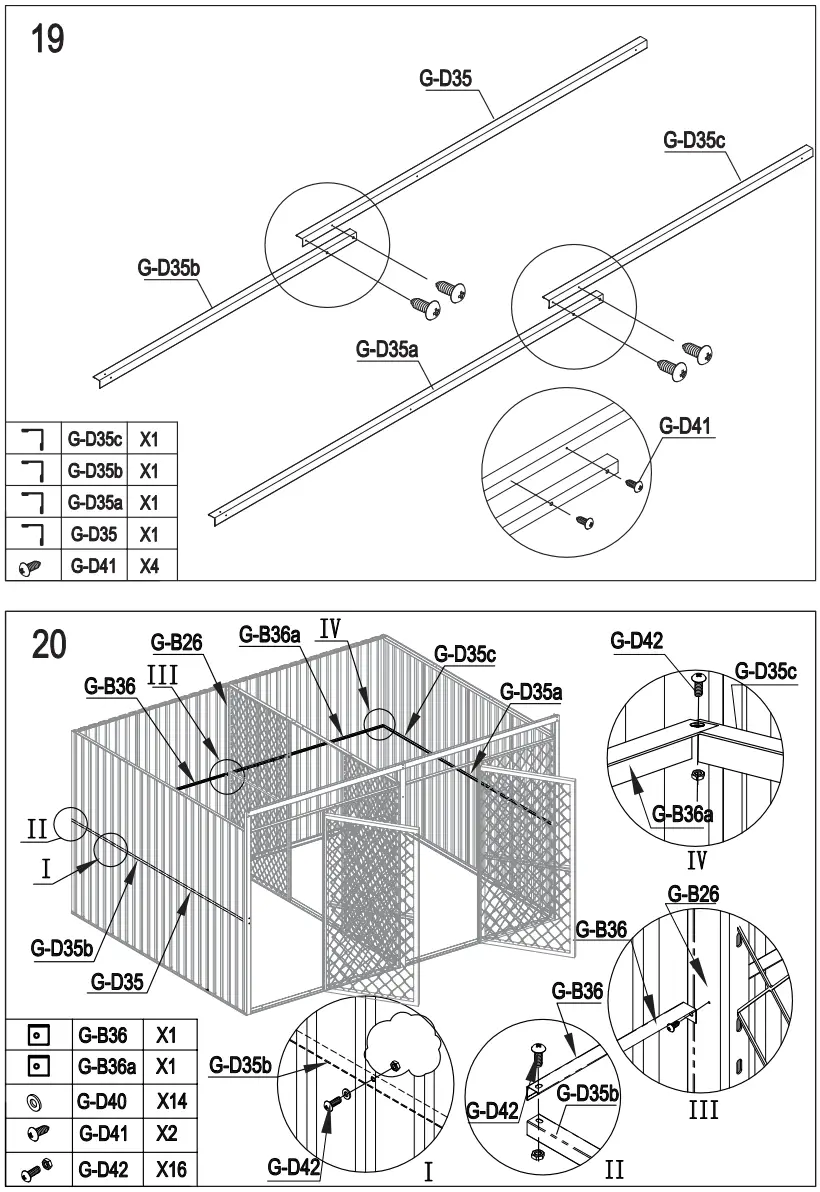

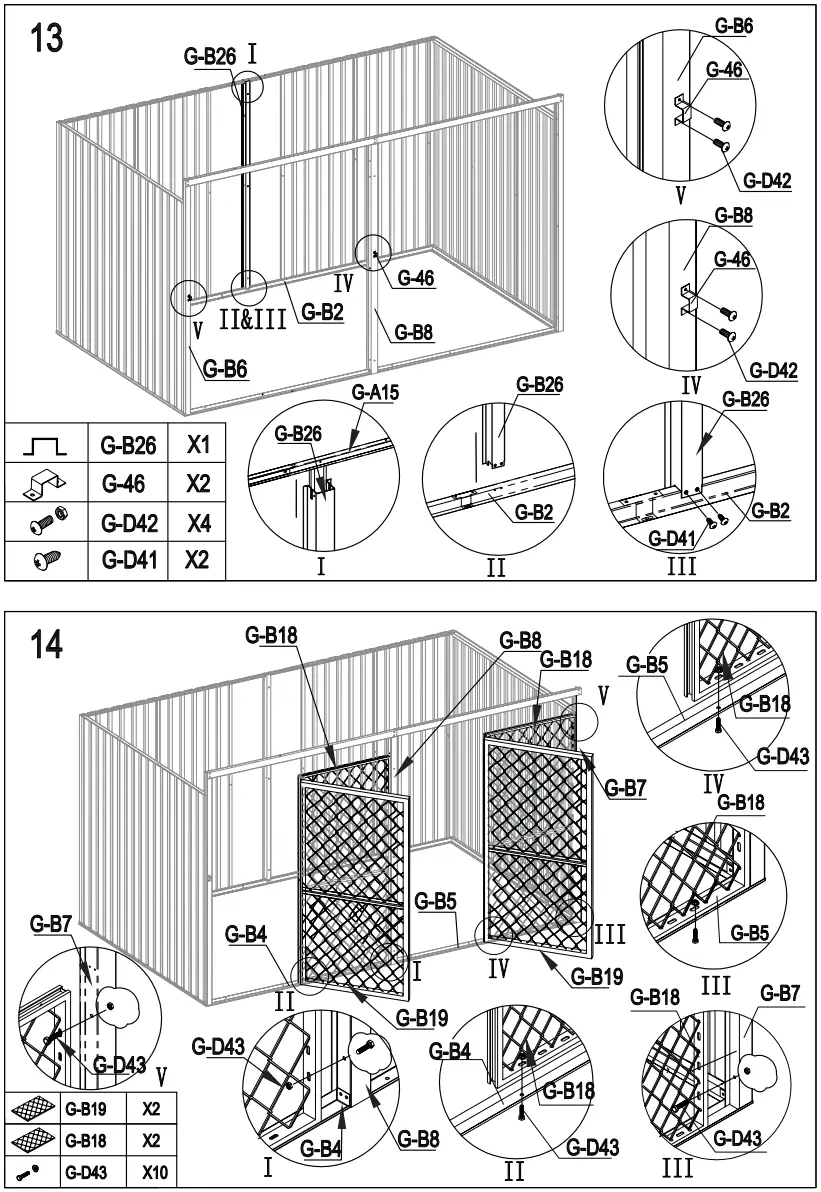

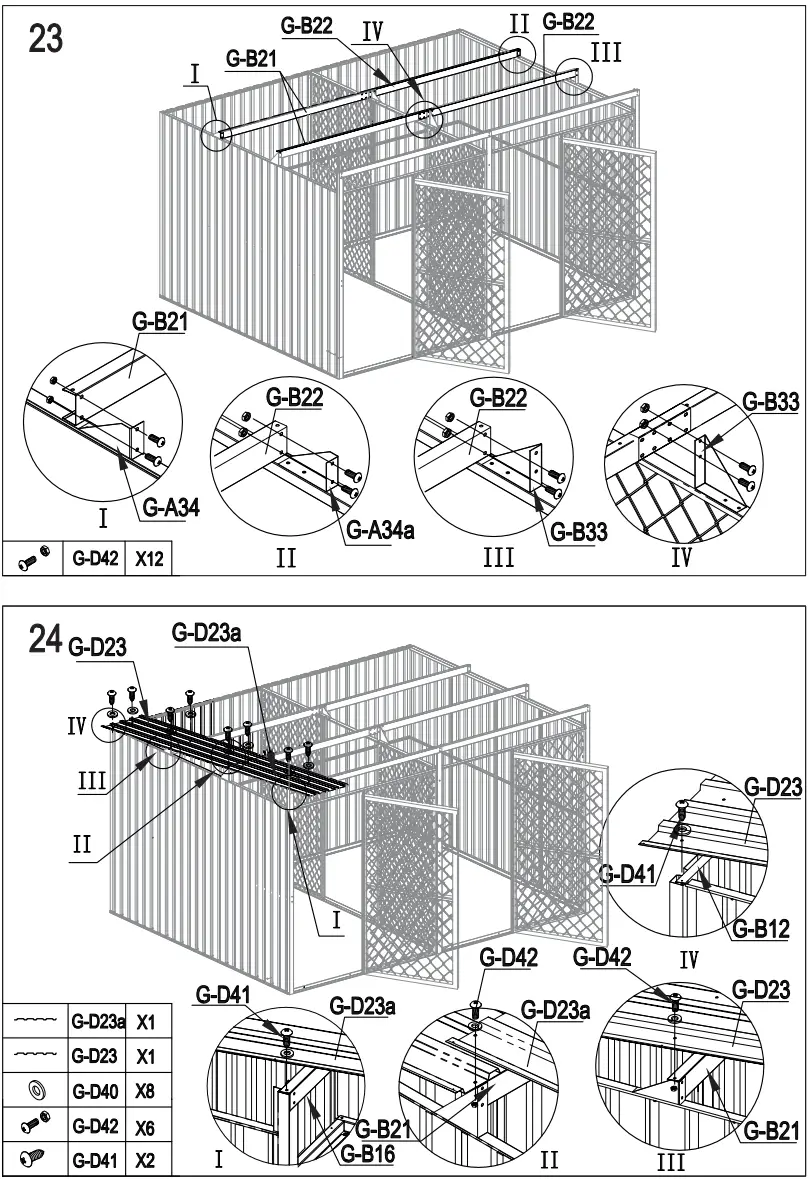

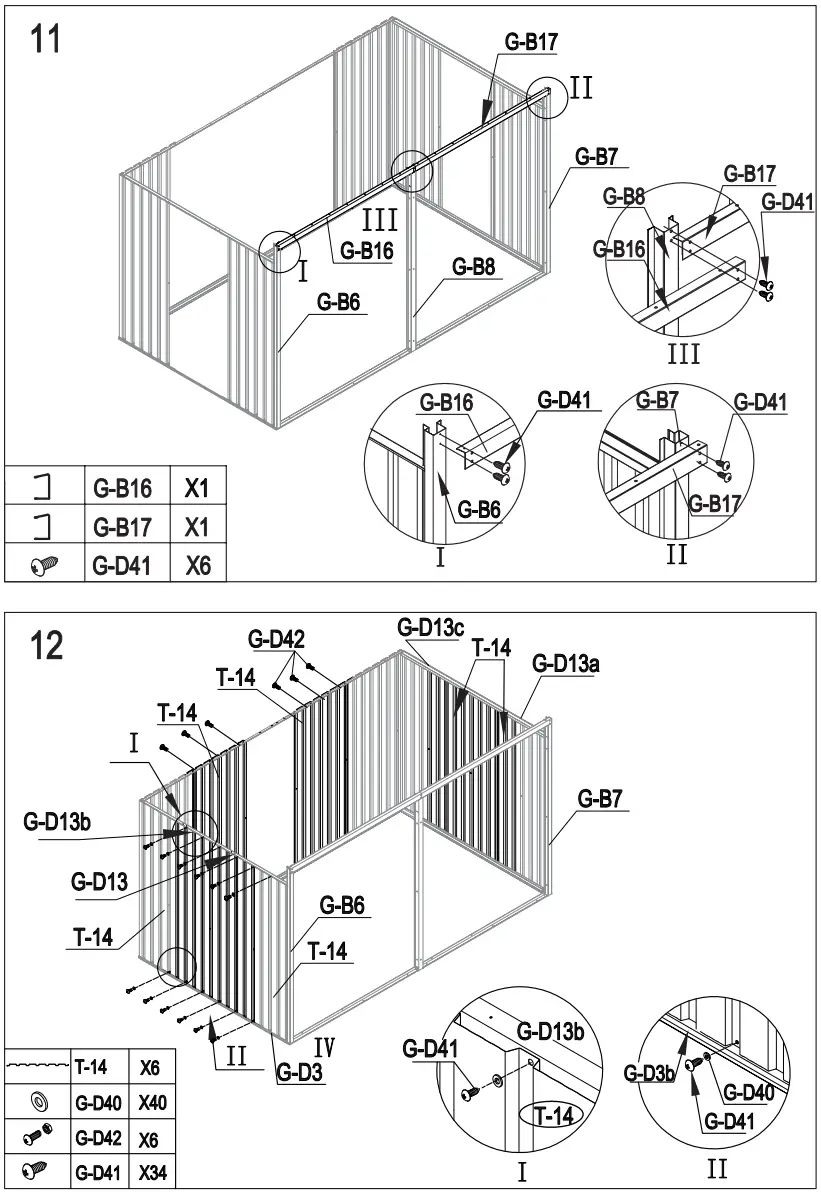

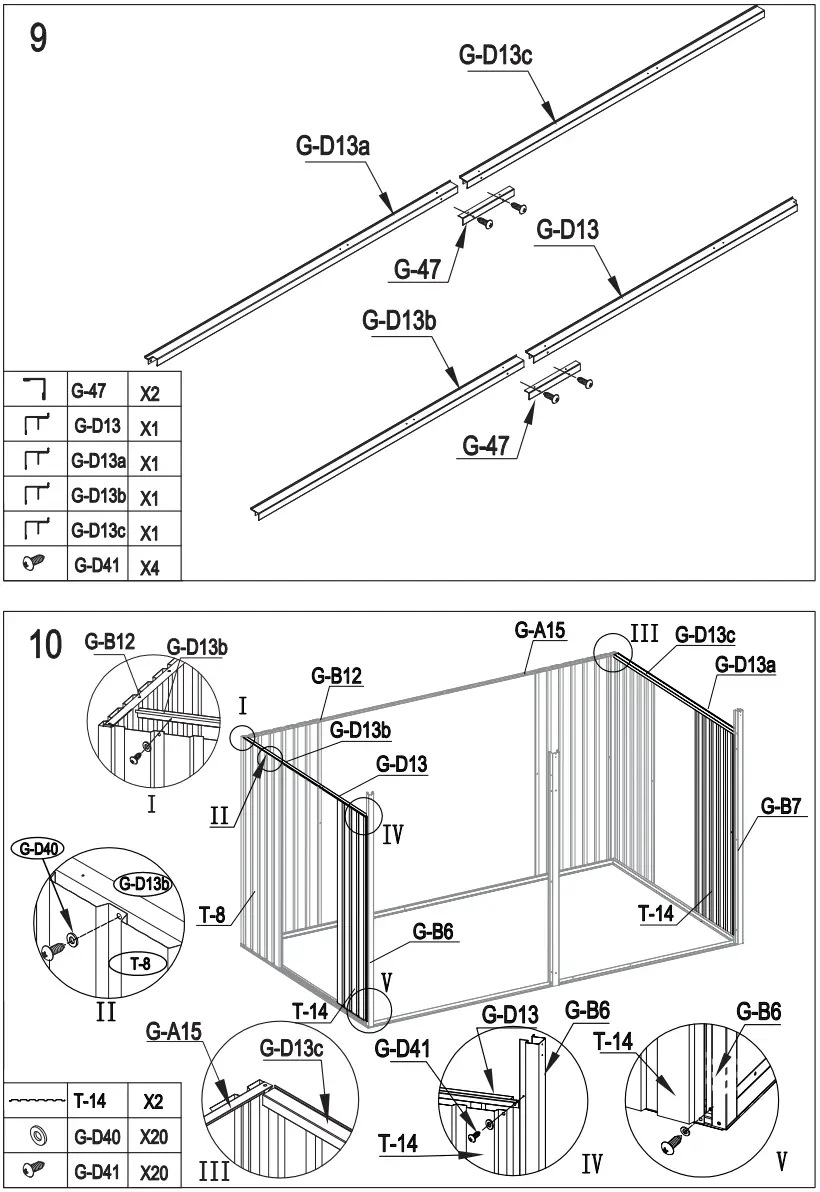

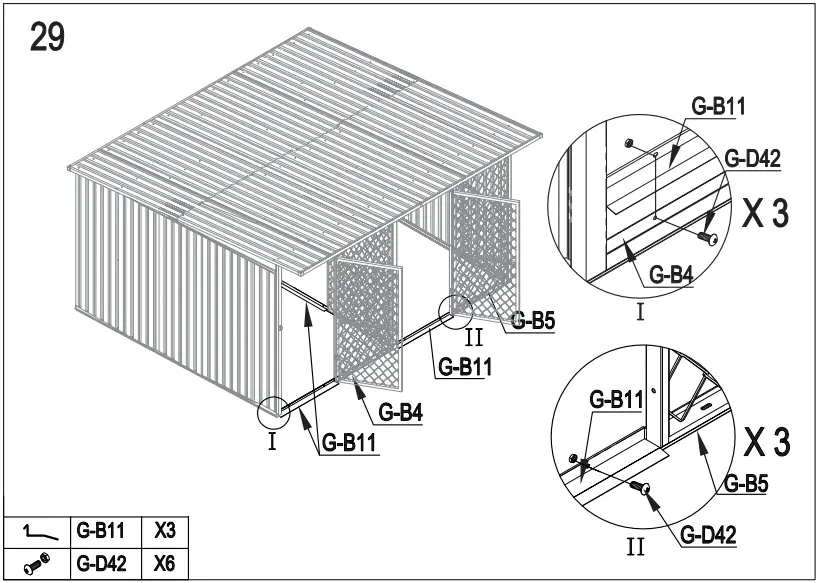

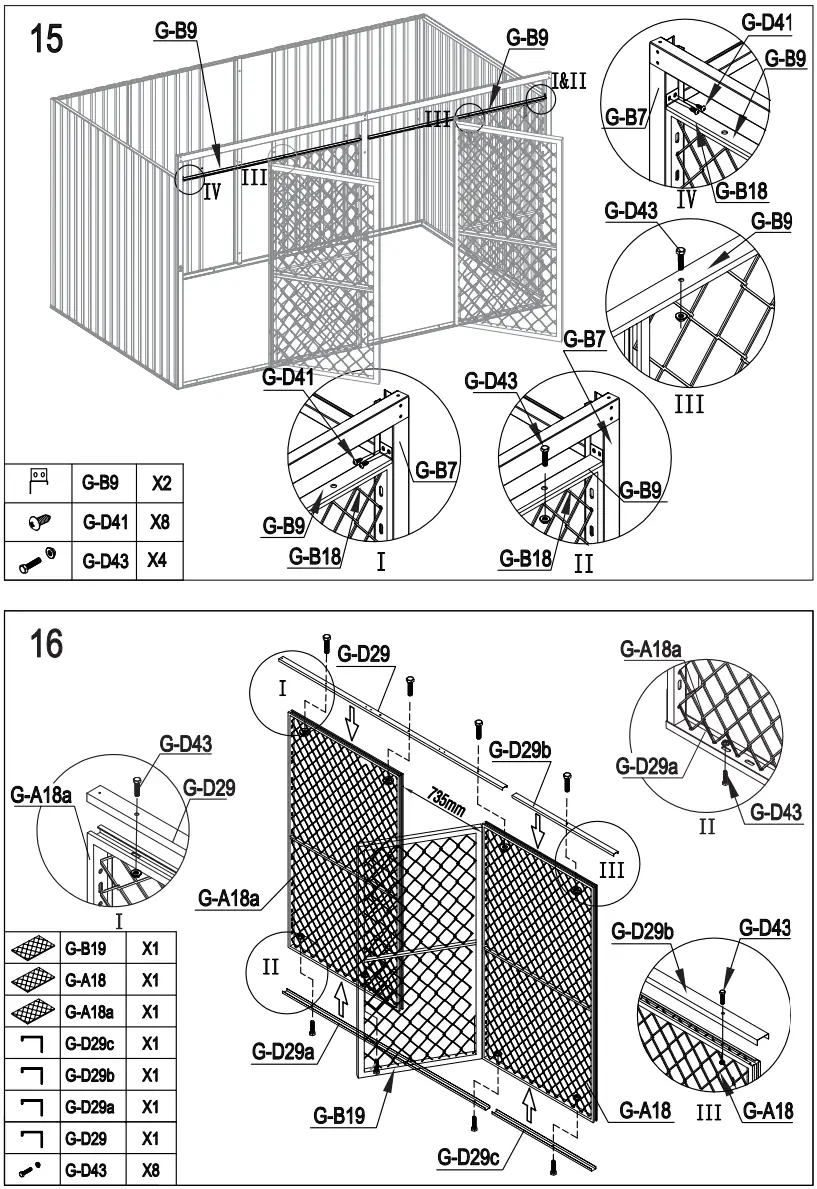

Installation

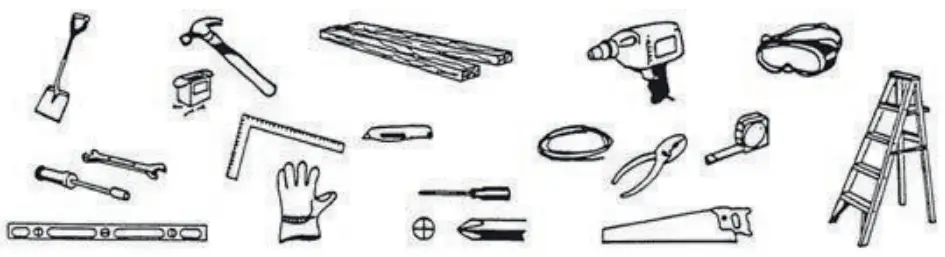

InstallationTools you will need

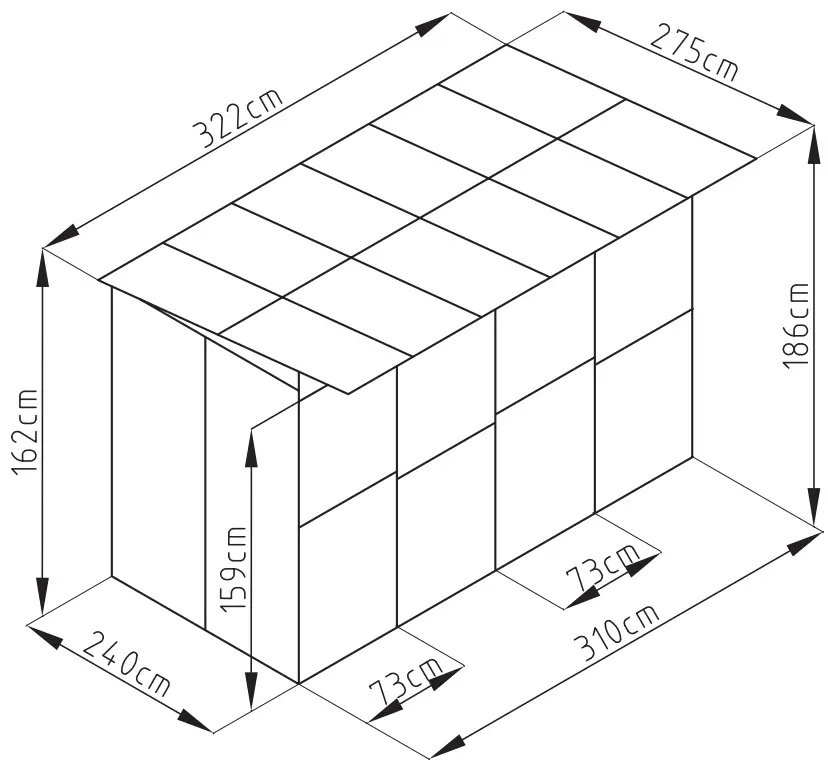

Dimensions

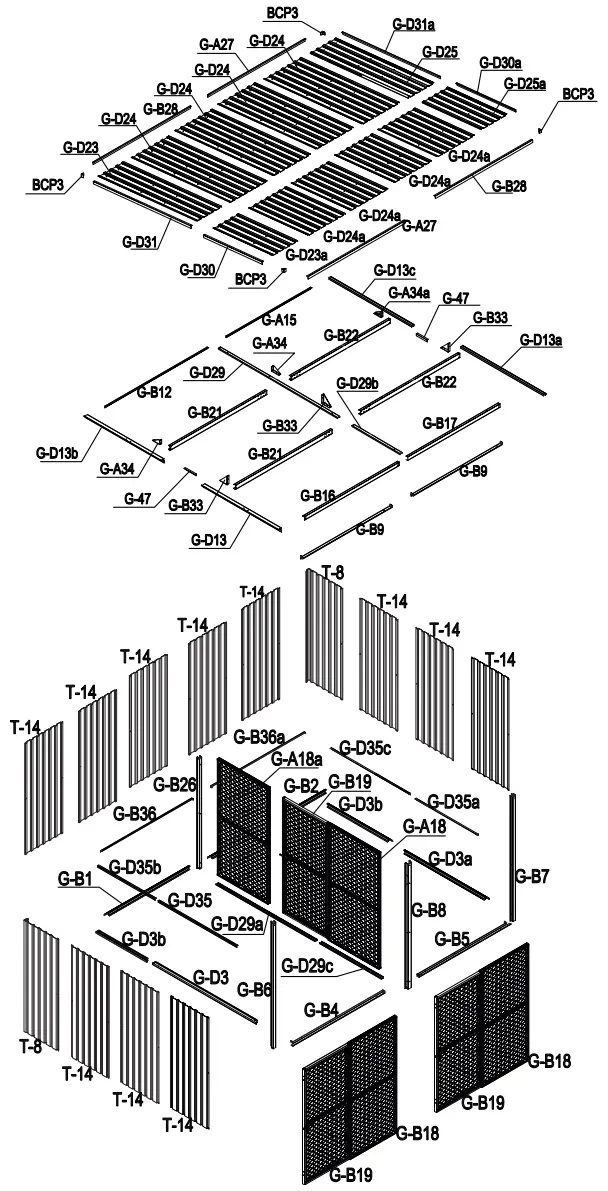

Parts list
| (G-B1) ………………………….. (x1) (G-B2) ………………………….. (X1) (G-D3) ………………………….. (X1) (G-D3a) ………………………….. (X1) (G-D3b) ………………………….. (X2) (G-B5) ………………………….. (X1) (G-B6) ………………………….. (x1) (G-B7) ………………………….. (X1) (G-B8) ………………………….. (X1) (T-8) ………………………….. (X2) (T-14) ………………………….. (X11) (G-B9) ………………………….. (X2) (G-B11) ………………………….. (X3) (G-D13) ………………………….. (X1) (G-D13a) ………………………….. (x1) (G-D13b) ………………………….. (x1) (G-D13c) ………………………….. (x1) (G-B12) ………………………….. (X1) (G-A15) ………………………….. (X1) (G-B16) ………………………….. (x1) (G-B17) ………………………….. (X1) (G-A18) ………………………….. (x1) (G-A18a) ………………………….. (X1) (G-B18) ………………………….. (X2) (G-B19) ………………………….. (X3) (G-B21) ………………………….. (X2) (G-B22) ………………………….. (X2) (G-D23) ………………………….. (X1) (G-D24) ………………………….. (X4) (G-D25) ………………………….. (X1) (G-D23a) ………………………….. (X1) (G-D24a) ………………………….. (x4) | (G-D25a) ………………………….. (X1) (G-B26) ………………………….. (X1) (G-A27) ………………………….. (X2) (G-B28) ………………………….. (X2) (G-D29) ………………………….. (X1) (G-D29a) ………………………….. (x1) (G-D29b) ………………………….. (X1) (G-D29c) ………………………….. (X1) (G-D30) ………………………….. (X1) (G-D30a) ………………………….. (x1) (G-D31) ………………………….. (X1) (G-D31a) ………………………….. (X1) (G-B33) ………………………….. (x3) (G-A34) ………………………….. (X2) (G-A34a) ………………………….. (X1) (G-D35) ………………………….. (x1) (G-D35a) ………………………….. (x1) (G-D35b) ………………………….. (X1) (G-D35c) ………………………….. (x1) (G-B36) ………………………….. (x1) (G-B36a) ………………………….. (x1) (BCP3) ………………………….. (x4) (G-D40) ………………………….. (X195) (G-D41) ………………………….. (X169) (G-D42) ………………………….. (X159) (G-D43) ………………………….. (X28) (6-46) ………………………….. (X2) (G-47) ………………………….. (X2) |
 |  |
 |  |
 |  |
 |  |
 |  |
 |  |
 |  |
 | |
