GEBERIT Duofix WC Frame for Wall Hung
Contents hide

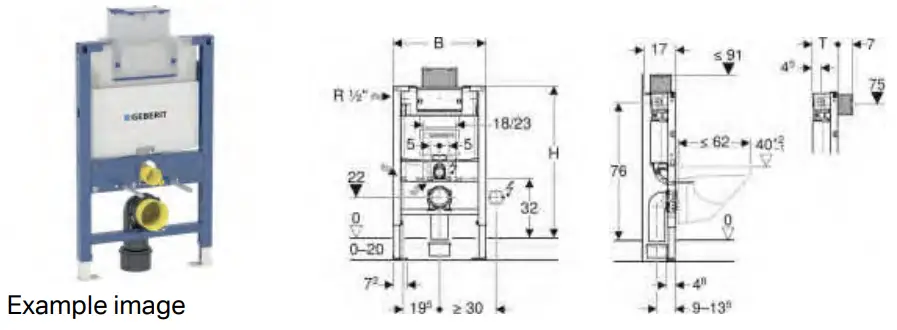

Example image
Application purposes
- For drywall construction
- For installation in part-height prewall installations
- For installation in part-height Geberit Duofix system walls
- For wall-hung WCs with connection dimensions in accordance with EN 33:2011
- For wall-hung WCs with projection up to 62 cm
- For floor constructions 0–20 cm
Characteristics
- Self-supporting frame, powder-coated
- Frame with ø 9 mm drilling holes for fastening in wood frame construction
- Frame prepared for support brackets for WC ceramic appliances with small contact surfaces
- Galvanized feet
- Feet adjustable 0–20 cm
- Non-slip leg supports
- Rotatable foot plates
- Foot plate depth suitable for installation in U-profiles UW 50 and UW75 and Geberit Duofix system rails
- Connection bend can be mounted without tools at different depths, adjustable range 45 mm
- Fastening for connection bend, sound-absorbing
- Concealed cistern with top or front actuation
- Concealed cistern, fully insulated against condensation
- Cistern fulfils standard requirements in accordance with EN 14055, Class II
- Immediate post flush possible with factory setting
- Tool-free installation and maintenance work on concealed cistern
- Water supply connection on the left or rear left
- Protection cover box for service opening protects against moisture
and dirt - Protection box for service opening can be cut to length
- With conduit pipe for feed pipe for connection of Geberit AquaClean
shower toilets - Fastening option for electrical connection
- Power & Connect Box mountable
Technical data
| Flow pressure | 0.1-10 bar |
| Maximum operating temperature, water | 25 °C |
| Flush volume, factory setting | 5.8 and 3 l |
| Flush volume large, adjustment range | 4 / 4.5 / 6 / 7.5 l |
| Flush volume small, adjustment range | 2-4 l |
| Calculated flow rate | 0.11 l/s |
| Minimum flow pressure for calculated flow rate | 0.5 bar |
Scope of delivery
- Water supply connection Rp 1/2″ – R 1/2″, compatible with MF, with integrated angle stop valve and hand wheel
- Protection box for service opening
- 2 wall anchors
- Connection set for WC, ø 90 mm
- Connection bend 90° made of PE-HD, ø 90 mm
- Adaptor socket made of PE-HD, ø 90 / 110 mm
- 2 protection plugs
- 2 threaded rods M12
- Fastening material
Art. no | B | H | T |
| 111.004.00.1 | 50 cm | 82 cm | 14 cm |
Accessories
- Geberit set of support brackets for WC ceramic appliances with small contact surfaces
- Geberit Duofix set of wall anchors for single installation
- Geberit Duofix set of wall anchors for single and system installation
- Geberit Duofix set of foot extensions for floor construction 20–40 cm
- Geberit concealed outlet for drywall and solid wall construction
- Geberit Power & Connect box
- Any boarding must be fixed tight up against the face of the Duofix frame and screwed directly to the frame
- Flush valve features settings to enable either a 6 l and 3 l flush or a 4.5 l and 3 l flush. Note: must be used with pans designed for low volume flush
- The cistern can be operated with used water (rainwater) provided it is passed through a filter system first

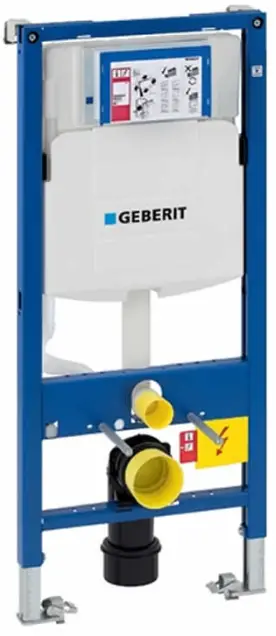

Geberit Duofix frame for wall-hung WC, 82 cm, with Kappa concealed cistern 15 cm
Application purposes
- For drywall construction
- For installation in part-height prewall installations
- For wall-hung WCs with connection dimensions in accordance with EN 33:2011
- For wall-hung WCs with projection up to 62 cm
- For floor constructions 0–20 cm
Characteristics
- Self-supporting frame, powder-coated
- Galvanized feet
- Feet adjustable 0–20 cm
- Concealed cistern with front actuation
- Concealed cistern, fully insulated against condensation
- Cistern fulfils standard requirements in accordance with EN 14055,
- Class II
- Immediate post flush possible with factory setting
- Water supply connection on the left
- Protection cover box for service opening protects against moisture and dirt
- Protection box for service opening can be cut to length without tools
- With conduit pipe for feed pipe for connection of Geberit Aqua Clean shower toilets
- Fastening option for electrical connection
Technical data
| Flow pressure | 0.1-10 bar |
| Maximum operating temperature, water | 25 °C |
| Flush volume, factory setting | 5.8 and 3 l |
| Flush volume large, adjustment range | 4 / 4.5 / 6 / 7.5 l |
Scope of delivery
- Water supply connection Rp 1/2″ – R 1/2″, compatible with MF, with integrated angle stop valve and hand wheel
- Protection box for service opening
- 2 wall anchors
- 2 protection plugs
- Connection set for WC, ø 90 mm
- Connection bend 90° made of PE-HD, ø 90 / 110 mm
- Adaptor socket made of PE-HD, ø 90 / 110 mm
- 2 threaded rods M12
- Fastening material
Art. no | B | H | T |
| 111.004.00.1 | 50 cm | 82 cm | 14 cm |
- Any boarding must be fixed tight up against the face of the Duofix frame and screwed directly to the frame
- Flush valve features settings to enable either a 6 l and 3 l flush or a 4.5 l and 3 l flush. Note: must be used with pans designed for low volume flush
- The cistern can be operated with used water (rainwater) provided it is passed through a filter system first
