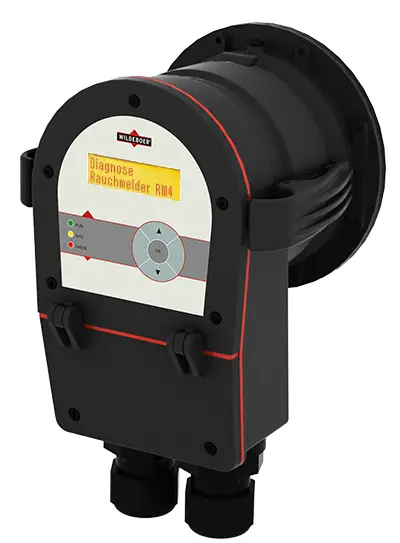

WILDEBOER OR4 basic Smoke Release Device
Product range:
Areas of application for smoke detectors
| Smoke detector As per DIN EN 54-27 with VdS approval | Smoke detectors As per DIN EN 54-27 with VdS and DIBt (German Institute for Construction Engineering) approval | ||||
| RL4 basic | RL4 pro | OR4 basic | OR4 pro | OR32 | |
 |  |  |  |  | |
| Area of application | |||||
| X | X | X | X | X |
| For activation and release of fire dampers and smoke protection dampers for ventilation ducts | X | X | X | ||
| For activation and release of fire dampers and smoke protection dampers for air transfer applications | X | ||||
| For use in particularly cramped installation scenarios | X | ||||
| You will find further information on out product website. Use the QR code to open the link. |  |  |  |  |  |
Application
OR4 smoke detector
- For detection of smoke in round and rectangular ventilation ducts
- For activation and tripping of fire dampers and smoke protection dampers
- For activation of fans
- For transmission of signals to fire detection systems or the building management system
- VdS approval (G221008)
- DIBt approval (Z-78.6-205)
Installation option
Ventilation ducts, rectangular (B x H): ≥ 100 x 100 mm
Distance from disruption points:
1.5 x hydraulic Ø, upstream and downstream
Ventilation ducts, circular (Ø): ≥ DN100
Distance from disruption points:
1.5 x hydraulic Ø, upstream and downstream
Installation not dependent on position or direction of air flow
Ventilation ducts, rectangular (B x H): ≥ 100 x 100 mm
Ventilation ducts, circular (Ø): ≥ DN100
Installation not dependent on position or direction of air flow| Area of application | |
| Voltage supply | 230 V AC or 24 V AC/DC* |
| Min./max. flow velocity | 1 … 20 m/s |
| Min./max. temperature for operation, transportation, storage, environment | -20 … +60 °C |
| Max. relative humidity | 95 %, non-condensing |
* Any CE certified power supply unit (SELV) can be used for the 24 V AC/DC voltage supply.
Product features
- Quick release fastener for quick accessibility and functional test without use of tools
- Integrated flow monitoring
- Enclosed casing for electronics
- Replaceable protective screen for protection from soiling
- RM4 smoke switch with automatic tracking of the response threshold for longer service life
- LEDs + LCD display screen for visualisation of operating statuses, soiling and setting operating parameters.
- TEST locally or using the GLT interface
- Cable glands with strain relief for up to 7 connection lines
- Spring terminals for maintenance-free connection of all lines
- Galvanically isolated inputs and outputs
- Galvanically isolated RS485 interface with BACnet MS/TP and Modbus RTU
- Alarms and faults saved in case of power failure
| Interfaces/protocols | |
| Alarm relay | 2 x changeover contact |
| Inputs | 2 x galvanically isolated
|
| Outputs | 6 x galvanically isolated
|
| RS485 | Galvanically isolated with BACnet MS/TP and Modbus RTU |
Approvals/certificates
VdS approval (G221008)
- An overview of equipment variants OR4 basic and OR4 pro can be found on Page 5.
- Refer to the installation and operating instructions for detailed information on mechanical and electrical installation.
Product overview

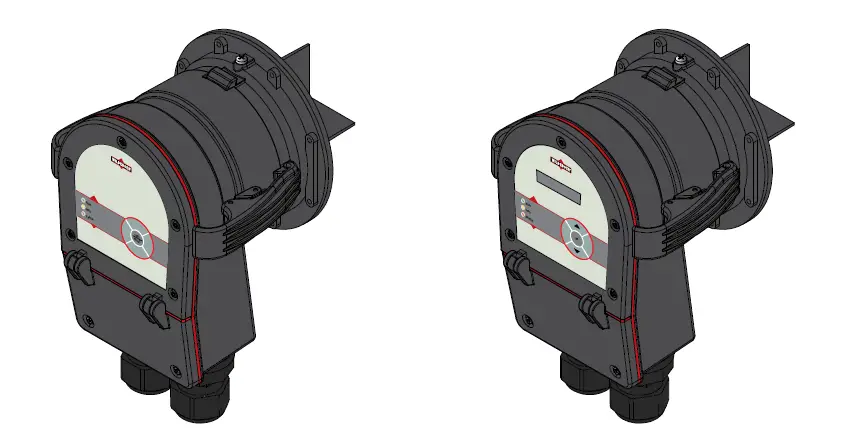

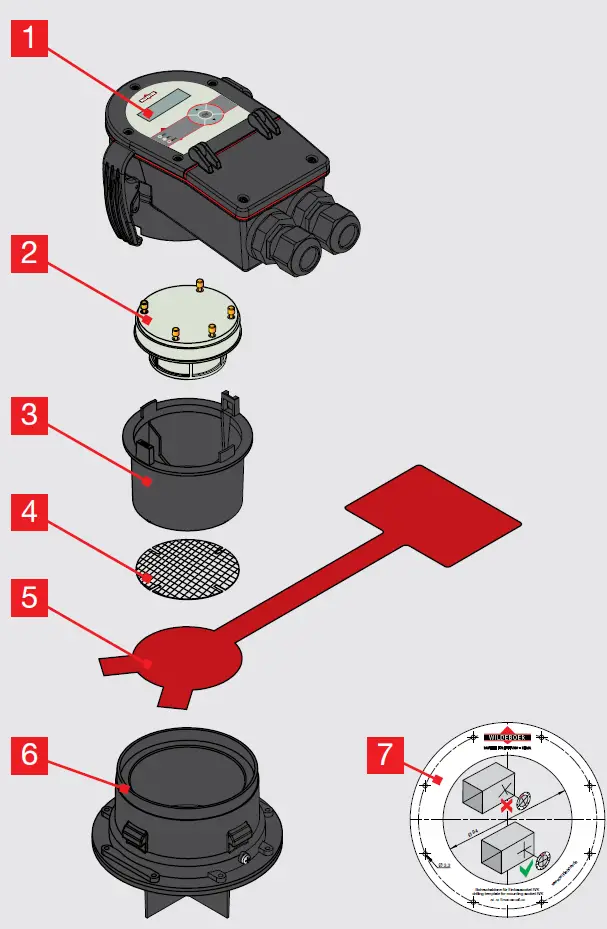

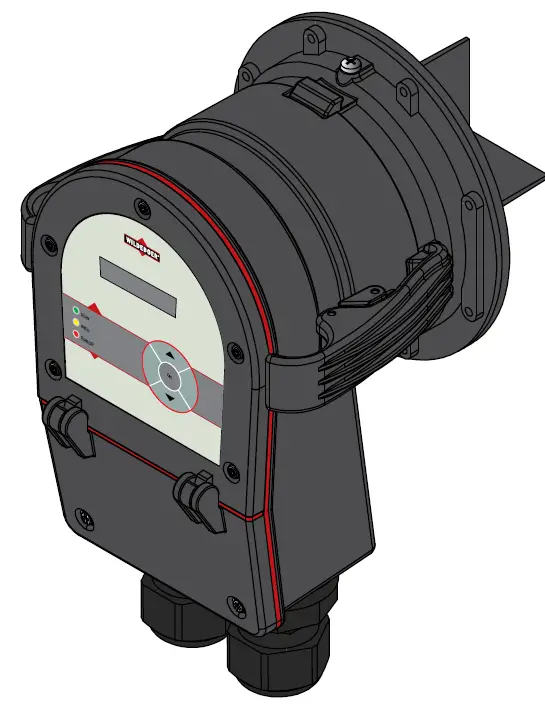

Illustration
Optional:
No.: Description
- Casing with analysis and control electronics
- OR4 basic:
LEDs for visualisation of operating statuses and soiling as a percentage.
TEST/RESET button
Galvanically isolated outputs
- OR4 pro:
LEDs + LCD display screen for visualisation of operating statuses, soiling as a percentage, and setting operating parameters.
3 buttons for operation on the device
Galvanically isolated inputs and outputs and RS485 interface
- OR4 basic:
RM4 smoke switch
For detection of smoke in ventilation ducts with automatic alarm threshold tracking for extended service life.- Flow insert
- OR4 basic:
For optimum flow-through of the smoke switch. - OR4 pro:
For optimum flow-through of the smoke switch with integrated flow sensor.
- OR4 basic:
- Protective screen
For protection of the smoke switch from coarse soiling. - Protective film
For protection of the smoke switch and the protective screen from soiling during the construction stage.
- R/K installation socket
For more straightforward installation of the smoke detection and tripping device in circular and rectangular
ventilation ducts. A saddle pipe [9] is required for installation in circular ventilation ducts.
- Drilling template
For marking the required sections and drilled holes on required ventilation ducts. - Optional: Sealing cover for installation socket For sealing the installation socket when the smoke detector has not yet been installed during the construction stage.

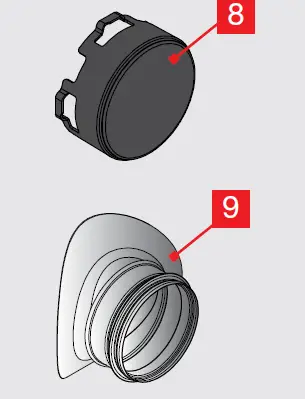

- Optional: Saddle pipe
For installation of the smoke detector in circular ventilation ducts.
RM4 smoke switch
OR4 basic/OR4 pro
| General information | OR4 basic | OR4 pro |
| Display screen | – | LCD display screen, 2 lines, backlit |
| Operation | 1 x Reset/Test button | 3 buttons for operation on the device |
| Flow monitoring | – | Yes |
| Signalling | Optical | Optical and acoustic |
| GLT interface RS485 | OR4 basic | OR4 pro |
| Communication interface | – | RS485 |
| Communication protocol | – | BACnet MS/TP, Modbus RTU |
| Galvanically isolated | – | Yes |
| GLT interface inputs | OR4 basic | OR4 pro |
| Quantity | 1 x semiconductor input for external normally open contact for Reset/Test | 2 x semiconductor input for external normally open contact
|
| Specification | 24 V DC (SELV), 11 mA | EN 61131-2, type 1 |
| Signal voltage 0 | – | 0 … 5 V DC (SELV) |
| Signal voltage 1 | – | 15 … 30 V DC (SELV) |
| Galvanically isolated | – | Yes (potential group) |
| GLT interface outputs | OR4 basic | OR4 pro |
|
Quantity |
1 x changeover contact (relay) | 6 x semiconductor outputs
|
| Specification | – | EN 61131-2 |
| Nominal load | – | 24 V DC (SELV), max. 600 mA per output |
| Contact load | 30 V AC/DC (SELV), 2 A | – |
| Galvanically isolated | Yes | Yes (potential group) |
| Alarm interface | OR4 basic | OR4 pro |
| Quantity | 2 x changeover contact (relay) | |
| Contact load | 24 V AC/DC (SELV), 250 V AC, min. 11 mA, max. 8 A | |
| Max. bounce time, closing/ opening | 4 ms / 10 ms | |
For further technical data.
Function

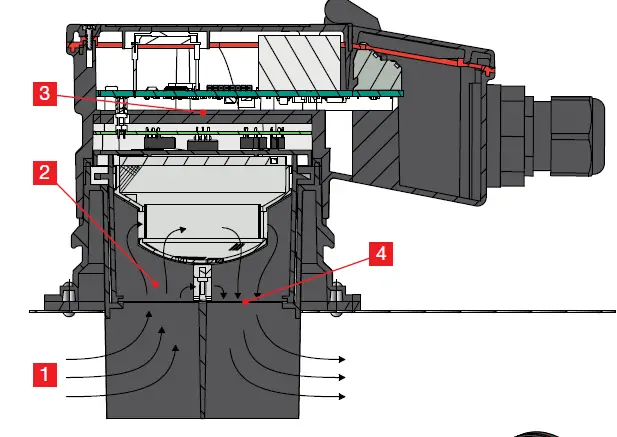

Part of the air which flows in the ventilation duct [1] is diverted into the flow chamber [2]. The separation plane [3] and the protective screen [4] protect the electronics from soiling in the process. The electronics monitor
the air flow for soiling and particles. Messages can be transmitted to a fire detection system or the building management system so that, in case of smoke detection, the necessary control scenarios can be triggered in good time in order to prevent smoke from transferring to other fire compartments.
The analysis and control unit can be removed and sprayed with a test aerosol for a functional test.
Installation
Installation details

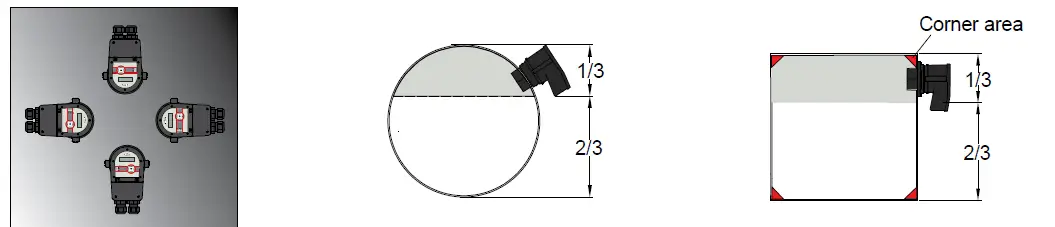

The OR4 can be installed with any alignment in ventilation ducts regardless of the direction of air flow (horizontally, vertically or at an angle). The continual through-flow and thus effective smoke detection must be guaranteed in the process. The corner area on rectangular ventilation ducts must not be used for installation.
In small and medium-sized duct cross sections, installation at the top, side or bottom is possible. In large, horizontal cross sections, installation in the upper third of the ventilation duct is recommendable in the interest of early smoke detection. Installation must be performed at a sufficient distance from connection points, such as plug connections or flanges.

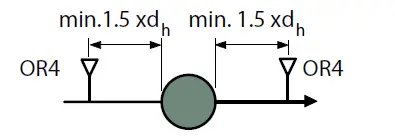

The gap upstream and downstream of disruption points (of all kinds) must be at least 1.5 x d h (hydraulic diameter).
Disruption point
A protective film is fitted in the factory in order to protect the smoke switch and the protective screen from soiling during the construction stage. It must be removed before commissioning.

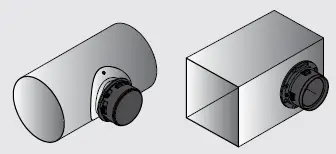

Installation in circular ventilation ducts
Installation in circular ventilation ducts is shown with the optional saddle pipe.

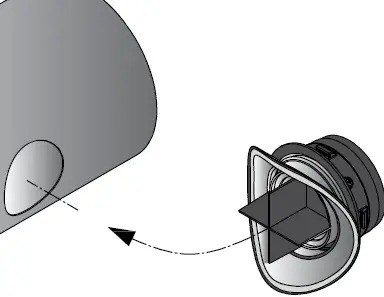

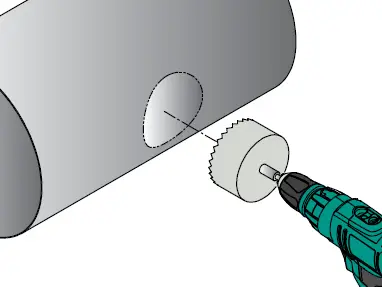

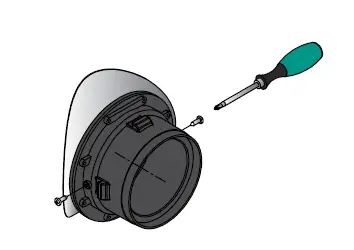

- Create the installation opening for the installation socket (Ø 94 … 98 mm).

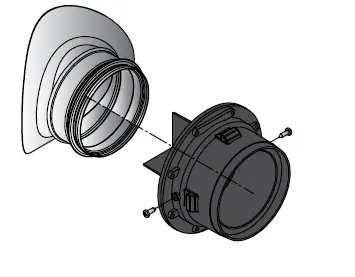

- Connect the connection socket to the saddle pipe, aligning the installation socket to the direction of the air in the process.
- Prick the saddle pipe slightly with the retaining screw, and pre-drill it without the installation socket (Ø 3 mm). Then, fit the installation socket again and secure it with screws.

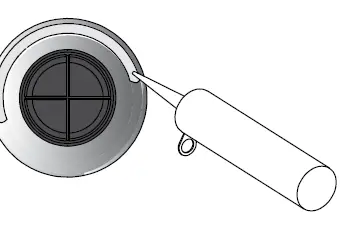

- Apply sealant (provided by the user) to the saddle socket so that it is airtight.

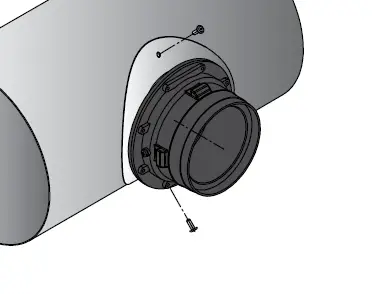

- Insert the saddle pipe into the installation opening with the installation socket.
- Drill (Ø 3.3 mm) and rivet the fastening holes for the saddle socket.
- Fasten the casing to the installation socket with the analysis and control unit.
- Optional:
A sealing cover can be used to seal the installation socket when the smoke detector has not yet been installed during the construction stage.
Installation in rectangular ventilation ducts

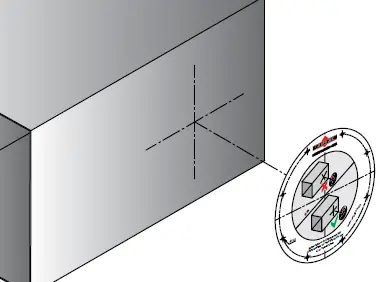

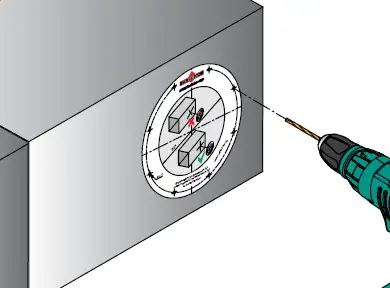

- Measure the centre point of the installation opening and stick on the drilling template.
- Drill the fastening holes for installation of the installation socket (3.3 mm).

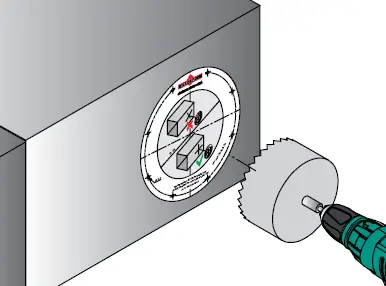

- Create the installation opening for the installation socket (Ø 94 … 98 mm).

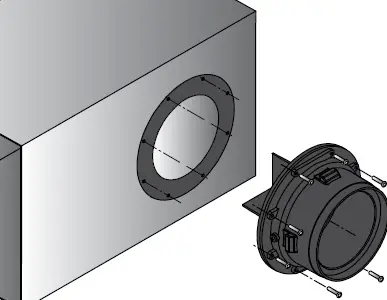

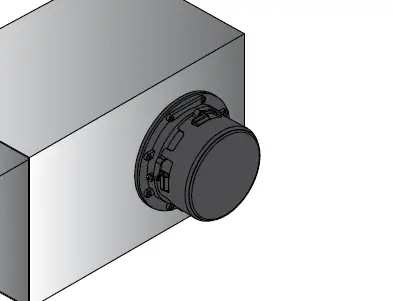

- Insert the installation socket into the installation opening and fasten it with pop rivets. In the process, align the installation socket to the direction of air.

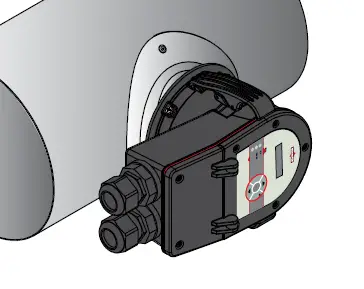

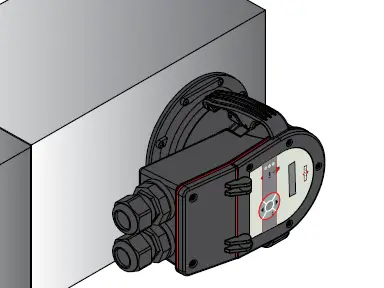

- Fasten the casing to the installation socket with the analysis and control unit.
- Optional:
A sealing cover can be used to seal the installation socket when the smoke detector has not yet been installed during the construction stage.

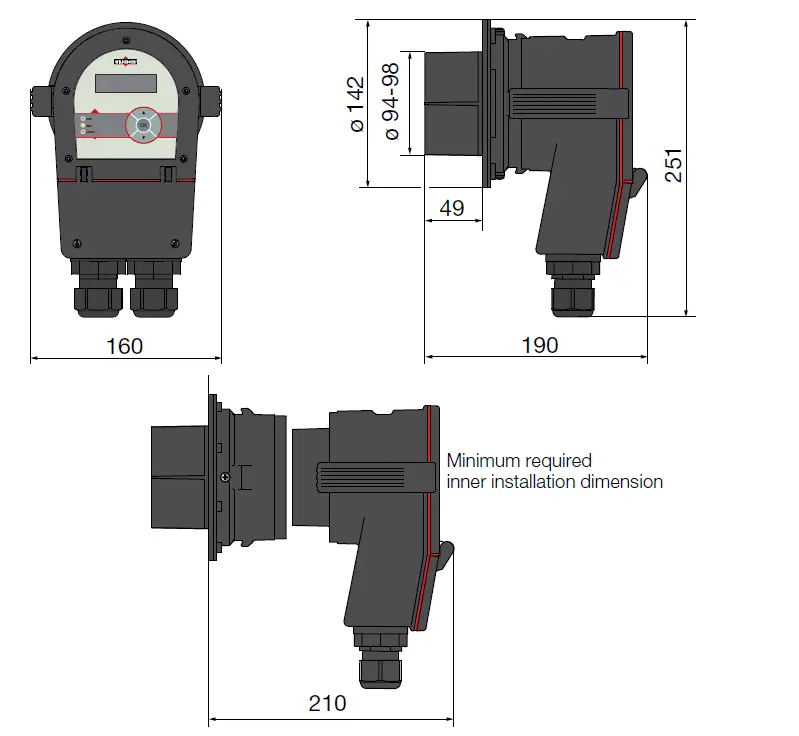

Dimensions
Order data
- For activation of fire dampers and smoke protection dampers for ventilation ducts
- For monitoring ventilation duct in conjunction with a fire detection system or the building management system
- For activation of fans
- Alarms and faults saved in case of power failure
- DIBt approval Z-78.6-250
- VdS approval G 221008
Equipment variant
- Optional:
- basic OR4 basic variant
- pro OR4 pro variant
Options
| Illustration | Description | Nominal diam- eter | Order data |
| Pack: Saddle pipe | DN 100 | ORSTU10 |
| DN 125 | ORSTU12 | ||
| DN 140 | ORSTU14 | ||
| DN 150 | ORSTU15 | ||
| DN 160 | ORSTU16 | ||
| DN 180 | ORSTU18 | ||
| DN 200 | ORSTU20 | ||
| DN 224 | ORSTU22 | ||
| DN 250 | ORSTU25 | ||
| DN 280 | ORSTU28 | ||
| DN 315 | ORSTU31 | ||
| DN 355 | ORSTU35 | ||
| DN 400 | ORSTU40 | ||
| DN 450 | ORSTU45 | ||
| DN 500 | ORSTU50 | ||
| DN 560 | ORSTU56 | ||
| DN 630 | ORSTU63 | ||
| DN 710 | ORSTU71 | ||
| DN 800 | ORSTU80 | ||
 | 4 x sealing cover for installation socket |
– | ZUB 0475 |
Spare parts
| Illustration | Description | Order data |
 | 1 x RM4 smoke switch | ZUB 0471 |
 | 20 x protective screen | ZUB 0470 |
 | 2 x R/K installation socket | ZUB 0472 |
 | 1 x flow insert with flow sensor (OR4 pro) | ZUB 0474 |
 | 1 x flow insert without flow sensor (OR4 basic) | ZUB 0473 |
Specification text
OR4 basic
Smoke detector with general type approval for activation and tripping of fire dampers and smoke protection dampers. Smoke detector for detection of smoke in ventilation ducts, for activation of fans and for transmitting signals to fire alarm systems or the building management system. Casing with flow insert and protective screen. Smoke switch and analysis electronics with floating relay outputs. Additional input without galvanic isolation. Smoke switch with automatic tracking of the response threshold in order to achieve a long service life. Removable without using tools for straightforward inspection and cleaning. Button for function test and for resetting after smoke detection. LEDs for visualisation of operating statuses and the soiling of the smoke switch as a percentage in multiple stages. Alarms and faults saved in case of power failure.
Suitable for installation at a short distance from disruption points (1.5 x hydraulic diameter). Installation not dependent on position or direction of air flow in rectangular ventilation ducts with an edge length of 100 mm or more and in ventilation pipes with a diameter of 100 mm or more.
….. pcs.
- Supply voltage: 230 V AC / 24 V AC/DC
- Manufacturer: WILDEBOER
- Type/series: OR4 basic
- VdS approval: G221008
OR4 pro
Smoke detector with general type approval for activation and tripping of fire dampers and smoke protection dampers. Smoke detector for detection of smoke in ventilation ducts, for activation of fans and for transmitting signals to fire alarm systems or the building management system. Casing with flow insert, protective screen and integrated flow sensor for flow monitoring. Smoke switch and analysis electronics with galvanically isolated and floating inputs and outputs. Smoke switch with automatic tracking of the response threshold in order to achieve a long service life. Removable without using tools for straightforward inspection and cleaning. Button for function test and for resetting after smoke detection. LEDs for visualisation of operating statuses and the soiling of the smoke switch as a percentage in multiple stages. LCD display screen for diagnostics, display and setting of all operating parameters. With galvanically isolated RS485 interface (protocols: BACnet, Modbus) for connection to GLT.
Suitable for installation at a short distance from disruption points (1.5 x hydraulic diameter). Installation not dependent on position or direction of air flow in rectangular ventilation ducts with an edge length of 100 mm or more and in ventilation pipes with a diameter of 100 mm or more.
….. pcs.
- Supply voltage: 230 V AC / 24 V AC/DC
- Manufacturer: WILDEBOER
- Type/series: OR4 pro
- VdS approval: G221008
Annex
Connection overview

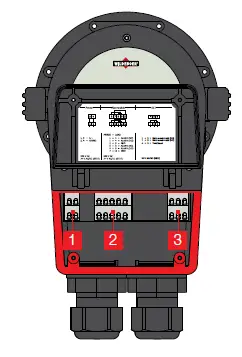

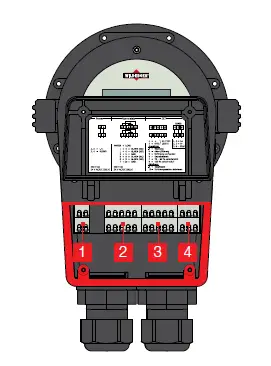

| Terminal diagram | No. | Connection description | |||||||||||||||||||||||||||||||||
| OR4 basic
| 1 | Mains connection
| |||||||||||||||||||||||||||||||||
| 2 | Alarm interface
| ||||||||||||||||||||||||||||||||||
| 3 | GLT interface
| ||||||||||||||||||||||||||||||||||
| 4 | GLT interface (RS485)
| ||||||||||||||||||||||||||||||||||
OR4 pro
Technical data
| Casing | |
| Dimensions (L x B x H) | Approx. 251 x 160 x 190 mm |
| Weight | Approx. 975 g |
| Material | ABS plastic |
| Connection cover tightening torque | 0.3 Nm |
| Cable gland tightening torque | 10 Nm |
| Retaining screws tightening torque, R/K on flanged collar | 0.5 Nm |
| Ambient conditions | Operation/transportation/stor- age | in the air duct |
| Temperature | -20 … +60 °C | -20 … +60 °C |
| Relative humidity | 95 %, non-condensing | ≤ +34 °C 95 % > +34 °C max. 35 g/m³ |
| Permissible flow range | – | 1 … 20 m/s |
| Safety | |
| Protection class | Class II |
| Protection rating | IP 54 |
| Mains connection | OR4 basic | OR4 pro | |
| Voltage supply | 24 V AC/DC ± 10 % / 230 V AC/DC ± 15 % | ||
| Nominal flow | 24 V AC/DC | 135 mA / 100 mA | 210 mA / 155 mA |
| 230 V AC | 30 mA | 40 mA | |
| Power consumption | 24 V AC/DC | P = 2.5 W / 2.4 W, S = 3.2 VA / 2.4 VA | P = 4.0 W / 3.7 W, S = 5.1 VA / 3.7 VA |
| 230 V AC | P = 3 W, S = 7.0 VA | P = 4.2 W, S = 8.9 VA | |
| Alarm interface 3 | OR4 basic | OR4 pro |
| Quantity | 2 x changeover contact (relay) | |
| Contact load | 24 V AC/DC (SELV), 250 V AC, min. 11 mA, max. 8 A | |
| Max. bounce time, closing/opening | 4 ms / 10 ms | |
| GLT interface – inputs | OR4 basic | OR4 pro |
| Quantity | 1 x input for external normally open contact | 2 x semiconductor input |
| Specification | Semiconductor, 24 V DC (SELV), 11 mA | EN61131-2, type 1 |
| Galvanic isolation | – | Potential group, isolated from the analysis electronics |
| Signal voltage 0 | – | 0 … 5 V DC (SELV) |
| Signal voltage 1 | – | 15 … 30 V DC (SELV) |
| GLT interface – outputs | OR4 basic | OR4 pro |
| Quantity | 1 x changeover contact (relay) | 6 x semiconductor outputs |
| Specification | – | EN61131-2 |
| Galvanic isolation | Yes | Potential group, isolated from the analysis electronics |
| Nominal load | – | 24 V DC (SELV), max. 600 mA per output |
| Contact load | 30 V AC/DC (SELV), 2A | – |
| Certification | CE marking |
| DIN EN 54-27:2015-05 | Directive 2014/30/EU (EMC Directive) |
| VdS 2344:2014-07 | Directive 2014/35/EU (Voltage Limits Directive) |
| Principles of design and testing 1967-12 par. 4.5.1, 4.5.2 | Directive 2014/65/EU (RoHs 2) |
| Spring terminals 1 | |
| Permitted conductor cross section | 0.5… 1.5 mm² (single-wire and extra-fine wired conductors without wire end ferrule) 0.5… 1.0 mm² (extra-fine wired conductors with wire end ferrule) |
| Stripping length | 9 … 10 mm |
| Wire end ferrules (WEF) 2 | Not required |
| Slotted screwdriver | 2.5 mm blade width |
| Current rating | 10 A per contact |
- With lever activation for connection of extrafine wired conductors and disconnection of conductors.
- Flexible conductors can be used with wire end ferrules (WEF) as per DIN 46228 part 1 or part 4.
- Take into account derating. See installation and operating instructions.
The technical data applies at input voltage nominal values and +24 °C ambient temperature.
Factory administration
Telephone: +49 4951 – 950 – 0
E-mail: [email protected]
Internet: www.wildeboer.de
Utrecht office
Telephone: +31 30 767 0150
E-mail: [email protected]
Internet: www.wildeboer.de/nl
Ulm office
Telephone: +49 7392 – 9692 – 0
E-mail: [email protected]
Internet: www.wildeboer.de
Leipzig office
Telephone: +49 34444 – 310 – 0
E-mail: [email protected]
Internet: www.wildeboer.de
Startseite - OER Einrichtung nach Maß
Wildeboer Bauteile GmbH
