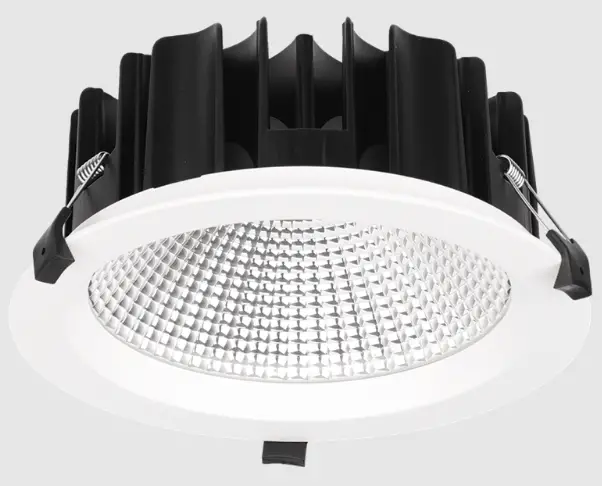

AURORA EN-DLH840 Dimmable Downlight
AURORA EN-DLH840 Dimmable Downlight
HOW TO INSTALL
Dimmable
EN-DDLH312,EN-DDLH413,EN-DDLH618,EN-DDLH818,
EN-DDLH825, EN-DDLH835, EN-DDLH840 & EN-DDLH1045
Non-Dimmable
EN-DLH840
DALI
EN-DDLH413DA,EN-DDLH618DA,EN-DDLH818DA,
EN-DDLH825DA, EN-DDLH840DA & EN-DDLH10450A
LED DRIVER INFORMATION
| Model | Voltage | -(W) | Number al LED mocklle | LED driver | Weight (kg) | Size(mm) |
| EN-DDLH312/30 |
2&-29VDC; 3SOmA | 12 | 45 | EN·DDLll312 | -0,40 0,40 | 9110’38mm |
| EN-DDLH312/40 | ||||||
| EN-DDLH413/30 | 13 | 45 | EN·DDLH413 | -0,59 0,59 | 9145•45mm | |
| EN-DDLH413/40 | ||||||
| EN-DDLH618/30 |
29-32WC; 800mA | 18 | 60 | EN-DDL11618 | -0,83 0,83 | 9190’45mm |
| EN-DDLH618/40 | ||||||
| EN-DDLH818/30 | 18 | 60 | EN-DDLll818 | -1,10 1,10 | 11228’45mm | |
| EN-DDLH818/40 | ||||||
| EN-DDLH825/30 | 2&-32WC; 700mA | 25 | 90 | EN-DDL11825 | -1,10 1,10 | 11228’45mm |
| EN-DDLH825/40 | ||||||
| EN-DDLH835/30 | 35-38VDC; 800mA | 35 | 96 | EN-DDL11835 | -1,10 1,10 | 11228’45mm |
| EN-DDLH835/40 | ||||||
| EN-DDLH840/30 | 32-35VDC; 1000mA | 40 | 110 | EN·DDLll840 | -1,10 1,10 | 11228’45mm |
| EN-DDLH840/40 | ||||||
| EN-DDLH1045/30 | 35-38VDC; 1000mA | 45 | 120 | EN-DDLH1046 | -1,70 1,70 | ll280″52nnl |
| EN-DDLH1045/40 |
IMPORTANT INSTALLATION INFORMATION

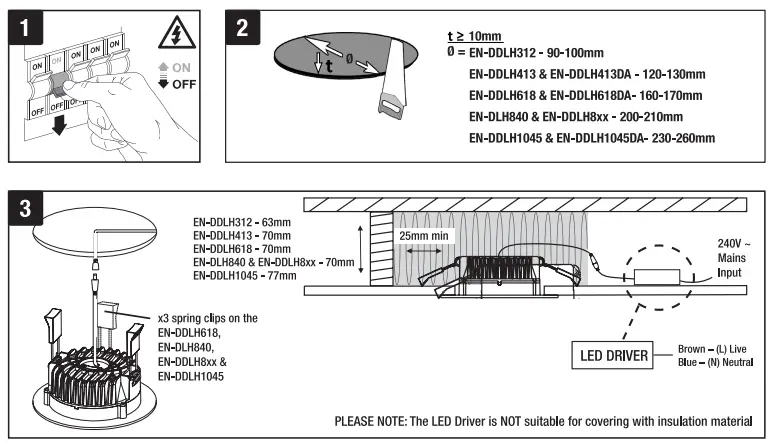

- Installation should be carried out by a qualified electrician in accordance with the latest edition of the National wiring regulations.
- Mains supply voltage 200-240V AC
- EN-DLH840 is not dimmable.
- EN-DDLH312, EN-DDLH413, EN-DDLH618, EN-DDLH818, ENDDLH825,
- EN-DDLH835, EN-DDLH840 & EN-DDLH1045 are triac dimmable.
- These luminaires are for indoor use only.
- Class II, Double Insulated an earth is not required.
- This luminaire is IP54 rated and is protected against splashing water from all directions when correctly installed. It is suitable for installation in locations containing a bath or shower, as defined by the National Wiring Regulations, Zones 1& 2 EXCEPT where water jets are likely.
- There are no replaceable parts in this luminaire.

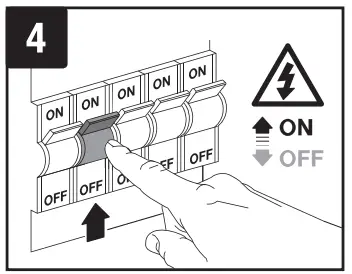

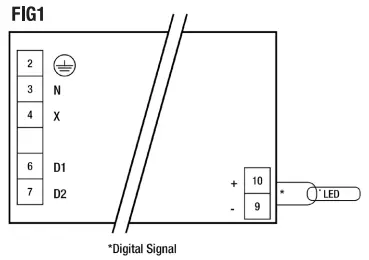

- For DALI installations – Connect the DALI bus wires to the DALI terminals on the LED driver marked accordingly- Normally DAIN
and DM. (See figure 1) - Connect Mains supply using a suitable junction box:
Brown – (L) Live
Blue – (N) Neutral - We do not recommend mixing LED•s circuits with products such as extractor fans. This is due to the sensitive nature of LED•s and is not product specific
- Please Note: May not be compatible with PIR’s. Please contact sales office for compatibility.
GUARANTEE
This product is guaranteed for a period of 3 years from the date of purchase. The guarantee is invalid in the case of improper use, installation, 1ampering, and removal of the Q.C. date label, installation in an improper working environment or installation not according to the current edition of the National Wiring Regulations. Should this product fail during the guarantee period ii will be replaced free of charge, subject to correct installation and return of the faulty unit.
Aurora does not accept responsibility for any installation costs associated with the replacement of this product This warranty is in addition to the statutory rights in your country of purchase. Aurora reserves the right to alter specifications without prior notice
