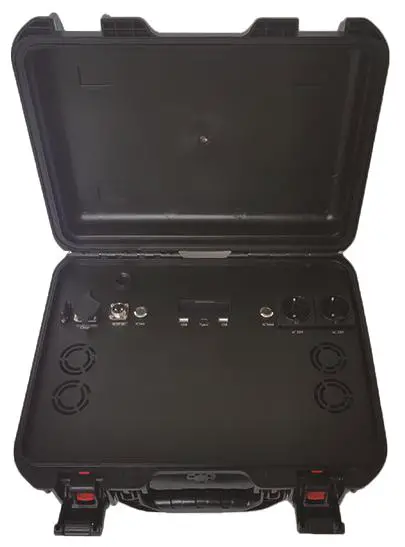

FEB1000W Portable Power Station
User Manual

Please read this manual before use and follow its guidance.
Keep this manual for future reference.

Safety instructions

Please observe the following instructions to ensure safe usage:

1. Do not alter or disassemble this product.
2. Do not move during charging or using it, because the vibration and impact during
3. moving will lead to poor contact with the output interface.
4. In case of fire, use dry powder fire extinguishers for this product. Do not use a water fire extinguisher, which may cause electric shock.
5. Close supervision is required when using this product near children.
6. Please confirm the rated specification of your load, and do not use it beyond the specification.
7. Do not place the product near heat sources, such as electric furnaces and heaters.
8. Do not touch the product or the plug-in points if your hands are wet.
9. Check the product and accessories prior to every use. Do not use if it is damaged or broken.
10. Please unplug the AC adapter from the wall outlet immediately in case of a lightning strike, which may cause heating, fire, and other accidents.
11. Use the original charger and cables for the wall outlet charge.
12. Please use the FEB1000W power station carefully and keep children away from it.
    ● WARNING: In case of fire, ONLY dry powder fire extinguisher works.
    ● WARNING: DO NOT insert foreign objects into any ports of the FEB1000W (AC, DC, or ventilation holes). The power station generates the same potentially lethal  AC power as a household wall outlet.
    ● WARNING: It is hazardous for anyone other than the authorized person to carry out any service or repair operation involving replacing the internal battery or other equipment components.

Packing list

IN THE BOX

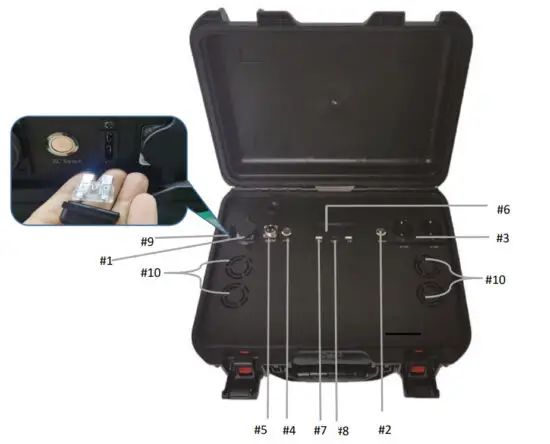

Function introduction

1. Input charge port for AC wall outlet and Solar panel.
2. AC Switch to control 2pcs AC outputs, to press the “AC ON/OFF” button to turn on/off the AC output
3. 2pcs AC outlet
4. DC Switch to control all DC output including USB, and LED light outlet, to press the “DC ON/OFF” button to turn on/off the DC output.
5. DC output for LED light 12V100W
6. LCD Display
7. 2pcs USB-A ports （5V/3A 9V/2A 12V/1.5A）
8. 1pc USB-C port（5V/3A 9V/2A 12V/1.5A）
9. The secure setting for overcurrent protection, it will break the fuse when the charging input current is over 20A, and only need to replace the fuse to restart the device.
10. Vent hole for cooling.

Note:
AC stands for alternating current.
DC stands for direct current.

General Information

Charging the device

There are two ways to charge:

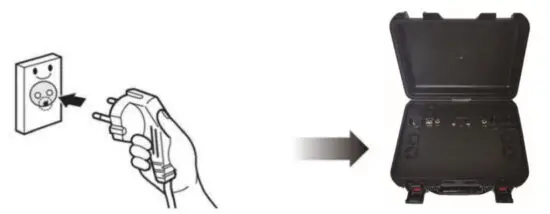

1. Charging mode 1: From the AC Wall outlet Connecting the product to the AC wall outlet, the charging will automatically stop when it reaches 100%

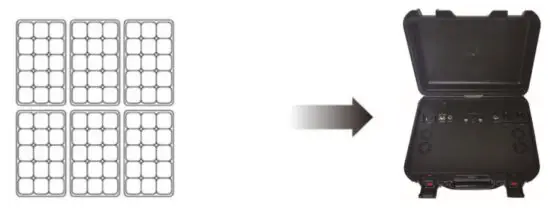

Charging mode 2: From the solar panels

• Choose the solar panel with working voltage DC 12V-14.6V.
• Connect the solar panel to the product via a solar charging cable (excluded).
• Plug and play charging: it will start charging automatically after connecting the solar panel to the product even it is off status.
• Max. the current of the solar is 20A, 240W Max;


Application scenario

1. Outdoor:
   Car equipment: car fridge, car vacuum cleaner and other backup power; Camping equipment: garden electric tools (power tools such as blowers, lawnmowers, electric drills,  electric saws), BBQ grills, LED lights, etc.
2. Indoor: Refrigerator, kitchen devices such as kettle, toaster, blender, coffee maker, rice cooker, laptops, phones, lighting, etc.

Examples of loads

1. USB output ports are suitable for most products in the market, but some products may trigger overcurrent protection if there is a large current impact at the moment of starting.
2. The power of electrical products used for AC output should be less than 1000W.
3. According to the different electrical products, when the rated power is less than 1000W, some air conditioners, motors, and other devices that need instantaneous high current when starting may trigger overcurrent when the ratio of the peak value of rated current exceeds 1:2. At this time, we recommended that you select the electrical appliances with a lower power rate.
4. When the output is overloaded, over-current, or short circuit, the product will turn off the corresponding output, and then it will automatically start thrice (at an interval of If there is still an overload, over-current, or short circuit alarm, the output will be locked, and it needs to be manually troubleshooting and then restart. If the output stops repeatedly after the restart, please stop using it immediately (only after troubleshooting) or contact the seller or maintenance agent for help.
5. When the battery power is discharged to 0%, the DC and AC output will automatically turn off. Only when the battery power is charged to more than 20%, the DC and  AC output can be turned on, which is to protect the battery and enhance its cycle life.
6. This device supports charging and discharging simultaneously.

Specification

Storage and maintenance instructions

1. Please fully charge the machine before storing it.
2. Turn off all power buttons.
3. To preserve the battery lifespan, please use and recharge at least once every 1 month.
4. Ensure proper ventilation while in use or store and keep away from any combustible materials or gases. Do not stack anything on top of the unit in storage or in use.  Inadequate ventilation and/or improper storing may cause damage to the unit.
5. Avoid exposing the product to rain or using the product in a humid environment.
6. Use and store the product in a clean and dry environment.
7. Keep this product away from children and pets.
8. Wring the cloth with water and wipe it clean In case of dirt.

Declaration

• Some changes may be made to the appearance and specifications without prior notice due to the improvement of the product.
• Our company shall not be liable for any damage caused by force majeure such as fire, typhoon, flood, earthquake or the user’s intentional negligence, misuse or other abnormal conditions.
• No compensation shall be made for the failure of nonstandard connectors/accessories.
• Our company will not bear all responsibilities if the damage is caused by not operating the product according to the use method in the operation manual.
• This product is not suitable for use on the relevant equipment or machines involving personal safety, such as atomic energy devices, aerospace devices, transportation devices, medical devices, etc., or the equipment or machines that must be highly reliable in electricity. If we use this product on the above-mentioned equipment or machine,  we will not be responsible for personal accidents, fire accident,s or wrong actions of the machine and equipment caused by the failure of this product.

Common faults and troubleshooting

If this product is unable to charge or power other equipment, please check according to the following steps.

1. Make sure the DC ON / OFF button and AC ON / OFF button are on.
2. Check whether the left battery capacity is more than 20%. If the left battery capacity is less than 20%, please change as soon as possible.
3. Ensure that the load equipment meets the power limit of the product, that is, the load power is within the maximum input range of each output interface; If the above steps still do not solve the problem, please contact the seller for help.

FAQ(Frequently Asked Questions)

• What is the depth of discharge (DOD)?
  To extend battery life, the portable power station has a DOD setting of 80%, which means that only 80% of the battery capacity can be discharged. Reserve 20% of the energy to avoid damage to the battery due to over-discharge.
• Can it be charged and discharged at the same time?
  Yes, it supports pass-through charging for both AC and DC loads. We recommend if you do this that you make sure to fully charge the FEB1000W at least once per month to extend battery life.
• Can AC output charge the refrigerator, air conditioner, or electric drill?
  Lower power for those devices can be charged. It is not recommended to use more than 900W power.
• Can two products be used in parallel?
  No.
• Can I use third-party solar panels?
  You can use any solar panels available as long as they have GX25-2 connectors and when wired together the voltage is between 20V and no more than 240W.
• How do I know if my appliance will work with the product?
  When figuring out what appliances can be powered with your portable power station, you will need to calculate how much the continuous loads are of each appliance you want to run simultaneously to determine if the total amount of watts is within the capacity of the generator. You can find the wattage of the appliance by looking at the manufacturer’s information (this information is usually stamped or printed on most appliances and equipment) to measure it’s wattage. Add all wattages of appliances to be run to determine if the total amount of watts is within the maximum continuous and surge watts.
• Can I connect the product to my home circuit breaker box?
  Can not.
