LITTLE SOB (SHUT OFF BOX)
INSTALLATION AND USE GUIDE
MNLSOB System Overview
NOT COMPATIBLE WITH DC CHARGE CONTROLLERS!
Rapid shutdown is a new requirement in NEC 201 4 Article 690.1 2. This requires the PV system to be shut down to a safe voltage level in 30 seconds*. The MNLSOB system fulfills the requirements of NEC 201 4 690.1 2 for string level shutdown and a module-level installation fulfills NEC 201 7 690.1 2. Inverters store energy in input capacitors. Some inverters may require the MNBLEEDER box (sold separately) to bring the system voltage down within the required time.
The MidNite Solar MNLSOB shutdown system is a convenient, economical way to help meet the requirements of NEC 690.1 2 and ensure safety for fire rescue and other emergency aid workers. The MNLSOB (Little Shut Off Box) is ready for today’s requirement for string-level shutdown and future requirements for the module-level shutdown.
Each Little SOB system consists of a transmitter and one or more receivers. A receiver may be connected to each solar panel in a string for module-level shutdown or to the last module in a string for the string-level shutdown. Any module the receiver is attached to must not exceed 80V open circuit and (depending on receiver model) 600 or 1 000 volts total string voltage. The transmitter, located at the PV+ entry of a grid-tie inverter, generates a signal that causes the receiver to connect each string or module to the inverter. The receiver attenuates the modules or string in the event of loss of signal. The receiver is powered by the panel to which attached.
The LSOB is intended to attenuate the array as part of a rapid shutdown system and does not replace required disconnects. The LSOB does not initiate a shutdown. Removing power to the transmitter either from the service disconnect or from a switch intended for this purpose will cause the LSOB to attenuate the array.
System Function
The transmitter generates a signal which is inductively coupled into the string PV+ line. The signal consists of an encoded 484.84 kHz tone. This signal is detected by the receiver and, if the received signal is correct, connects the string to the inverter. This ensures that the receiver only responds to a valid signal. In the absence of a valid signal, the receiver shuts off. After a valid command to turn on is received, the string is connected to the inverter or charge controller. When the signal goes away, there is a delay of 5 seconds before the receiver shuts off.
MidNite Solar 1 91 1 5 – 62nd Ave N.E.
Arlington, Wa 98223 360.403.7207k
www.midnitesolar.com
*NEC 201 4 TIA 1 4-9 extended the discharge time to 30 seconds.
IMPORTANT SAFETY INSTRUCTIONS
SAVE THESE INSTRUCTIONS – THESE INSTRUCTIONS CONTAIN IMPORTANT SAFETY AND OPERATING INSTRUCTIONS FOR LSOB Rapid Attenuation models: MNLSOB-T1 -600, MNLSOB-T1 -AC, MNLSOB-R1 -600, MNLSOB-1 000.
If you do not fully understand any of the concepts, terminology, or hazards outlined in these instructions, please refer installation to a qualified dealer, electrician, or installer. These instructions are not meant to be a complete explanation of a renewable energy system. All installations must comply with national and local electrical codes. Professional installation is recommended.
GENERAL PRECAUTIONS:
WORKING WITH OR IN THE VICINITY OF A LEAD-ACID BATTERY, SEALED OR VENTED IS DANGEROUS. VENTED BATTERIES GENERATE EXPLOSIVE GASES DURING NORMAL OPERATION. FOR THIS REASON, IT IS VERY IMPORTANT THAT BEFORE SERVICING EQUIPMENT IN THE VICINITY OF LEAD-ACID BATTERIES YOU REVIEW AND FOLLOW THESE INSTRUCTIONS CAREFULLY.
If service or repair should become necessary, contact MidNite Solar Inc. Improper servicing may result in a risk of shock, fire, or explosion. To reduce these risks, disconnect all wiring before attempting any maintenance or cleaning. Turning off the inverter will not reduce these risks. Solar modules produce power when exposed to light. When it is not possible to disconnect the power coming from the Photovoltaics by an external means such as a combiner, cover the modules with an opaque material before servicing any connected equipment.
When it is necessary to remove a battery, make sure that the battery bank disconnect breaker is in the off position and that the PV breakers, grid breakers, and any other sources of power to the inverter are in the off position. Then remove the negative terminal from the battery first.
To reduce the risk of battery explosion follow these instructions and those published by the battery manufacturer as well as the manufacturer of any additional equipment used in the vicinity of the batteries.
Avoid producing sparks in the vicinity of the batteries when using vented batteries. Provide ventilation to clear the area of explosive gases. Sealed AGM and Gel batteries do not under normal conditions create explosive gases. Refer to the battery manufacturer’s documentation. Be especially cautious when using metal tools. Dropping a metal tool onto batteries can short circuit them. The resulting spark can lead to personal injury or damage to the equipment. Provide ventilation outdoors from the battery compartment when installing vented batteries such as golf cart T-1 05 batteries. The addition of a spill tray is also a good idea.
Clean all battery terminals. Very high currents are drawn from the batteries; even a small amount of electrical resistance can result in overheating, poor performance, premature failure, or even fire.
Have plenty of fresh water and soap nearby in case battery acid contacts skin, clothing or eyes. Wear complete eye and clothing protection. Always avoid touching eyes while working near batteries. If battery acid or battery terminal corrosion contacts skin or clothing, wash immediately with soap and water. If acid enters the eyes, immediately flood with cool running water for at least 1 5 minutes and get medical attention immediately. Baking soda neutralizes battery acid electrolytes. Keep a supply near the batteries
Do not work alone. Someone should be in the range of your voice or close enough to come to your aid when you work with or near electrical equipment.
Remove rings, bracelets, necklaces, watches, etc. when working with batteries, photovoltaic modules, or other electrical equipment. Power from an illuminated photovoltaic array makes a very effective arc welder with dire consequences if one of the welded pieces is on your person.
To reduce the risk of injury, connect only deep cycle lead-acid type rechargeable batteries. Other types of batteries may leak or burst, causing personal injury or damage.
Wiring methods used shall be in accordance with the Canadian Electrical Code, Part I.
Wiring must be done in accordance with the National Electrical Code Article 690 ANSI/NFPA 70. Use Class 1 wiring methods for field wiring connections
to terminals of a Class 2 circuit. Use only 1 4-1 0 gauge AWM wire. Select the wire gauge used based on the protection provided by the circuit breakers/fuses. Overcurrent protection must be installed as part of the system installation. Refer to the wiring diagrams provided in this manual for breaker/fuse sizes and model numbers.
Use of attachments or accessories not approved by MidNite Solar could result in damage or injury.
Before making any connections verify that the circuit breakers are in the off position including the inverter breaker. Double-check all wiring before applying power.
WARNING: Cancer and Reproductive Harm – https://www.p65warnings.ca.gov/
LITTLE SOB (SHUT OFF BOX) INSTALLATION AND USE GUIDE

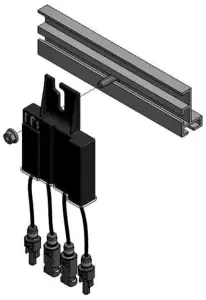

Mounting the receiver
The receiver is designed to mount on the rack near the panels that it is connected to but maybe bolted to any appropriate nearby structure.
Refer to the rack manufacturer’s instructions.
Use a 5/1 6 X 1 ” bolt for alternate mounting schemes. Do not overtighten. MNLSOB receivers are fully potted and may be mounted where exposed to the weather.
Example of typical rack mounting.
Mounting the transmitter
The transmitter may be installed in or near the inverter.
Important! The transmitter must be installed in a protected environment such as in the inverter or similar enclosure.
Do not allow transmitter wires to be exposed outside of an enclosure.
1 2 Volt transmitter: Connect the red wire to +1 2 to 1 6 VDC and black wire to negative

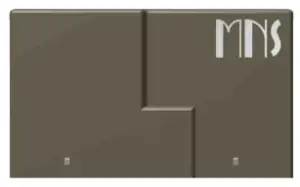

AC Transmitter: Connect black wires to 90-300 VAC 50-60 HZ
Transmitter output coil
The transmitter may also be mounted with double-stick tape or hook and loop fastener (Not Supplied).
Example of customer supplied double stick tape/hook and loop fastener.
Example of PV in wires routed through the transmitter output coil See page 6 for wiring instructions.
Introduction.
This document is for the installation and operation of the LSOB.
Important! The Little SOB is NOT a service disconnect nor is it intended to be used as one. The transmitter stops sending a keep-alive signal to the receiver ONLY when power is removed from it. In the case of an AC-powered transmitter, the AC power to the AC-powered transmitter MUST be disconnected; a DC-powered transmitter MUST have the DC that powers it disconnected. Power from the array will not be disconnected until this power is removed
Connection and Use
For the basic installation, connect the LSOB system as shown in the wiring diagram on page 6. It is possible to
connect the receiver in other positions (e.g; in the middle of the string or at the furthest panel). The LSOB may be used for string or module-level shutdown. See Application Note 1.
Either the plus or minus string wire may go through the transmitter’s output coil but not both plus and minus. This would cancel any signal preventing proper operation. See Application Note 1.
Only one transmitter is required per installation. Multiple strings can be controlled by a single transmitter bypassing the PV+ wire of each string through the transmitter coupling ring. See Application Note 2.
Application Notes
Note 1
Since the transmitter signal is carried through the entire solar string, the receiver may be placed at any point in that string.
It may be more convenient to couple the transmitter using the PV- versus the PV+, depending upon the installation.
The LSOB may be used as a string (one receiver per string) or module (one receiver per panel) level shutdown.
The transmitter can drive six strings.
Note 2
No more than one transmitter should be used on a single Building/System. Interference between transmitters may occur. One transmitter can provide a signal for several receivers on the same string or parallel strings. A single inverter even with many parallel strings would require only one transmitter. To avoid nuisance tripping when multiple transmitters are used, the PV conductors connected to each transmitter should not share the same conduit or wiring enclosure. Solar Modules should not share the same space, Contact MidNite Solar customer support for details and assistance
Note 3
The transmitter has been tested with runs up to 2000 feet. The best performance will be achieved by avoiding odd multiples of 500 feet. The maximum run length depends on many factors in the installation.
Note 4
Rapid attenuation is initiated by removing power from the transmitter. The transmitter power should be connected such that when the inverter shuts down the transmitter also shuts down. Fire-fighters frequently pull the power meter to cut power to the building. In a grid-tied system, this should also cause a shutdown of the PV array. A normally closed non-momentary “Panic button” may be installed in line with the transmitter power for the manual shutdown. For off-grid and other systems connect the transmitter such that removing the main power will also remove power from the transmitter, thus attenuating the PV array.
Important! Restoring power to the transmitter will re-enable output from the PV array. Always ensure that it is safe to restore power before providing power to the transmitter.
Important! The MNLSOB should be tested once a year as part of regular system service.

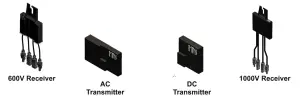

Ratings:
MNLSOB-R1 -1 000 1 000VDC 1 2 AMPS MAX – 80 VDC Panel Voltage
MNLSOB-R1 -600 600VDC 1 2 AMPS MAX – 80 VDC Panel Voltage
MNLSOB-T1 -AC 90-300 VAC 50-60 Hz 3 Watts
MNLSOB-T1 -600 1 2-1 6VDC 250 mA max.

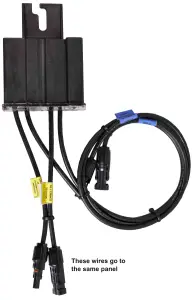

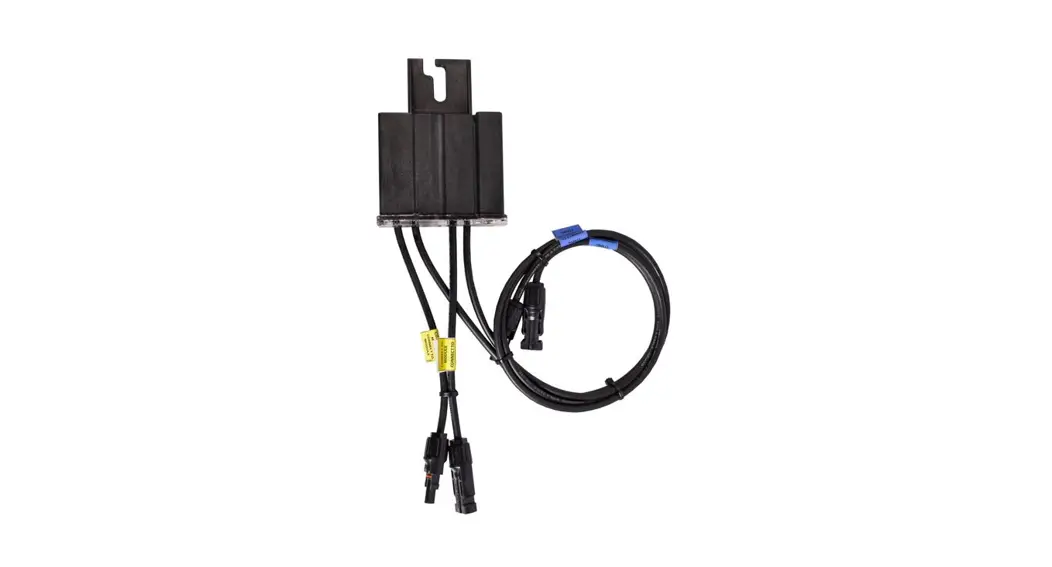

600 Volt receiver shown.
Applies to all receivers
600 V and 1 000 V.
Important!
The two wires shown must go to the same panel. They are marked “Connect to the module”.
Miswiring can put an excessively high voltage across the receiver’s power supply. Permanent damage will result.

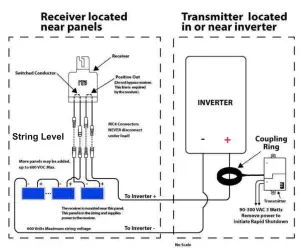

System Wiring

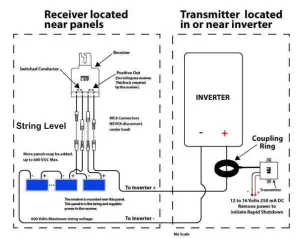

The wiring diagram below is of a simplified typical installation.
The MNLSOB-R1 -600 or MNLSOB-R1 -1 000 will work with either transmitter MNLSOB-T1 -600 or MNLSOB-T1 -AC
The transmitter is located within or near the inverter. Either the positive or negative wire (but not both) from the string is routed through the transmitter’s coupling ring. As long as the transmitter is powered it sends the keep-alive signal to the receiver through the PV wire. Interrupting this signal initiates
Rapid Shutdown.
MNLSOB-T1 -600 and MNLSOB-R1 -600 shown
CAUTION!
PV systems may have very high voltage.
Always disconnect all sources of power and cover the solar panels.
The receiver is located near one of the panels in the string that is to have Rapid attenuation capability.
Power is supplied to the receiver from the panel it is connected to. (This panel is still in the string).
During normal operation, the receiver transparently passes power. When the transmitter’s signal is interrupted the receiver opens the circuit within a few seconds.
Pay close attention to the wiring diagram in this manual. If the receiver is wired incorrectly, damage will result!
System Wiring Continued
L.E.D. Meaning is Visible through the clear lens on the transmitter and receiver.
Receiver: Yellow Blinking means the keep-alive signal is being received. Red solid means the receiver is active.
Transmitter: Red Blinking means the keep-alive signal is being transmitted.
MidNite the cat Says:
“I won’t tell anyone that you read the manual. It is our little secret.”

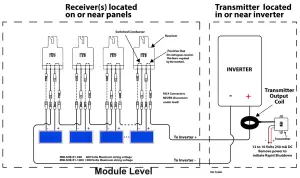

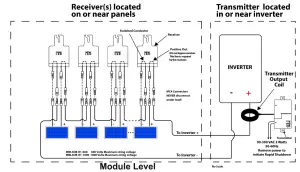

The receiver is located near each of the panels in the string. Power is supplied to the receiver from the panel it is connected to.
During normal operation, the receiver transparently passes power. When the transmitter’s signal is interrupted, the receiver opens the circuit within a few seconds.
Pay close attention to the wiring diagram in this manual. If the receiver is wired incorrectly, damage will result!
