Miele Stb 201 Turbo Plus Vacuum Brush Instruction Manual

Operating Instructions Turbobrush

IMPORTANT SAFETY INSTRUCTIONS

This turbo brush complies with current safety requirements. Inappropriate use can, however, lead to personal injury and damage to property. To avoid the risk of accidents and damage to the Turbobrush and to the vacuum cleaner, please read these instructions and those of the vacuum cleaner carefully before using for the first time. They contain important information on safety, operation, and maintenance. Keep these operating instructions in a safe place and pass them on to any future user.

Always disconnect the vacuum cleaner from the power supply when you have finished using it, before changing over accessories, as well as for maintenance work and cleaning. Turn the vacuum cleaner off and unplug it.
READ THESE INSTRUCTIONS COMPLETELY BEFORE USING THIS ACCESSORY FOR THE FIRST TIME. KEEP THESE OPERATING INSTRUCTIONS FOR FUTURE REFERENCE.

Correct use

• The Turbobrush must only be used for household purposes to vacuum and brush dry floor surfaces. Do not use it on people or animals. Any other use, modification, or alteration to the brush is at the owner’s risk and could be dangerous.
• Persons which lack physical, sensory, or mental abilities or experience with the machine should not use it without supervision or instruction by a responsible person.

Safety with children

• The danger of suffocation! Ensure that any plastic wrappings, bags, etc. are disposed of safely and kept out of the reach of children.
• Children must be kept away from the vacuum cleaner and Turbobrush unless they are constantly supervised.
• Do not allow the vacuum cleaner to be used as a toy. Close attention is necessary when used near children.

Technical safety

• Before using the Turbobrush, check for any visible signs of damage. Do not use a damaged appliance or damaged accessories.
• Do not immerse the Turbobrush in water. Clean all parts with a dry or slightly damp cloth only.

Proper use

• Switch the vacuum cleaner off immediately during pauses to avoid danger.
• Never touch the roller brush while it is rotating.
• Do not use the Turbobrush at head level.
• Keep the Turbobrush away from curtains, clothing, etc. as these could be vacuumed in and become entangled in the roller brush.
• Do not vacuum up any flammable or combustible liquids or gases and do not vacuum in areas where such substances are stored.
• Do not vacuum any surfaces where there is a danger of items being sucked up or becoming entangled in the roller brush.
• Do not use the vacuum cleaner to vacuum up any water, liquid, or damp dirt. Wait until any freshly cleaned or shampooed rugs or carpets are completely dry before attempting to vacuum.
• Do not vacuum up anything which has been burning or smoking, e.g., cigarettes, ashes, or hot ash, whether glowing or apparently extinguished.

SAVE THESE INSTRUCTIONS

References to illustrations
The illustrations referred to in the text are shown on the fold-out pages at the end of these Operating Instructions.
Turbobrush features
The Turbobrush is operated by the suction power of the vacuum cleaner. It has a rotating roller brush which is very effective at picking up thread, hairs, and fluff. Four rollers maintain the brush 1/16″ (1.5 mm) away from the floor.

Recommended use
The Turbobrush should not be used for vacuuming deep-pile rugs and carpets or valuable hand-knotted rugs and carpets, e.g. Persian and oriental rugs, etc. There is a danger of the threads being pulled out.
Do not use the Turbobrush to clean highly variable or uneven floors. The brush might come into contact with the floor and cause damage.

The Turbobrush is particularly suitable for vacuuming thread and hair from short pile carpeting.
The standard floorhead or one of the Miele floor brushes should be used for cleaning hard floors.

It is also important to observe the flooring manufacturer’s cleaning and care instructions.

Securing the Turbobrush

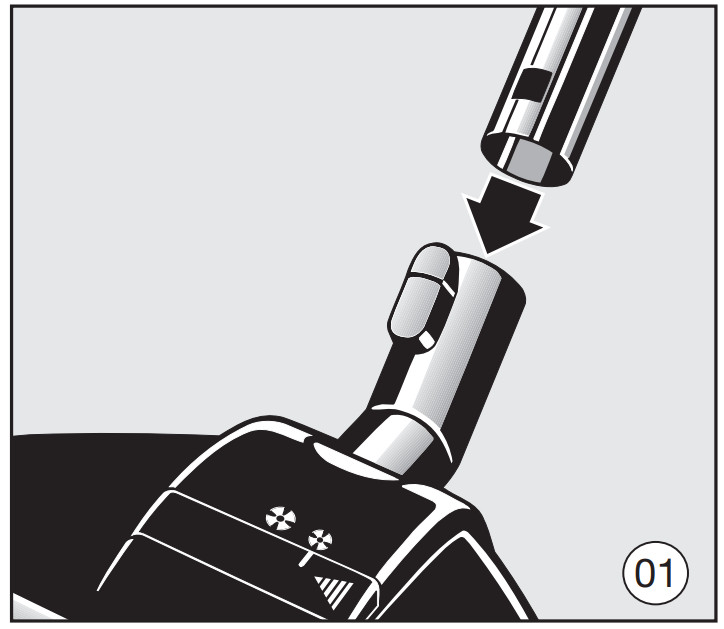

Model STB 205 (Fig. 01)
This Turbobrush is intended for use with Miele vacuum cleaners.

• Instead of the usual floor attachment, fit the Turbobrush to the suction wands, turning it clockwise or counter-clockwise until it clicks into position.

Model STB 201 Vario (Fig. 02)
This Turbobrush has an adjustable adapter, enabling it to be used with nonMiele vacuum cleaners. The adapter fits suction wands with a diameter of between 1 1/4“ and 1 1/2” (30 and  38 mm). Only use the turbo brush with high-performance vacuum cleaners.

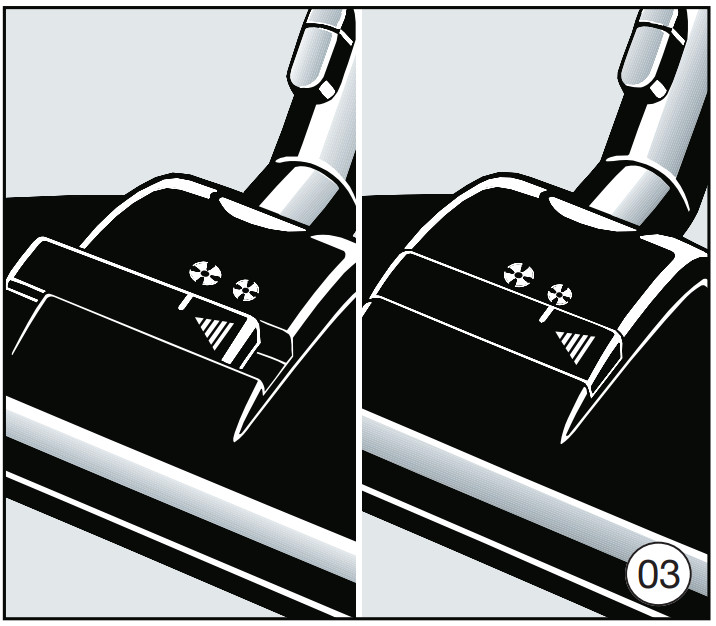

Opening the air inlet valve (Fig. 03)
The brush is operated by the suction power of the vacuum cleaner. With deeper, dense pile carpets the roller brush may rotate more slowly. This is caused by the carpet pile creating a seal around the mouth of the Turbobrush and hindering the flow of air. This will affect how well the carpet is brushed.

• To increase the airflow, open the air inlet valve (left-hand illustration). In all other situations the air inlet valve should be closed, to benefit from the full suction power.
• Close the air inlet valve (right-hand illustration).

Maintenance
Always disconnect the vacuum cleaner from the electrical supply for cleaning and maintenance work on the Turbobrush. Switch off at the wall socket and remove the plug.

Removing threads and hairs (Fig. 04 – 06)

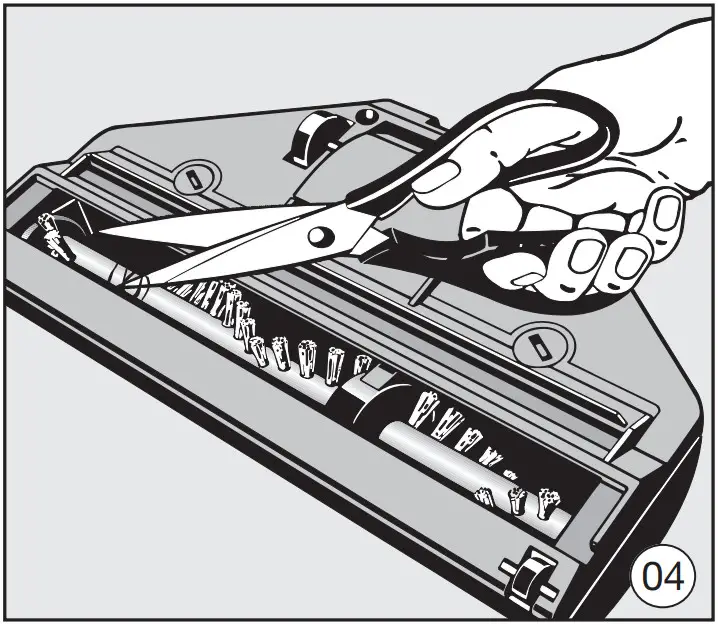

• With a pair of scissors (Fig. 04), cut any threads or hairs that have become entangled on the roller brush. Then run the vacuum cleaner to vacuum up the bits. For more tangles or blockages inside the Turbobrush, the cover can be opened. Any large particles can then be easily removed.

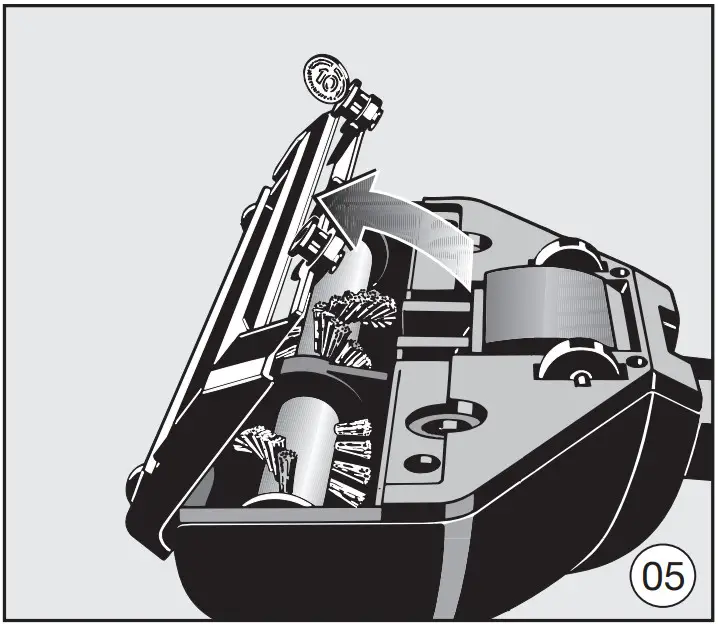

• Unlock the roller cover on both sides with a coin and remove the roller cover (Fig. 05).
• Remove any dirt from the interior and from the roller brush.

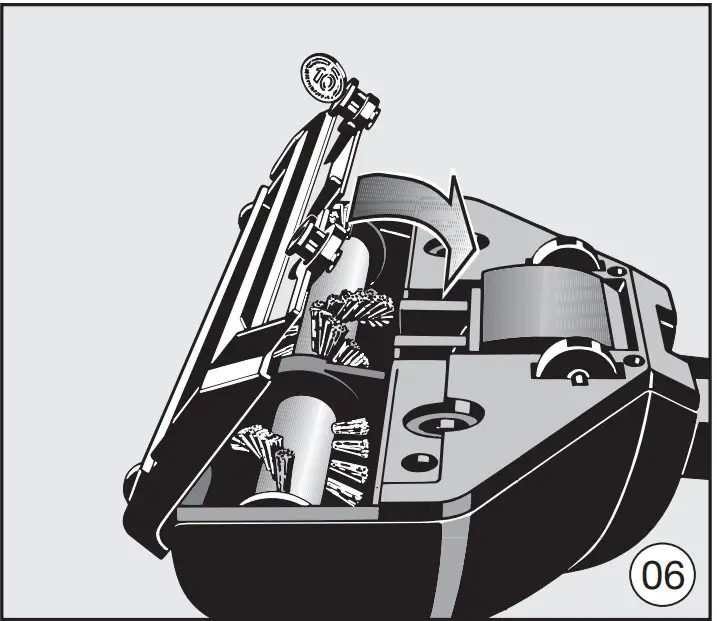

• Replace and engage the roller cover (Fig. 06).

United Kingdom
Miele Co. Ltd., Fairacres, Marcham Road, Abingdon, Oxon, OX14 1TW Tel: 0330 160 6600, Internet: www.miele.co.uk/service, E-mail: [email protected]

Miele & Cie. KG
Carl-Miele-Straße 29
33332 Gütersloh
Germany
Tel.: +49 5241 89-0
Fax: +49 5241 89-2090
Internet: www.miele.com
