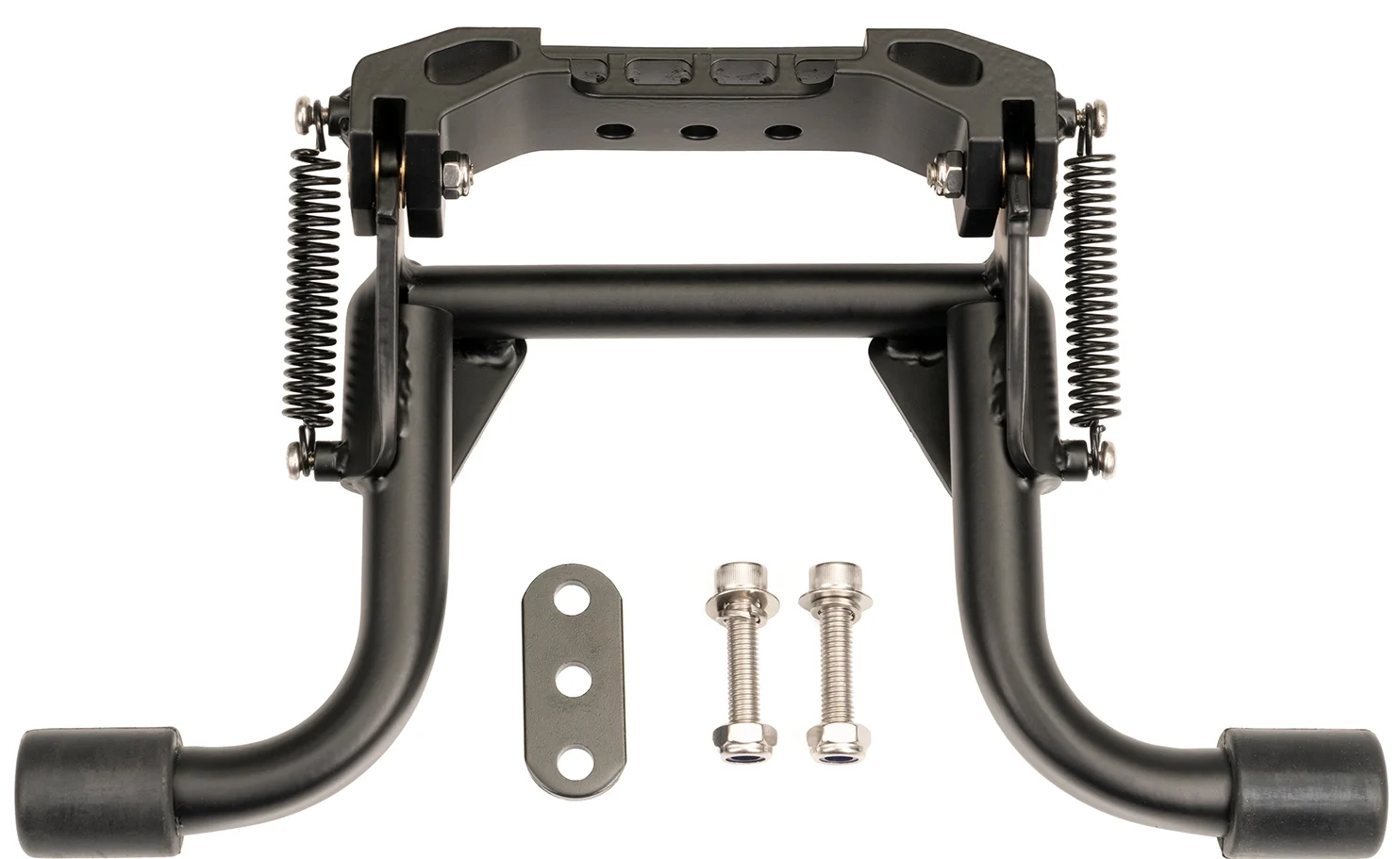

tern DuoStand Double Leg Kick Stand
Safety
Do not exceed the load limit of 60 kg (132 lb). Please remember the max load limit includes the weight of the bike.
Never leave children on a parked bike unattended.
Compatible Bikes
- HSD Gen 1
- HSD Gen 1A

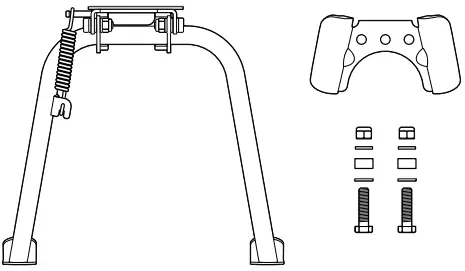

What’s Included
- DuoStand
- Wing-shaped Plate
- Bolt Set x 2
Installation
Tools required (not included)
17 mm Wrench x 2
5 mm Allen Wrench

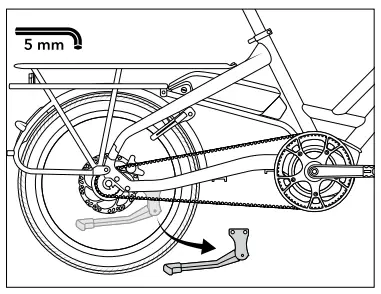

- Remove the existing kickstand.

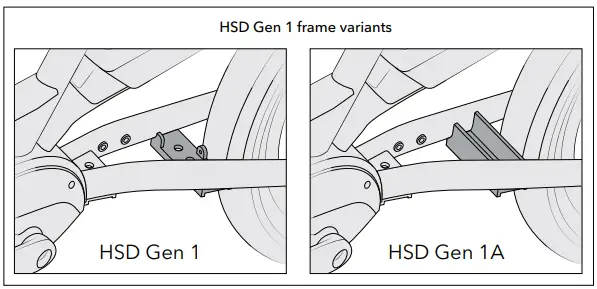

- Identify the HSD frame variant by locating the kickstand mount in front of the rear wheel.

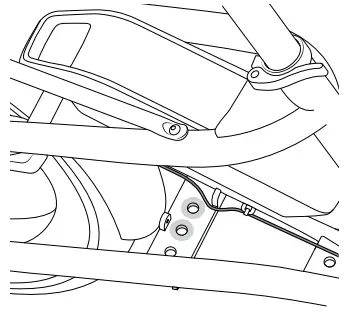

Mounting Location

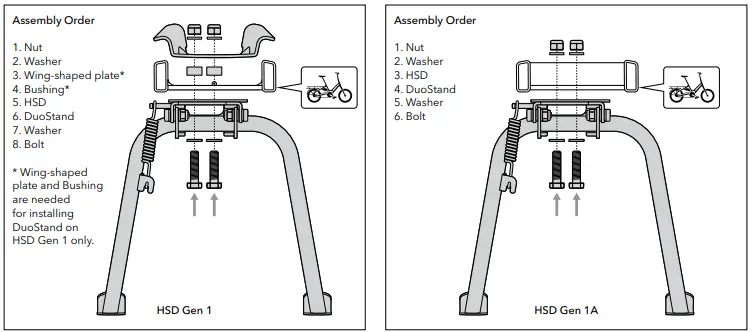

- Install hardware in the order shown.

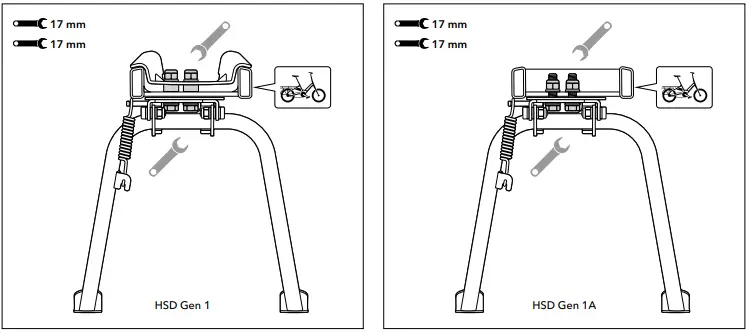

- Tighten Bolts to a torque of 35-40 Nm.
LIMITED PRODUCT WARRANTY INFORMATION: This Product comes with a ONE (1) YEAR Limited Warranty from the date of retail purchase by the original end-user. If a material or workmanship defect arises and a valid claim is received within the Warranty Period, this Product will be replaced. Mobility Holdings cannot be held liable for damages to personal property due to misuse or improper care and maintenance. This Product Warranty does not, under any circumstance, cover the replacement or cost of any third party product used with or connected to the Product.
Tern, the Tern Werd (logotype), the Tern Berd (device), and DuoStand used alone or in combination are trade names, trade devices or registered trademarks of Mobility Holdings, Ltd.
© 2021. Tern is a trademark of Mobility Holdings, Ltd. All Rights Reserved
