Undisclosed Red1rc 1 5 Scale Shock Stand Instructions

UNDISCLOSED RED1RC 1 5 Scale Shock Stand Instructions

SHOCKS WITH SPRINGS

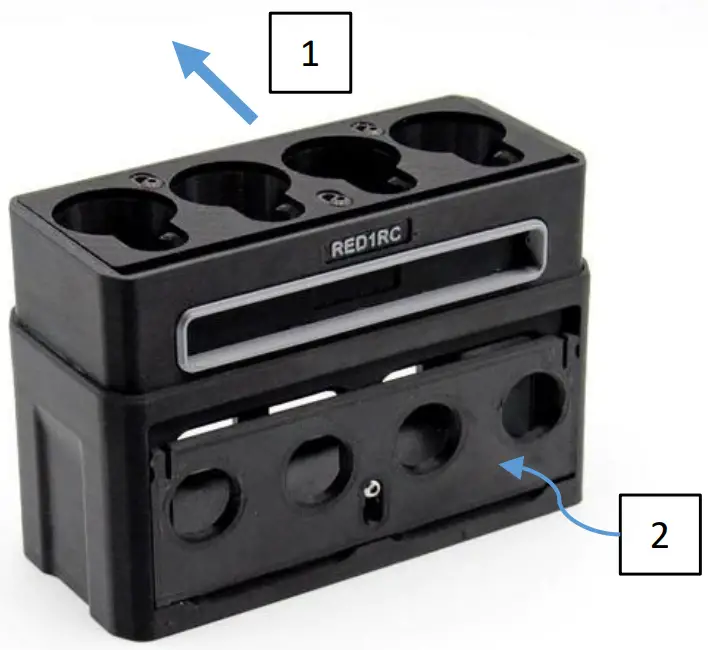

1. SLIDE TOP PLATE (DIRECTION SHOWN)
2. SLIDER INSERT TO BE STOWED (AS SHOWN)

3. INSERT SHOCKS

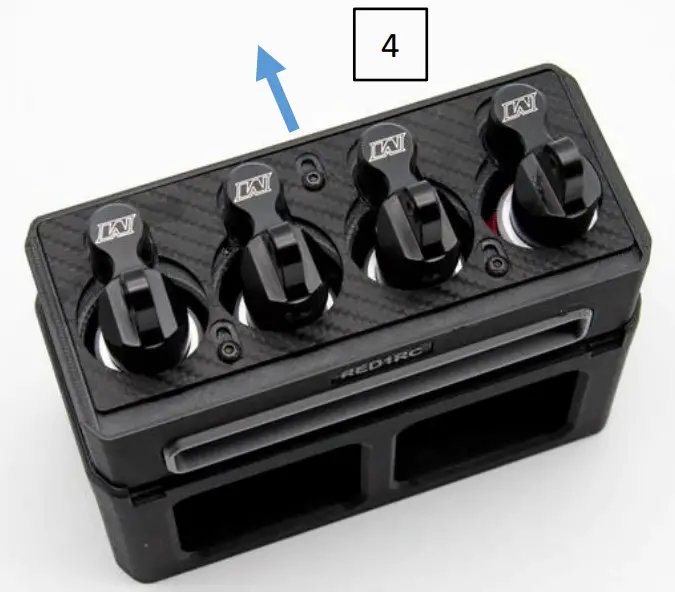

4. SLIDE TOP PLATE (DIRECTION SHOWN)
   TO LOCK/HOLD THE SHOCKS FOR STORING


SHOCKS WITHOUT SPRINGS

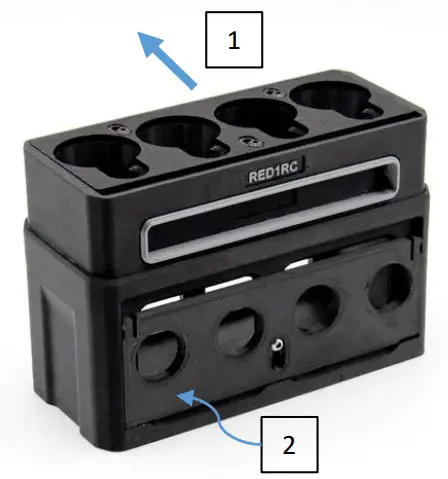

• 1. SLIDE TOP PLATE (DIRECTION SHOWN)
• 2. REMOVE SLIDER INSERT (SLIDE UP AND PULL)

• 3a. INSERT SLIDER INTO THE FRONT OPENING
• 3b. ARROW GOING IN FIRST

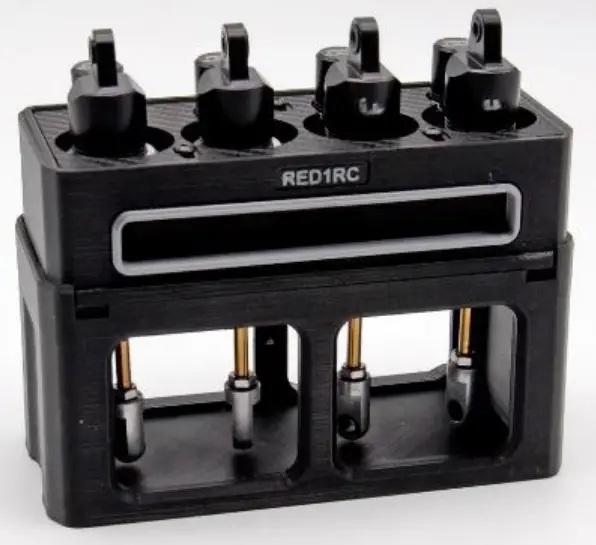

INSERT SHOCKS
