TUNE Flex Earbuds
User Guide

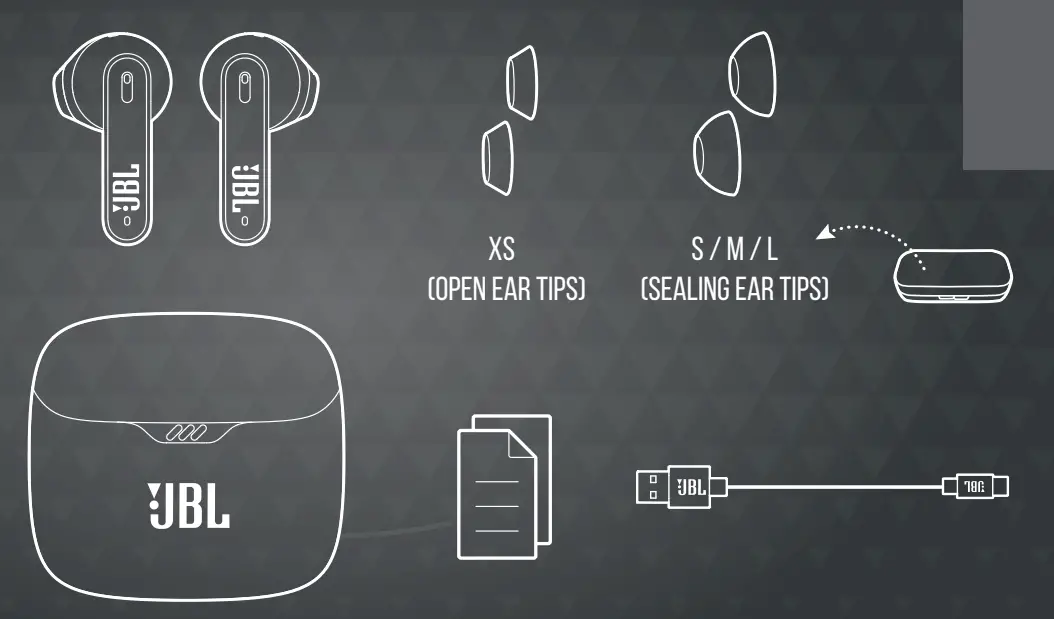

WHAT’S IN THE BOX
https://register.jbl.com.utm_medium=US&utm_source=QSG
APP
https://storage.lscloud.harman.com/Testing/MyJBLHeadphones/QRCodeDownload/appstore/jblheadphone.html
how to wear

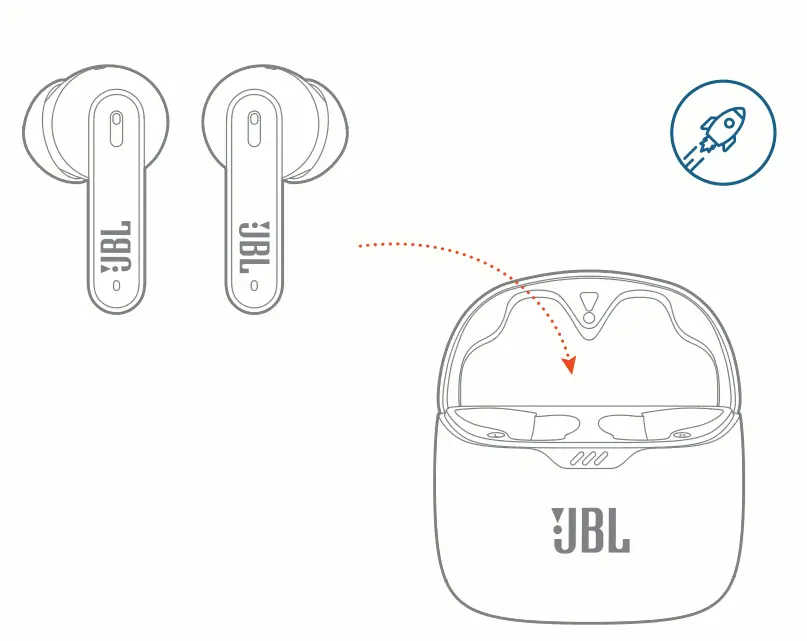

First-time use

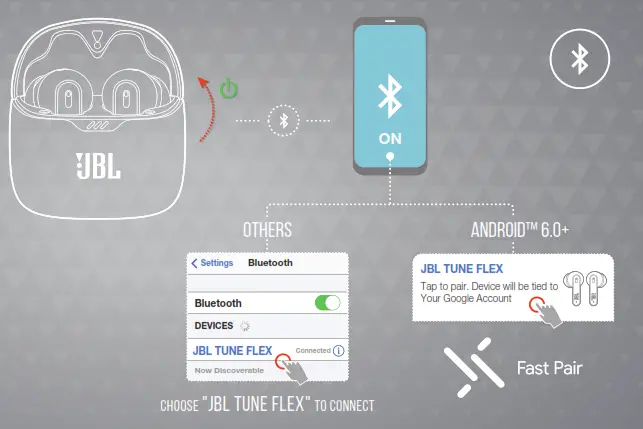

POWER ON & CONNECT

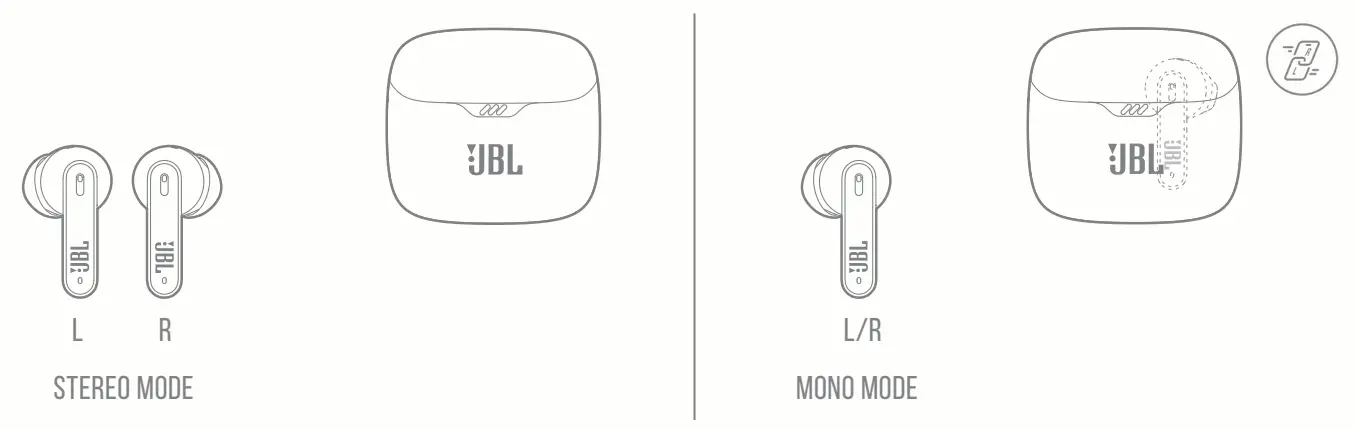

DUAL CONNECT + SYNC
CONTROLS
* Enable advanced controls by connecting your JBL Tune FLEX to JBL Headphones App
.
** ENABLE YOUR VOICE ASSISTANT THROUGH JBL HEADPHONES APP AND ASSIGN IT TO YOUR PREFERRED EARBUD (L/R).
*** Select the ear tips you are using for the best sound performance.

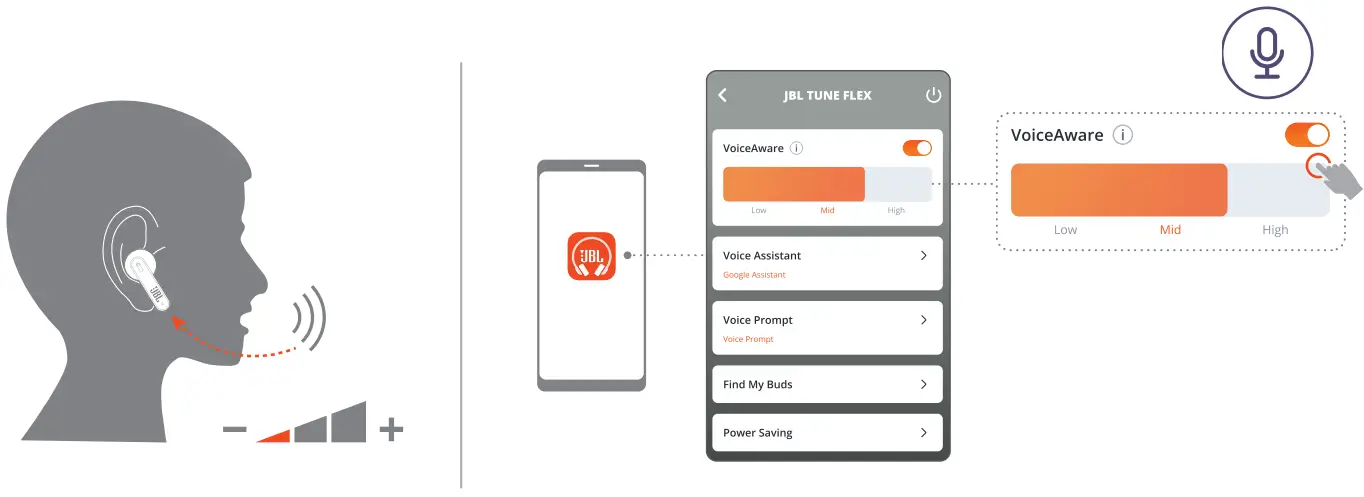

VOICEAWARE

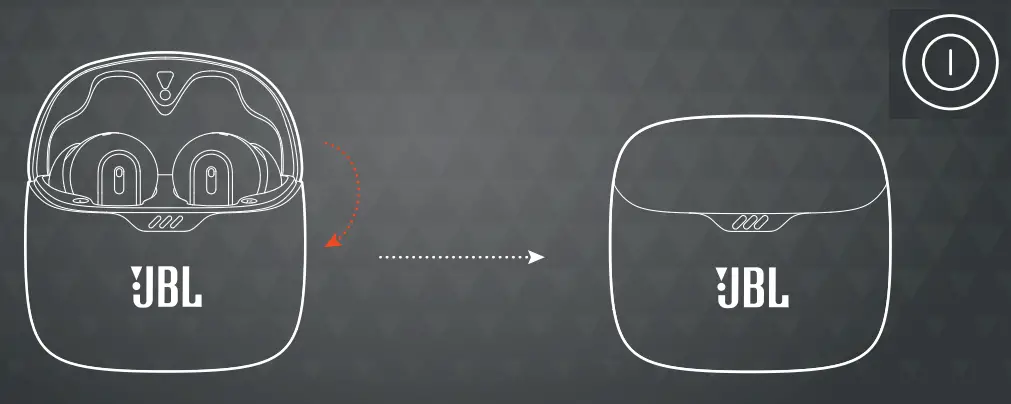

power off

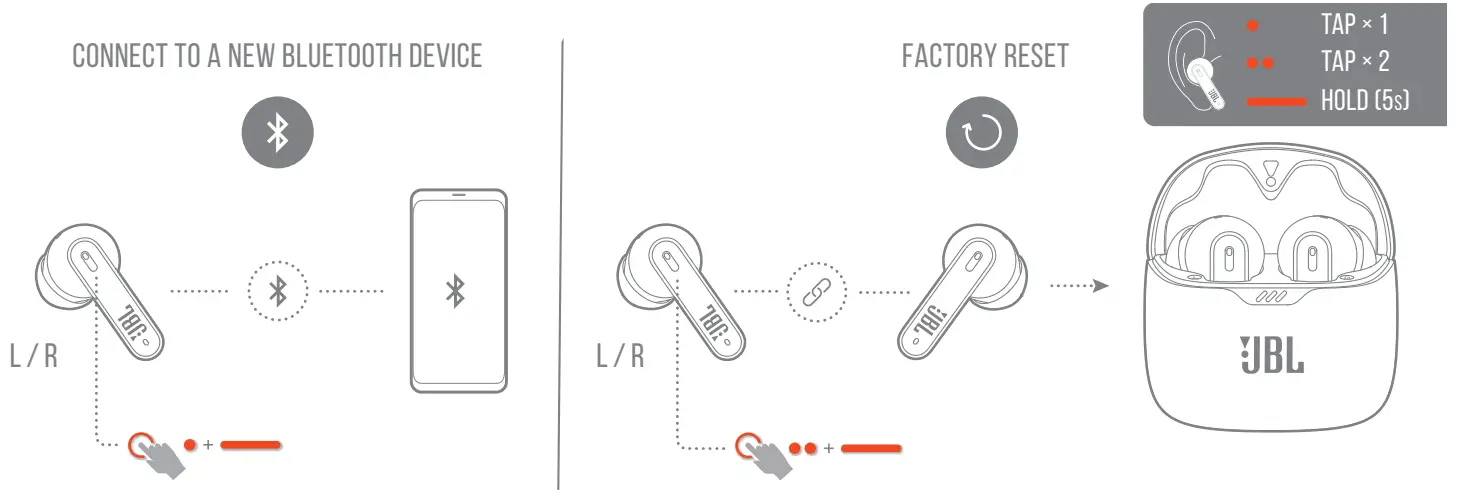

MANUAL SETUP

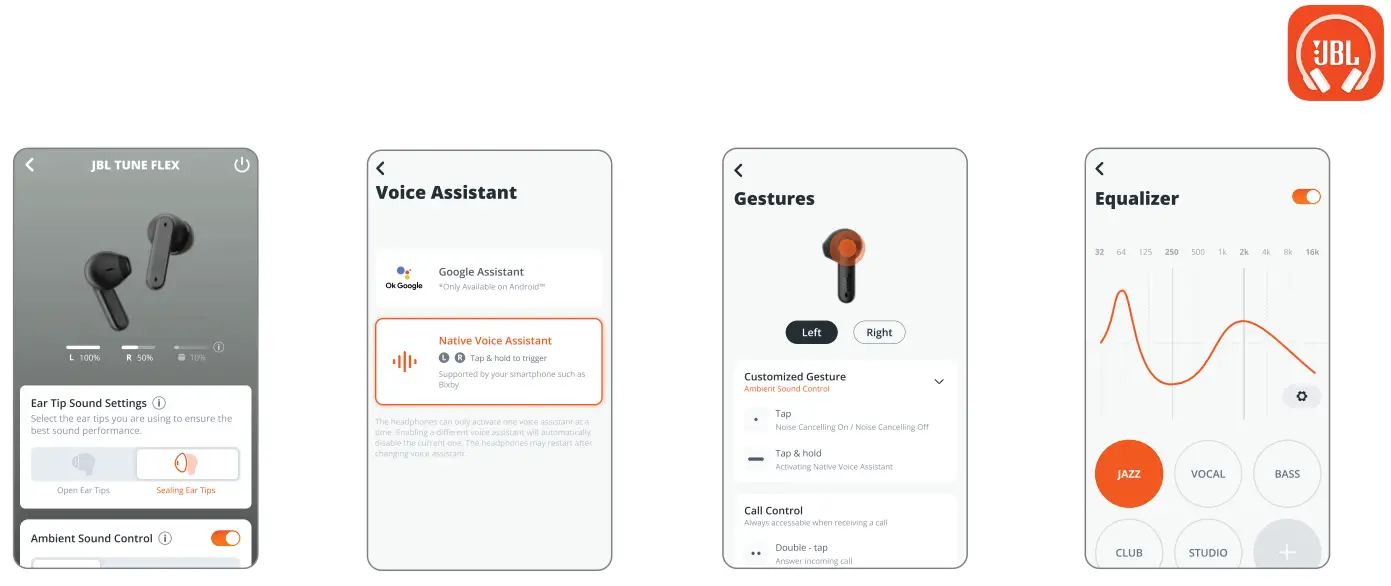

DO MORE WITH THE APP
CHARGING

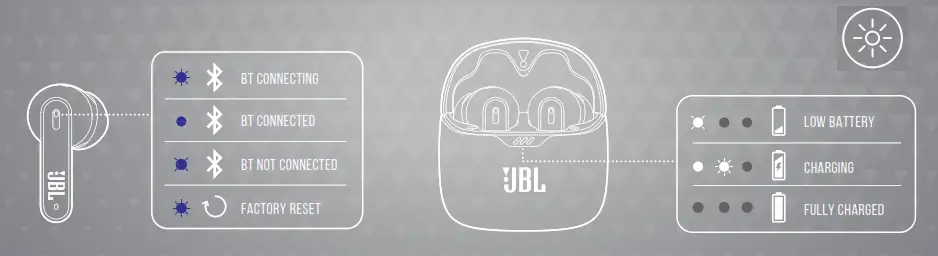

LED BEHAVIORS
TECH SPEC
TECH SPEC| Model: | TUNE FLEX |
| Driver size: | 12 mm/ 0.472” Dynamic Driver |
| Power supply: | 5V  1A |
| Earbud: | 4.8 g per pc (9.6 g combined)/ 0.0105822 lbs per pc (0.021 lbs combined) |
| Charging case: | 38.6 g/ 0.085 lbs |
| Earbud battery type: | Lithium-ion polymer (54 mAh/ 3.85 V) |
| Charging case battery type: | Lithium-ion polymer (570 mAh/ 3.85 V) |
| Charging time: | < 2 hrs from empty |
| Talk time: | 4.5 hrs |
| Music playtime with BT on and ANC off: | up to 8 hrs |
| Music playtime with BT on and ANC on: | up to 6 hrs |
| Frequency response: | 20 Hz – 20 kHz |
| Impedance: | 32 ohm |
| Sensitivity: | 108 dB SPL@1 kHz |
| Maximum SPL: | 92.5 dB |
| Microphone sensitivity: | -38 dBV/Pa@1 kHz |
| Bluetooth version: | 5.2 |
| Bluetooth profile version: | A2DP V1.3, AVRCP V1.6, HFP V1.7 |
| Bluetooth transmitter frequency range: | 2.4 GHz – 2.4835 GHz |
| Bluetooth transmitter power: | <10 dBm |
| Bluetooth transmitter modulation: | GFSK, π/4-DQPSK, 8DPSK |
| Maximum operation temperature: | 45 °C |
TO PROLONG BATTERY LIFESPAN, FULLY CHARGE AT LEAST ONCE EVERY 3 MONTHS. BATTERY LIFE VARIES BY USE AND SETTINGS.
WARNING
DO NOT ATTEMPT TO OPEN, SERVICE, OR DISASSEMBLE THE BATTERY | DO NOT SHORT CIRCUIT | MAY EXPLODE IF DISPOSED OF IN FIRE | RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE | DISPOSE OR RECYCLE USED BATTERIES ACCORDING TO THE INSTRUCTIONS
