more durable, efficient, beautiful
Glass Door Merchandisers
Super Deluxe Series
Model: TGF-35SD -N
| Project: | |
| Model #: | |
| Item #: | |
| Available W/H: | Qty: |
| Approval: | |
| AIA #: | SIS #: |
| CSI Section 11400 |
Swing Door Freezers
FEATURES & BENEFITS
Self-Cleaning Condenser
The accumulation of dust in the condenser can cause the failure or breakdown of refrigerators. Refrigerators run normally until they reach a certain level of accumulation. At some point, when they are over the limit, their performance drops quickly resulting in damage to, or disposal of the stored products inside. The Self-Cleaning Condenser device keeps the condenser clean and prevents system failure by automatically brushing daily.
Digital temperature control & monitor system
- Keeps food products safe by maintaining constant temperatures.
- Alarms that sound when doors are not sealed shut; protect against food spoilage that originates from cold air leaks.
- The early Warning Alarm program detects issues before a malfunction occurs.
- Digital display allows for easy monitoring.
- Programs interpret the condition of refrigeration systems by self-diagnosis.
- Rapid cool-down function (Turbo Freeze)
- The Smart defrost system will defrost as needed.
- Automatic evaporator fan motor delays.
- Keeps food products safe by maintaining constant temperatures.
- Alarms that sound when doors are not sealed shut; protect against food spoilage that originates from cold air leaks.
- The early Warning Alarm program detects issues before a malfunction occurs.
- Digital display allows for easy monitoring.
- Programs interpret the condition of refrigeration systems by self-diagnosis.
- Rapid cool-down function (Turbo Freeze)
- The Smart defrost system will defrost as needed.
- Automatic evaporator fan motor delays.
Hydrocarbon refrigerants (R-290)
With innovative and eco-friendly technology, Turbo Air brings you hydrocarbon refrigerators designed to meet DOE’s Energy Conservation Standards in 2017 and to use EPA’s
SNAP Program approved HC refrigerants.
Hydrocarbon refrigerants do not deplete the ozone layer and have a very low contribution to global warming (ODP-0, GWP-3).
Energy conserving fan control
Utilizing algorithmic air circulation for optimal temperature levels, our innovative fan control system conserves energy by at least 15% and increases compressor life by up to 30%.
No electrical cabinet heater is needed
Turbo Air is the first in the industry to replace a frame heater with a method of using compressor-produced heat. This eliminates any unnecessary Zenergy consumption while providing efficient freezing performance.
Shadow free advertising panel
Turbo Air is a pioneer in the refrigerator industry in applying special LED Light Guided Panels (LGP). LGP increases panel visibility and eliminates shadows, enhancing any store atmosphere with eye-catching effects. LED lighting offers 5 times longer lasting life than fluorescents and conserves energy as well.
High-density polyurethane insulation
The entire cabinet structure is foamed-in-place using high-density, HCFC-free polyurethane insulation.
Triple pane heated glass doors
Equipped with unique triple-pane heated glass doors which enhance energy efficiency by preventing heat transfers and minimizing condensation.
Lightweight door construction reduces door maintenance, and bushing wear, and facilitates smooth door opening.
LED interior lighting

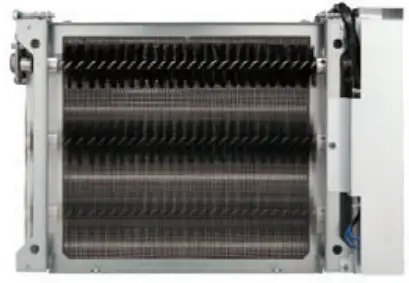

Patented Self-Cleaning Condenser
This product is equipped with a fine mesh filter to the front of the condenser to catch dust, and a rotating brush that moves up and down daily to remove excess buildup outward and away.
The freezer holds -10°F ~ 5°F for the best in frozen food preservation
2 & 3 Glass Door Freezers powered by 115V
Turbo Air’s 2 & 3 Glass Door Freezers are powered by 115V.
Not only is the 115V simple and easy to plug in and operate, it also saves customers over $1,000 in electrical line installation for 220V powered glass door freezers. This feature is proof of our dedication to energy efficiency and the environment.
| Model | Swing Door | CU./FT. | #of Shelves | HP | AMPS | Crated Weight (lbs.) | L x D x H†* (inches) |
| TGF-35SD -N | 2 | 28.44 | 8 | 4-Mar | 8.1 | 519 | 391/2 x 317/8 x 77 |
ELECTRICAL DATA
| Voltage | 115/60/1 |
| Plug Type | NEMA 5-20P |
| Full Load Amperes / LRA | 8.1 / 98 |
| Compressor HP | 4-Mar |
| Cord Length (ft.) | 7 |
| Refrigerant | R-290 |
DIMENSIONAL DATA
| # of Doors | 2 |
| Net Capacity (cu. ft.) | 28.44 |
| Ext. Length Overall (in.) | 391/2 (1004mm) |
| Ext. Depth Overall (in.)* | 317/8 (809mm) |
| Ext. Height Overall (in.)† | 77 (1956mm) |
| Int. Length Overall (in.) | 355/8 (904mm) |
| Int. Depth Overall (in.) | 271/2 (699mm) |
| Int. Height Overall (in.) | 603/8 (1535mm) |
| # of Shelves | 8 |
| Shelf Size (L x D) (in.) | 17 x 221/2 |
| Net Weight (lbs.) | 454 |
| Gross Weight (lbs.) | 519 |
Design and specifications are subject to change without notice.
Actual shipping weight may differ due to extra packing materials for product protection.
* Depth does not include 2-1/4” (57mm) for the door handle.
† Height does not include 2-1/2” (63mm) for leg height.
WARRANTY 3 Year Parts and Labor Warranty Additional 4-Year Warranty on Compressor
STANDARD FEATURES
- Anti-corrosion coated evaporator
- Door locks standard
Two color options available (standard): Super Deluxe series comes in a white cabinet (W), a black cabinet with black color trim (B).
OPTIONAL ACCESSORIES
- 4” caster, ½” diameter & 13 TPI: G8F6500101 (non-brake), G8F6500201 (w/ brake)
- Additional PE coated wire shelf: P0178F0100(Left), P0178F0110(Right)
- Price tag channel: P0122K5500 (15-1/2” L)
- Sign panel (blank): P0145A0921

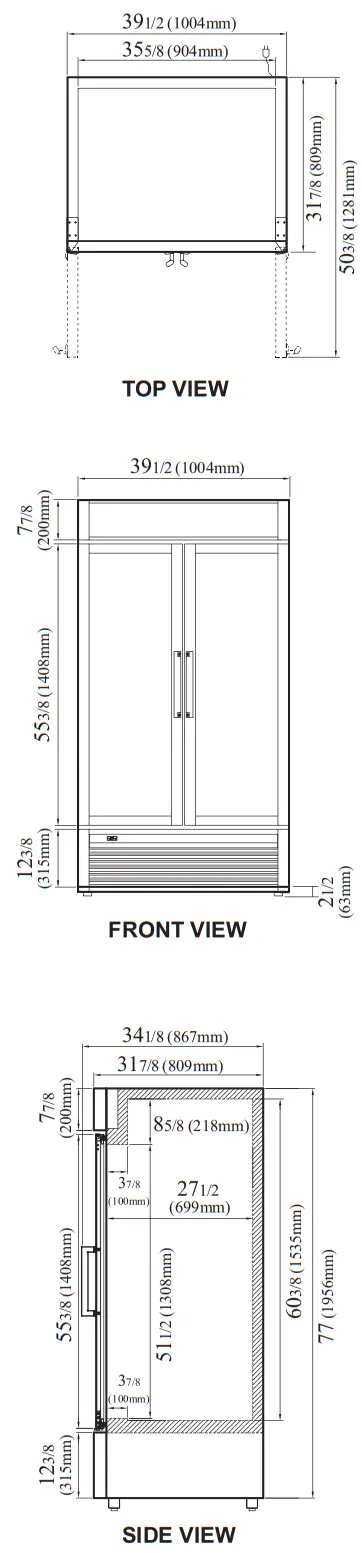

PLAN VIEW
- Turbo Air: 800-627-0032
- Warranty: 800-381-7770
- GK: 800-500-3519
- AC: 888-900-1002
Continued product development may necessitate specification changes without notice.
4184 E. Conant St.
Long Beach, CA 90808
Tel. 310-900-1000
Fax. 310-900-1077
