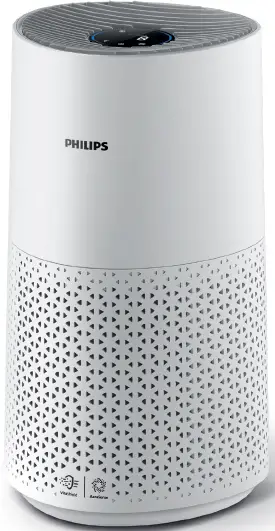

PHILIPS AC1711 Air Purifier

Safety

Read this user manual carefully before you use the appliance, and save it for future reference.

Danger

• Do not clean the appliance with water, any other liquid, or a (flammable) detergent, nor let them enter the appliance, to avoid electric shock and/or a fire hazard.
• Do not spray any flammable materials such as insecticides or fragrance around the appliance.

Warning

• Check if the voltage indicated on the appliance corresponds to the local power voltage before you connect the appliance.
•  If the power cord is damaged, you must have it replaced by Philips, a service center authorized by Philips, or similarly qualified persons in order to avoid a hazard.
•  Do not use the appliance if the plug, the power cord, or the appliance itself is damaged.
•  This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
•  Children shall not play with the appliance.
•  Cleaning and maintenance shall not be made by children without supervision.
•  Do not block the air inlet and outlet, e.g. by placing items on the air outlet or in front of the air inlet.
•  Make sure that foreign objects do not fall into the appliance through the air outlet.

Caution

• This appliance is not a substitute for proper ventilation, regular vacuum cleaning, or use of an extractor hood or fan while cooking.
• Always place and use the appliance on a dry, stable, level, and horizontal surface.
•  Leave at least 20cm free space around the appliance and leave at least 30cm free space above the appliance.
• Do not sit or stand on the appliance. Do not place anything on top of the appliance.
• Do not place the appliance directly below an air conditioner to prevent condensation from dripping onto the appliance.
• Only use the original Philips filters specially intended for this appliance. Do not use any other filters.
•  Combustion of the filter may cause irreversible human hazard and/or jeopardize other lives. Do not use the filter as fuel or for similar purpose.
•  Avoid knocking against the appliance (the air inlet and outlet in particular) with hard objects.
• Do not insert your fingers or objects into the air outlet or the air inlet to prevent physical injury or malfunctioning of the appliance.
• Do not use this appliance when you have used indoor smoke-type insect repellents or in places with oily residues, burning incense, or chemical fumes.
• Do not use the appliance near gas appliances, heating devices or fireplaces.
•  Always unplug the appliance when you want to move, clean appliance, replace the filter or carry out other maintenance.
• The appliance is only intended for household use under normal operating conditions.
• Do not use the appliance in wet surroundings or in surroundings with high humidity or high ambient temperatures, such as the bathroom, toilet, or kitchen, or in a room with major temperature changes.
•  The appliance does not remove carbon monoxide (CO) or radon (Rn). It cannot be used as a safety device in case of accidents with combustion processes and hazardous chemicals.

Electromagnetic fields (EMF)
This Philips appliance complies with all applicable standards and regulations regarding exposure to electromagnetic fields.

Recycling
This symbol means that this product shall not be disposed of with normal household waste (2012/19/EU). Follow your country’s rules for the separate collection of electrical and electronic products. Correct disposal helps prevent negative consequences for the environment and human health.

Your air purifier
Congratulations on your purchase, and welcome to Philips!
To fully benefit from the support that Philips offers, register your product at www.philips.com/welcome.

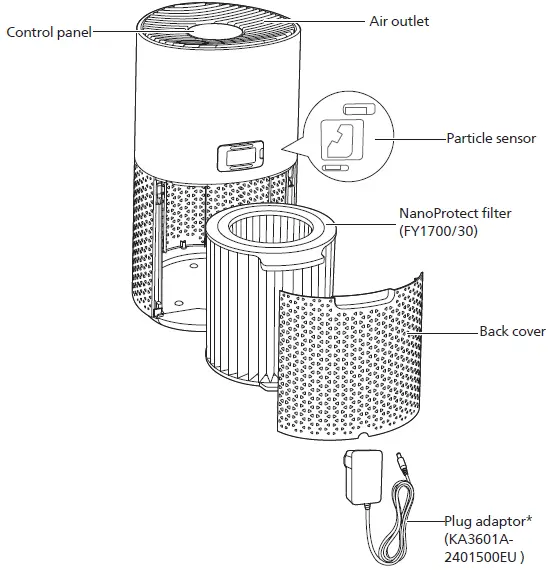

Product overview

• Please use only the plug adaptor provided

Controls overview

Control buttons

	Light on/off button		Power on/off button
	Mode switch button

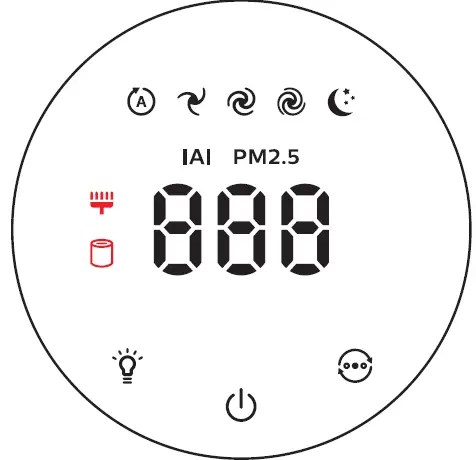

Display panel

	Auto mode		Speed 1
	Speed 2		Turbo mode
	Sleep mode		PM2.5 display
	Indoor Allergen Index display		Filter cleaning alert
	Filter replacement alert

 Getting started

Installing the filter
Remove all packaging of the filter before first use.
Note: Make sure the air purifier is unplugged from the electrical outlet before installing the filter.

1.  Pull the back cover and remove it from the appliance.
2.  Pull the filter from the appliance.
3.  Remove all packaging materials of the air purification filter.
4. Put the filter back into the appliance.
5. Reattach the back cover.

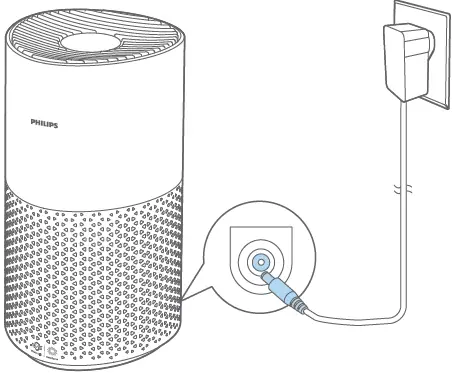

Connecting power
Note: Risk of electric shock! When you unplug the AC power cord, always pull the plug from the socket. Never pull the cord.Connect the power adapter to:

•  First, the power socket on the appliance.
•  Then, the wall outlet.

  Using the air purifier

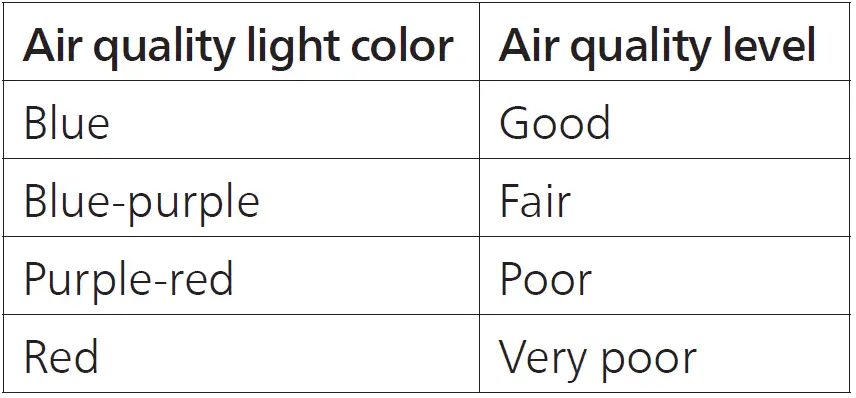

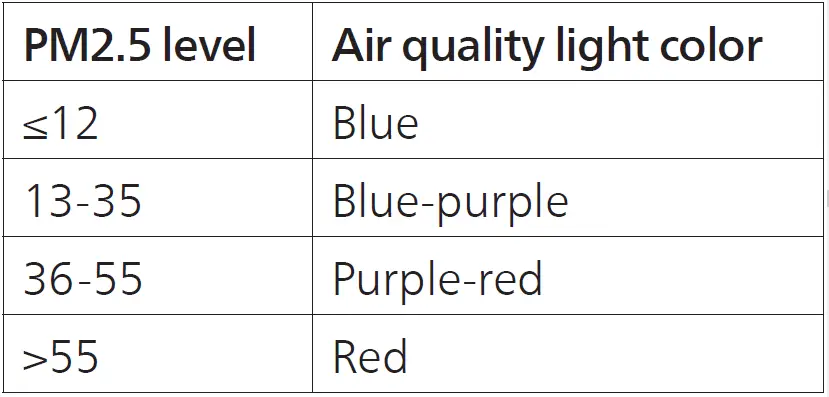

Understanding the air quality light
The air quality light automatically goes on when the air purifier is switched on, and lights up all colors in sequence. After approximately 30 seconds, the particle sensor selects the color that corresponds to the surrounding air quality of airborne particles. The color of the air quality light is determined by the highest index among PM2.5 and IAI readings.PM2.5
AeraSense sensing technology accurately detects and quickly responds to even the slightest particle change in the air. It provides you with reassurance with real-time PM2.5 feedback. Most of the indoor air pollutants fall under PM2.5 – which refers to airborne >55 Red particle pollutants smaller than 2.5 micrometers. Common indoor sources of fine particles are tobacco smoke, cooking, burning candles. Some airborne bacteria and the smallest mold spores, pet allergen and dust mite allergen particles also fall under PM2.5.

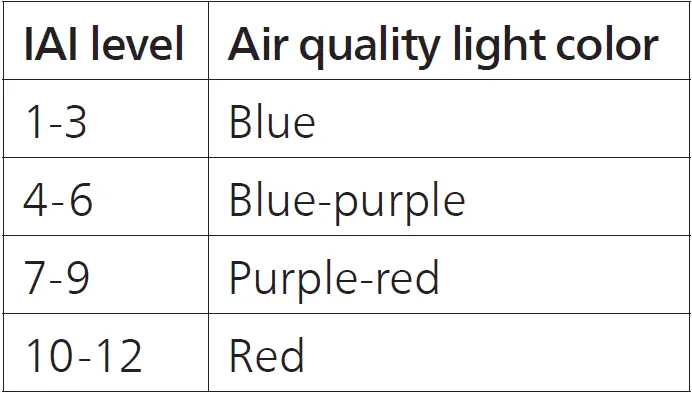

IAI
The professional-grade AeraSense sensor detects the level of indoor air allergen and with numerical feedback from 1 to 12 the potential risk level of indoor air allergens can be displayed. 1 indicates best air quality.

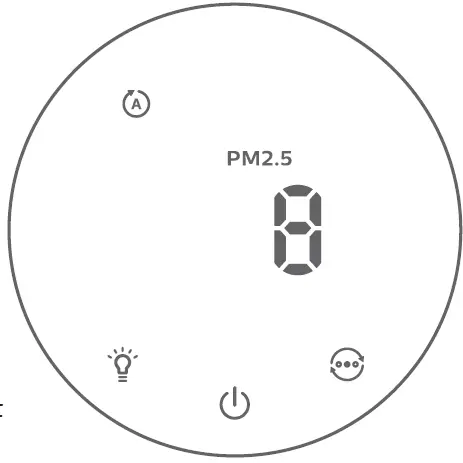

Turning on and off
Note:

•  For optimum purification performance, close doors and windows.
• Keep curtains away from the air inlet or air outlet.

1.  Put the plug of the air purifier in the power socket.
2.  Touch to switch on the air purifier.
   • The air purifier beeps.
   •  The “ ” displays on the screen during warming up. Then the air purifier shows the PM2.5/IAI level after measuring the air quality.
   • The air purifier operates in the auto mode with IAI displayed on the screen.
3. Touch and hold the   button for 3 seconds to switch off air purifier.

Note: If the air purifier stays connected to the electrical outlet after turning OFF, the air purifier will operate under the previous settings when turned ON again.

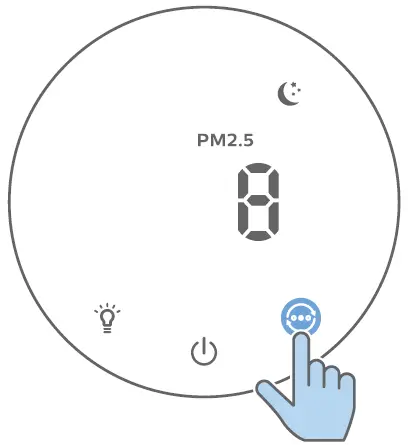

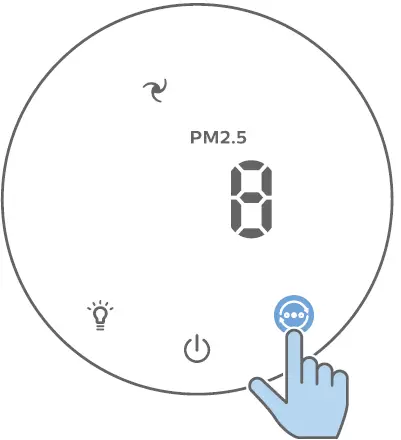

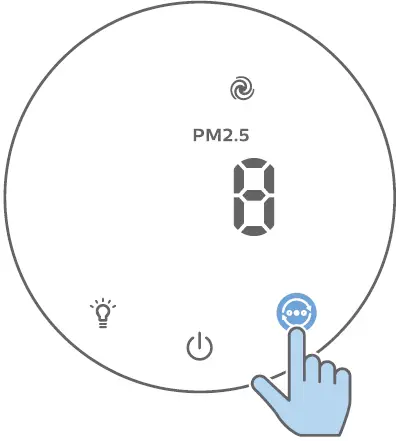

Changing the mode setting

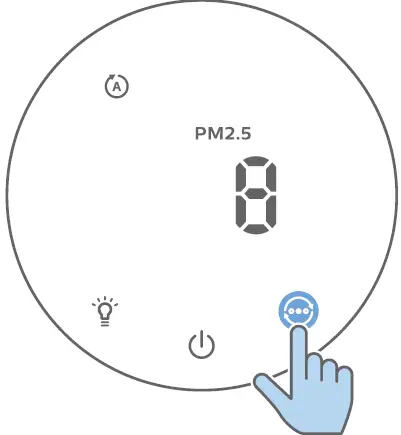

You can choose Auto mode, Speed 1, Speed 2, Turbo mode or Sleep mode by touching the button.

• Auto mode ( ): The air purifier automatically adjusts the fan speed in accordance with the ambient air quality.

• Manual speed ( & ): In manual mode, the air purifier operates on speed 1 or speed 2.

• Turbo mode ( ): The air purifier operates on the highest speed.

•  Sleep mode ( ): The air purifier operates quietly at a low speed. After 3 seconds, the screen lights off.

Switching the display indicator
Note: The appliance displays PM2.5 level by default.

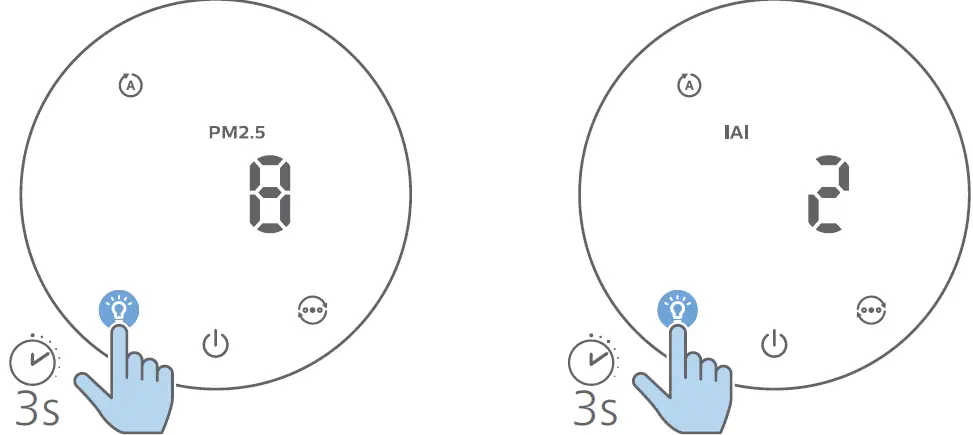

•  Touch and hold button for 3 seconds to switch display indicator among IAI / PM2.5.

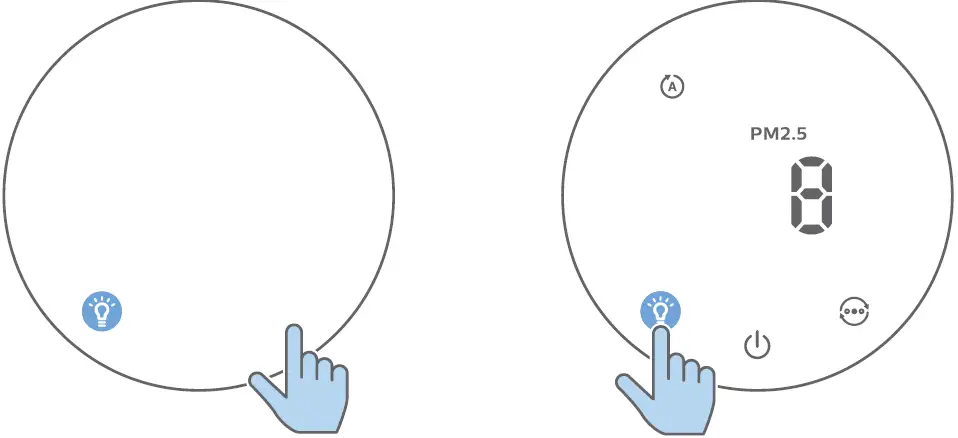

Using the light on/off function
With the light sensor, the control panel can automatically turn on, turn off or dim according to the ambient light. The control panel will be off or dim when the ambient light is dark. You can touch any button to wake up all lights. Then, if no further operation, all lights will be off or dim again to match with the ambient light. You can touch the button manually to turn off all lights and the control panel. Touch any button to wake up all lights.

 Cleaning and maintenance

Note:

•  Always unplug the appliance before you clean it.
•  Never immerse the appliance in water or any other liquid.
• Never use abrasive, aggressive, or flammable cleaning agents such as bleach or alcohol to clean any part of the appliance.
• Never use any liquids (including water) to clean the filter.
• Do not attempt to clean the particle sensor with a vacuum cleaner.

Cleaning schedule

Cleaning the body of the air purifier
Regularly clean the inside and outside of the air purifier to prevent dust from collecting.

• Use a soft, dry cloth to clean both the interior and exterior of the air purifier and the air outlet.

Cleaning the particle sensor
Clean the particle sensor every 2 months for optimal functioning of the appliance.

Note:

• If the air purifier is used in a dusty environment, it may need to be cleaned more often.
• If the humidity level in the room is very high, condensation may develop on the particle sensor and the air quality light may indicate a more poor air quality even though the air quality is actually good. If this occurs, clean the particle sensor.

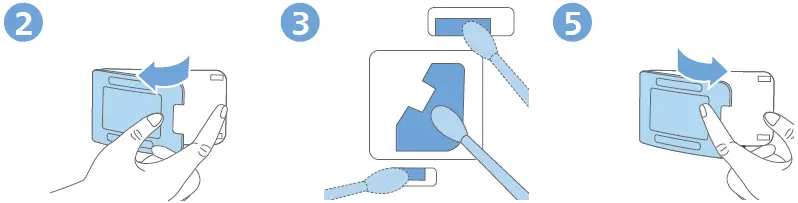

1. Switch off the air purifier and unplug from the power socket.
2. Open the air quality sensor cover.
3. Clean the particle sensor with a damp cotton swab.
4. Dry all parts thoroughly with a dry cotton swab.
5. Close the air quality sensor.

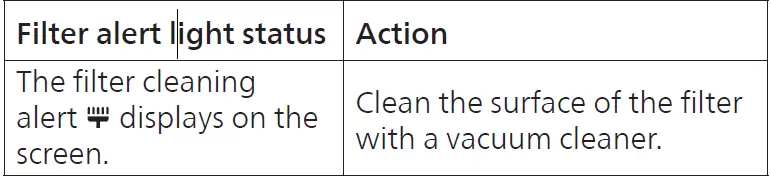

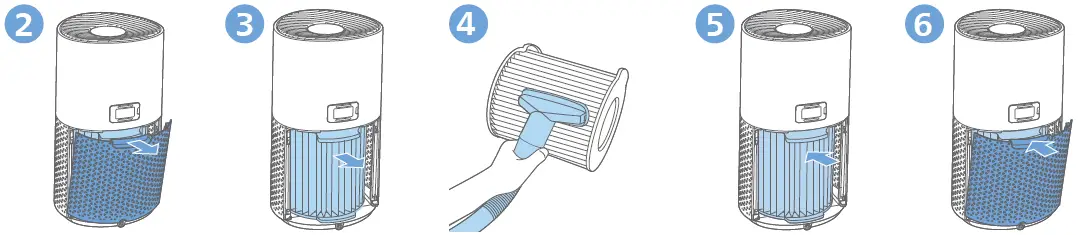

Cleaning the surface of the filter

1. Switch off the air purifier and unplug from the power socket.

2. Pull the back cover and remove it from the appliance.
3. Pull the filter from the appliance.
4. Clean the surface of the filter with a vacuum cleaner.
5. Put the filter back into the appliance.
6.  Reattach the back cover.
7. Put the plug of the air purifier in the power socket.
8. Touch the button to switch on the appliance.
9.  Touch and hold the and button for 3 seconds to  reset the filter cleaning time.
10.  Wash your hands thoroughly after cleaning the filter.

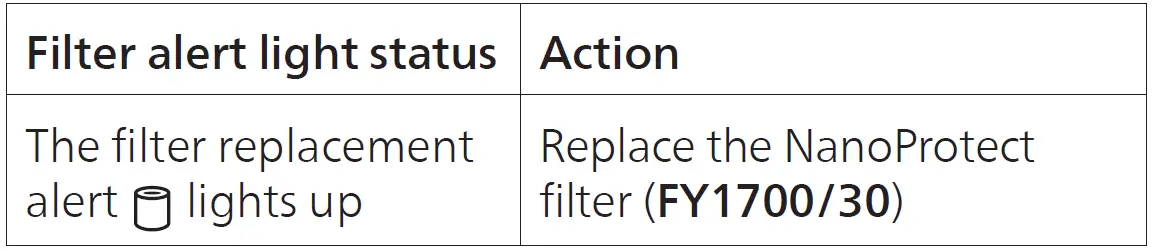

Replacing the filter

Understanding the healthy protection lock
This air purifier is equipped with a filter replacement indicator to make sure that the air purification filter is in optimal condition when the air purifier is operating. When the filter need to be replaced, the filter replacement alert lights up red. If the filter is not replaced in time, the air purifier will stop operating and automatically lock to protect the air quality in the room. Replace the filter as soon as possible.

Note:

• The filter is not washable or reusable.
• Always turn off the air purifier and unplug from the electrical outlet before replacing the filters.

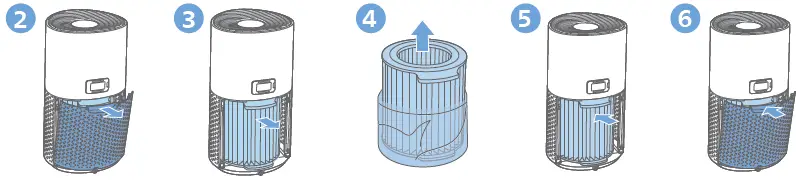

1. Switch off the air purifier and unplug from the power socket.

2. Pull the back cover and remove it from the appliance.
3. Pull the filter from the appliance.
4.  Remove all packaging materials of the new filter.
5. Put the new filter into the appliance.
6. Reattach the back cover.
7. Put the plug of the air purifier in the power socket.
8. Touch the button to switch on the appliance.

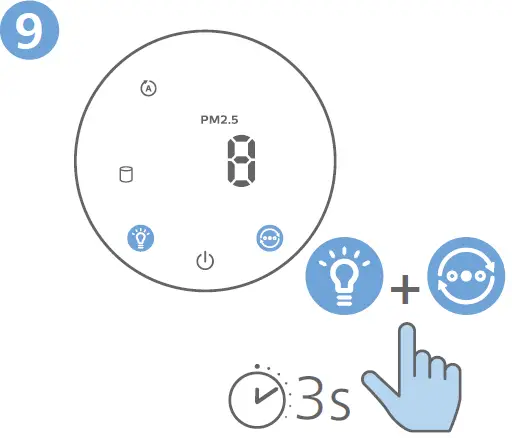

9. Touch and hold the and button for 3 seconds to reset the filter lifetime counter.
10.  Wash your hands thoroughly after replacing the filter.

Note: Do not smell the filter as it has collected pollutants from the air.

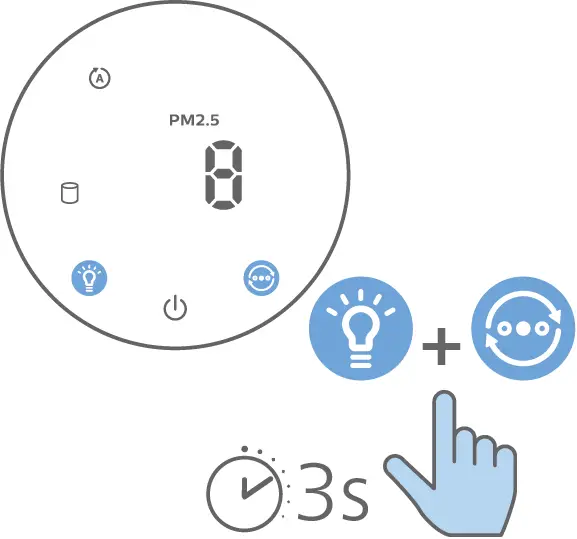

Filter reset
You can replace the filter even before filter replacement alert ( ) displays on the screen. After replacing a filter, you need to reset the filter lifetime counter manually.

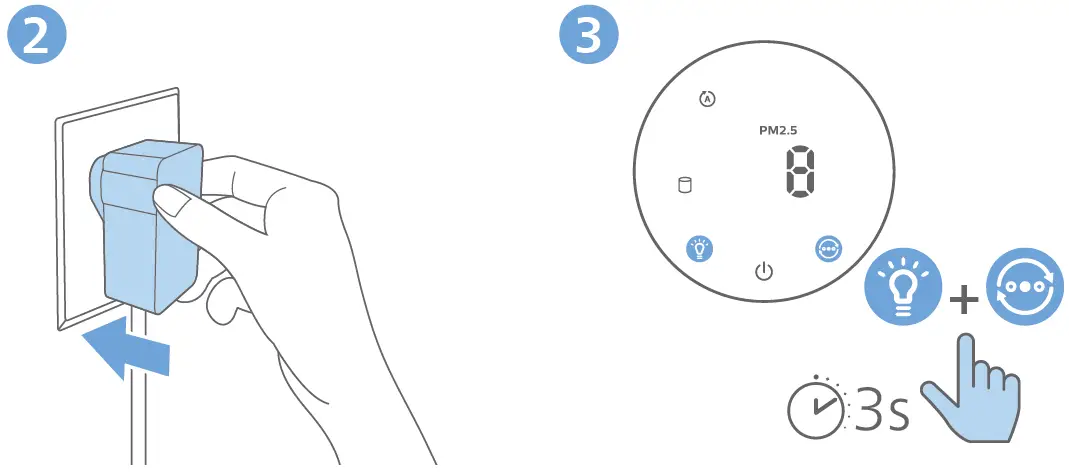

1.  Touch the power button for 3 seconds to turn off the appliance and unplug  from power socket.
2. Put the power plug in the power socket.
3. Within 15 seconds after power on, touch and hold and button for 3 seconds to reset the filter lifetime counter.

Storage

1.  Turn off the air purifier and unplug from the power socket.
2. Clean the air purifier, particle sensor and the surface of the filter (see chapter “Cleaning and maintenance”).
3. Let all parts air dry thoroughly before storing.
4.  Wrap the filter in air tight plastic bags.
5.  Store the air purifier, filter in a cool, dry location.
6. Always thoroughly wash hands after handling the filter.

Troubleshooting

This chapter summarizes the most common problems you could encounter with the appliance. If you are unable to solve the problem with the information below, contact the Consumer Care Center in your country.

 Guarantee and service

If you need information or if you have a problem, please visit the Philips website at www.philips.com or contact the Philips Consumer Care Center in your country (you can find its phone number in the worldwide guarantee leaflet). If there is no Consumer Care Center in your country, go to your local Philips dealer.

Order parts or accessories
If you have to replace a part or want to purchase an additional part, go to your Philips dealer or visit www.philips.com/support. If you have problems obtaining the parts, please contact the Philips Consumer Care Center in your country (you can find its phone number in the worldwide guarantee leaflet).
© 2021 Philips Domestic Appliances Holding B.V. All rights reserved.
AC1711_EU_UM_v1.0 (28/12/2021)
