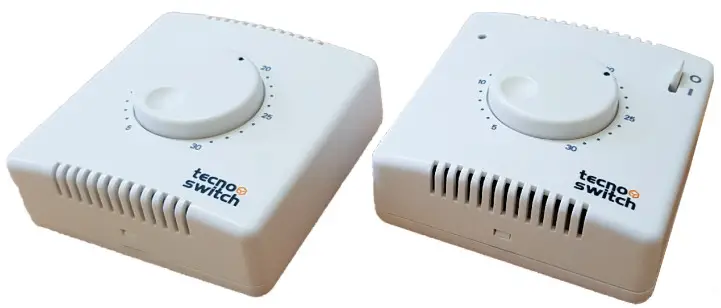

TE300ME Mechanical Thermostat
User Guide
CONFORME ALLE NORME
IN CONFORMITY WITH NORMATIVES
2014/35/UE, 2004/108/EC, EN 60730-1, EN 60730-2-9
Wall mounted
Fireproof ABS case
Unipolar thermostat with 1 changeover NO/NC
Device class: 1
Setting range: +5- +30 °C
Differential: <1K
Contact rating: 2(1)A – 250 Vac
Sensitive element: unipolar gas filled bellows
Operating mode: Heating/ Cooling
This thermostat is suitable for the thermoregulation of heating or air conditioning systems in environments such as homes, schools, offices, workshops, etc.
| CODICE | CONTATTI | FUNZIONI | PESO |
| CODE | CONTACTS | FUNCTIONS | WEIGHT |
| gr | |||
| TE300ME | NO+NC | 110 | |
| TE301ME | NO+NC | lnterruttore ON / OFF + spia luminosa – ON / OFF switch + load status light | 110 |
INSTALLATION
For correct operation, the thermostat must be installed about 1.5 m from the floor, away from heat sources, windows and doors.

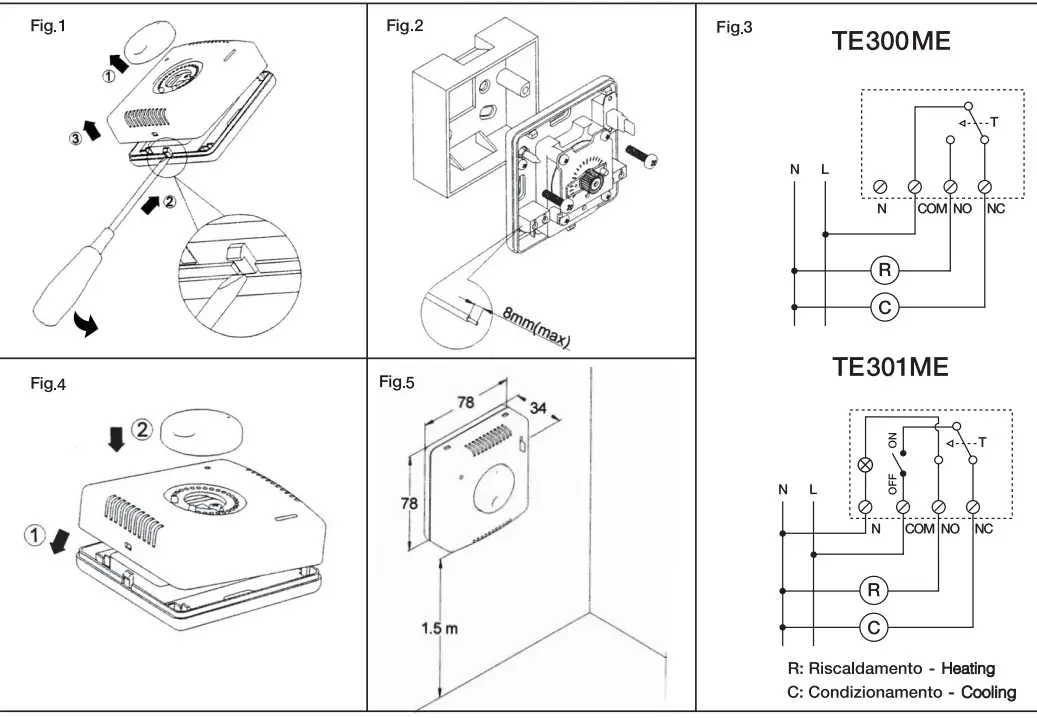

- Remove the adjustment knob and the front cover by levering with a screwdriver in the appropriate slot. (Fig.1)
- Pass the electrical cables through the holes at the bottom of the base and install it the to the wall. (Fig.2)
- Make the electrical connections, following the connection diagram according to your model. (Fig.3)
- Assemble the front cover and adjustment knob previously removed. (Fig.4, Fig.5)
NOTE: For the TE301 ME model, the indicator light turns on simultaneously with the activation of the output load.

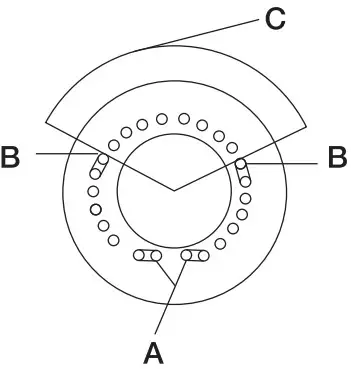

KNOB ROTATION LIMITATION
It is possible to reduce the knob turning field as follows:
- Remove the knob;
- Extract the plastic pins (A) and insert them to min and max required temperature value holes (B);
- In this way the rotation field has been reduced, as in the indicated arc (C).
tecnoswitch.com
Via P. Leone Dehan, 99/105
76123 Andria (BT) ITALY
arealed.it
tel (+39) 0883 555323
fax (+39) 0883 555323
REV. 42.20
