QUICK REFERENCE GUIDE > VB30SPEX1

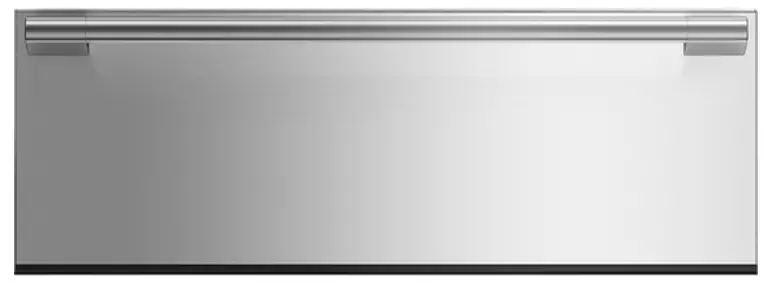

Vacuum Seal Drawer, 30″
Series 9 | Professional
Stainless Steel
Prepares food for sous vides cooking, with vacuum sealing for marinating, food storage, and portioning and resealing.
- Effortless preparation for sous vide cooking
- Three levels of vacuum and heat sealing for food storage, marinating or portioning
- Part of our suite of companion products, designed to match aesthetically for flexible configurations
- Intuitive touch controls for ease of use

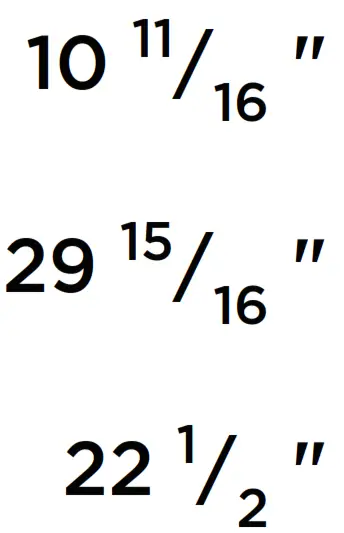

DIMENSIONS
| Height |  |
| Width | |
| Depth |
FEATURES & BENEFITS
Complementary design
Designed to match the Fisher & Paykel family of appliances, the vacuum Seal Drawer is the ideal companion product for our Professional style ovens.
Three levels of vacuum and heat sealing
Vacuum seal food to intensify flavors, infuse marinades and retain freshness. Effortlessly prepare food for sous vide cooking in optimal conditions.
Fresher food for longer
Vacuum sealing creates ideal conditions for longer food shelf life and storage. Lack of air exposure hinders the growth of bacteria and mold, preventing freezer burn and protecting your food.
Easy to use
Soft-close with intuitive touch controls, our Vacuum Seal Drawer comes with a built-in accessory drawer for easy storage of vacuum bags and more.
Easy to clean
The stainless steel interior can be wiped down with a damp cloth, while an anti-fingerprint coating protects the stainless steel door panel from water, oil, dust, and fingerprints.
Reduce food waste
Our Vacuum Seal drawers extend the lifespan of food by removing excess air, which is the prime reason for spoilage. Vacuum sealing allows you to buy food in bulk and safely seal it for longer shelf life. Our food-grade, BPA-free bags are an excellent storage option — these can be re-used if sealed and cut appropriately.
SPECIFICATIONS
Accessories
| External vacuuming accessory | Adapter, stopper, and tube |
| Large size BPA-free vacuum | 50 bags, Part 793034 |
| Small size BPA-free vacuum | 50 bags, Part 793033 |
Capacity
| Maximum vacuum seal bag | 9 |
| Storage drawer | • |
| Usable capacity | 0.3cu ft |
| Usable height | 3 <sup>3</sup>⁄<sub>8</sub> |
Cleaning
| Easy clean glass lid | • |
| Easy clean stainless steel | • |
| Removable sealing bar and | • |
Controls
| Audio feedback | • |
| Intuitive capacitive touch | • |
| Maintenance and moisture | • |
| Standby mode | • |
Performance
| External vacuuming | • |
| Prepare food for sous-vide | • |
| Pump power | 150W |
| Pump pressure | 10 bar |
| Vacuum levels | 3 |
| Vacuum sealing levels | 3 |
Power requirements
| Amperage | 10A |
| Maximum power | 320W |
| Power cord length | 70 |
| Power outlet | 3-prong grounding-type |
| Supply frequency | 60Hz |
| Supply voltage | 110V |

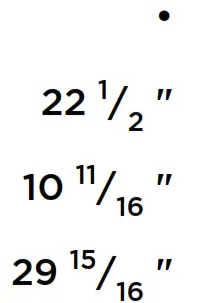

Product dimensions
| Adjustable front door panel to |  |
| Depth | |
| Height | |
| Width |
Safety
| BPA-free vacuum seal bags | 100 bags included |
| Full extension telescopic | • |
Warranty
| Parts and labor | 2 years |
| SKU | 82122 |
TEST The product dimensions and specifications in this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020
