Portofino 70cm Frost Free Fridge Freezer
User Manual

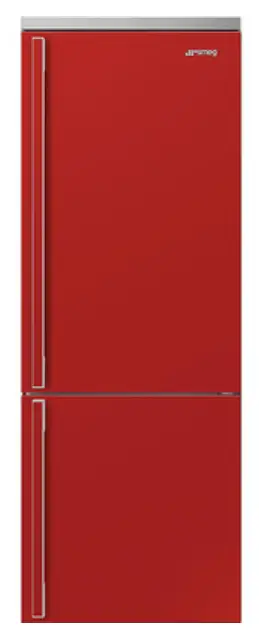

FA490RR5 Portofino 70cm Frost Free Fridge Freezer
Refrigerator, Portofino, Bottom Mount, Free Standing, Hinge position: Right, Red, Total No Frost – Double Cooling system, E
TYPE
Product Family: Refrigerator
- Installation: Free Standing
- Category: Bottom Mount
- Cooling type: Total No Frost – Double
Cooling system - Defrost: Automatic
- Hinge position: Right
- Hinge type: Standard
- EAN code: 8017709297398
AESTHETICS
Colour: Red
- Aesthetics: Portofino
- Design: Flat
- Material: Metal sheet
- Handle type: Fixed
- Handle: External
- Handle colour: Red
- Side Material: Steel
- Side colour: Red
- Display: 7 segments
- Display Position: Interior
- Door shelves profile colour: Silver
- Drawers profile colour: Silver
- Colour of glass shelf profile: Silver
REFRIGERATOR COMPARTMENT FEATURES
No of adjustable shelves: 3
- Number of fruit and vegetable drawers: 1
- Type of crisper/vegetable drawers cover: On sliding rails
- Type of adjustable shelves: Glass
- Crisper Cover: Yes
- Type of crisper/vegetable drawers cover: Glass
- Life Plus zone-0° C: 0°C
- Internal light in the fridge: Yes
- Type of internal light (fridge): LED
REFRIGERATOR INNER DOOR
A number of adjustable door shelves: 3
- No. of bottle shelves: 1
OTHER REFRIGERATOR FEATURES
MultiFlow: Yes
- Fan: Yes
- Ionizer: Yes
FREEZER COMPARTMENT FEATURES
A number of drawers: 2
- No. of shelves: 2
- Type of Shelves: Glass
- No. of compartments with flap: 1
OTHER FREEZER FEATURES
Manual ice maker: Yes
- Ice maker: Manual
- Fast freezing compartment: Yes
OTHER TECHNICAL FEATURES
Functions display Fast freezing, ECO, and Temperature alarm
- Fast freezing button: Yes
- Temperature alarm lamp: Yes
- Door open alarm: Acoustic and visual
- Temperature Alarm: Yes
- Type of temperature control: Electronic
- No. of compressors: 1
- Type of compressor: Variable Speed Compressor
PERFORMANCE/ENERGY LABEL NEW
Annual energy consumption: 285 KWh/year
- Energy efficiency class: E
- Total volume: 481 l
- Some of the volumes of the frozen compartment(s): 137 l
- Some of the volumes of the chill compartment(s) and the unfrozen compartment(s): 344 l
- Airborne acoustical noise emission class: C
- Thaw time: 14 h
- 4 star – Freezing capacity: 8 Kg/24h
- Climatic class: SN, N, ST, T
- EEI: 99 %
ELECTRICAL CONNECTION
Nominal power: 127 W
- Voltage (V): 220-240 V
- Frequency (Hz): 50/60 Hz
- Power supply cable length: 180 cm

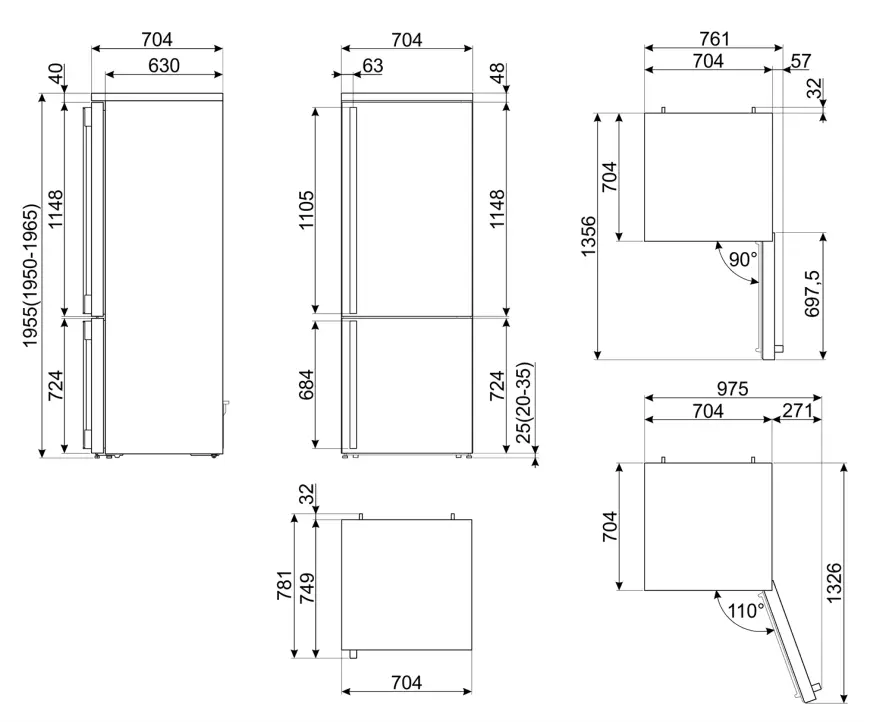

LOGISTIC INFORMATION
Dimensions: 1955x704x704 mm
- Width (mm): 704 mm
- Product width with maximum doors opening: 975 mm
- Product Height with feet: 1955 mm
- Depth without handle: 704 mm
- Product depth with handle: 749 mm
- Product depth with doors open at 90°: 1356 mm
- Spacer depth: 32 mm
- Net weight (kg): 120.000 kg
